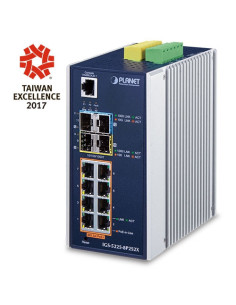

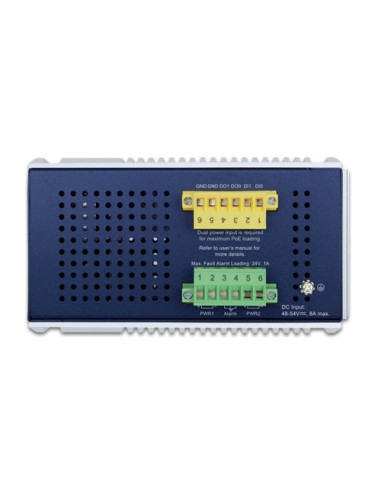

PLANET IGS-6329-8UP2S4X Industrial L3 8-Port 802.3bt PoE + 2-Port 1G/2.5G SFP + 4-Port 10G SFP+ Managed Ethernet Switch

IGS-6329-8UP2S4X
*** Out of stock ATM, Available On Backorder ***
$1,639.00
Tax included

IGS-6329-8UP2S4X

Outstanding 802.3bt PoE++ Solution for Heavy Industrial Environment

With EN 61000-6-2 and 61000-6-4 Heavy Industrial EMC, and railway EN 50121-4 certified design, and complying with the IEEE 802.3bt PoE++ technology, PLANET IGS-6329-8UP2S4X provides non-stop data communication and reliable PoE injection, even with noise interferences coming from the heavy industrial field applications.

Complying with the IEEE 802.3bt Power over Ethernet Plus Plus technology, PLANET IGS-6329-8UP2S4X L3 Industrial Managed PoE++ Switch series features eight 10/100/1000BASE-T 802.3bt PoE++ ports with each port powering up to 95 watts, two 100/1000/2500BASE-X SFP and up to four 10G SFP+ ports interfaces in a rugged IP30 metal case for stable operation in heavy industrial demanding environments. It supports rich PoE operation modes including 90-watt 802.3bt type-4 PoE++ ports, 95-watt PoH (Power over HD-BASE-T) mode and 4-pair force mode to solve the incompatibility of non-standard 4-pair PoE PDs in the field.

Being able to operate under wide temperature range from -40 to 75 degrees C, the IGS-6329 PoE++ Switch series can be placed in almost any difficult environment. The IGS-6329 PoE++ Switch series also allows either DIN rail or wall mounting for efficient use of cabinet space.



PLANET IGS-6329-8UP2S4X Industrial L3 8-Port 10/100/1000T 802.3bt PoE + 2-Port 1G/2.5G SFP + 4-Port 10G SFP+ Managed Ethernet Switch

802.3bt PoE++ – 90~95-watt Power over 4-pair UTP Solution

As the IGS-6329 PoE++ Series adopts the IEEE 802.bt PoE++ standard and PoH technology, it is capable of sourcing up to 95 watts of power by using all the four pairs of standard Cat5e/6 Ethernet cabling to deliver power and full-speed data to each remote PoE compliant powered device (PD). It possesses the power capacity that is triple than the conventional 802.3at PoE+ and is an ideal solution to satisfy the growing demand for higher power consuming network PDs, such as:

  • PoE PTZ speed dome cameras
  • Network devices
  • Thin clients
  • AIO (all-in-one) touch PCs, point of sale (POS) and information kiosks
  • Remote digital signage displays
  • PoE lightings



802.3bt PoE++ and Advanced PoE Power Output Mode Management

To meet the demand of various powered devices consuming stable PoE power, the IGS-6329 PoE++ Switch series provides five different PoE power output modes for selection.

90W 802.3bt PoE++ Power Output Mode

95W UPOE/PoH Power Output Mode

60W Force Power Output Mode

30W End-span PoE Power Output Mode

30W Mid-span PoE Power Output Mode

Convenient and Smart ONVIF Devices with Detection Feature

PLANET has newly developed an awesome feature -- ONVIF Support -- which is specifically designed for co-operating with video IP surveillances. From the IGS-6329 PoE++ Switch series GUI, clients just need one click to search and show all of the ONVIF devices via network application.

In addition, clients can upload floor plans to the switch, allowing to locate surveillance devices for easier inspection and planning. Moreover, clients can get real-time surveillance’s information and online/offline status, and also allows cameras PoE reboot control from GUI.

Intelligent Alive Check for Powered Device

The IGS-6329 PoE++ Series can be configured to monitor connected PD’s status in real time via ping action. Once the PD stops working and responding, the IGS-6329 PoE++ Series will recycle the PoE port power and bring the PD back to work. It also greatly enhances the reliability in that the PoE port will reset the PD power, thus reducing administrator’s management burden.

PoE Schedule for Energy Savings

Under the trend of energy savings worldwide and contributing to environmental protection on the Earth, the IGS-6329 PoE++ Series can effectively control the power supply besides its capability of giving high watts power. The built-in “PoE schedule” function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals and it is a powerful function to help SMBs or enterprises save power and money.

Scheduled Power Recycling

The IGS-6329 PoE++ Series allows each of the connected PoE IP cameras or PoE wireless access points to reboot at a specific time each week. Therefore, it will reduce the chance of IP camera or AP crash resulting from buffer overflow.

Layer 3 Routing Support

The IGS-6329 Series enables the administrator to conveniently boost network efficiency by configuring Layer 3 IPv4/IPv6 VLAN static routing manually, the RIP(Routing Information Protocol) or OSPF (Open Shortest Path First) settings automatically. The RIP can employ the hop count as a routing metric and prevent routing loops by implementing a limit on the number of hops allowed in a path from the source to a destination. The OSPF is an interior dynamic routing protocol for autonomous system based on link state. The protocol creates a database for link state by exchanging link states among Layer 3 switches, and then uses the Shortest Path First algorithm to generate a route table based on that database.

Redundant Ring, Fast Recovery for Critical Network Applications

The IGS-6329 Series supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, Spanning Tree Protocol (802.1s MSTP), and redundant power input system into customer’s industrial automation network to enhance system reliability and uptime in harsh factory environments. In a certain simple Ring network, the recovery time of data link can be as fast as 10ms.

Network with Cybersecurity Helps Minimize Security Risks

The IGS-6329 Series comes with enhanced cybersecurity to fend off cyberthreats and cyberattacks. It supports SSHv2, TLSv1.2 and SNMPv3 protocols to provide strong protection against advanced threats. Served as a key point to transmit data and offering over 95-watt PoE output to customer's critical equipment in a business network, the cybersecurity feature of the IGS-6329 Series protects the switch management and enhances the security of the mission-critical network without any extra deployment cost and effort.

Modbus TCP Provides Flexible Network Connectivity for Factory Automation

With the supported Modbus TCP/IP protocol, the IGS-6329 Series can easily integrate with SCADA systems, HMI systems and other data acquisition systems in factory floors. It enables administrators to remotely monitor the industrial Ethernet switch’s operating information, port information, communication status, and DI and DO status, thus easily achieving enhanced monitoring and maintenance of the entire factory.

1588 Time Protocol for Industrial Computing Networks

The IGS-6329 Series is ideal for telecom and Carrier Ethernet applications, supporting MEF service delivery and timing over packet solutions for IEEE 1588 and synchronous Ethernet.

SMTP/SNMP Trap Event Alert

The IGS-6329 Series provides event alert function to help to diagnose the abnormal device owing to whether or not there is a break of the network connection, or the rebooting response.

Effective Alarm Alert for Better Protection

The IGS-6329 Series supports a Fault Alarm feature which can alert the users when there is something wrong with the switches. With this ideal feature, the users would not have to waste time finding where the problem is. It will help to save time and human resource.

Digital Input and Digital Output for External Alarm

The IGS-6329 Series supports Digital Input and Digital Output on its front panel. This external alarm enables users to use Digital Input to detect and log external device status (such as door intrusion detector), and send event alarm to the administrators. The Digital Output could be used to alarm the administrators if the IGS-6329 Series’ port shows link down, link up or power failure.

Robust Layer 2 Features

The IGS-6329 Series can be programmed for advanced Layer 2 switch management functions such as dynamic port link aggregation, 802.1Q tagged VLAN, Q-in-Q VLAN, private VLAN, Multiple Spanning Tree Protocol (MSTP), Layer 2 to Layer 4 QoS, bandwidth control, IGMP snooping and MLD snooping. Via the aggregation of supporting ports, the IGS-6329 Series allows the operation of a high-speed trunk group that comes with multiple ports and supports fail-over as well.

Efficient Management

For efficient management, the IGS-6329 Series is equipped with console, Web and SNMP management interfaces.

  • With the built-in Web-based management interface, it offers an easy-to-use, platform-independent management and configuration facility.
  • For text-based management, it can be accessed via Telnet and the console port.
  • For standard-based monitor and management software, it offers SNMPv3 connection which encrypts the packet content at each session for secure remote management.

Powerful Network Security

The IGS-6329 Series offers comprehensive Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. Its protection mechanism also comprises 802.1X Port-based and MAC-based user and device authentication. With the private VLAN function, communication between edge ports can be prevented to ensure user privacy.

Advanced IP Network Protection

The IGS-6329 Series also provides DHCP Snooping, IP Source Guard and Dynamic ARP Inspection functions to prevent IP snooping from attack and discard ARP packets with invalid MAC address. The network administrators can now construct highly-secure corporate networks with considerably less time and effort than before.

Flexible and Extendable 10Gb Ethernet Solution

10Gbps Ethernet is a big leap in the evolution of Ethernet. Each of the 10G SFP+ slots in the IGS-6329-8UP2S4X supports multiple speed and 10GBASE-SR/LR, 1000BASE-SX/LX or 2500BASE-X. With its 4-port, 10Gbps  Ethernet link capability and additional 2-port 1G/2.5Gbps  Ethernet link capability, the administrator now can flexibly choose the suitable SFP/SFP+ transceiver according to the transmission distance or the transmission speed required to extend the network efficiently. The IGS-6329-8UP2S4X provides broad bandwidth and powerful processing capacity.

Intelligent SFP Diagnosis Mechanism

The IGS-6329 Series supports SFP-DDM (digital diagnostic monitor) function that greatly helps network administrator to easily monitor real-time parameters of the SFP and SFP+ transceivers, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.

Industrial Area Department/Workgroup PoE Switch

Providing up to 8 PoE++, in-line power interfaces, the IGS-6329-8UP2S4X can easily build a power centrally controlled for IP phone system, IP camera system, or wireless AP group for Industrial network. For instance, 8 PoE IP cameras or wireless access points can be easily installed around the corner in the industrial environment for surveillance demands or for a wireless roaming network. Without the power-socket limitation, the IGS-6329-8UP2S4X makes the installation of IP cameras or wireless AP easier and more efficient.

High Availability Mesh Networking Solution for Big Data System

The IGS-6329-8UP2S4X features strong, rapid, self-recovery capability to prevent interruptions and external intrusions. It incorporates ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) into customer’s automation network to enhance system reliability and uptime. The IGS-6329-8UP2S4X is the ideal solution for data centers, service providers and telecoms to build redundant connection and establish high bandwidth for Big Data server farm.

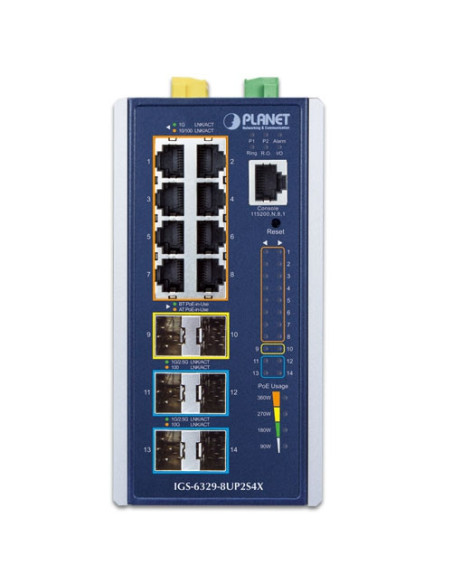

Hardware Specifications
Copper Ports 8 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
SFP Ports 2 1000BASE-SX/LX/BX SFP slot interfaces (Port-9 and Port-10)
Compatible with 100BASE-FX and 2500BASE-X SFP
SFP+ Ports 4 10GBASE-SR/LR SFP+ slot interfaces (Port-11 to Port-14)
Compatible with 1000BASE-X and 2500BASE-X SFP
PoE Injector Ports 8 ports with 802.3bt PoE++ injector function with Port-1 to Port-8
Console 1 x RJ45-to-RS232 serial port (115200, 8, N, 1)
Reset Button < 5 sec: System reboot
> 5 sec: Factory default

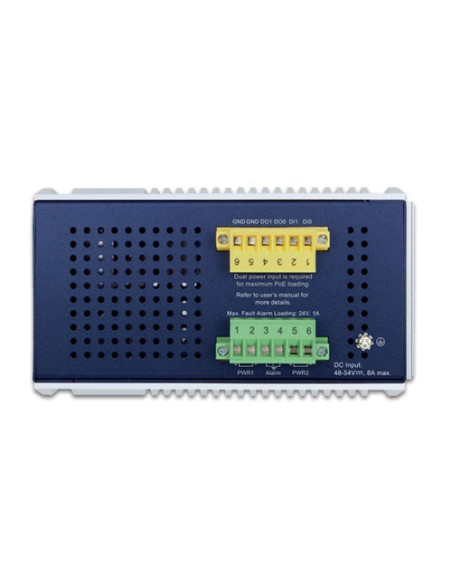

Connector Removable 6-pin terminal block for power input
 Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2
Removable 6-pin terminal block for DI/DO interface
 Pin 1/2 for DI 1 & 2, Pin 3/4 for DO 1 & 2, Pin 5/6 for GND
Alarm One relay output for power failure. Alarm relay current carry ability: 1A @ 24V DC
Digital Input (DI) 2 digital inputs:
 Level 0: -24~2.1V (±0.1V)
 Level 1: 2.1~24V (±0.1V)
 Input load to 24V DC, 10mA max.
Digital Output (DO) 2 digital outputs:
 Open collector to 24VDC, 100mA
Enclosure IP30 aluminum case
Installation DIN-rail or wall mounting
Dimensions (W x D x H) 76 x 135 x 152 mm
Weight 1,619g
Power Requirements Dual DC 48~54V, 8A max.
(>52V DC for 802.3bt PoE++ output recommended)
Power Consumption Max. 12.4 watts/42.3BTU@54V DC input (System on)
Max. 430 watts/1467.2BTU@54V DC input (Full loading with 802.3bt PoE++ function)
ESD Protection Air 8KV DC
Contact 6KV DC
Surge Protection 4KV DC
LED Indicator System:
 Power 1 (Green), Power 2 (Green), Alarm (Red)
 Ring (Green), Ring Owner (Green), DIDO (Red)
Per 10/100/1000T RJ45 PoE++ Port:
 1000Mbps LNK/ACT (Green)
 10/100Mbps LNK/ACT (Amber)
 802.3bt PoE++-in-use x 1 (Green)
 802.3at/af PoE-in-use x 1 (Amber)
Per SFP Interface:
 1G/2.5G LNK/ACT (Green)
 100 LNK/ACT (Amber)
Per SFP+ Port:
 10Gbps LNK/ACT (Green)
 1Gbps LNK/ACT (Amber)
PoE Usage:
 90W, 180W, 270W, 360W (Amber)
Switching Specifications
Switch Architecture Store-and-Forward
Switch Fabric 106Gbps/non-blocking
Throughput (packet per second) 78.87Mpps@ 64 bytes packet
Address Table 32K entries, automatic source address learning and aging
Shared Data Buffer 32Mbits
Jumbo Frame 10Kbytes
SDRAM 512Mbytes
Flash Memory 64Mbytes
Flow Control IEEE 802.3x pause frame for full-duplex
Back pressure for half-duplex
Power Over Ethernet
PoE Standard IEEE 802.3bt PoE++ Type-4 PSE
Backward compatible with 802.3at PoE+ PSE
PoE Power Supply Type 802.3bt
UPOE/POH
End-span
Mid-span
Force
PoE Power Output 802.3bt PoE++
 Per port 52V~54V DC (depending on the power supply), max. 90 watts
UPoE(PoH)
 Per port 52V~54V DC (depending on the power supply), max. 95 watts
IEEE 802.3at Standard
 Per port 52V~54V DC (depending on the power supply), max. 36 watts
Force
 Per port 52V~54V DC (depending on the power supply), max. 60 watts
Power Pin Assignment End-span: 1/2(-), 3/6(+)
Mid-span: 4/5(+), 7/8(-)
802.3bt/UPoE: 1/2(-), 3/6(+),4/5(+), 7/8(-)
PoE Power Budget Single power input: 240W maximum (depending on power input)
 Dual power input: 360W maximum (depending on power input)
※Dual power input must be the same as DC voltage, like dual 54V
PoE Ability PD @ 12.5 watts 8 units
PoE Ability PD @ 25 watts 8 units
PoE Ability PD @ 51 watts 6 units
PoE Ability PD @ 71 watts 4 units
PoE Management Functions
Active PoE device alive detects Yes
PoE Power Recycle Yes, daily or predeinded schedule
PoE Schedule 4 schedule profiles
PoE Extend Mode Yes, max. 160 to 200 meters
PoE System Management System PoE Admin control
Total PoE power budget control
Auto power input and PoE budget control
PoE Legacy mode
Over-temperature threshold alarm
PoE usage threshold alarm
PoE Port Management Port Enable/Disable/Schedule
PoE mode control
 802.3bt
 UPoE
 802.3at End-span
 802.3at Mid-span
Force mode
Port Priority
Layer 2 Functions
Port Configuration Port disable/enable
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
Flow control disable/enable
Port link capability control
Port Status Display each port’s speed duplex mode, link status, flow control status,
auto negotiation status, trunk status
Port Mirroring TX/RX/both
Many-to-1 monitor
Supports up to 5 sessions
VLAN IEEE 802.1Q tagged VLAN
IEEE 802.1ad Q-in-Q tunneling
Private VLAN Edge (PVE)
MAC-based VLAN
Protocol-based VLAN
Voice VLAN
MVR (Multicast VLAN Registration)
GVRP
Up to 4K VLAN groups, out of 4095 VLAN IDs
Link Aggregation IEEE 802.3ad LACP/static trunk
Supports 3 trunk groups with 4 ports per trunk group
Spanning Tree Protocol IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IGMP Snooping IPv4 IGMP (v1/v2/v3) snooping
IPv4 IGMP querier mode support
Supports 255 IGMP groups
MLD Snooping IPv6 MLD (v1/v2) snooping,
IPv6 MLD querier mode support
Supports 255 MLD groups
Bandwidth Control Per port bandwidth control
 Ingress: 500Kb~1000Mbps
 Egress: 500Kb~1000Mbps
Ring Supports ERPS, and complies with ITU-T G.8032
Recovery time < 10ms
Supports Major ring and sub-ring
Synchronization IEEE 1588v2 PTP(Precision Time Protocol)
 Peer-to-peer transparent clock
 End-to-end transparent clock
QoS Traffic classification based, strict priority and WRR
8-level priority for switching
 Port number
 802.1p priority
 802.1Q VLAN tag
 DSCP/TOS field in IP packet
Layer 3 Functions
IP Interfaces Max. 128 VLAN interfaces
Routing Table Max. 128 routing entries
Routing Protocols IPv4 hardware static routing
IPv6 hardware static routing
RIPv2 dynamic routing
IPv4 OSPFv2 dynamic routing
IPv6 OSPFv3 dynamic routing
Security Functions
Access Control List IP-based ACL/MAC-based ACL
ACL based on:
 MAC Address
 IP Address
 Ethertype
 Protocol Type
 VLAN ID
 DSCP
 802.1p Priority
Up to 256 entries
Security Port security
IP source guard
Dynamic ARP inspection
Command line authority control based on user level
AAA RADIUS client
TACACS+ client
Network Access Control IEEE 802.1x port-based network access control
MAC-based authentication
Local/RADIUS authentication
Management Functions
Basic Management Interfaces Console; Telnet; Web browser; SNMP v1, v2c
Secure Management Interfaces SSHv2, TLSv1.2, SNMPv3
System Management Firmware upgrade by HTTP protocol through Ethernet network
Configuration upload/download through HTTP
Remote Syslog
System log
LLDP protocol
NTP
PLANET Smart Discovery Utility
PLANET CloudViewer app
Event Management Remote Syslog
System log
SMTP
ONVIF ONVIF device discovery
ONVIF device monitoring
Floor Map
SNMP MIBs RFC 1213 MIB-II
RFC 1493 Bridge MIB
RFC 1643 Ethernet MIB
RFC 2863 Interface MIB
RFC 2665 Ether-Like MIB
RFC 2819 RMON MIB (Group 1, 2, 3 and 9)
RFC 2737 Entity MIB
RFC 2618 RADIUS Client MIB
RFC 2863 IF-MIB
RFC 2933 IGMP-STD-MIB
RFC 3411 SNMP-Frameworks-MIB
RFC 4292 IP Forward MIB
RFC 4293 IP MIB
RFC 4836 MAU-MIB
IEEE 802.1X PAE
LLDP
MAU-MIB
Power over Ethernet MIB
Standards Conformance
Regulatory Compliance FCC Part 15 Class A
CE:
 EN 55032 , EN 55035
 EN 61000-6-2, EN 61000-6-4
Railway EN50121-4, EN 50121-1
Stability Testing IEC 60068-2-32 (free fall)
IEC 60068-2-27 (shock)
IEC 60068-2-6 (vibration)
Standards Compliance IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3z Gigabit SX/LX
IEEE 802.3ab Gigabit 1000T
IEEE 802.3ae 10Gb/s Ethernet
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1X Port Authentication Network Control
IEEE 802.1ab LLDP
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3bt Power over Ethernet Plus Plus
IEEE 802.3ah OAM
IEEE 802.1ag Connectivity Fault Management (CFM)
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
RFC 3376 IGMP v3
RFC 2710 MLD v1
RFC 3810 MLD v2
RFC 2328 OSPF v2
ITU-T G.8032 ERPS Ring
ITU-T Y.1731 Performance Monitoring
Environment
Operating Temperature -40 ~ 75 degrees C
Storage Temperature -40 ~ 85 degrees C
Humidity 5 ~ 95% (non-condensing)
Device Type
Network Switch
Device Features
Industrial, Managed
POE Ports
8
SFP Ports
2
SFP+ Ports
4
Power Input
DC
Environment Temperature
-40℃~75℃
Installation Type
DIN-rail, Wall-mount
No reviews

Related Products & Accessories

Product added to wishlist
Product added to compare.

We use cookies to ensure that we give you the best experience on our website,

if you continue to use this site we will assume that you are happy with it.
