PLANET IGS-6325-8UP2S Industrial L3 8-Port 10/100/1000T 802.3bt PoE + 2-Port 1G/2.5G SFP + Managed Ethernet Switch

Last items in stock
Tax included


Outstanding 802.3bt PoE++ Solution for Hardened Environment

Complying with the IEEE 802.3bt Power over Ethernet Plus Plus technology, PLANET IGS-6325-8UP2S2X L3 Industrial Managed PoE++ Switch features eight 10/100/1000BASE-T 802.3bt PoE++ ports with each port powering up to 95 watts and two 100/1000/2500BASE-X SFP interfaces in a rugged IP30 metal case for stable operation in heavy industrial demanding environments. It supports rich PoE operation modes including 90-watt 802.3bt type-4 PoE++ ports, 95-watt PoH (Power over HD-BASE-T) mode and 4-pair force mode to solve the incompatibility of non-standard 4-pair PoE PDs in the field.

Being able to operate under wide temperature range from -40 to 75 degrees C, the IGS-6325 PoE++ Switch series can be placed in almost any difficult environment. The IGS-6325 PoE++ Switch series also allows either DIN rail or wall mounting for efficient use of cabinet space.

This product does not include a power supply unless selected from the menu below.

Power Supply Options


IGS-6325-8UP2S - PLANET Industrial L3 8-Port 10/100/1000T 802.3bt PoE + 2-Port 1G/2.5G SFP + Managed Ethernet Switch

Product Features

Physical Port
• 8 10/100/1000BASE-T Gigabit Ethernet RJ45 ports with 802.3bt PoE++ Injector function
• 2 100/1000/2500BASE-X SFP slots for SFP type auto detection
• One RJ45-to-RS232 console interface for basic management and setup

Industrial Hardened-design
• Dual power input, redundant power with reverse polarity protection
    - DC 48 to 56V input
    - Active-active redundant power failure protection
    - Backup of catastrophic power failure on one supply
    - Fault tolerance and resilience
• DIN-rail and wall-mountable design
• IP30 aluminum case
• Supports 6000V DC Ethernet ESD protection
• -40 to 75 degrees C operating temperature

Digital Input and Digital Output
• 2 Digital Input (DI)
• 2 Digital Output (DO)
• Integrate sensors into auto alarm system
• Transfer alarm to IP network via email and SNMP trap

802.3bt Power over Ethernet
• Complies with IEEE 802.3bt Power over Ethernet Plus Plus Type-4 PSE
• Backward compatible with IEEE 802.3at/af PD device
• Up to 8 ports of IEEE 802.3af/IEEE 802.3at/IEEE 802.3bt PoE++ devices powered
• Supports PoE power up to 95 watts for each PoE port
• Total of 360-watt PoE budget
• Auto detects powered device (PD)
• Circuit protection prevents power interference between ports
• Remote power feeding up to 100m
• PoE management features
    - Total PoE power budget control
    - Per port PoE function enable/disable
    - PoE admin-mode control
    - PoE port power feeding priority
    - Per PoE port power limit
    - PD classification detection
    - PoE extend mode control to support power feeding up to a distance of up to 160 meters
• Intelligent PoE features
    - Temperature threshold control
    - PoE usage threshold control
    - PD alive check
    - PoE schedule

Layer 3 IP Routing Features
• IP dynamic routing protocol supports OSPFv2
• IPv4/IPv6 hardware static routing
• Routing interface provides per VLAN routing mode

Layer 2 Features
• High performance of Store-and-Forward architecture, and runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
• Storm Control support
    - Broadcast/Multicast/Unicast
• Supports VLAN
    - IEEE 802.1Q tagged VLAN
    - Up to 255 VLANs groups, out of 4095 VLAN IDs
    - Supports provider bridging (VLAN Q-in-Q IEEE 802.1ad)
    - Private VLAN Edge (PVE)
    - Protocol-based VLAN
    - MAC-based VLAN
    - Voice VLAN
    - GVRP (GARP VLAN Registration Protocol)
• Supports Spanning Tree Protocol
    - IEEE 802.1D Spanning Tree Protocol (STP)
    - IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
    - IEEE 802.1s Multiple Spanning Tree Protocol (MSTP), spanning tree by VLAN
    - BPDU Guard
• Supports Link Aggregation
    - 802.3ad Link Aggregation Control Protocol (LACP)
    - Cisco ether-channel (static trunk)
    - Maximum 4 trunk groups with 4 ports per trunk group
    - Up to 40Gbps bandwidth (duplex mode)
• Provides port mirror (many-to-1)
• Port mirroring to monitor the incoming or outgoing traffic on a particular port
• Loop protection to avoid broadcast loops
• Link Layer Discovery Protocol (LLDP)
• Compatible with Cisco uni-directional link detection(UDLD) that monitors a link between two switches and blocks the ports on both ends of the link if the link fails at any point between the two devices
• Supports G.8032 ERPS (Ethernet Ring Protection Switching)
• IEEE 1588 and Synchronous Ethernet network timing

Quality of Service
• Ingress Shaper and Egress Rate Limit per port bandwidth control
• 8 priority queues on all switch ports
• Traffic classification
    - IEEE 802.1p CoS
    - IP TOS/DSCP/IP precedence
    - IP TCP/UDP port number
    - Typical network application
• Strict priority and Weighted Round Robin (WRR) CoS policies
• Supports QoS and In/Out bandwidth control on each port
• Traffic-policing  on the switch port
• DSCP remarking

• Supports IPv4 IGMP snooping v1, v2 and v3
• Supports IPv6 MLD snooping v1 and v2
• Querier mode support
• IPv4 IGMP snooping port filtering
• IPv6 MLD snooping port filtering
• MVR (Multicast VLAN Registration)

• Authentication
    - IEEE 802.1X Port-based/MAC-based network access authentication
    - Built-in RADIUS client to cooperate with the RADIUS servers
    - TACACS+ login users access authentication
    - RADIUS/TACACS+ users access authentication
    - Guest VLAN assigns clients to a restricted VLAN with limited services
• Access Control List
    - IP-based Access Control List (ACL)
    - MAC-based Access Control List
• Source MAC/IP address binding
• DHCP snooping to filter distrusted DHCP messages
• Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
• IP Source Guard prevents IP spoofing attacks
• IP address access management to prevent unauthorized intruder

• IPv4 and IPv6 dual stack management
• Switch Management Interfaces
    - Console and Telnet Command Line Interface
    - HTTP web switch management
    - SNMP v1 and v2c switch management
    - SSH, TLS, SSL and SNMP v3 secure access
• SNMP Management
    - Four RMON groups (history, statistics, alarms, and events)
    - SNMP trap for interface Link Up and Link Down notification
• IPv6 IP address/NTP/DNS management
• Built-in Trivial File Transfer Protocol (TFTP) client
• BOOTP and DHCP for IP address assignment
• System Maintenance
    - Firmware upload/download via HTTP/TFTP
    - Reset button for system reboot or reset to factory default
    - Dual Images
• DHCP Relay
• DHCP Option 82
• DHCP Server
• User Privilege levels control
• Network Time Protocol (NTP)
• Network Diagnostic
• System Maintenance
    - SFP-DDM (Digital Diagnostic Monitor)
    - Cable diagnostic technology provides the mechanism to detect and report potential cabling issues
    - ICMPv6/ICMPv4 remote ping
• SMTP/Syslog remote alarm
• System Log
• PLANET Smart Discovery Utility for deployment management


Industrial Area Department/Workgroup PoE Switch
Providing up to eight 802.3bt PoE++, in-line power interfaces, the IGS-6325 PoE++ Series can easily build a power centrally controlled for IP phone system, IP camera system, or wireless AP group for Industrial network. For instance, eight PoE IP cameras or wireless access points can be easily installed around the corner in the industrial environment for surveillance demands or for a wireless roaming network. Without the power-socket limitation, the IGS-6325 PoE++ Series makes the installation of IP cameras or wireless AP easier and more efficient.

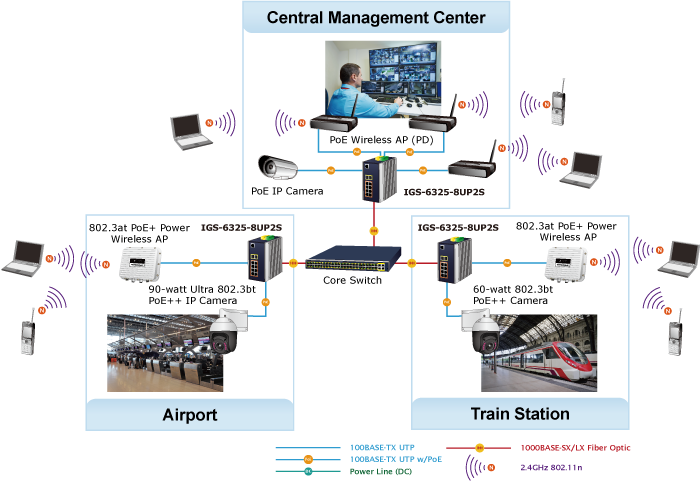

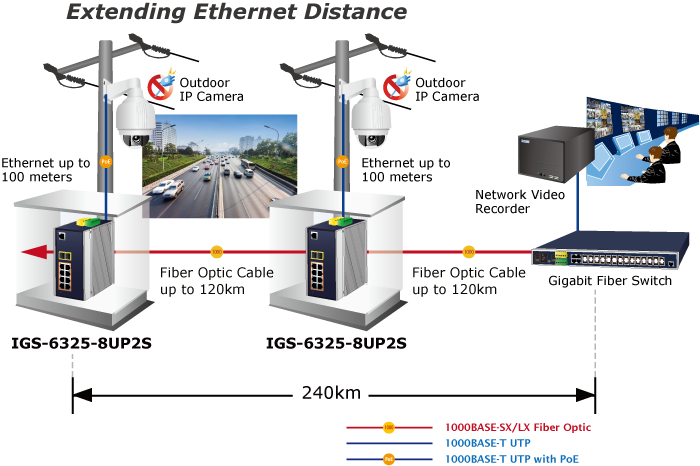

Gigabit 802.3bt PoE++ and PoE+ Network Deployment
To control the power system of your networking devices, the IGS-6325 PoE++ Series can directly co-work with network devices such as PoE IP phone to build VoIP network in the office. The 802.3bt PoE++ switch can be directly connected to any third-party IEEE 802.3af/802.3at/802.3bt compliant devices installed within 100 meters. Furthermore, the IGS-6325 PoE++ can extend much longer distance by using PLANET PoE extender for powering up the PoE PD which can be installed over more than 100 meters away.

SFP Ports
Power Input
Device Features
Managed, Industrial
Device Type
Network Switch, Power Over Ethernet
POE Ports
Power Over Ethernet
48V 95W PoH, 48V 60W 802.3at, 48V 15W 802.3af, 48V 60W 802.3bt, 48V 30W 802.3at, 48V 90W 802.3bt
Yes, 10G SFP+, Yes, 1G SFP
Ethernet Ports
Environment Temperature
No reviews

Hardware Specifications

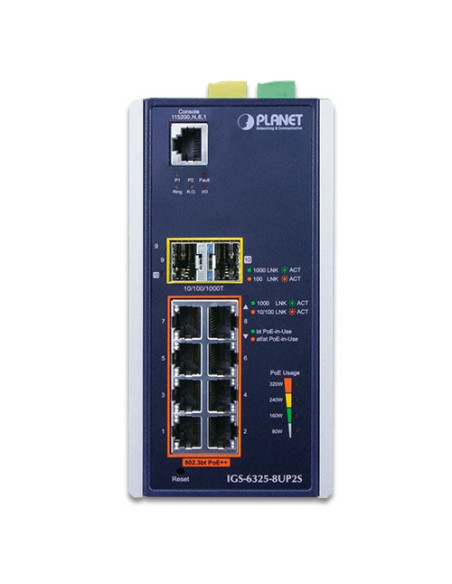

Copper Ports 8 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
SFP Ports 2 1000BASE-SX/LX/BX SFP slot interfaces (Port-9 and Port-10)
Compatible with 100BASE-FX SFP
SFP+ Ports 2 10GbBASE-SR/LR SFP+ slot interfaces (Port-11 to Port-12)
PoE Injector Ports 8 ports with 802.3bt PoE++ injector function with Port-1 to Port-8
Console 1 x RJ45-to-RS232 serial port (115200, 8, N, 1)
Switch Architecture Store-and-Forward
Switch Fabric 60Gbps/non-blocking
Throughput (packet per second) 44.64Mpps@ 64 bytes packet
Address Table 16K entries, automatic source address learning and aging
Shared Data Buffer 32Mbits
Jumbo Frame 10Kbytes
SDRAM 512Mbytes
Flash Memory 64Mbytes
Flow Control IEEE 802.3x pause frame for full-duplex
Back pressure for half-duplex
Reset Button < 5 sec: System reboot
> 5 sec: Factory default

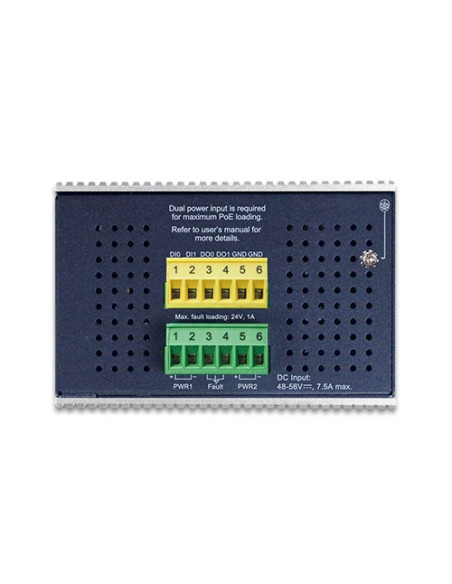

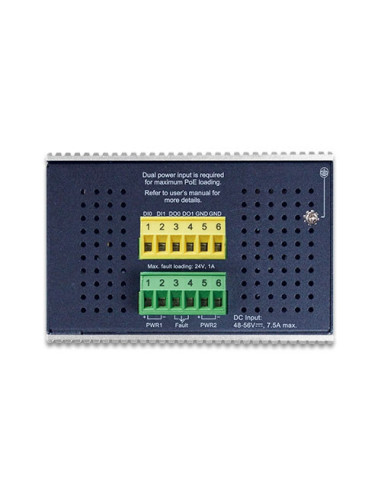

Connector Removable 6-pin terminal block for power input
 Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2
Removable 6-pin terminal block for DI/DO interface
 Pin 1/2 for DI 1 & 2, Pin 3/4 for DO 1 & 2, Pin 5/6 for GND
Alarm One relay output for power failure. Alarm relay current carry ability: 1A @ 24V DC
Digital Input (DI) 2 digital input:
 Level 0: -24~2.1V (±0.1V)
 Level 1: 2.1~24V (±0.1V)
 Input load to 24V DC, 10mA max.
Digital Output (DO) 2 digital output:
 Open collector to 24VDC, 100mA
Enclosure IP30 aluminum case
Installation DIN-rail or wall mounting
Dimensions (W x D x H) 76 x 107 x 152 mm
Weight 1,152g
Power Requirements Dual DC 48~56V, 7.5A max.
(>52V DC for 802.3bt PoE++ output recommended)
Power Consumption Max. 29 watts/98.96BTU@56V DC input (System on)
Max. 401 watts/1,368.27BTU@56V DC input (Full loading with 802.3bt PoE++ function)
ESD Protection Air 8KV DC
Contact 6KV DC
Surge Protection 4KV DC
LED Indicator System:
 Power 1 (Green), Power 2 (Green)
 Fault Alarm (Red)
 Ring (Green), Ring Owner (Green)
 DIDO (Red)
Per 10/100/1000T RJ45 PoE++ Port:
 1000Mbps LNK/ACT (Green)
 10/100Mbps LNK/ACT (Amber)
 802.3bt PoE++-in-use x 1 (Green)
 802.3at/af PoE-in-use x 1 (Amber)
Per SFP Interface:
 1000 LNK/ACT (Green)
 100 LNK/ACT (Amber)
Per SFP+ Port:
 10Gbps LNK/ACT (Green)
 1Gbps LNK/ACT (Amber)
PoE Usage:
 80W, 160W, 240W, 320W (Amber)
Power Over Ethernet
PoE Standard IEEE 802.3bt PoE++ Type-4 PSE
Backward compatible with 802.3at PoE+ PSE
PoE Power Supply Type ■ 802.3bt
■ End-span
■ Mid-span
■ Force
PoE Power Output 802.3bt PoE++
 - Per port 52V~56V DC (depending on the power supply), max. 90 watts UPoE(PoH)
 - Per port 52V~56V DC (depending on the power supply), max. 95 watts IEEE 802.3at Standard
 - Per port 52V~56V DC (depending on the power supply), max. 36 watts Force
 - Per port 52V~56V DC (depending on the power supply), max. 60 watts
Power Pin Assignment End-span: 1/2(-), 3/6(+)
Mid-span: 4/5(+), 7/8(-)
802.3bt/UPoE: 1/2(-), 3/6(+),4/5(+), 7/8(-)
PoE Power Budget 360W maximum (depending on power input)
PoE Ability PD @ 12.5 watts 8 units
PoE Ability PD @ 25 watts 8 units
PoE Ability PD @ 51 watts 6 units
PoE Ability PD @ 71 watts 4 units
PoE Management Functions
Active PoE device alive detects Yes
PoE Power Recycle Yes, daily or predeinded schedule
PoE Schedule 4 schedule profiles
PoE Extend Mode Yes, max. 160 to 200 meters
PoE System Management System PoE Admin control
Total PoE power budget control
Auto power input and PoE budget control
PoE Legacy mode
Over-termperature threshold alarm
PoE usage threshold alarm
PoE Port Management Port Enable/Disable/Schedule
PoE mode control
- 802.3bt
- UPoE
- 802.3at End-span
- 802.3at Mid-span
Force mode
Port Priority
Layer 2 Functions
Port Configuration Port disable/enable
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
Flow control disable/enable
Port link capability control
Port Status Display each port’s speed duplex mode, link status, flow control status,
auto negotiation status, trunk status
Port Mirroring TX/RX/both
Many-to-1 monitor
VLAN 802.1Q tagged VLAN
Q-in-Q tunneling
Private VLAN Edge (PVE)
MAC-based VLAN
Protocol-based VLAN
Voice VLAN
MVR (Multicast VLAN Registration)
Up to 256 VLAN groups, out of 4095 VLAN IDs
Link Aggregation IEEE 802.3ad LACP/static trunk
Supports 3 trunk groups with 4 ports per trunk group
Spanning Tree Protocol IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IGMP Snooping IPv4 IGMP (v1/v2/v3) snooping
IPv4 IGMP querier mode support
Supports 255 IGMP groups
MLD Snooping IPv6 MLD (v1/v2) snooping,
IPv6 MLD querier mode support
Supports 255 MLD groups
Access Control List IP-based ACL/MAC-based ACL
ACL based on:
 - MAC Address
 - IP Address
 - Ethertype
 - Protocol Type
 - 802.1p Priority
Up to 256 entries
Bandwidth Control Per port bandwidth control
Ingress: 500Kb~1000Mbps
Egress: 500Kb~1000Mbps
QoS Traffic classification based, strict priority and WRR
8-level priority for switching
 - Port number
 - 802.1p priority
 - 802.1Q VLAN tag
 - DSCP/TOS field in IP packet
Synchronization IEEE 1588v2 PTP(Precision Time Protocol)
 - Peer-to-peer transparent clock
 - End-to-end transparent clock
Layer 3 Functions
IP Interfaces Max. 128 VLAN interfaces
Routing Table Max. 128 routing entries
Routing Protocols IPv4 hardware static routing
IPv6 hardware static routing
OSPFv2 dynamic routing
Basic Management Interfaces Console; Telnet; Web browser; SNMP v1, v2c
Secure Management Interfaces SSHv1/SSHv2, TLS, SSL, SNMP v3
System Management Firmware upgrade by HTTP protocol through Ethernet network
Configuration upload/download through HTTP
Remote Syslog
System log
LLDP protocol
PLANET Smart Discovery Utility
RFC 1493 Bridge MIB
RFC 1643 Ethernet MIB
RFC 2863 Interface MIB
RFC 2665 Ether-Like MIB
RFC 2819 RMON MIB (Group 1, 2, 3 and 9)
RFC 2737 Entity MIB
RFC 2618 RADIUS Client MIB
RFC 3411 SNMP-Frameworks-MIB
RFC 4292 IP Forward MIB
Standards Conformance
Regulatory Compliance FCC Part 15 Class A
EN 62368-1/IEC 62368-1: 2014
Stability Testing IEC60068-2-32 (free fall)
IEC60068-2-27 (shock)
IEC60068-2-6 (vibration)
Standards Compliance IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3z Gigabit SX/LX
IEEE 802.3ab Gigabit 1000T
IEEE 802.3ae 10Gb/s Ethernet
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1X Port Authentication Network Control
IEEE 802.1ab LLDP
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3bt Power over Ethernet Plus Plus
IEEE 802.3ah OAM
IEEE 802.1ag Connectivity Fault Management (CFM)
RFC 791 IP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
RFC 3376 IGMP v3
RFC 2710 MLD v1
FRC 3810 MLD v2
RFC 2328 OSPF v2
ITU-T G.8032 ERPS Ring
ITU-T Y.1731 Performance Monitoring
Operating Temperature -40 ~ 75 degrees C
Storage Temperature -40 ~ 85 degrees C
Humidity 5 ~ 95% (non-condensing)

Related Products & Accessories

Product added to wishlist
Product added to compare.

We use cookies to ensure that we give you the best experience on our website,

if you continue to use this site we will assume that you are happy with it.
