Planet Single-Mode MGB-2GTLA20 2.5G SFP Transceiver (WDM, TX:1310nm RX:1550nm, DDM, -40~75°C) – 20km

MGB-2GTLA20
*** Out of stock ATM, Available On Backorder ***
$90.00
Tax included

MGB-2GTLA20

The MGB-2GTLA20 by Planet Technology is an extended temperature 2.5G SFP Fiber Transceiver

Related Products & Accessories



MGB-2GTLA20 - PLANET 2.5G SFP Module Transceiver, 20Km

The MGB-2GTLA20 small form-factor pluggable (SFP) transceiver module is specifically designed to work with PLANET products with 2.5G SFP interface that enables to build a high-performance 2.5Gbps Ethernet network over optical fiber for enterprises, telecoms and ISPs.

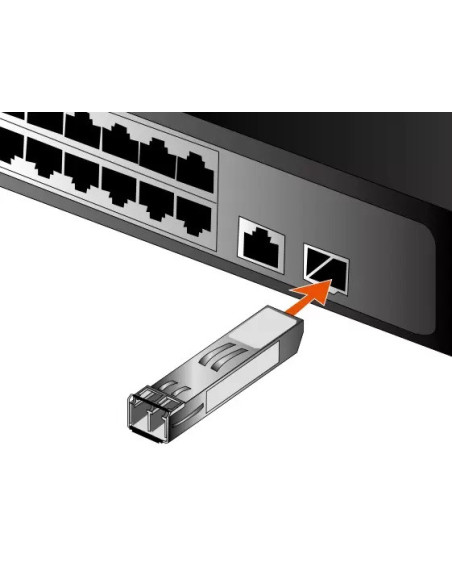

These transceiver modules are compliant with the SFP Multisource Agreement (MSA) and hot pluggable. These modules offer an easy way to be installed in SFP MSA compliant ports at any time without the interruption of the host equipment operation.

The MGB-2G SFP Mini-GBIC Gigabit Ethernet modules can be installed in PLANET Switch products with SFP mini-GBIC interface. The deployment distance can be extended from 300 meters (Multi-mode, LC) to up to 20 kilometers (Single-mode, LC).

To meet the increasing demand of the Industrial Ethernet fiber solution, PLANET MGB-2GT 2500BASE-X transceivers can operate reliably in the electrically harsh, climatically demanding, and wide temperature range (-40℃ to 75℃) environment. The MGB-2GT transceivers provide easy and fast 2.5Gbps connection for PLANET wide temperature industrial equipment.

Specifications:

MGB-2GTLA20
PHY Type 2500BASE-X
Fiber Type Single Mode
Connector Simplex LC/UPC
DDM Yes
Wavelength TX: 1310nm, RX: 1550nm
Maximum Distance 20km
Operating Temperature -40 ~ 75°C

Device Features
TAA Compliant
Operating Temperature
-40° to 75°C
Fiber Type
Single Mode
Distance
20km
PHY Type
2500Base-X
DDM Supported
yes
Package
SFP
Wavelength
TX: 1310 RX: 1550nm
4711605285650
MGB-2GTLA20
