PLANET IGS-5225-4UP1T2S Industrial 4-Port 95W 802.3bt PoE + 1-Port 10/100/1000T + 2-Port SFP Managed Switch

PLANET Industrial 4-Port 95W 802.3bt PoE + 1-Port 10/100/1000T + 2-Port SFP Managed Switch

IGS-5225-4UP1T2S
Last items in stock
$844.80
Tax included

The latest version of the IGS-5225-4UP1T2S from PLANET Technology features 4 10/100/1000BASE-T 802.3bt PoE++ ports with each port powering up to 95W, 1 extra 10/100/1000BASE-T copper port and 2 100/1000BASE-X SFP interfaces in a rugged IP30 metal case to allow for stable operation in heavy industrial environments.

This device supports rich power over Ethernet operation modes including 90W 802.3bt type-4 PoE++ ports, 95W PoH (Power over HD-BASE-T) mode and 4-pair force mode to solve the incompability of non-standard 4-pair PoE PDs in the field.



PLANET Technology IGS-5225-4UP1T2S

POE Ports
4
Power Input
DC
SFP Ports
2
Device Type
Network Switch, Power Over Ethernet
Device Features
Industrial, Managed
Power Over Ethernet
48V 90W 802.3bt, 48V 60W 802.3at, 48V 15W 802.3af, 48V 60W 802.3bt, 48V 95W PoH, 48V 30W 802.3at
SFP
Yes, 1G SFP
Ethernet Ports
5
No reviews

Hardware Specifications
Hardware Version 4
Copper Ports 5 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
SFP/mini-GBIC Slots 2 1000BASE-SX/LX/BX SFP interfaces (Port-6 to Port-7)
Compatible with 100BASE-FX SFP
PoE Injector Port 4 ports with 802.3bt PoE++/802.3at PoE injector function with Port-1 to Port-4
Console 1 x RJ45-to-RS232 serial port (115200, 8, N, 1)
Switch Architecture Store-and-Forward
Switch Fabric 14Gbps/non-blocking
Throughput (packet per second) 10.42Mpps@ 64 bytes packet
Address Table 8K entries, automatic source address learning and aging
Shared Data Buffer 4Mbits
Flow Control IEEE 802.3x pause frame for full-duplex
Back pressure for half-duplex
Jumbo Frame 9Kbytes
Reset Button < 5 sec: System reboot
> 5 sec: Factory default
ESD Protection 6KV DC
Enclosure IP30 aluminum case
Installation DIN-rail or wall mounting

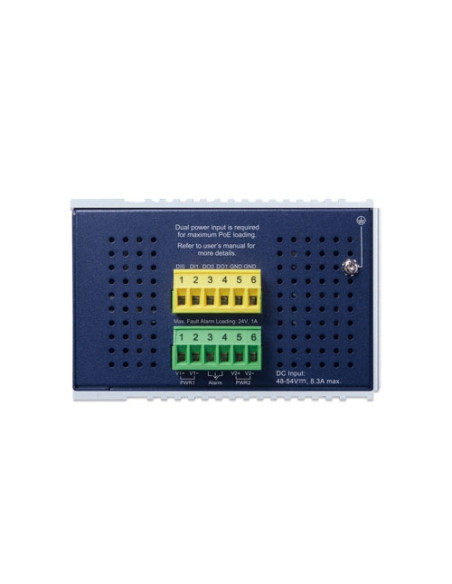

Connector Removable 6-pin terminal block for power input
Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2
Removable 6-pin terminal block for DI/DO interface
Pin 1/2 for DI 1 & 2, Pin 3/4 for DO 1 & 2, Pin 5/6 for GND
Alarm One relay output for power failure. Alarm relay current carry ability: 1A @ 24V DC
2 Digital Input (DI) Level 0: -24V~2.1V (±0.1V)
Level 1: 2.1V~24V (±0.1V)
Input load to 24V DC, 10mA max.
2 Digital Output (DO) Open collector to 24V DC, 100mA max.
vLED Indicator System:
 Power 1 (Green)
 Power 2 (Green)
 Fault Alarm (Red)
 Ring (Green)
 Ring Owner (Green)
 DIDO (Red)
Per 10/100/1000T RJ45 Ports:
 100 LNK/ACT (Amber)
 1000 LNK/ACT (Green)
Per SFP Interface:
 100 LNK/ACT (Amber)
 1000 LNK/ACT (Green)
Per PoE Port:
 802.3bt PoE++-in-use x 1 (Green)
 802.3at/af PoE-in-use x 1 (Amber)
PoE Usage:
 60W, 120W, 180W, 240W (Amber)
Dimensions (W x D x H) 72 x 107 x 152 mm
Weight 1050g
Power Requirements Dual 48~56V DC (>52V DC for PoE+ output recommended)
Power Consumption Max. 6.6 watts/22.52BTU (Power on without any connection)
Max. 282 watts/962.22BTU (Full loading with 802.3bt PoE++ function)
Power Over Ethernet
PoE Standard IEEE 802.3bt PoE++ Type-4 PSE
PoE Power Supply Type 802.3bt/End-span/Mid-span/UPoE/Force
PoE Power Output 802.3bt PoE++
 - Per port 52V~56V DC (depending on the power supply), max. 90 watts UPoE(PoH)
 - Per port 52V~56V DC (depending on the power supply), max. 95 watts IEEE 802.3at Standard
 - Per port 52V~56V DC (depending on the power supply), max. 36 watts Force
 - Per port 52V~56V DC (depending on the power supply), max. 60 watts
Power Pin Assignment End-span: 1/2(-), 3/6(+)
Mid-span: 4/5(+), 7/8(-)
802.3bt/UPoE: 1/2(-), 3/6(+),4/5(+), 7/8(-)
PoE Power Budget 240W maximum (depending on power input)
PoE Ability PD @ 15 watts 4 units
PoE Ability PD @ 30 watts 4 units
PoE Ability PD @ 60 watts 4 units
Layer 2 Functions
Port Configuration Port disable/enable
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
Flow control disable/enable
Port Status Display each port’s speed duplex mode, link status, flow control status,
auto negotiation status, trunk status
Port Mirroring TX/RX/both
Many-to-1 monitor
VLAN 802.1Q tagged VLAN
Q-in-Q tunneling
Private VLAN Edge (PVE)
MAC-based VLAN
Protocol-based VLAN
Voice VLAN
MVR (Multicast VLAN Registration)
Up to 255 VLAN groups, out of 4095 VLAN IDs
Link Aggregation IEEE 802.3ad LACP/static trunk
Supports 3 trunk groups with 3 ports per trunk group
QoS Traffic classification based, strict priority and WRR
8-level priority for switching
 - Port number
 - 802.1p priority
 - 802.1Q VLAN tag
 - DSCP/TOS field in IP packet
IGMP Snooping IPv4 IGMP (v1/v2/v3) snooping, up to 255 multicast groups
IPv4 IGMP querier mode support
MLD Snooping IPv6 MLD (v1/v2) snooping, up to 255 multicast groups
IPv6 MLD querier mode support
Access Control List IP-based ACL/MAC-based ACL
Up to 123 entries
Bandwidth Control Per port bandwidth control
Ingress: 500Kb~1000Mbps
Egress: 500Kb~1000Mbps
Layer 3 Functions
IP Interfaces Max. 8 VLAN interfaces
Routing Table Max. 32 routing entries
Routing Protocols IPv4 software static routing
IPv6 software static routing
Management
Basic Management Interfaces Console; Telnet; Web browser; SNMP v1, v2c
Secure Management Interfaces SSHv1/SSHv2, TLS, SSL, SNMP v3
SNMP MIBs RFC 1213 MIB-II
RFC 1493 Bridge MIB
RFC 1643 Ethernet MIB
RFC 2863 Interface MIB
RFC 2665 Ether-Like MIB
RFC 2819 RMON MIB (Groups 1, 2, 3 and 9)
RFC 2737 Entity MIB
RFC 2618 RADIUS Client MIB
RFC 2933 IGMP-STD-MIB
RFC 3411 SNMP-Frameworks-MIB
IEEE 802.1X PAE
LLDP
MAU-MIB
Standards Conformance
Regulatory Compliance FCC Part 15 Class A, CE
Stability Testing IEC60068-2-32 (free fall)
IEC60068-2-27 (shock)
IEC60068-2-6 (vibration)
Standards Compliance IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3z Gigabit SX/LX
IEEE 802.3ab Gigabit 1000T
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1X Port Authentication Network Control
IEEE 802.1ab LLDP
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3bt Power over Ethernet ready
IEEE 802.3ah OAM
IEEE 802.1ag Connectivity Fault Management (CFM)
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
ITU-T G.8032 ERPS Ring
ITU-T Y.1731 Performance Monitoring
Environment
Operating Temperature -40 ~ 75 degrees C
Storage Temperature -40 ~ 85 degrees C
Humidity 5 ~ 95% (non-condensing)
