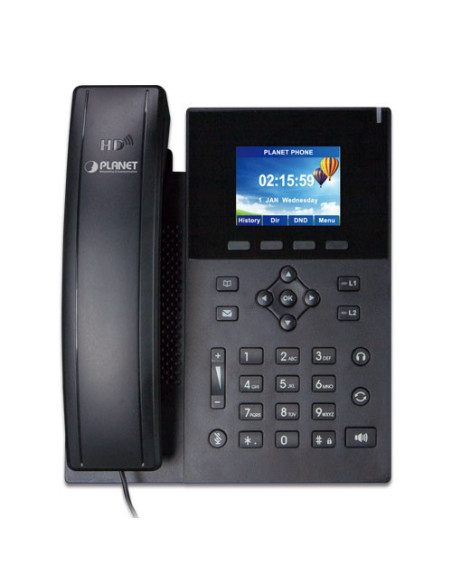

PLANET VIP-1260PT High Definition Color PoE Gigabit IP Phone

Enhanced, Full-Featured SIP IP Phone

The VIP-1260PT is optimized for executive use for administrative assistants and those working with bandwidth-intensive application on collocated PCs. Four programmable extension keys could be configured as IP PBX features like BLF, MWI, DND, Call Forward, Call Park and many others.

Enterprise IP Telephony Deployment of VIP-1260PT

Help your teams move faster with exceptional audio quality and built-in flexibility. The VIP-1260PT is much easier to install and configure than the traditional phone system. Its low cost and high-definition voice quality give you value for money. Based on standard SIP 2.0, it is compatible with all the standard SIP-based servers.

Key Features

Highlights

• IETE SIP compliant with Transport Layer Security
• Wideband G.722 HD and Opus audio
• 2.8-inch 320 x 240 color LCD monitor
• 6 identities/accounts with 2-line color LED key
• Dual Gigabit and IEEE 802.3af/at PoE compliant
• Multi-language support via the web UI and LCD
• IPv6, VPN, VLAN, QoS, TR069 and auto-provisioning

Advantageous Applications

• Supports SIP 2.0 (RFC3261) over UDP/TCP/TLS
• Inband, SIP info, RFC 2833 DTMF relay
• Soft keys and function keys programmable
• Echo cancellation: Supports G.168, and a maximum filter length of 96ms in hands-free mode
• Supports voice gain setting, voice activity detection (VAD) and comfort noise generation (CNG)
• Full duplex hands-free speakerphone
• Hands-free headset ringing choice
• Voice codec setting for each SIP line

SIP Applications

• Call forward and transfer (blind/attended)
• Call holding and waiting
• 3-way conferencing
• Paging and intercom
• Call park, call pickup and join call
• Redial and click to dial
• Secondary dialing automatically
• Incoming calls, outgoing calls and missing calls (Each supports 100 records.)
• SMS and speed dial
• Phonebook up to 1000 records

Call Control Features

• Flexible dial map, hotline and empty calling no. for rejected service
• Black list for rejected authenticated calls
• White list and call limit
• Do not disturb (DND)
• Caller ID display
• Dial without registration

Network Features

• IPv4/IPv6
• Static /PPPoE/DHCP client
• 802.1 VLAN (voice VLAN/data VLAN)
• VPN (L2TP) and openVPN
• Quality of Service

Maintenance and Management

• Integrated web server provides web-based administration and configuration
• Telephone keypad configuration via display menu/navigation
• Automated provisioning and upgrade via HTTPS, HTTP, TFTP
• User authentication for configuration pages
• SNTP time synchronization
• TR069

Specifications
