PLANET VGW-420FS 4-Port SIP VoIP Gateway (4 FXS)
PLANET VGW-420FS 4-Port SIP VoIP Gateway (4 FXS)
PLANET VGW-420FS 4-Port SIP VoIP Gateway (4 FXS)
PLANET VGW-420FS 4-Port SIP VoIP Gateway (4 FXS)
PLANET VGW-420FS 4-Port SIP VoIP Gateway (4 FXS)
PLANET VGW-420FS 4-Port SIP VoIP Gateway (4 FXS)

PLANET VGW-420FS 4-Port SIP VoIP Gateway (4 FXS)

VGW-420FS
*** Out of stock ATM, Available On Backorder ***
$194.41
Tax included

VGW-420FS

The VGW-420FS provides the essential features you need for business-class voice communications in an easy-to-manage solution. Designed for businesses with branch offices, it helps the enterprises to save money on long-distance calls.

PLANET VGW-420FS 4-port FXS SIP VoIP Gateway is a fully IETF SIP RFC3261 standard compliant residential gateway that provides a total solution for integrating voice-data network, with built-in SIP trunk and TLS/SRTP security, up to 4 concurrent connections. Voice communications can be established from anywhere around the world, and it not only provides quality voice communications, but also offers secure, reliable Internet sharing capabilities for daily voice and Internet communications.

Related Products & Accessories



VGW-420FS - PLANET 4-Port SIP VoIP Gateway (4 FXS)

Product Features

High Quality yet Affordable for All Businesses
PLANET VGW-420FS enterprise-class 4-port SIP VoIP Gateway provides added flexibility during migration to Unified Communications by supporting the traditional analog devices. These devices include analog phones, fax machines, modems, voicemail systems and speakerphones.



Enhanced, Full-Featured Business Gateway
PLANET VGW-420FS 4-port FXS SIP VoIP Gateway is a fully IETF SIP RFC3261 standard compliant residential gateway that provides a total solution for integrating voice-data network, with built-in SIP trunk and TLS/SRTP security, up to 4 concurrent connections. Voice communications can be established from anywhere around the world, and it not only provides quality voice communications, but also offers secure, reliable Internet sharing capabilities for daily voice and Internet communications.



Distributed VoIP Network Infrastructure
PLANET VGW series is easy to use for all types of businesses. The VGW-420FS offers quality voice communications and real-time fax data over IP networks and it does not need human resources to deploy a VoIP network. With the optimized SIP architecture, PLANET VGW-420FS is the ideal choice for P2P/SIP proxy (IP PBX) voice chat, and ITSP cost-saving solution.

SIP Applications

  • IETF SIP RFC3261 based on UDP/TCP/TLS
  • 4-line FXS connects to analog phone set or PABX
  • Fax over T.38 and Pass-through
  • ITU-T G.711 A-law, G.711 μ-law, G.723.1 and G.729 voice coding
  • In-band / out of band DTMF (RFC4733, RFC2833 / SIP INFO)
  • Echo cancellation exceeding ITU-T G.168, up to 128ms tail length
  • Supports SIP Trunk and Caller ID: DTMF/FSK CLI Presentation

Internet Features

  • Supports SNMP v1/v2/v3
  • Supports VLAN 802.1P and 802.1Q
  • Supports Layer3 QoS and DiffServ
  • Supports STUN (RFC 3489) and Outbound Proxy
  • Supports TR069 and Auto Provisioning
  • Supports TLS/SRTP Security

Call Features

  • Call waiting / transfer (Blind transfer, Attend transfer)
  • Call hold / Quick pick
  • Call Forwarding Unconditional
  • Call Forwarding on No Reply
  • Hotline / Speed Dial / Direct IP Call
  • Do Not Disturb (DND) / Three-way conference

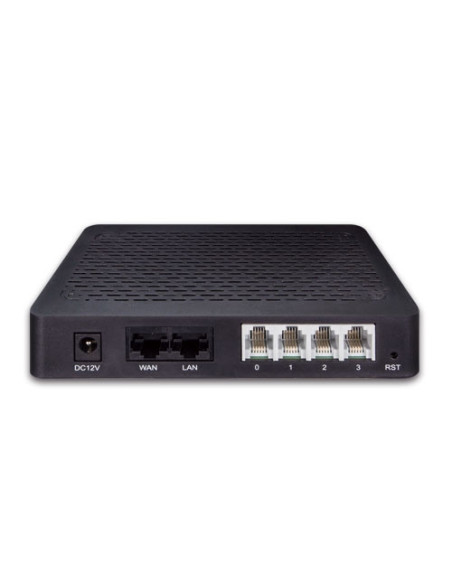

Hardware
WAN 1 x 10/100BASE-TX RJ45 port
LAN 1 x 10/100BASE-TX RJ45 port
Voice 4 x RJ11 connection (4 x Foreign eXchange Station)
Weight 200g
Dimensions (W x D x H) 140 x 86 x 25 mm
Power Requirements 100-240VAC, 50-60 Hz@DC12V 1A
Power Consumption 5W
Protocols and Standard
FXS
  • Dial Mode: DTMF and Pulse
  • Pulse: 10 and 20 PPS
  • Caller ID: DTMF/FSK CLI Presentation
  • Max Cable Length: 3KM
  • Reversed Polarity
  • Programmable Call Progress Tone
Voice & Fax
  • G.711A/U law, G.723.1, G.729A/B,G.726 and iLBC
  • Silence Suppression
  • Comfort Noise Generation(CNG)
  • Voice Activity Detection(VAD)
  • Echo Cancellation(G.168), with up to 128ms
  • Adaptive (Dynamic) Jitter Buffer
  • Hook Flash
  • Programmable Gain Control
  • T.38/Pass-through
  • Modem/POS
  • DTMF mode: Signal/RFC2833/INBAND
  • VLAN 802.1P and 802.1Q
  • Layer3 QoS and DiffServ
VoIP
  • Protocol: SIP v2.0 (UDP/TCP),RFC3261,SDP,RTP(RFC2833), RFC3262, 3263,3264,3265,3515,2976,3311
  • RTP/RTCP, RFC2198, 1889
  • RFC4028 Session Timer
  • RFC3266 IPv6 in SDP
  • RFC2806 TEL URI
  • RFC3581 NAT and rport
  • Primary/Backup SIP Server
  • Outbound Proxy
  • DNS SRV/ A Query/NATPR Query
  • SIP Trunk
  • Early Media/Early Answer
  • NAT:STUN, Static/Dynamic NAT
Supplementary Service
  • Call Waiting
  • Blind Transfer
  • Attend Transfer
  • Call Forward on Busy
  • Call Forward on No Reply
  • Unconditional Call Forward
  • Warm/Immediately Hotline
  • Call Hold
  • Do-not-disturb
  • 3-Way Conference
  • Message Waiting Indicator
Software Features
  • Hunting Group
  • Web ACL
  • Telnet ACL
  • Action URL
  • PPPoE/IPv4
  • Digitmap
  • Bandwidth Optimization
  • Routing Rules based Prefixes
  • Caller/Called Number Manipulation
Management
  • SNMP v1/v2/v3
  • TR069
  • Auto Provisioning
  • Web/Telnet
  • Configuration Backup/Restore
  • Firmware Upgrade via Web
  • CDR
  • Syslog
  • Ping and Tracert Test
  • Network Capture
  • Outward Test(GR909)
  • NTP and Daylight Saving Time
  • IVR local Maintenance
Environments
Operating Temperature 0 ~ 40 degrees C
Storage Temperature -20 ~ 80 degrees C
Operating Humidity 10%~90% relative humidity, non-condensing
Emission CE, FCC
Device Type
VoIP Gateway
Device Features
Managed
Ethernet Ports
1 Eth port
Environment Temperature
-40℃~75℃
4711605285452
VGW-420FS
No reviews

Related Products & Accessories

IPX-330 PLANET IP Telephony PBX System
*** Out of stock ATM, Available On Backorder ***
VoIP Systems & Phones

IPX-330 PLANET IP Telephony PBX System

PLANET
IPX-330
$404.53
IPX-330 The IP Internet Telephony PBX System (IPX-330) from PLANET Technology is SIP-based and optimized for small and medium businesses in daily communications. The IPX-330 is able to accept 30 user registrations and is easy to manage a full voice over IP system with the convenience and cost advantages. The IPX-330, integrated with 2 FXO ports, is a...

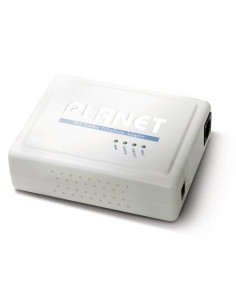

VIP-156PE PLANET SIP Analog Telephone Adapter
