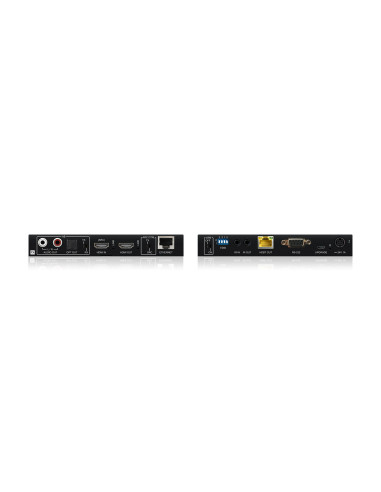

HEX150CS-KIT HDBaseT CSC Extender Set HDMI 4K 150m IR RS-232

HEX150CS-KIT - HDBaseT CSC Extender Set HDMI 4K 150m IR RS-232

Product Features:

• Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
• Advanced Colour Space Conversion (CSC) supports HDMI2.0 18Gbps specification including HDR support
• Video down-conversion on outputs allowing a display only capable of supporting lower video resolutions (4K 60Hz 4:2:0 or 1080p) to receive 4K 60Hz 4:4:4 or 4K 60Hz 4:2:0 video content while still showing maximum original 4K UHD resolution on remaining video outputs
• Supports 4K 60Hz 4:4:4 UHD video up to 100m
• Extends HDMI 1080p video up to 150m (HDBaseT™ long-reach mode)
• HDMI loop out on Transmitter
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
• HDMI re-clocking on the HDBaseT™ receiver to help solve HDMI HDCP, compatibility, and handshaking issues
• Supports ARC (Audio Return Channel) from display via HDMI and optical digital inputs
• Supports audio return to HDMI, optical digital, and analogue L/R audio outputs (analogue output supports 2ch PCM only)
• Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD Master Audio transmission
• Bi-directional 10/100BaseT Ethernet pass-through
• Bi-directional IR & RS-232 pass-through
• Supplied with Blustream 5V IR receiver and emitter
• Bi-directional PoC (Power over Cable) to power extenders from either transmitter or receiver end
• Advanced EDID management
• HDCP 2.2 support

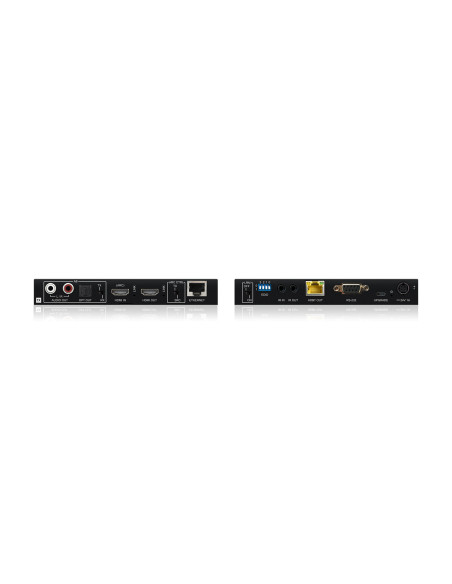

HEX150CS-TX:

• Video Input Connectors: 1 x HDMI Type A, female
• Video Output Connectors: 1 x HDBaseT™ RJ45 connector
• Audio Output Connectors: 2 x RCA (L/R), 1 x optical (SPDIF)
• Ethernet Port: 1 x RJ45 connector
• RS-232 Serial Port: 1 x DB-9 female
• IR Input Ports: 1 x 3.5mm stereo jack
• IR Output Ports: 1 x 3.5mm mono jack
• EDID: 4-pin DIP switch
• Power Supply: 1 x 24V/1A DC, 4-pin DIN connector

HEX150CS-RX:

• Video Input Connectors: 1 x HDBaseT™ RJ45 connector,
• Video Output Connectors: 1 x HDMI Type A, female
• Audio Input Connectors: 1 x Optical (SPDIF)
• Audio Output Connectors: 1 x 3.5mm stereo jack (L/R), 1 x RCA Coaxial Digital
• Ethernet Port: 1 x RJ45 connector,
• RS-232 Serial Port: 1 x DB-9 female
• IR Input Ports: 1 x 3.5mm stereo jack
• IR Output Ports: 1 x 3.5mm mono jack
• Power Supply: 1 x 24V/1A DC, 4-pin DIN connector

• Casing Dimensions (W x D x H): 148mm x 134mm x 22mm (RX), 156mm x 123mm x 23mm (TX)
• Dimensions (W x D x H): 148mm x 153mm x 22mm (RX), 156mm x 135mm x 23mm (TX) (including connections)
• Shipping Weight (Kit): 1.6kg
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Storage Temperature : -4°F to 140°F (-20°C to 60°C)
• Mounting Kits included
• Power Supply: 1 x 24V/1A DC, screw connector
