Ubiquiti Networks UniFi Access Starter Kit

UA-SK
In Stock
$788.00
Tax included

UA-SK

Comprehensive starter kit with everything you need to set up a premium UniFi Access solution (UDM-PRO REQUIRED).

UniFi Access Starter Kit contains everything you need to set up the next generation, state-of-the-art access control system for your business. Compatible with most Electric Bolts/Strikes and Magnetic Locks, the UniFi Access Starter Kit is easily installed with minimal effort and offers the convenience of the UniFi Access Controller, which allows you to easily manage users, visitors, schedules, and access policies. The UniFi Access Starter kit is powered by native PoE technology, PoE Switch is not included

Starter Kit Contents:

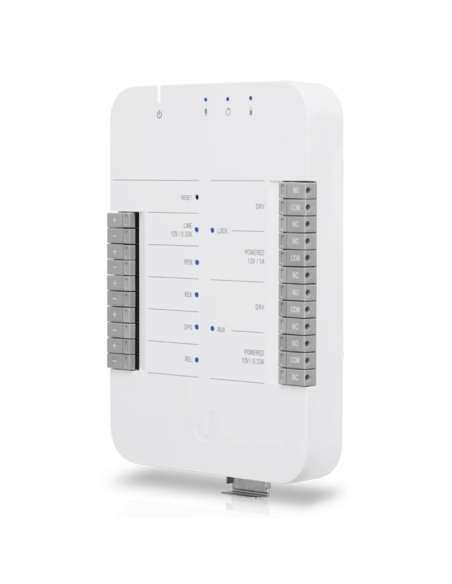

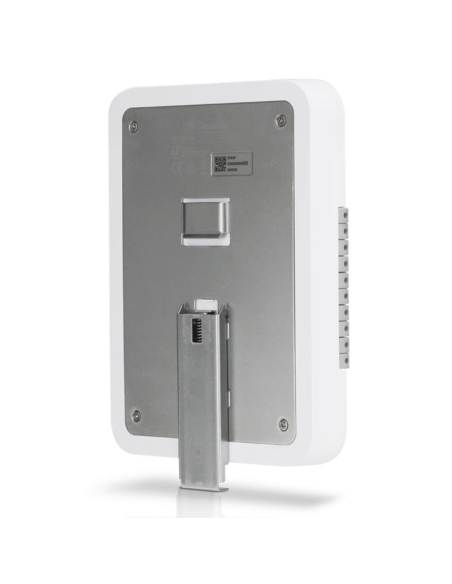

  • 1x UniFi Access Hub

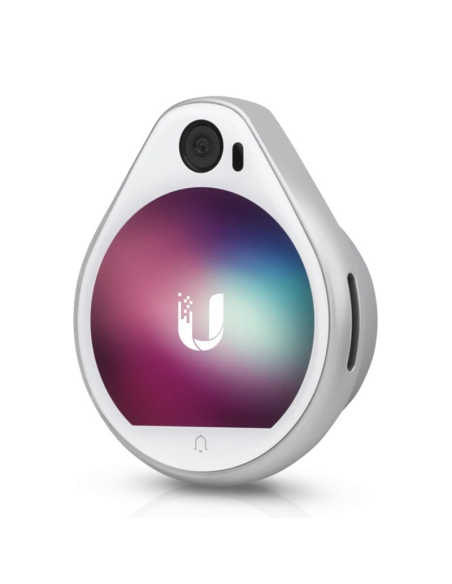

  • 1x UniFi Access Reader Pro

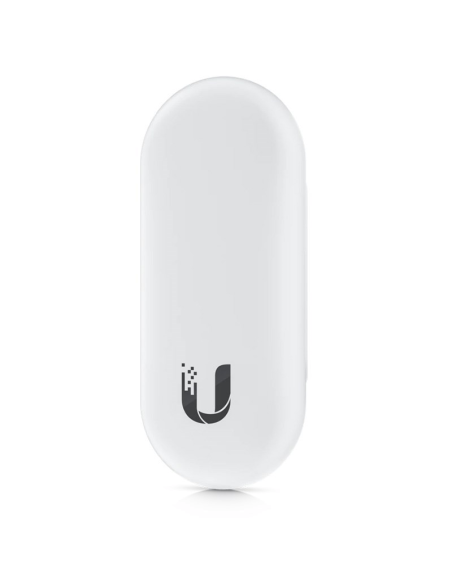

  • 1x UniFi Access Reader Lite
  • 1x UniFi Access Card (20 count)

*UDM-PRO has to be bought separately.



UA-SK - Ubiquiti Networks UniFi Access Starter Kit

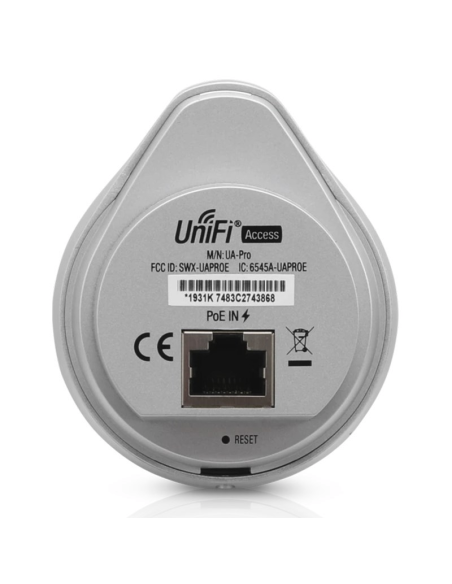

UA-Pro
Dimensions 73.40 x 62.28 x 26.55 mm
(2.89 x 2.45 x 1.05")
Networking Interface 85 g
(2.99 oz)
Mounting Options Wall-Mount or Alloy Clamp Holder
Networking Interface 10/100 Mbps Ethernet
Camera Viewing Angle 147.5° ± 3°
Max. Power Consumption 8.3W
Power Method 802.3af PoE
Button (1) Reset
IP Rating IP54
LEDs Blue, White
Connectivity Ethernet, BLE 4.2
Operating Temperature -10 to 40° C
(14 to 104° F)
Operating Humidity 5 to 90% Noncondensing
Certifications CE, FCC, IC
NFC
Frequency 13.56 MHz
Read Range <30 mm
Standards ISO 14443A, 14443B, 15693
Technology NFC Tag 1, 2, 3, 4, 5
MIFARE Classic
MIFARE Plus
MIFARE Ultralight
MIFARE DESFire EV1/EV2

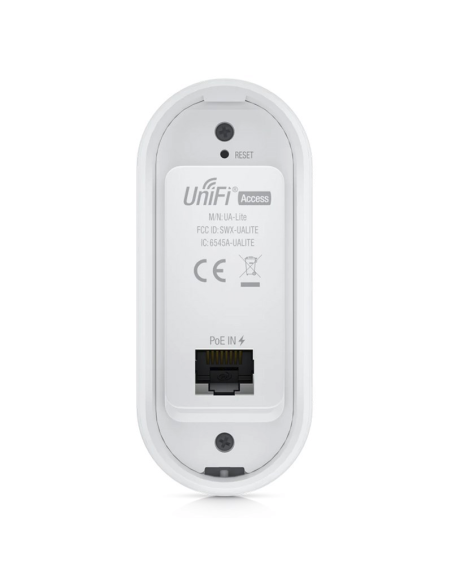

UA-Lite
Dimensions 94.91 x 40.00 x 31.10 mm
(3.74 x 1.57 x 1.22")
Weight 65 g
(2.29 oz)
Mounting Options Wall-Mount
Networking Interface 10/100 Mbps Ethernet
Max. Power Consumption 6W
Power Method 802.3af PoE
IP Rating IP54
Button (1) Reset
LEDs White/Blue
Connectivity Ethernet, BLE 4.1
Operating Temperature -40 to 40° C
(-40 to 104° F)
Operating Humidity 5 to 90% Noncondensing
Certifications CE, FCC, IC
NFC
Frequency 13.56 MHz
Read Range <30 mm
Standards ISO 14443A, 14443B, 15693
Technology NFC Tag 1, 2, 3, 4, 5
MIFARE Classic
MIFARE Plus
MIFARE Ultralight
MIFARE DESFire EV1/EV2

ISO/IEC 14443 Type A
MIFARE DESFire EV2
UniFi Access Proprietary Security
Protocol

UA-Card
Dimensions 85.6 x 53.98 x 0.84 mm (3.37 x 2.13 x 0.033")
Weight 5 g (0.18 oz)
Format ISO 7810 ID-1
NFC
Frequency 13.56 MHz
Technology
UDIM-AT
Dimensions 190 x 126 x 33 mm
(7.48 x 4.96 x 1.29"")
Weight 457 g
(16.12 oz)
Enclosure Characteristics Plastic Enclosure with Metal Mount Plate
Mounting Options DIN Rail
Networking Interface (4) 1 Gbps Ethernet
Max. Power Consumption 40W
Power Method 802.3bt PoE
Input Relays REX - Request to Exit
REN - Request to Enter
REL - Remote Release
DPS - Door Position Sensor
Dry Output Relay
Lock
Aux

Rated 30VDC, up to 1A
Rated 30VDC, up to 1A
Powered Output Relay
Lock
Aux
Line

12VDC, up to 1A
12VDC, up to 0.33A
12VDC, up to 0.33A
LEDs (1) System, (3) PoE Out, (4) Input
(2) Output Relays, (1) 12VDC Out
Buttons Terminal Blocks, Reset
Operating Temperature 0 to 40° C (32 to 104° F)
Operating Humidity 5 - 90% Noncondensing
Certifications CE, FCC, IC
