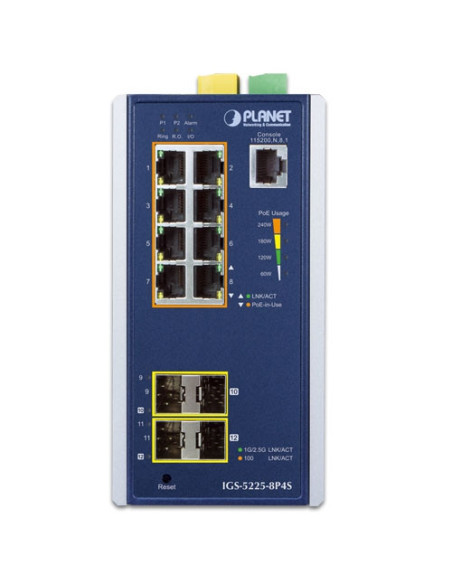

PLANET IGS-5225-8P4S Industrial L2+ 8-Port T 802.3at PoE + 2-Port 100/1G SFP + 2-Port 1G/2.5G SFP Managed Ethernet Switch

IGS-5225-8P4S
Last items in stock
$841.27
Tax included

IGS-5225-8P4S Industrial L2+ 8-Port 10/100/1000T 802.3at PoE + 4-Port 100/1000X SFP Managed Ethernet Switch (-40~75 degrees C)



PLANET’s IGS-5225-8P4S, a new Modbus TCP industrial Layer 2+ managed 8-port Gigabit PoE Switch, is equipped with a rugged IP30 metal case for stable operation in heavy industrial demanding environments.

Note: Power supply is not included, please select from the checklist below.



- Power Supply Options

NDR-120-48 Industrial 48V 120W DIN Rail Power Supply

$67.00

NDR-240-48 Industrial 48V 240W DIN Rail Power Supply

$86.90

NDR-480-48 Industrial 48V 480W DIN Rail Power Supply

$181.00

PWR-75-48 Industrial 48V 75W DIN Rail Power Supply

$105.66

- SFP Modules

Planet Multi-mode MFB-TSA SFP-Port 100BASE-BX Transceiver (WDM,TX:1310nm RX:1550nm / DDM) - 2km (-4

$84.29

Planet Multi-Mode MFB-TSB SFP-Port 100BASE-BX Transceiver (WDM,TX:1550nm RX:1310nm / DDM) - 2km (-40

$87.49

Planet MFB-F20 Single Mode, 100Mbps SFP Fiber Transceiver – 20KM

$41.82

Planet Multi-Mode MGB-TSB Mini GBIC Multi-mode WDM Tx-1550, 2km ,1000Mbps Gigabit SFP Fiber Transcei

$45.80

Planet Multi-Mode MGB-TSA Mini GBIC Multi-mode WDM Tx-1310, 2KM, 1000Mbps SFP fiber transceiver

$45.80

Planet Single-Mode MGB-TLX Mini GBIC LX Module – 20KM, extended temperature 1000Mbps Gigabit SFP Fib

$42.90

Planet MGB-GT Mini GBIC TP Module – 100M, 1000Mbps Gigabit Ethernet SFP Fiber Transceiver

$58.99

Planet MGB-TGT Mini GBIC TP Module – 100M , extended temperature 1000Mbps Gigabit Ethernet SFP Fiber

$69.72

Planet Multi-mode MGB-SX2 Mini GBIC SX Module – 2KM (0~60C),1000Mbps Gigabit Ethernet SFP Fiber Tran

$40.76

Planet Single Mode MGB-LX Mini GBIC LX Module – 20KM (0~60C),1000Mbps Gigabit Ethernet SFP Fiber Tra

$40.76

Planet Multi-mode MGB-TSX Mini GBIC SX Module, DDM Supported – 220-550M, extended temperature 1000Mb

$41.82

Planet Single-Mode MGB-L40 Mini GBIC LX Module – 40KM ,1000Mbps Gigabit Ethernet SFP Fiber Transceiv

$64.35

Planet Single-Mode MGB-2GTLA20 2.5G SFP Transceiver (WDM, TX:1310nm RX:1550nm, DDM, -40~75°C) – 20km

$89.10

MGB-TSX2 Planet 1000BASE-SX mini-GBIC MultiMode module, SFP transceiver, up to 2Km, -40 to 75°C, DDM

$42.90

Quantity Unit price You Save
4 $816.03 $100.95

Related Products & Accessories



IGS-5225-8P4S Industrial L2+ 8-Port 10/100/1000T 802.3at PoE + 4-Port 100/1000X SFP Managed Ethernet Switch (-40~75 degrees C)

PLANET’s IGS-5225-8P4S, a new Modbus TCP industrial Layer 2+ managed 8-port Gigabit PoE Switch, is equipped with a rugged IP30 metal case for stable operation in heavy industrial demanding environments.

Features of IGS-5225-8P4S:

  • Ports: 8 10/100/1000TX PoE + 4 100/1000X SFP
  • Type: Managed
  • PoE Ports: 8
  • Standards: 802.3at/af
  • Max. PoE Power Budget: Dual Power Input 240W
  • Operating Temp.: -40-75°C
  • Max. Power Consumption: 10.1W / 34.44 BTU (power on w/0 any connection), 255.9W/872.62BTU (full loading w/ PoE)
  • Throughput: 17.85Mpps @ 64bytes
  • Supports: IEEE 1588v2 Transparency, ERPS Ring, DIDO
Device Type
Network Switch
Power Over Ethernet
Device Features
Industrial
POE Ports
8
SFP Ports
4 Ports
Power Input
DC
SFP
Yes, 1G SFP
Installation Type
DIN-rail
Wall-mount
Ports
8 10/100/1000TX PoE + 2 100/1G SFP + 2 1G/2.5G SFP
Type
Managed
PoE Standard
802.3at
Operating Temperature
-40 to 75° C
Throughput
22.32Mpps @ 64Bytes
Supports
IEEE 1588v2 Transparency, ERPS Ring, DIDO
Max PoE Power Budget
52~56V Power Input, 240W
Max. Power Consumption
6.48W / 22.11BTU (power on w/0 any connection), 262W/893.42BTU (full loading w/ PoE)
4711605282420
IGS-5225-8P4S
