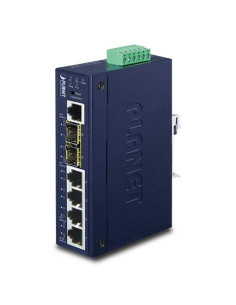

PLANET Industrial 4-Port 10/100/1000T 802.3at PoE + 2-Port 100/1000X SFP Managed Ethernet Switch

Last items in stock
Tax included


This 4-Port Industrial Managed PoE SFP Managed Ethernet Switch IGS-5225-4P2S from PLANET Technology features advanced PoE solutions for networking in a hardened environment. This switch features (4) 10/100/1000BASE-T 802.3at PoE+ ports, each port powering up to 36 watts, and (2) 100/1000X fiber ports in an IP40 rugged and compact case.

It provides user-friendly yet advanced IPv6/IPv4 management interfaces, abundant L2/L4 switching functions, Layer 3 static routing capability, ONVIF support, and advanced ITU-G.8032 ERPS Ring technology to improve the rapid self-recovery capability. Intelligent PoE functions allow for controlling the PoE outdoor IP surveillance and wireless network applications. The IGS-5225-4P2S is able to operate reliably, efficiently and quietly between -40 to 75 degrees C.

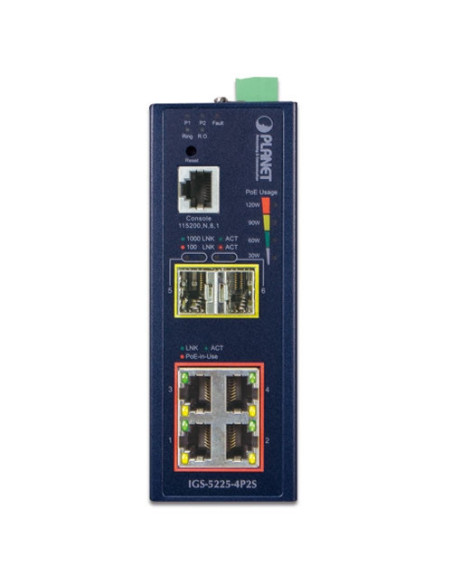

IGS-5225-4P2S - PLANET Industrial 4-Port 30W 802.3at PoE + 2-Port SFP Managed Switch

Power Over Ethernet Specifications:

  • Complies with IEEE 802.3at Power over Ethernet Plus/end-span PSE

  • Up to 4 IEEE 802.3af/802.3at devices powered

  • Supports PoE power up to 36 watts for each PoE port

  • Auto detects powered device (PD)

  • Circuit protection prevents power interference between ports

  • Remote power feeding up to 100m

  • PoE management features - Total PoE power budget control

  • - Per port PoE function enable/disable

  • - PoE admin-mode control

  • - PoE port power feeding priority

  • - Per PoE port power limit

  • - PD classification detection

  • Intelligent PoE features - Temperature threshold control

  • - PoE usage threshold control

  • - PD alive check

  • - PoE schedule

Internet Protocol Specifications:

  • Modbus TCP for real-time monitoring in a SCADA system

  • IEEE 1588v2 PTP (Precision Time Protocol)

Industrial Case Specifications:

  • IP40 metal case

  • DIN-rail and wall-mount designs

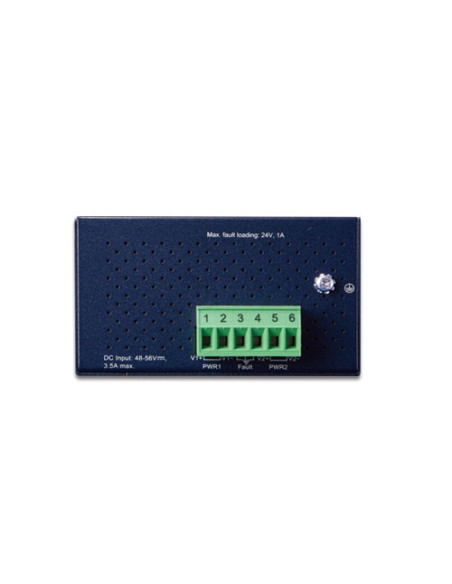

  • 48~56V DC, redundant power with polarity reverse protect function

  • Supports 6000V DC Ethernet ESD protection

  • -40 to 75 degrees C operating temperature

Layer 2 Features:

  • High performance of Store-and-Forward architecture, and runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth

  • Storm Control support - Broadcast/Multicast/Unicast

  • Supports VLAN - IEEE 802.1Q tagged VLAN

  • - Up to 255 VLANs groups, out of 4094 VLAN IDs

  • - Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)

  • - Private VLAN Edge (PVE)

  • - Protocol-based VLAN

  • - MAC-based VLAN

  • - Voice VLAN

  • - GVRP (GARP VLAN Registration Protocol)

  • Supports Spanning Tree Protocol - IEEE 802.1D Spanning Tree Protocol (STP)

  • - IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)

  • - IEEE 802.1s Multiple Spanning Tree Protocol (MSTP), spanning tree by VLAN

  • - BPDU Guard

  • Supports Link Aggregation - 802.3ad Link Aggregation Control Protocol (LACP)

  • - Cisco ether-channel (static trunk)

  • - Maximum 2 trunk groups with 2 ports per trunk group

  • - Up to 4Gbps bandwidth (duplex mode)

  • Provides port mirror (many-to-1)

  • Port mirroring to monitor the incoming or outgoing traffic on a particular port

  • Loop protection to avoid broadcast loops

  • Supports ERPS (Ethernet Ring Protection Switching)

  • Compatible with Cisco Uni-directional link detection(UDLD) that monitors a link between two switches and blocks the ports on both ends of the link if the link fails at any point between the two devices

  • Link Layer Discovery Protocol (LLDP)

Layer 3 Routing Features:

  • Supports maximum 32 static routes and route summarization

Multicast Features:

  • Supports IPv4 IGMP snooping v1, v2 and v3

  • Supports IPv6 MLD snooping v1 and v2

  • Querier mode support

  • IGMP snooping port filtering

  • MLD snooping port filtering

  • MVR (Multicast VLAN Registration)

 Security Features:

  • Authentication - IEEE 802.1x Port-based/MAC-based network access authentication

  • - Built-in RADIUS client to cooperate with the RADIUS servers

  • - TACACS+ login users access authentication

  • - RADIUS/TACACS+ users access authentication

  • Access Control List - IP-based Access Control List (ACL)

  • - MAC-based Access Control List

  • Source MAC/IP address binding

  • DHCP snooping to filter distrusted DHCP messages

  • Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding

  • IP Source Guard prevents IP spoofing attacks

  • IP address access management to prevent unauthorized intruder

Device Type
Network Switch
Power Over Ethernet
Device Features
POE Ports
SFP Ports
2 Ports
Power Input
Yes, 1G SFP
Installation Type
4 10/100/1000TX + 2 100/1000X SFP
PoE Standard
802.3at PoE Plus PSE
Operating Temperature
-40 to 75° C
Total PoE Budget
8.93Mpps @ 64Bytes
IEEE 1588v2 Transparency, ERPS Ring, DIDO, Cloudviewer App (more info. below)
Switch Fabric
12Gbps / non-blocking
Max. Power Consumption
6.3W / 21.6BTU (power on w/0 any connection), 151.8W/520.8BTU (full loading w/PoE)
