LRP-111U-KIT Planet IP30 Industrial 1-Port 10/100TX 802.3bt PoE + 1-Port UTP Long Reach PoE Kit (LRP-111UH + LRP-111UE)

LRP-111U-KIT
*** Out of stock ATM, Available On Backorder ***
$434.50
Tax included

LRP-111U-KIT

PLANET Long Reach PoE solution is designed to extend IP Ethernet transmission and inject power simultaneously into a remote 802.3bt PoE compliant powered device (PD) beyond the 100 meters distance limit of Ethernet.



Related Products & Accessories



LRP-111U-KIT

IP30 Industrial 1-Port 10/100TX 802.3bt PoE + 1-Port UTP Long Reach PoE Kit (LRP-111UH + LRP-111UE, -40 to 75 Degrees C, 802.3bt PoE++ or external 48~54V DC input, up to 500 meters UTP cable@100Mbps or 800 meters UTP cable@10Mbps)

Convenient PoE over UTP Extender in Harsh Environment

The LRP-111U-KIT, a PLANET brandnew industrial-grade Long Reach PoE solution, is a Single-port PoE over UTP Extender Kit featuring long range data and power transmission for distance up to 800m (2,624ft.) over UTP/STP cable, and another Ethernet cable to remote PoE IP camera, PoE wireless AP or access control systems complied with 802.3bt PoE. The LRP-111U-KIT provides point to point application for easy plug-n-play operation and deployment in climatically demanding environments with wide temperature range from -40 to 75 degrees C. Without the problem of power source, it makes the installation of remote PoE powered devices easier and more efficiently.

Composition of Long Reach PoE over UTP Extender Kit

The LRP-111U-KIT consists of a Long Reach PoE injector and a Long Reach PoE extender set which can work in pair anywhere on your network infrastructure. It contains two brand-new products:

  • LRP-111UH:  1-Port 10/100TX 802.3bt PoE PD + 1-Port UTP Long Reach PoE Injector
  • LRP-111UE:  1-Port 10/100TX 802.3bt PoE + 1-Port UTP Long Reach PoE Extender



The LRP-111UH transmits data and power over UTP/STP cable to the LRP-111UE, which can be located as far as 800m away. It will then deliver the data and power output with a maximum of up to 60 watts to a PoE PD over Ethernet cable, thus expediting the IP surveillance network or wireless LAN infrastructure in long distance. Both of the two products come in a compact but rugged metal housing rated IP30 ,ensuring durability. Their wall-mounted design fits easily in any space-limited location.



Functions
LRP Injector
LRP Extender
LRP-111UH
LRP-111UE
Power Input
 RJ45 with 802.3bt PoE input or power supply with 52~54V DC in
UTP with DC power over UTP input
Power Output
UTP with DC power over UTP output
RJ45 with 802.3bt PoE output
LAN Connection
NVR or 802.3bt PoE Ethernet switch at head-end
PoE IP camera, PoE wireless AP, PoE access control at remote site

IP Ethernet and Power over Long UTP

A normal UTP cable can only be extended up to 100 meters, but the LRP-111U-KIT can extend PoE networking up to 800 meters (2,624ft.), enabling stable, high-quality video transmission. It eliminates the need for additional remote site power while allowing a single power source to provide power to both LRP extenders and the PoE IP camera at long range.

LRP-111UH LED Indicators

•System

LED
Color
Function
PWR
Green
On： Power ON: PoE++ / PoE power input from RJ45 PoE PD port.
　　　Power ON: 52~54V DC power input from DC jack.
Off：Power Off
PoE IN
Amber
On: indicates the RJ45 port is receiving the PoE Power.



•LRP UTP Interface

LED
Color / Function
PoE-in-Use
Green
On：indicates that the LRP UTP link is established.
Off： indicates that the LRP UTP link is down.
LNK/ACT
Green：Link speed at 10Mbps

Amber：Link speed at 100Mbps



 •RJ45 10/100BASE-TX Interface

LED
Color / Function
LNK/ACT
Green：Link speed at 10Mbps

Amber：Link speed at 100Mbps





LRP-111EH LED Indicators

•System

LED
Color
Function
PoE IN
Green
On: Power ON: PoE++ / PoE power input from RJ45 PoE PD port.
off：Power Off



•LRP UTP Interface

LED
Color / Function
LNK/ACT
Green：Link speed at 10Mbps

Amber：Link speed at 100Mbps



 •RJ45 10/100BASE-TX Interface

LED
Color / Function
PoE-in-Use
Green：On: Indicates power is being supplied to the device via 802.3btt."

Amber：Off: Indicates power is being supplied to the device via 802.3at."
LNK/ACT
Green：Link speed at 10Mbps

Amber：Link speed at 100Mbps



Stable Operating Performance under Difficult Environments

PLANET Long Reach PoE Extender Kit is the perfect solution for distance extension for PoE or non-PoE networking for warehouses, parking lots, campuses, entertainment venues, and many more. They can operate stably under temperature ranging from -40 to 75 degrees C to enable the users to conveniently operate the kit in almost any location.



Plug and Play Installation

With the Plug and Play feature, PLANET Long Reach PoE Extender Kit can be used immediately without the need of configuration and is also compliant with all kinds of IP network protocols. Moreover, the rich diagnostic LEDs on the front panel show the operating status of the individual port and the whole system, enabling the administrator to efficiently manage the network.



Flexible and Easy Installation with Limited Space

The compact-sized LRP-111-KIT is specially designed to be installed in a narrow environment, such as wall enclosure. It can be installed by fixed wall mounting or DIN rail, thereby making its usability more flexible and easier in any space-limited location.

FEATURES:

Hardware Specifications
Ethernet Interface
      LRP-111UH LRP-111UE
Copper 10/100BASE-TX RJ45
Half- or Full-duplex/Auto-Sensing, MDI/MDI-X
Power over Ethernet Standard IEEE 802.3bt PoE PD (Powered Device) IEEE 802.3bt PoE PSE
(Power Source Equipment)
PoE Input Supports both mid-span and end-span PSE Input Range: 52~54V DC Supports both mid-span and end-span PSE
PoE Output － 54V DC, 1.1A max
PoE Budget － Up to 60 watts
PoE Mode － End-span + Mid-span ,
RJ45 Pin 1/2(-), 3/6(+),4/5(+),7/8(-)
Data Rate 10/100Mbps
Cabling Cat5e or above UTP cable
Maximum Distance 100m
Maximum Frame Size 1522bytes
Long Reach PoE Interface
      LRP-111UH LRP-111UE
Connectivity 1 x 10/100Mbps RJ45 connector
Long Reach PoE over UTP PSE		 1 x 10/100Mbps RJ45 connector
Long Reach PoE over UTP PD
Power Input － 52-54V DC
Power Output 54V DC －
 Power Pin assignment   RJ45 Pin 1, 2, 4, 5 VCC+
RJ45 Pin 3, 6, 7, 8 VCC-		 RJ45 Pin 1, 2, 4, 5 VCC+
RJ45 Pin 3, 6, 7, 8 VCC-
Cabling Cat.5e or above UTP cable
Maximum Distance Max. 500m with PoE++ output at 100Mbps (328ft.)
Max. 800m with PoE++ output at 10Mbps (1,640ft.)


Performance
Distance
Data Rate
LRP-111UE 802.3bt PoE Output Capability
LRP-111UH with 54V DC in
LRP-111UH with bt PoE++ in
100m
100Mbps
65.62W
66.74W
200m
100Mbps
53.42W
57.77W
300m
100Mbps
38.82W
39.9W
400m
100Mbps
34.2W
35.374W
500m
100Mbps
27.26W
29.6W
600m
10Mbps
22.6W
23.754W
700m
10Mbps
17.91W
17.91W
800m
10Mbps
15.56W
15.56W

Note：LRP-111UKIT has a maximum cable length of 800m with a speed of 10Mbps. At a cable length of 500m, the speed increases to 100Mbps.
DIP Switch Long Reach port mode:
　Auto:Auto-negotiation mode with maximum 100Mbps data rate and 500 meters UTP cable distance
　Long Distance: Long Reach port congiured with 10Mbps data rate and supports up to 800 meters UTP cable distance
Connector Removeable 2-pin terminal block
Power Consumption LRP-111UH：
Max. 3 watts (System On)
Max. 98 watts (Ethernet + PoE Full Loading)

LRP-111UE：
Max. 4 watts (System On)
Max. 98 watts (Ethernet + PoE Full Loading)
Dimensions (W x D x H) 30 x 70 x 104 mm
Weight LRP-111UH：
240g

LRP-111UE：
238g
Enclosure IP 30 compact size Metal case
Installation DIN-rail kit or wall-mount ear
ESD Protection 6KV DC
LED Indicators LRP-111UH：
5 x LEDs
　PWR
　PoE In
　PoE In use
　Lan Speed (10:Green 100: Amber)
　LRP Speed (10:Green 100: Amber)

LRP-111UE：
4 x LEDs
　PoE In
　PoE In use
　Lan Speed (10:Green 100: Amber)
　LRP Speed (10:Green 100:Amber)
Standards Conformance
Regulation Compliance FCC Part 15 Class A, CE
Stability Testing IEC 60068-2-32 (free fall)
IEC 60068-2-27 (shock)
IEC 60068-2-6 (vibration)
Standards Compliance IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3af Power over Ethernet (802.3at Type 1)
IEEE 802.3at Power over Ethernet (802.3at Type 2)
IEEE 802.3bt Power over Ethernet (802.3bt Type 3)
IEEE 802.3bt Power over Ethernet (802.3bt Type 4)
Environment
Temperature Operating: -40~75 degrees C
Storage: -40~85 degrees C
Humidity Operating: 5~90% (non-condensing)
Storage: 5~95% (non-condensing)

Device Features
TAA Compliant
PoE Standard
802.3af/at
Coppers
10/100BASE-TX RJ45, Auto-negotiation / auto-MDI/MDI-X
Operating Temperature
-20 to 70°C
Data Rate
100/100Mbps
No reviews

Related Products & Accessories

PLANET Long Reach 802.3at PoE over UTP Extender Kit
Last items in stock
Power Over Ethernet

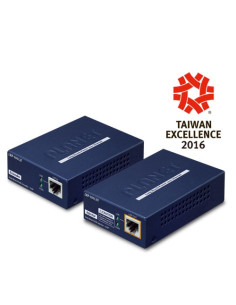

Planet LRP-101U-KIT 1-Port Long Reach PoE over UTP Extender Kit (LRP-101UH + LRP-101UE)

PLANET
LRP-101U-KIT
$374.00
LRP-101U-KIT 1-Port Long Reach PoE over UTP Extender Kit PoE over UTP Extender in Harsh Environments The LRP-101U-KIT is a Single-Port PoE over UTP Extender Kit that features long range data and power transmission for distances of up to 500m over UTP cable. The LRP-101U-KIT provides a simple plug-n-play operation. The LRP-101U can operate in extreme...
PLANET IGS-6329-8UP2S4X Industrial L3 8-Port 802.3bt PoE + 2-Port 1G/2.5G SFP + 4-Port 10G SFP+ Managed Ethernet Switch
*** Out of stock ATM, Available On Backorder ***
Wired Networking

Planet IGS-6329-8UP2S4X Industrial L3 8-PortT 802.3bt PoE + 2-Port 1G/2.5G SFP + 4-Port...

PLANET
IGS-6329-8UP2S4X
$1,671.84
IGS-6329-8UP2S4X Outstanding 802.3bt PoE++ Solution for Heavy Industrial Environment With EN 61000-6-2 and 61000-6-4 Heavy Industrial EMC, and railway EN 50121-4 certified design, and complying with the IEEE 802.3bt PoE++ technology, PLANET IGS-6329-8UP2S4X provides non-stop data communication and reliable PoE injection, even with noise interferences...

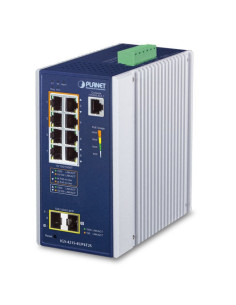

PLANET IGS-4215-8UP2T2S | Buy PLANET IGS-4215-8UP2T2S Industrial 8-Port 10/100/1000T 802.3bt PoE + 2-Port 10/100/1000T + 2-Port
*** Out of stock ATM, Available On Backorder ***
Wired Networking

PLANET IGS-4215-8UP2T2S Industrial 8-Port 10/100/1000T 802.3bt PoE + 2-Port...

PLANET
IGS-4215-8UP2T2S
$814.00
IGS-4215-8UP2T2S Cost-optimized Full PoE++ Power Solution Ideal for Hardened EnvironmentDesigned to be installed in heavy industrial  environments, the IGS-4215-8UP2T2S is the new member of PLANET Industrial-grade, DIN-rail type L2/L4 Managed Gigabit PoE++ Switch family featuring PLANET intelligent PoE functions to improve the availability of critical...
IGS-4215-4UP4T2S | Buy PLANET IGS-4215-4UP4T2S Industrial 4-Port T 802.3bt PoE + 4-Port T + 2-Port SFP Managed Switch|WISP
*** Out of stock ATM, Available On Backorder ***
Wired Networking

PLANET IGS-4215-4UP4T2S Industrial 4-Port 10/100/1000T 802.3bt PoE + 4-Port...

PLANET
IGS-4215-4UP4T2S
$726.00
IGS-4215-4UP4T2S Cost-optimized Full PoE++ Power Solution Ideal for Hardened EnvironmentDesigned to be installed in heavy industrial environments, the IGS-4215-4UP4T2S is the new member of PLANET Industrial-grade, DIN-rail type L2/L4 Managed Gigabit PoE++ Switch family featuring PLANET intelligent PoE functions to improve the availability of critical...

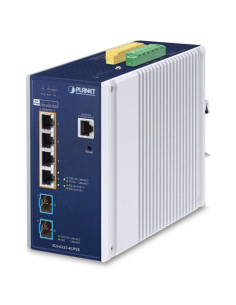

Planet IGS-6325-4UP2X| Buy Planet Industrial L3 4-Port 2.5GBASE-T 802.3bt PoE + 2-Port 10G SFP+ Managed Ethernet Switch | WISP
Last items in stock
Wired Networking

Planet IGS-6325-4UP2X Industrial L3 4-Port 2.5GBASE-T 802.3bt PoE + 2-Port 10G SFP+...

PLANET
IGS-6325-4UP2X
$810.00
IGS-6325-4UP2X 2.5Gbps Copper Ports with 802.3bt PoE++ Support and 10Gbps Fiber Ports Deliver High-speed PoE Networking PLANET IGS-6325-4UP2X Industrial-grade, Multi-Gigabit L3 Managed PoE++ Ethernet Switch  features four 2.5GBASE-T 802.3bt PoE++ ports, each of which can power up to 95 watts and two 10GBASE-X SFP+ ports. This switch comes in a rugged...

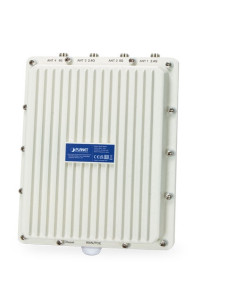

WDAP-3000AX |Buy Planet WDAP-3000AX Dual Band 802.11ax 3000Mbps Outdoor Wireless AP Planet WDAP-3000AX Dual Band 802.11ax 3000M
