Planet LRP-101U-KIT 1-Port Long Reach PoE over UTP Extender Kit (LRP-101UH + LRP-101UE)

LRP-101U-KIT
Last items in stock
$364.36
Tax included

LRP-101U-KIT 1-Port Long Reach PoE over UTP Extender Kit

PLANET Long Reach PoE solution is designed to extend IP Ethernet transmission and inject power simultaneously into a remote 802.3af/at PoE compliant powered device (PD) beyond the 100 meters distance limit of Ethernet.

NOTE: LRP-101U-KIT doesn't include a power supply. Please, use the below menu to add these to your order, if you don't use PoE switch.



LRP-101U-KIT 1-Port Long Reach PoE over UTP Extender Kit

Convenient PoE over UTP Extender in Harsh Environment
The LRP-101U-KIT, a PLANET Long Reach PoE solution, is a Single-port PoE over UTP Extender Kit featuring long range data and power transmission for distance up to 500m (1,640ft.) over UTP/STP cable, and another 100m over Ethernet cable to remote PoE IP camera, PoE wireless AP or access control systems complied with 802.3af/at PoE. The LRP-101U-KIT provides point to point application for easy plug-n-play operation and deployment in climatically demanding environments with wide temperature range from -20 to 70 degrees C. Without the problem of power source, it makes the installation of remote PoE powered devices easier and more efficiently.

Composition of Long Reach PoE over UTP Extender Kit
The LRP-101U-KIT consists of a Long Reach PoE injector and a Long Reach PoE extender set which can work in pair anywhere on your network infrastructure. It contains two brand-new products:

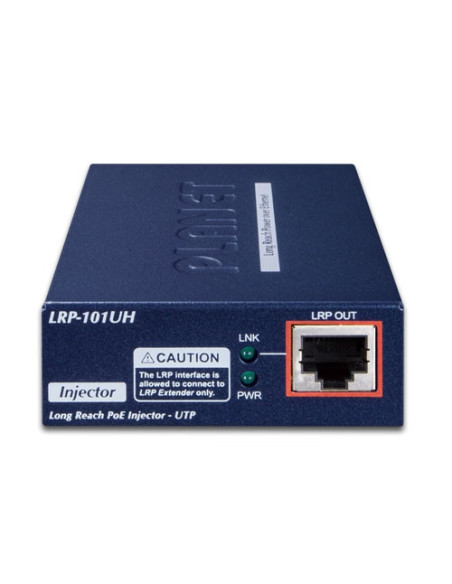

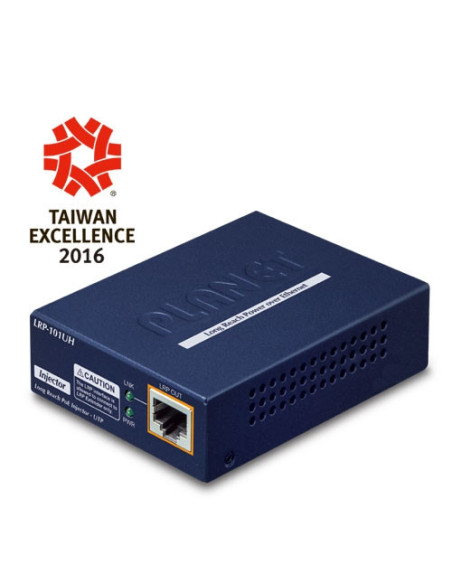

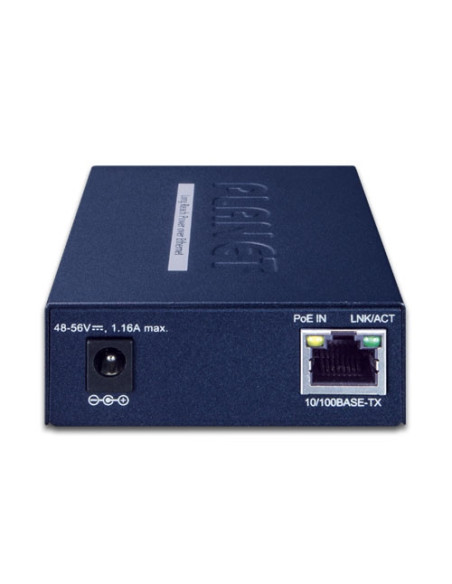

LRP-101UH: 1-Port 10/100TX PoE PD + 1-Port UTP Long Reach PoE Injector

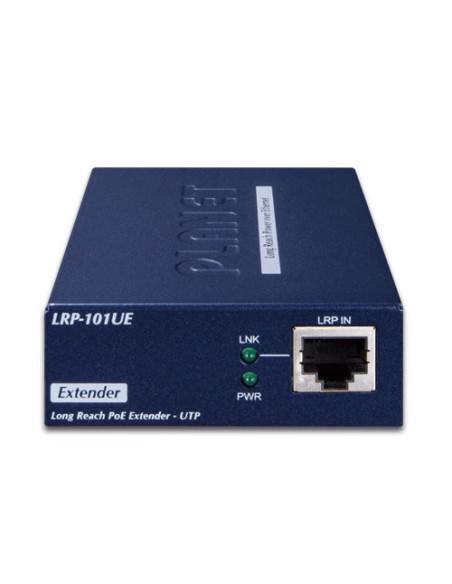

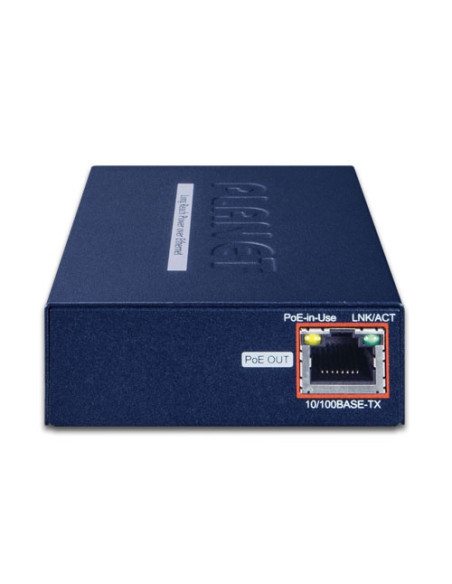

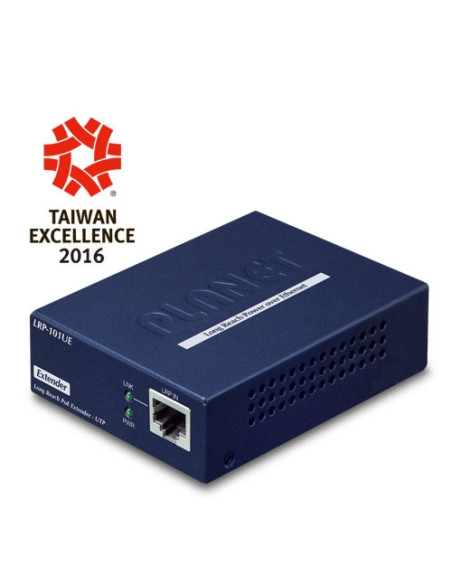

LRP-101UE: 1-Port 10/100TX PoE PSE + 1-Port UTP Long Reach PoE Extender

The LRP-101UH transmits data and power over UTP/STP cable to the LRP-101UE, which can be located as far as 500m away. It will then deliver the data and power output with a maximum of up to 25 watts to a PoE PD over Ethernet cable, thus expediting the IP surveillance network or wireless LAN infrastructure in long distance. Both of the two products come in a compact but rugged metal housing. Their wall-mounted design fits easily in any space-limited location.

Functions
LRP Injector
LRP Extender
LRP-101UH
LRP-101UE
Power Input
RJ45 with 802.3at/af PoE input or power adapter with 48~56V DC in
UTP with DC power over UTP input
Power Output
UTP with DC power over UTP output
RJ45 with 802.3at/af PoE output
LAN Connection
NVR or PoE+ Ethernet switch at head-end
PoE IP camera, PoE wireless AP, PoE access control at remote site



IP Ethernet and Power over Long UTP or Twisted-pair Cable
A normal UTP cable can only be extended up to 100 meters, but the LRP-101U-KIT can extend PoE networking up to 500 meters (1,640ft.) over long 4-pair UTP cable or up to 300 meters (1,000ft.) over an existing 1-pair twisted-pair cable, such as telephone wire, with stable, high-quality video transmission. It eliminates the need for additional remote site power while allowing a single power source to provide power to both LRP extenders and the PoE IP camera at long range.



Stable Operating Performance under Difficult Environments
PLANET Long Reach PoE Extender Kit is the perfect solution for distance extension for PoE or non-PoE networking for warehouses, parking lots, campuses, casinos, and many more. They can operate stably under temperature ranging from -20 to 70 degrees C to enable the users to conveniently operate the kit in almost any location.



Plug-n-play Installation
With the plug and play feature, PLANET Long Reach PoE Extender Kit can be used immediately without the need of configuration and is also compliant with all kinds of IP network protocols. Moreover, the rich diagnostic LEDs on the front panel show the operating status of the individual port and the whole system, enabling the administrator to efficiently manage the network.

Applications

Key Features

Specifications

Hardware Specifications
Ethernet Interface LRP-101UH
■ Copper: 10/100BASE-TX RJ45, auto-negotiation/ auto-MDI/MDI-X
■ Power over Ethernet Standard: IEEE 802.3at/af PoE PD
 (Powered Device)
■ PoE Input: Supports both mid-span and end-span PSE
 Input Range: 48~56V DC
■ Data Rate: 100/100Mbps
■ Cabling: Cat5e or above
■ Maximum Distance: 100m
■ Maximum Frame Size: 1522 bytes

LRP-101UE
■ Copper: 10/100BASE-TX RJ45, auto-negotiation/ auto-MDI/MDI-X
■ Power over Ethernet Standard: IEEE 802.3at/af PoE PSE
 (Power Source Equipment)
■ PoE Output: 48~56V DC, 600mA max.
■ PoE Budget: Up to 25 watts
■ PoE Mode: End-span, RJ45 Pin 1/2(+), 3/6(-)
■ Data Rate: 100/100Mbps
■ Cabling: Cat5e or above
■ Maximum Distance: 100m
■ Maximum Frame Size: 1522 bytes
Long Reach PoE Interface LRP-101UH
■ Connectivity: 1 x RJ45 connector, Long Reach PoE over UTP PSE
■ Power Output: 41~56V DC
■ Power Pin assignment:
 RJ45 Pin 1, 3, 5, 7: VCC+
 RJ45 Pin 2, 4, 6, 8: VCC-
■ Cabling:
 Cat. 3, 4, 5, 5e UTP cable (100 meters, max.)
 EIA/TIA-568 100-ohm STP (100 meters, max.)
■ Maximum Distance:
 Max. 100m with PoE+ output (328ft.)
 Max. 500m with PoE output (1,640ft.)
 Max. 1000m without PoE output (3,280ft.)
■ Long Reach Ethernet Standard: IEEE 1901
■ Modulation Type: Wavelet-OFDM
■ Security: 128-bit AES encryption
■ Frequency Band: 2 ~ 28 MHz
■ Encryption: AES 128-bit

LRP-101UE
■ Connectivity: 1 x RJ45 connector, Long Reach PoE over UTP PD
■ Power Input: 37~56V DC*
■ Power Pin assignment:
 RJ45 Pin 1, 3, 5, 7: VCC+
 RJ45 Pin 2, 4, 6, 8: VCC-
■ Maximum Distance:
 Max. 100m with PoE+ output (328ft.)
 Max. 500m with PoE output (1,640ft.)
 Max. 1000m without PoE output (3,280ft.)
■ Long Reach Ethernet Standard: IEEE 1901
■ Modulation Type: Wavelet-OFDM
■ Security: 128-bit AES encryption
■ Frequency Band: 2 ~ 28 MHz
■ Encryption: AES 128-bit

Performance**
Distance
Data Rate*
(Upload / Download)
LRP-101UE 802.3af/at PoE Output Capability**
LRP-101UH
with 56V DC in
LRP-101UH
with 30W PoE+ in
100m
94 / 94Mbps
30W
19W
200m
82 / 82Mbps
30W
18W
300m
63 / 67Mbps
30W
17W
400m
44 / 48Mbps
22W
14W
500m
30 / 30Mbps
18W
12W
LED Indicators LRP-101UH
4 x LEDs
■ PWR
■ LRP LNK
■ PoE IN
■ LNK/ACT

LRP-101UE
4 x LEDs
■ PWR
■ LRP LNK
■ PoE-in-use
■ LNK/ACT
ESD Protection 4KV DC
EFT Protection LRP-101UH
■ 2KV

LRP-101UE
■ -
Enclosure Metal case
Installation Wall mount or DIN rail with optional kit
Dimensions (W x D x H) 94 x 70.3 x 26.2 mm
Weight LRP-101UH
193g

LRP-101UE
190g
Power Requirements LRP-101UH
■ RJ45 PoE Input: 802.3at/af 48~56V DC
■ DC Input: 48~56V DC

LRP-101UE
■ Power over RJ45 Input: 44~56V DC
Standards Conformance
Standards Compliance IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3af Power over Ethernet (802.3at Type 1)
IEEE 802.3at Power over Ethernet (802.3at Type 2)
Regulation Compliance FCC Part 15 Class A, CE
Environment
Temperature Operating: -20~70 degrees C
Storage: -40~75 degrees C
Humidity Operating: 5~95% (non-condensing)
Storage: 5~95% (non-condensing)
Note
Note *1.Upload: LRP-101UE to LRP-101UH,data stream.
 Download: LRP-101UH to LRP-101UE,data stream.
2.As there are various resistance values in the category
 of 5/5e cable, the actual data rate will vary on the quality
 of the copper wire and environment factors.
**Depending on what the DC/PoE Power Input and the length of UTP cable
 are.

Device Type
Power Over Ethernet
Device Features
TAA Compliant
Coppers
10/100BASE-TX RJ45, Auto-negotiation / auto-MDI/MDI-X
PoE Output
48~56V DC, 600mA max.
Connectivity
1 x RJ45 connector, Long Reach PoE over UTP
Max. Distance
500m
PoE Budget
Up to 25W
PoE Input
Mid-span and End-span PSE Input range: 48 ~ 56V DC
PoE Mode
End-span, RJ45 Pin 1/2 (+), 3/6(-) [PSE]
PoE Standard
IEEE 802.3at/af PoE
