Planet IGS-6325-4UP2X Industrial L3 4-Port 2.5GBASE-T 802.3bt PoE + 2-Port 10G SFP+ Managed Ethernet Switch

Last items in stock
Tax included


2.5Gbps Copper Ports with 802.3bt PoE++ Support and 10Gbps Fiber Ports Deliver High-speed PoE Networking

PLANET IGS-6325-4UP2X Industrial-grade, Multi-Gigabit L3 Managed PoE++ Ethernet Switch  features four 2.5GBASE-T 802.3bt PoE++ ports, each of which can power up to 95 watts and two 10GBASE-X SFP+ ports. This switch comes in a rugged IP30 metal case and can withstand a temperature range of -40 to 75 degrees C, making operation in the heavy industrial environment more stable.

The IGS-6325-4UP2X supports rich PoE operation modes including 90-watt 802.3bt type-4 PoE++ mode and 4-pair force mode to solve the incompatibility of non-standard 4-pair PoE PDs in the field.

2.5 Gbps 10Gbps SFP+ 95W PoE++ L3 OSPF Routing RING ONVIF Alive Check

- SFP Modules


IGS-6325-4UP2X - Industrial L3 4-Port 2.5GBASE-T 802.3bt PoE + 2-Port 10G SFP+ Managed Ethernet Switch

High Power and Full-speed Data Delivered over 4-pair UTP Cabling

The IGS-6325-4UP2X is equipped with the IEEE PoE++ technology, enabling it to provide up to 95 watts of power to each remote PoE compliant powered device (PD) using all four pairs of standard Cat5e/6 Ethernet cabling for high power and full-speed data delivery. Compared to the conventional 802.3at PoE+, it offers triple power capacity, making it the perfect solution for higher power consuming PDs, including:

  • PoE PTZ speed dome cameras
  • Network devices
  • Thin clients
  • AIO (all-in-one) touch PCs, point of sale (POS) and information kiosks
  • Remote digital signage displays
  • PoE lightings



802.3bt PoE++ and Advanced PoE Power Output Mode Management

To meet the demand for supplying stable PoE power to various powered devices, the IGS-6325-4UP2X Switch offers five different PoE power output modes for selection.

  • 90W 802.3bt PoE++ Power Output Mode (Pins 1, 2, 3, 6 + Pins 4, 5, 7, 8)
  • 95W UPOE Power Output Mode (Pins 1, 2, 3, 6 + Pins 4, 5, 7, 8)
  • 30W End-span PoE Power Output Mode (Pins 1, 2, 3, 6)
  • 30W Mid-span PoE Power Output Mode (Pins 4, 5, 7, 8)
  • 60W Force Power Output Mode (Pins 1, 2, 3, 6 + Pins 4, 5, 7, 8)


ONVIF Support Allows Effective and Centralized Control Over IP-based Security Products

The IGS-6325-4UP2X switch offers ONVIF support as part of its versatile feature set for seamless integration with IP surveillance cameras. Through the switch's web GUI, users can easily search for and display all ONVIF-compliant devices on their LAN.

Users can also upload floor plans to the switch and place IP surveillance cameras on the plan for more intuitive planning and faster inspection in the future. Additionally, the web GUI provides real-time surveillance information, online/offline status, and the ability to remotely reboot cameras.



 Intelligent Alive Check for Powered Devices

The IGS-6325-4UP2X can be configured to monitor the status of connected powered devices (PDs) in real time through ping action. If a PD stops working and responding, the IGS-6325-4UP2X will recycle the PoE port power and bring the PD back to working condition. This greatly enhances reliability, as the assigned PoE port automatically reboots the PD, reducing the administrator's management burden.



PoE Scheduling to Save Energys

By implementing the "PoE schedule" function, businesses can reduce their energy consumption during non-business hours or periods of low network usage. This not only helps to reduce energy costs but also minimizes the overall carbon footprint of the organization.


Furthermore, the IGS-6325-4UP2X's PoE scheduling feature provides a convenient and easy-to-use interface for managing power usage. The user can easily set the time intervals for each PoE port, allowing for more efficient power management.


Scheduled Power Recycling

The IGS-6325-4UP2X enables connected PoE IP cameras or PoE wireless access points to reboot at a specific time each week. This will reduce the chance of IP camera or AP crashes resulting from buffer overflow.

Layer 3 Network Routing Support

The IGS-6325-4UP2X allows administrators to boost network efficiency by configuring Layer 3 IPv4/IPv6 VLAN static routing manually or automatically through the Routing Information Protocol (RIP) or Open Shortest Path First (OSPF) settings.


The RIP uses hop count as a routing metric and prevents routing loops by setting a limit on the number of hops allowed in a path from source to destination.


The OSPF is an interior dynamic routing protocol for autonomous systems based on link state. The protocol creates a database of link states by exchanging link states among Layer 3 switches and then uses the Shortest Path First algorithm to generate a route table based on that database.


Robust Layer 2 Features

The IGS-6325-4UP2X is capable of advanced Layer 2 switch management functions, including dynamic port link aggregation, 802.1Q tagged VLAN, Q-in-Q VLAN, private VLAN, Multiple Spanning Tree Protocol (MSTP), Layer 2 to Layer 4 QoS, bandwidth control, IGMP snooping, and MLD snooping. By aggregating supporting ports, the IGS-6325-4UP2X can operate up to 3 high-speed trunk groups with multiple ports and fail-over support.




Modbus TCP Provides Flexible Network Connectivity for Factory Automation

The IGS-6325-4UP2X supports the Modbus TCP protocol, allowing for easy integration with SCADA systems, HMI systems, and other data acquisition systems in factory floors. This enables administrators to remotely monitor the industrial Ethernet switch's operating information, port information, communication status, and DI/DO status, thereby enhancing monitoring and maintenance of the entire factory.


Redundant Ring, Fast Recovery for Critical Network Applications

The IGS-6325-4UP2X supports redundant ring technology and has strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, Multiple Spanning Tree Protocol (IEEE 802.1s MSTP), and a redundant power input system into customer's industrial automation network, enhancing system reliability and uptime in harsh factory environments. In a simple ring network, the data link recovery time can be as fast as 10ms.



1588 Precision Time Protocol for Industrial Computing Networks

The IGS-6325-4UP2X is ideal for implementing precision time Ethernet applications. It is competent to play an undeniable role in an IEEE 1588 and synchronous Ethernet network by supporting MEF service delivery and timing over packet solutions.


SMTP Event Alert

The IGS-6325-4UP2X supports SMTP event alert function to help quickly determine whether a device malfunction results from a network disconnection, or a rebooting response.




Effective Alarm Alert for Better Protection

The IGS-6325-4UP2X supports a Fault Alarm feature which can alert the users when there is something wrong with the switches. With this ideal feature, the users would not have to waste time to find where the problem is. It will help to save time and effort.



Digital Input and Digital Output for External Alarm

The IGS-6325-4UP2X supports Digital Input and Digital Output on its front panel. This external alarm enables users to use Digital Input to detect and log external device status (such as door intrusion detector), and send event alarm to the administrators. The Digital Output could be used to inform the administrator the IGS-6325-4UP2X’s port status including link down, link up or power failure.




Efficient Management

For efficient management, the IGS-6325-4UP2X is equipped with console, Web and SNMP management interfaces.

  • With the built-in Web-based management interface, the IGS-6325-4UP2X offers an easy-to-use, platform-independent management and configuration facility.
  • For text-based management, it can be accessed via Telnet and the console port.
  • For standard-based monitor and management software, it offers SNMPv3 connection which encrypts the packet content at each session for secure remote management.




Intelligent SFP Diagnosis Mechanism

The IGS-6325-4UP2X supports SFP-DDM (digital diagnostic monitor) function that greatly helps network administrator to easily monitor real-time parameters of the SFP and SFP+ transceivers, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.




Increase Field Information Availability and Streamline Central Management

The IGS-6325-4UP2X provides up to four 802.3bt PoE++ in-line power interfaces, making it easy to build a centrally controlled power system for IP phone, IP camera, or wireless AP groups in an industrial network. For example, you can easily install four PoE IP cameras or wireless access points around the corner in an industrial environment for surveillance demands or for a wireless roaming network. The IGS-6325-4UP2X eliminates the power socket limitation, making the installation of IP cameras or wireless APs easier and more efficient.



                        Used in a Supermarket


                         Used in a Front Yard


Key Features

Hardware Specifications

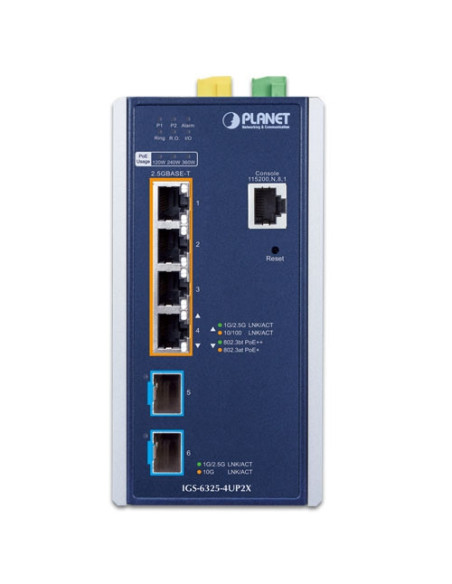

Copper Ports 4 2.5GBASE-T RJ45 auto negotiation port
Supports 2.5G/1G/100/10Mbps data rate
SFP+ Ports 2 10GBASE-SR/LR SFP+ slots
Backward compatible with 1000BASE-SX/LX/BX and 2500BASE-X SFP transceivers
PoE Injector Ports 4 ports with 802.3bt PoE++ injector function, from Port-1 to Port-4
Console 1 x RJ45-to-RS232 serial port (115200, 8, N, 1)
Reset Button < 5 sec: System reboot
> 5 sec: Factory default

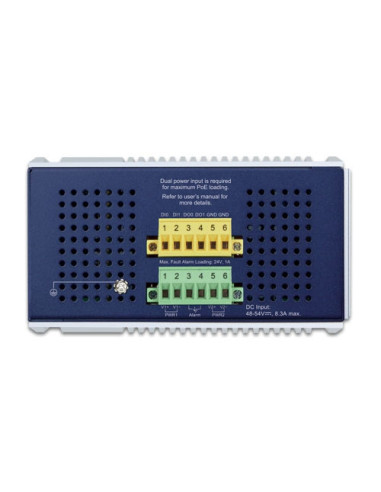

Connector Removable 6-pin terminal block for power input
Pin 1/2 for Power 1, Pin 3/4 for Alarm, Pin 5/6 for Power 2
Removable 6-pin terminal block for DI/DO interface
Pin 1/2 for DI 1 & 2, Pin 3/4 for DO 1 & 2, Pin 5/6 for GND
Alarm One relay output for power failure. Alarm relay current carry ability: 1A @ 24VDC
Digital Input (DI) 2 digital inputs:
 Level 0: -24~2.1V (±0.1V)
 Level 1: 2.1~24V (±0.1V)
 Input load to 24VDC, 10mA max.
Digital Output (DO) 2 digital outputs:
 Open collector to 24VDC, 100mA
Enclosure IP30 aluminum case
Installation DIN-rail or wall-mount
SDRAM 512Mbytes
Flash Memory 64Mbytes
Dimensions (W x D x H) 76 x 135 x 152 mm
Weight 1,319g
Power Requirements DC 48V-54V, 8.3A max.
Power Consumption 48VDC Input:
Max. 8.9 watts/30.4 BTU (Idle)
Max. 379 watts/1293.2 BTU (Full load)

54VDC Input:
Max. 9.2 watts/31.4 BTU (Idle)
Max. 381 watts/1300 BTU (Full load)
ESD Protection Contact 4KVDC; Air 8KVDC
Surge Protection 2KVDC
LED Indicators System:
 Power 1 (Green), Power 2 (Green)
 Alarm (Red)
 Ring (Green), Ring Owner (Green)
 DI/DO (Red)
PoE Usage:
 120W/240W/360W (Amber)
Per 10/100/1G/2.5GBASE-T RJ45 Port:
 Data LED:
  1G/2.5G LNK/ACT (Green)
  10/100 LNK/ACT (Amber)
  IEEE 802.3bt Mode (Green)
  IEEE 802.3at Mode (Amber)
Per 1G/2.5G/10GBASE-X SFP+ Port:
 1G/2.5Gbps LNK/ACT (Green)
 10Gbps LNK/ACT (Amber)
Switching Specifications
Switch Architecture Store-and-Forward
Switch Fabric 60Gbps/non-blocking
Throughput 44.462Mpps@64Bytes
Address Table 8K entries, automatic source address learning and aging
Shared Data Buffer 32Mbits
Jumbo Frame 10K bytes
Flow Control IEEE 802.3x pause frame for full duplex
Back pressure for half duplex
Power over Ethernet
PoE Standard IEEE 802.3bt PoE++ Type-4
PoE Power Supply Type End-span
Power Pin Assignment 802.3bt/UPoE: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
802.3at/PoE: End-span: 1/2(-), 3/6(+)
802.3at/PoE: Mid-span: 4/5(+), 7/8(-)
PoE Power Output Per port 48V ~ 54VDC
-802.3bt Type-4 mode: maximum 95 watts
-End-span mode: maximum 36 watts
-Mid-span mode: maximum 36 watts
-Force mode: maximum 95 watts
PoE Power Budget Single power input: 240W maximum (depending on power input)
Dual power input: 360W maximum (depending on power input)
※Dual power input must be the same as DC voltage, like dual 54V.
Number of 90W 802.3bt Type-4 PDs 4
Number of 60W 802.3bt Type-3 PDs 4
Number of 30W 802.3at Type-2 PDs 4
PoE Management Functions
Enhanced PoE Mode Standard/Legacy/Force
PoE Management PD Alive Check
Scheduled Power Recycling
PoE Schedule
PoE Usage Monitoring
PoE Extension
Active PoE Device Live Detection Yes
PoE Power Recycling Yes, daily or predefined schedule
PoE Schedule 4 schedule profiles
PoE Extend Mode Yes, max. up to 160 meters
Layer 3 Functions
IP Interfaces Max. 32 VLAN interfaces
Routing Table Max. 32 static routing entries
Max. 1K routing table entries
Routing Protocols IPv4 RIPv2
IPv4 hardware static routing
IPv6 hardware static routing
Layer 2 Functions
Port Configuration Port disable/enable
Auto-negotiation 10/100/1000/2500Mbps full and half duplex mode selection
Flow control disable/enable
Port link capability control
Port Status Display of each port’s speed duplex mode, link status, flow control status, auto-negotiation status and trunk status
Port Mirroring TX/RX/Both
Many-to-1 monitor
RMirror – Remote Switched Port Analyzer (Cisco RSPAN)
Supports up to 5 sessions
VLAN IEEE 802.1Q tagged VLAN
IEEE 802.1ad Q-in-Q tunneling
Private VLAN Edge (PVE)
MAC-based VLAN
Protocol-based VLAN
Voice VLAN
IP Subnet-based VLAN
MVR (Multicast VLAN registration)
Up to 4K VLAN groups, out of 4095 VLAN IDs
Link Aggregation IEEE 802.3ad LACP/static trunk
Max. 3 trunk groups with max. 6 ports per trunk group
Spanning Tree Protocol IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
Supports 7 MSTP instances
BPDU Guard, BPDU filtering and BPDU transparent
Root Guard
IGMP Snooping IPv4 IGMP (v1/v2/v3) snooping
IPv4 IGMP querier mode support
Supports 255 IGMP groups
MLD Snooping IPv6 MLD (v1/v2) snooping,
IPv6 MLD querier mode support
Supports 255 MLD groups
Bandwidth Control Per port bandwidth control
 Ingress: 10Kbps~13128Mbps
 Egress: 10Kbps~13128Mbps
Ring Supports ERPS, and complies with ITU-T G.8032
Recovery time < 10ms @ 3 nodes
Recovery time < 50ms @ 16 nodes
Supports Major ring and sub-ring
Synchronization IEEE 1588v2 PTP (Precision Time Protocol)
 Peer-to-peer transparent clock
 End-to-end transparent clock
QoS Traffic classification based, strict priority and WRR
8-level priority for switching:
 Port number
 802.1p priority
 802.1Q VLAN tag
 DSCP/ToS field in IP packet
Security Functions
Access Control List IP-based ACL/MAC-based ACL
ACL based on:
 MAC Address
 IP Address
 Protocol Type
 802.1p Priority
Up to 512 entries
Security Port security
IP source guard, up to 512 entries
Dynamic ARP inspection, up to 1K entries
Command line authority control based on user level
Static MAC address, up to 64 entries
TACACS+ client
Network Access Control IEEE 802.1x port-based network access control
MAC-based authentication
Local/RADIUS authentication
Basic Management Interfaces Console; Telnet; Web browser; SNMP v1, v2c
Secure Management Interfaces SSHv2, TLS v1.2, SNMPv3
System Management Firmware upgrade by HTTP protocol through Ethernet network
Configuration upload/download through HTTP
Remote Syslog
System log
LLDP protocol
PLANET Smart Discovery Utility
PLANET CloudViewer app
RFC 1493 Bridge MIB
RFC 1643 Ethernet MIB
RFC 2863 Interface MIB
RFC 2665 Ether-Like MIB
RFC 2819 RMON MIB (Group 1, 2, 3 and 9)
RFC 2737 Entity MIB
RFC 2618 RADIUS Client MIB
RFC 3411 SNMP-Frameworks-MIB
RFC 4292 IP Forward MIB
Standards Conformance
Regulatory Compliance FCC Part 15 Class A
Stability Testing IEC60068-2-32 (free fall)
IEC60068-2-27 (shock)
IEC60068-2-6 (vibration)
Standards Compliance IEEE 802.3z Gigabit SX/LX
IEEE 802.3ab Gigabit 1000T
IEEE 802.3ae 10GBASE-X
IEEE 802.3bz 2.5/5GBASE-T
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1X Port Authentication Network Control
IEEE 802.1ab LLDP
IEEE 802.3ah OAM
IEEE 802.1ag Connectivity Fault Management (CFM)
RFC 791 IP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
RFC 3376 IGMP v3
RFC 2710 MLD v1
RFC 3810 MLD v2
RFC 2328 OSPF v2
RFC 5340 OSPF v3
RFC 2453 RIP v2
ITU-T G.8032 ERPS Ring
Operating -40 ~ 75 degrees C
Storage -40 ~ 85 degrees C
Humidity 5 ~ 95% (non-condensing)

Device Type
Network Switch
Device Features
TAA Compliant
POE Ports
Installation Type
DIN Rail or Wall Mount
4 2.5G T + 2 10G SFP+
PoE Standard
802.3bt (Type 4)
Operating Temperature
-40 to 75° C
44.462Mpps @ 64bytes
Modbus TCP, IEEE 1588v2 Transparency, ERPS Ring, DIDO
Max. Power Consumption
48VDC Input: 8.9W/30.4 BTU (Idle), 379/1293.2BTU (full load)
54VDC Input: 9.2W/31.4BTU (Idle), 381W/1300BTU (full load)
No reviews

Related Products & Accessories

Comments (0)
No customer reviews for the moment.
Product added to wishlist
Product added to compare.

We use cookies to ensure that we give you the best experience on our website,

if you continue to use this site we will assume that you are happy with it.
