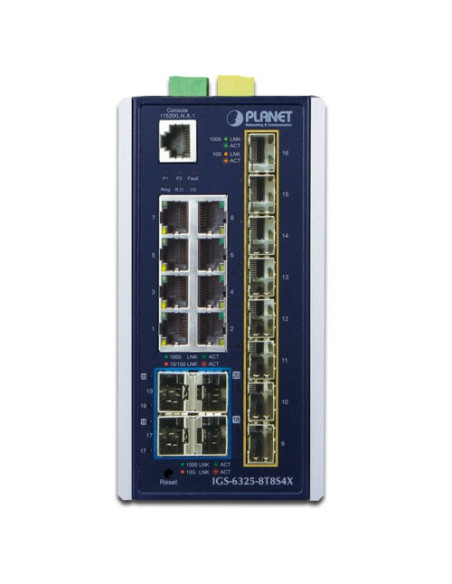

PLANET IGS-6325-8T8S4X Industrial 8-Port RJ45 + 8-Port 1G SFP + 4-Port 10G SFP+ Managed Gigabit Switch

PLANET Industrial 8-Port RJ45 + 8-Port 1G SFP + 4-Port 10G SFP+ Managed Gigabit Switch

IGS-6325-8T8S4X
Available On Backorder
$978.99
Tax included

PLANET IGS-6325 Industrial Layer 3 Managed Non-PoE Switch series features 8 10/100/1000BASE-T Copper ports, 8 extra 100/1000BASE-X SFP fiber ports, 4 10GBASE-SR/LR SFP+ ports and Layer 3 IP routing in a rugged IP30 metal case for stable operation in heavy industrial demanding environments. With 10Gbps uplink, the IGS-6325-8T8S4X can handle extremely large amounts of data in a secure topology linking to an industrial backbone or high capacity servers. The IGS-6325-8T8S4X is capable of providing non-blocking switch fabric and wire-speed throughput as high as 112Gbps in the temperature range from -40 to 75 degrees C. It greatly simplifies the tasks of upgrading the industrial LAN for catering to increasing bandwidth demands.

The IGS-6325 Series enables the administrator to conveniently boost network efficiency by configuring Layer 3 IPv4/IPv6 VLAN static routing manually, and the IPv4 OSPFv2 (Open Shortest Path First) settings automatically. The OSPF is an interior dynamic routing protocol for autonomous system based on link state. The protocol creates a database for link state by exchanging link states among Layer 3 switches, and then uses the Shortest Path First algorithm to generate a route table based on that database.

Physical Port

  • 8 10/100/1000BASE-T RJ45 copper ports
  • 8 100/1000BASE-X SFP slots for SFP type auto detection
  • 4 10GBASE-SR/LR SFP+ slots, compatible with 1000BASE-X SFP
  • One RJ45-to-RS232 console interface for basic management and setup

Industrial Hardened Design

  • Dual power input, redundant power with reverse polarity protection
  • - DC 12 to 48V input or AC 24V input
    - Active-active redundant power failure protection
    - Backup of catastrophic power failure on one supply
    - Fault tolerance and resilience
  • DIN-rail and wall-mountable designs
  • IP30 aluminum case
  • Supports 6000V DC Ethernet ESD protection
  • -40 to 75 degrees C operating temperature

Digital Input and Digital Output

  • 2 Digital Input (DI)
  • 2 Digital Output (DO)
  • Integrates sensors into auto alarm system
  • Transfers alarm to IP network via email and SNMP trap

Layer 3 IP Routing Features

  • IP dynamic routing protocol supports OSPFv2
  • IPv4/IPv6 hardware static routing
  • Routing interface provides per VLAN routing mode
Power Input
AC, DC
Device Type
Network Switch
Device Features
Managed, Industrial
SFP+ Ports
4
SFP Ports
8
SFP
Yes, 10G SFP+, Yes, 1G SFP
Ethernet Ports
8
Environment Temperature
-40℃~75℃
No reviews

Hardware Specifications
Copper Ports 8 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
SFP Ports 8 100/1000BASE-X SFP slot interfaces (Port-9 and Port-16)
Compatible with 100BASE-FX SFP transceiver
SFP+ Ports 4 10GbBASE-SR/LR SFP+ slot interfaces
Compatible with 1000BASE-SX/LX/BX SFP transceiver
Console 1 x RJ45-to-RS232 serial port (115200, 8, N, 1)
Switch Architecture Store-and-Forward
Switch Fabric 112Gbps/non-blocking
Throughput 83.33Mpps@64Bytes
Address Table 16K entries, automatic source address learning and aging
Shared Data Buffer 32Mbits
Jumbo Frame 10K bytes
SDRAM 512Mbytes
Flash Memory 64Mbytes
Flow Control IEEE 802.3x pause frame for full duplex
Back pressure for half duplex
Reset Button < 5 sec: System reboot
> 5 sec: Factory default

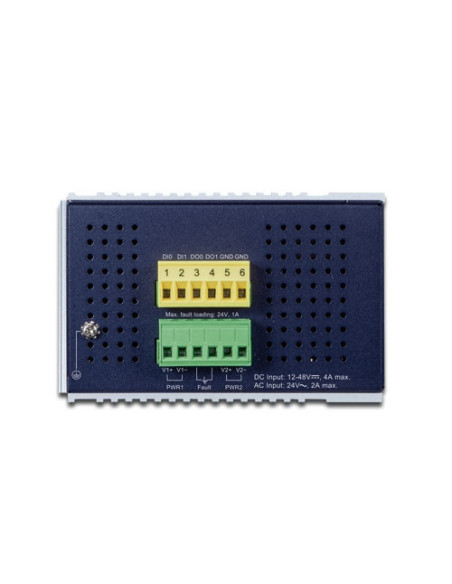

Connector Removable 6-pin terminal block for power input
Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2
Removable 6-pin terminal block for DI/DO interface
Pin 1/2 for DI 1 & 2, Pin 3/4 for DO 1 & 2, Pin 5/6 for GND
Alarm One relay output for power failure. Alarm relay current carry ability: 1A @ 24V DC
Digital Input (DO) 2 digital input:
Level 0: -24~2.1V (±0.1V)
Level 1: 2.1~24V (±0.1V)
Input load to 24V DC, 10mA max.
Digital Output (DO) 2 digital output:
Open collector to 24VDC, 100mA
Enclosure IP30 aluminum case
Installation DIN-rail or wall mounting
Dimensions (W x D x H) 76 x 107 x 152 mm
Weight 1,250g
Power Requirements DC 12~48V, 4A max.
AC 24V, 2A max.
Power Consumption DC input:
Max. 12 watts/41BTU (system on)
Max. 38.4 watts/132 BTU (Full loading)

AC 24V input:
Max. 13 watts/45BTU (system on)
Max. 38 watts/130 BTU (Full loading)
ESD Protection 6KV DC
Surge Protection 4KV DC
LED Indicators System:
 Power 1 (Green), Power 2 (Green)
 Fault Alarm (Red)
 Ring (Green), Ring Owner (Green)
 DIDO (Red)
Per 10/100/1000T RJ45 Port:
 1000Mbps LNK/ACT (Green)
 10/100Mbps LNK/ACT (Amber)
Per SFP Port:
 1000Mbps LNK/ACT (Green)
 100Mbps LNK/ACT (Amber)
Per SFP+ Port:
 10Gbps LNK/ACT (Green)
 1Gbps LNK/ACT (Amber)
Layer 3 Management Functions
Port Configuration Port disable/enable
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
Flow control disable/enable
Port link capability control
Port Status Display each port’s speed duplex mode, link status, flow control status, auto-negotiation status, trunk status
Port Mirroring TX/RX/Both
Many-to-1 monitor
VLAN 802.1Q tagged VLAN
Q-in-Q tunneling
Private VLAN Edge (PVE)
MAC-based VLAN
Protocol-based VLAN
Voice VLAN
IP Subnet-based VLAN
MVR (Multicast VLAN registration)
GVRP
Up to 256 VLAN groups, out of 4095 VLAN IDs
Link Aggregation IEEE 802.3ad LACP/static trunk
14 trunk groups with 16 port per trunk group
Spanning Tree Protocol IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IGMP Snooping IPv4 IGMP (v1/v2/v3) snooping
IPv4 IGMP querier mode support
Supports 255 IGMP groups
MLD Snooping IPv6 MLD (v1/v2) snooping,
IPv6 MLD querier mode support
Supports 255 MLD groups
Access Control List IP-based ACL/MAC-based ACL
ACL based on:
 - MAC Address
 - IP Address
 - Ethertype
 - Protocol Type
 - VLAN ID
 - DSCP
 - 802.1p Priority
Up to 256 entries
Bandwidth Control Per port bandwidth control
Ingress: 100Kbps~1000Mbps
Egress: 100Kbps~1000Mbps
QoS Traffic classification based, strict priority and WRR
8-level priority for switching:
 - Port number
 - 802.1p priority
 - 802.1Q VLAN tag
 - DSCP/ToS field in IP packet
Synchronization IEEE 1588v2 PTP(Precision Time Protocol)
 - Peer-to-peer transparent clock
 - End-to-end transparent clock
Layer 3 Functions
IP Interfaces Max. 128 VLAN interfaces
Routing Table Max. 128 routing entries
Routing Protocols IPv4 hardware static routing
IPv6 hardware static routing
OSPFv2 dynamic routing
Management
Basic Management Interfaces Console; Telnet; Web browser; SNMP v1, v2c
Secure Management Interfaces SSHv1/v2, TLS, SSL, SNMPv3
System Management Firmware upgrade by HTTP protocol through Ethernet network
Configuration upload/download through HTTP
Remote Syslog
System log
LLDP protocol
NTP
PLANET Smart Discovery Utility
SNMP MIBs RFC 1213 MIB-II
RFC 1493 Bridge MIB
RFC 1643 Ethernet MIB
RFC 2863 Interface MIB
RFC 2665 Ether-Like MIB
RFC 2819 RMON MIB (Group 1, 2, 3 and 9)
RFC 2737 Entity MIB
RFC 2618 RADIUS Client MIB
RFC 2863 IF-MIB
RFC 2933 IGMP-STD-MIB
RFC 3411 SNMP-Frameworks-MIB
RFC 4292 IP Forward MIB
RFC 4293 IP MIB
RFC 4836 MAU-MIB
IEEE 802.1X PAE
LLDP
Standards Conformance
Regulatory Compliance FCC Part 15 Class A
CE:
EN55032
EN55035
EN 62368-1/IEC 62368-1: 2014
Stability Testing IEC60068-2-32 (free fall)
IEC60068-2-27 (shock)
IEC60068-2-6 (vibration)
Standards Compliance IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3z Gigabit SX/LX
IEEE 802.3ab Gigabit 1000T
IEEE 802.3ae 10Gb/s Ethernet
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1X Port Authentication Network Control
IEEE 802.1ab LLDP
IEEE 802.3ah OAM
IEEE 802.1ag Connectivity Fault Management (CFM)
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
ITU-T G.8032 ERPS Ring
ITU-T Y.1731 Performance Monitoring
Environment
Operating -40 ~ 75 degrees C
Storage -40 ~ 85 degrees C
Humidity 5 ~ 95% (non-condensing)
