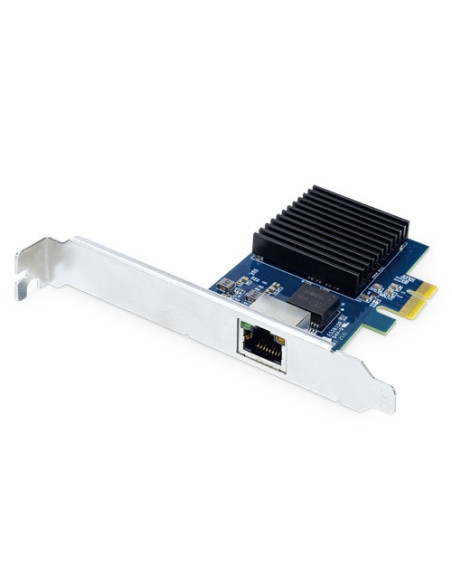

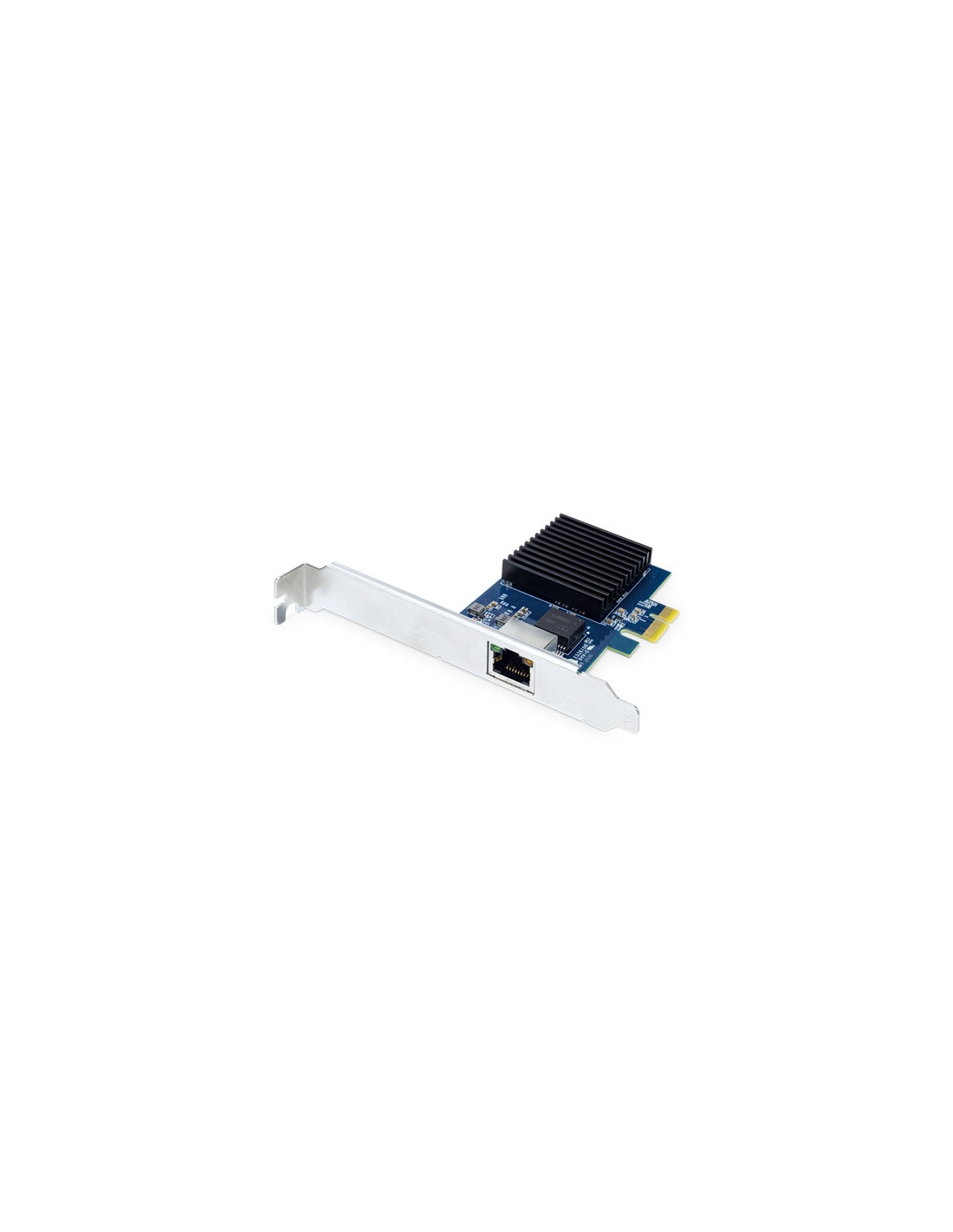

Planet ENW-9803 10GBASE-T PCI Express Server Adapter with Realtek LAN Multi-Gigabit PXE/WOL Support
  • New
Planet ENW-9803|Buy Planet ENW-9803 10GBASE-T PCI Express Server Adapter with Realtek LAN Multi-Gigabit PXE/WOL Support|Wisp Aus
Planet ENW-9803 10GBASE-T PCI Express Server Adapter with Realtek LAN Multi-Gigabit PXE/WOL Support

Planet ENW-9803 10GBASE-T PCI Express Server Adapter with Realtek LAN Multi-Gigabit PXE/WOL Support

ENW-9803
Last items in stock
$130.90
Tax included

ENW-9803

The PLANET ENW-9803 is a 10GBASE-T PCI Express Server Adapter that adopts a Realtek LAN controller solution. It offers 10 Gigabit Performance yet Low Cost and Low Power, supporting various speeds and features like PXE boot and Wake-on-LAN.

Key Features

  • 10M/100M/1G/2.5G/5G/10GBASE-T RJ45 Multi-gigabit network solution
  • Supports PXE boot/Wake-on-LAN
  • Low-profile PCI Express form factor
  • Supports IEEE 802.az Energy Efficient Ethernet (EEE)


ENW-9803 Planet 10GBASE-T PCI Express Server Adapter with Realtek LAN Multi-Gigabit PXE/WOL Support

Enhanced from the current highly-praised version, PLANET ENW-9803 version 4 10GBASE-T PCI Express Server Adapter adopts Realtek LAN controller solution. It comes with PCI Express rev. 4.0 specification x1 lane interface and other advanced features as follows:

  • Smaller and compact in design
  • 10M/100M/1G/2.5G/5G/10GBASE-T RJ45 Multi-gigabit network solution
  • Supports PXE boot/Wake-on-LAN

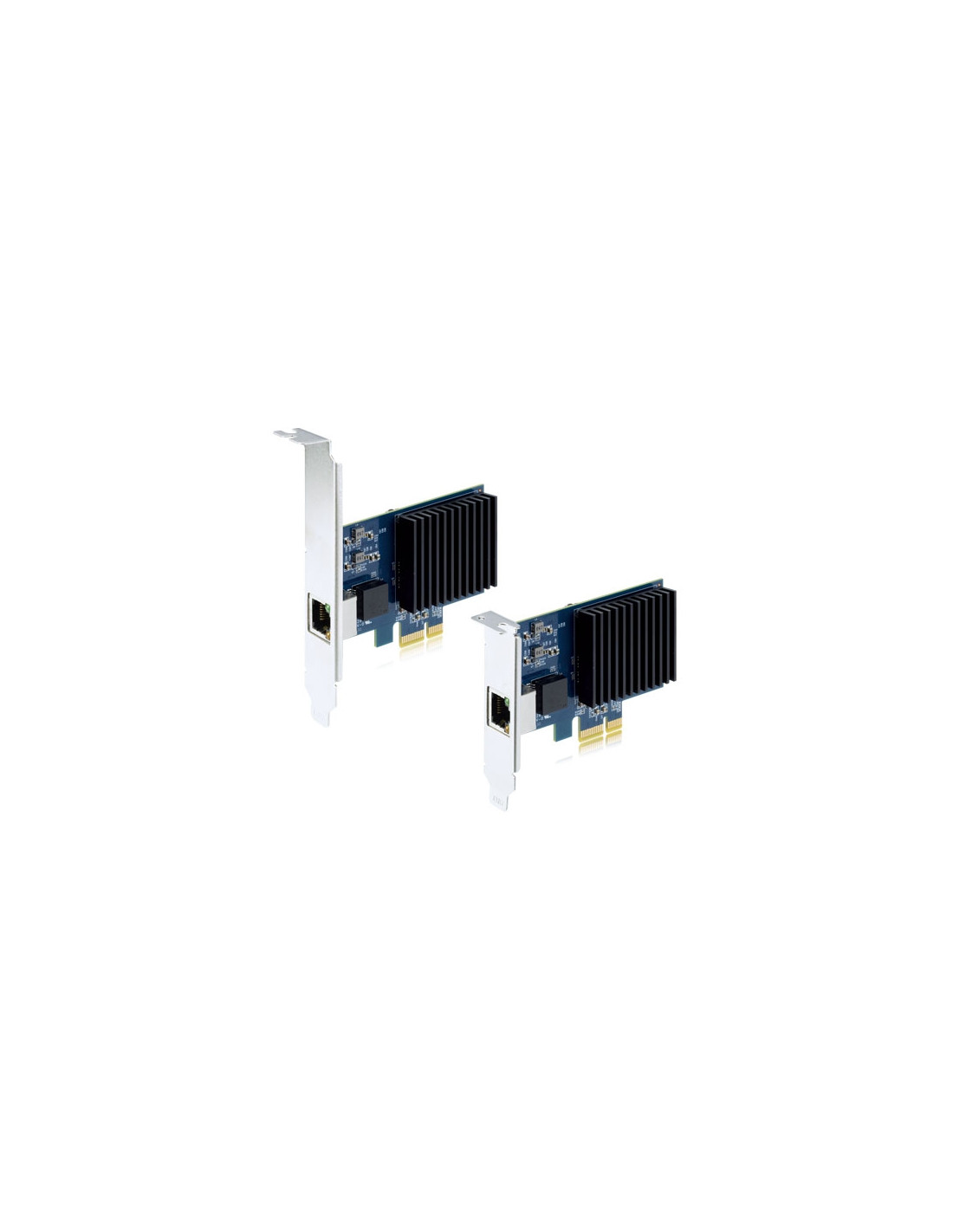

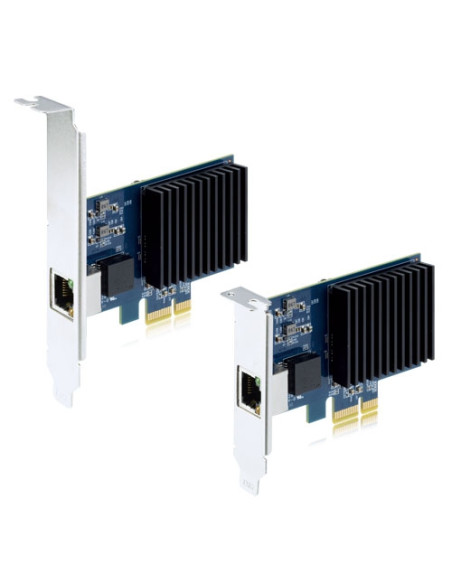

  • Long/Low profile bracket

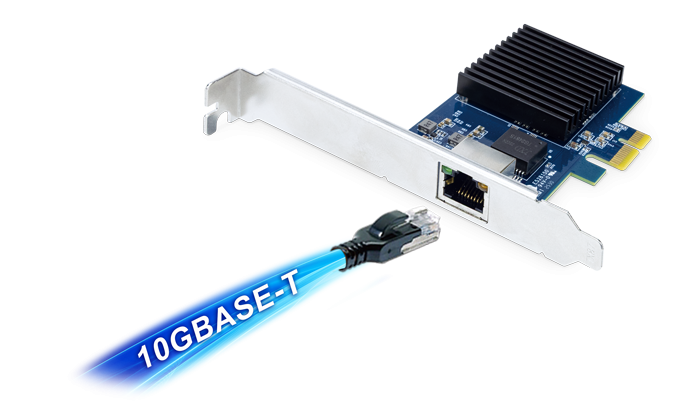

10 Gigabit Performance yet Low Cost and Low Power

The ENW-9803 comes with one 10GBASE-T RJ45 interface and low-profile PCI Express form factor. As the new version of ENW-9803 uses Realtek LAN controller solution, it is a low-powered, high performance model that supports IEEE 802.az Energy Efficient Ethernet (EEE). The new version ENW-9803 NIC adapter reference design supports auto-negotiation for allowing the NBASE-T solution to optimally select the best and flexible speed like 10 Gigabit Ethernet (10GbE), 5 Gigabit Ethernet (5GbE), 2.5 Gigabit Ethernet (2.5GbE), 1 Gigabit Ethernet (GbE) or 100 Megabit Ethernet (100MbE) over Cat 5e/Cat 6/Cat 6A or better cabling. It is designed to address system application requirements by offering the best cost, 10Gbps high performance, low power consumption and better-quality solution in the 10Gbps network market today.

Efficient and Ideal 10G Copper NIC Adapter

Compared with 10G adapter with CX4 and SFP+ interface, PLANET 10GBASE-T PCI-E adapter is the best choice in that the ENW-9803 10GBASE-T can reach up to 100 meters over Cat.6a or Cat.7 RJ45 cable, whereas the CX4 and SFP+ interface only can work with fixed speed rate. However, the ENW-9803 10G copper NIC adapter can adjust and work with the speed rate of 10M/100M/1G/2.5G/5G. The CX4 interface can only extend up to 15 meters in distance. The cost is too high for having an extra SFP+ interface for the SFP+ transceiver. However, with the ENW-9803, customers only spend on Cat.6a or Cat.7 cable as the ENW-9803 is bundled with RJ45 connector, thus costing less than the SFP+ transceiver.

10G Spec.

Interface

Media

Maximum Distance

Total Ownership Cost

10GBASE-T

RJ45

Cat.6a/Cat.7 UTP cable

100 meters (328 ft)

Low

10GBASE-CX4

CX4

Copper

15 meters (49 ft)

Medium

10GBASE-SR

SFP+ Multi-mode fiber cord 300 meters (984 ft) High

10GBASE-LR

SFP+ Single mode fiber cord 10 km (32808 ft) High



10GbE Device Designed for Low-power, Low-cost and Single-port Applications

The ENW-9803 is an optimized 10GbE device designed for low-power, low-cost and single-port applications required in application servers, high-end workstations and personal computers. This makes it ideal for enabling 1GbE to migrate to 10GbE for bandwidth-intensive workstation applications and low-end to mid-range network appliances. With the innovative PCI Express Bus Architecture, it offers increased bandwidth, reliability and additional functionality compared with standard GbE network cards. The performance of throughput at rates up to 20Gbps is unbelievable, thus eliminating the bottleneck that exists with the current Gigabit network. PLANET ENW-9803 is designed to connect your servers and workstations, guaranteeing extremely high throughput and excellent signal quality.

The ENW-9803 enhances performance further with its 16K jumbo frame support and IEEE 802.3 flow control, ensuring optimized throughput and reliable wire-speed packet transfer. These features minimize the risk of packet loss, even under high traffic conditions, making the device an ideal solution for demanding 10 Gigabit Ethernet environments.



Standard 802.1Q VLAN and 802.1ad Q-in-Q VLAN Support

The ENW-9803 supports IEEE 802.1Q VLAN and IEEE 802.1ad Q-in-Q VLAN, making it highly versatile for managing network traffic in both enterprise and service provider environments. IEEE 802.1Q VLAN allows the device to operate in a flexible and secure network environment by segmenting traffic into different logical networks. This ensures improved security, better traffic management, and reduced congestion, especially in large-scale network setups. Additionally, the IEEE 802.1ad Q-in-Q VLAN support enables Double VLAN Tagging, which allows customer-specific VLAN tags to be nested within service provider VLAN tags, his dual tagging ensures that service providers can securely transport traffic for multiple customers over the same physical network infrastructure while maintaining traffic isolation. Whether used for Q-in-Q VLAN in large-scale service provider networks or managing traffic in enterprise backbones, the ENW-9803 delivers high performance, scalability, and robust security.



Multiple OS Support

The ENW-9803 operates completely well with most of the popular and latest operating systems including Microsoft Windows workstation or server, Linux, enabling simple integration into network designs. There is no need of any modification to the server's operating system or any special software required for the ENW-9803 to be integrated into the system.

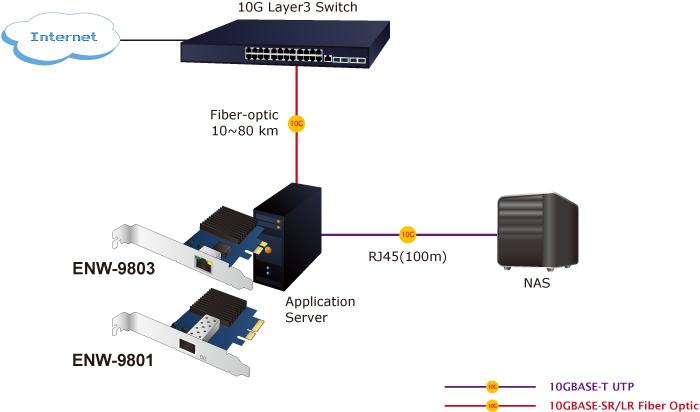

Applications

PLANET ENW-9803 is equipped with one 10 Gigabit RJ45 interface, giving 10 times more performance than the existing Gigabit transmission. Thus, the ENW-9803 can easily act as a server NIC of your networks by wiring to the backbone switches. With one PCI Express rev. 4.0 specification x1 lane Interface, the ENW-9803 is an ideal solution for the mainboard with PCI Express interface now and in the future.

Product Specifications:

Hardware Specifications
Hardware Version 4
Attachment Interface PCI Express rev. 4.0 specification x1 lane interface
Media Interface RJ45 connector
Data Rate 10M/100M/1G/2.5G/5G/10Gbps
Jumbo Frame 4K/9K/16K Bytes
LED Indicators LNK Speed (Amber), LNK/ACT (Green)
Dimensions (W x D x H) 120 x 99 x 22 mm
Weight 67 g (with Long Profile Bracket)
Typical Power Consumption 1.7 watts / 5.8 BTU (3.3V / 520mA)
Network Cable Twisted-pair cable up to 100 meters (328 ft)
10BASE-T: 4-pair UTP Cat. 3, 4, 5, 5e, 6, 6A
100BASE-TX: 4-pair UTP Cat. 5, 5e, 6, 6A
1G/2.5GBASE-T: 4-pair UTP Cat 5e/Cat 6/Cat 6A/Cat 7
5GBASE-T: 4-pair UTP Cat 6/Cat 6A/Cat 7
10GBASE-T: 4-pair UTP Cat 6A/Cat 7
Advanced Functions
Layer 2 Features IEEE 802.3x Flow Control support, IEEE 802.1Q VLAN support
Pre-boot Execution Environment (PXE) Yes
Operating System Support Windows Server 2022 64-bit
Windows 10 32/64-bit
Windows 11 64-bit
10G Ethernet Linux driver r8127 for kernel 6.15
Standards Conformance
Regulatory Compliance FCC Part 15 Class B, CE
Standards Compliance IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Ethernet
IEEE 802.3ab 1GBASE-T Ethernet
IEEE 802.3bz 2.5/5GBASE-T Ethernet
IEEE 802.3an 10GBASE-T Ethernet
IEEE 802.3x Flow Control and Back Pressure
IEEE 802.1Q VLAN Tagging
IEEE 802.1ad Q-in-Q VLAN
IEEE 802.3az Energy Efficient Ethernet (EEE)
Environment
Operating Temperature: 0 ~ 50 °C
Relative Humidity: 5 ~ 95% (non-condensing)
Storage Temperature: -10 ~ 85 °C
Relative Humidity: 5 ~ 95% (non-condensing)
Package
Package Contents ENW-9803 Server Adapter
QR Code Sheet
Low Profile Bracket
