Perfect Managed Multigigabit PoE Switch with L3/L2 Switching and Security

PLANET MGS-6320-8HP2X is a brand-new Layer 3 managed multigigabit switch providing 2.5Gbps data rate and 802.3bt PoE++ over UTP cables, designed for the demand of high-bandwidth required network equipment, such as Wi-Fi 6 802.11ax wireless AP, NAS, workstation and those with 2.5GBASE-T interfaces. It features 4 10/100/1000BASE-T copper ports with 802.3at PoE+ injector function, 4 100/1000/2500BASE-T copper ports with 802.3bt PoE++ injector function, a total PoE power budget of up to 240 watts and 2 extra 1G/2.5G/10GBASE-X SFP+ fiber ports that are flexibly designed to extend the connection distance. With such a favorable data link capability, hardware-based Layer 3 routing performance, Layer 2 and Layer 4 switching engine and user-friendly yet advanced IPv6/IPv4 management interfaces, it helps to accelerate the deployment of the next-generation IoT and wireless network for enterprises and smart cities.



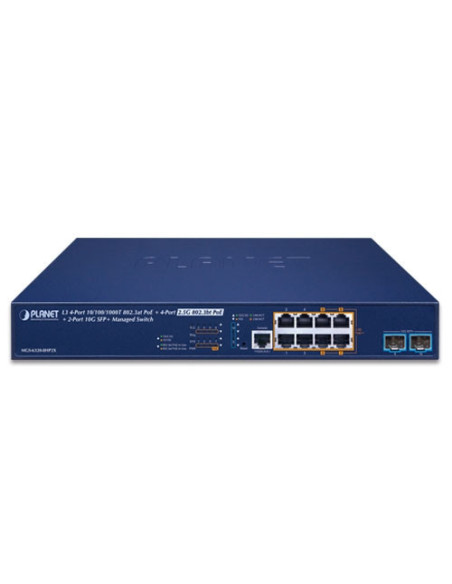

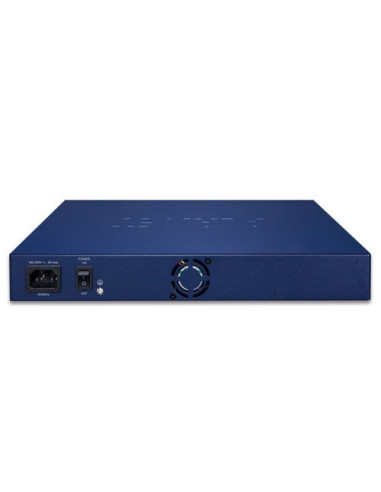

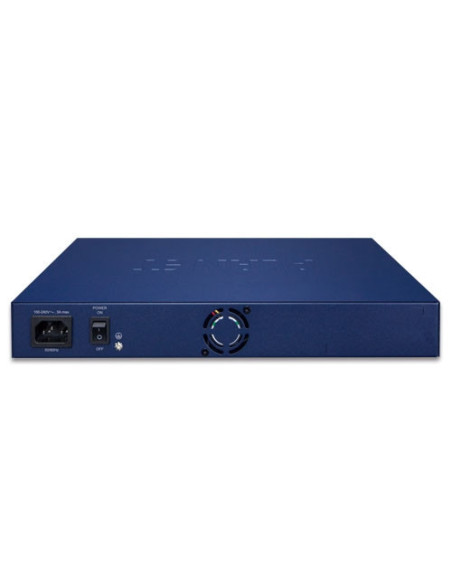

MGS-6320-8HP2X - PLANET L3 4-Port 10/100/1000T 802.3at PoE + 4-Port 2.5G 802.3bt PoE + 2-Port 10G SFP+ Managed Switch

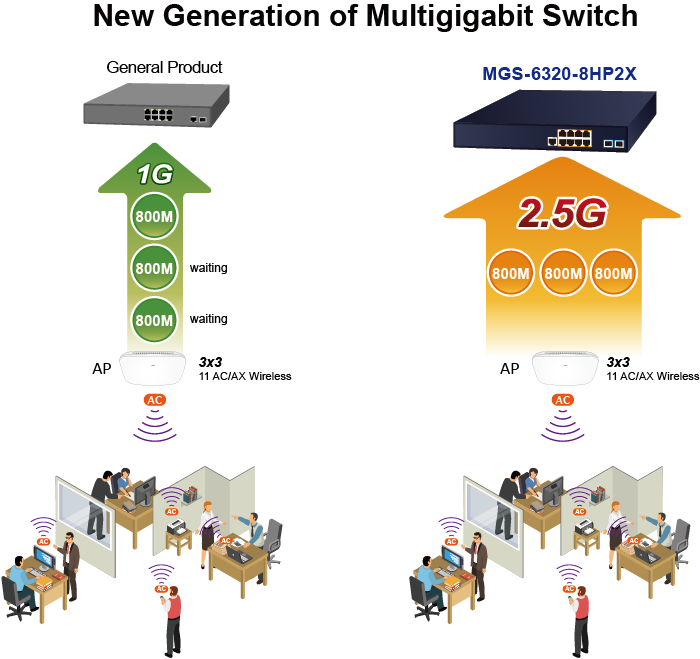

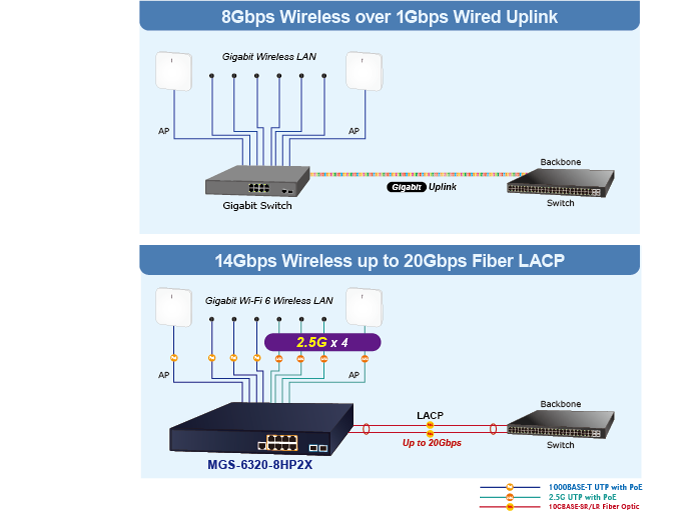

2.5Gbps Capability for Diversified Bandwidth Applications

With the terminal access rates of 802.11ac wireless APs reaching as high as 1.2Gbps to 2.6Gbps, Gigabit ports have been unable to satisfy the demand. Supporting both 1Gbps and 2.5Gbps capability and 802.3af/at and 802.3bt PoE output, the MGS-6320-8HP2X can deliver not only data to 802.11ac wireless APs, but also power with the existing CAT5e Ethernet cables to other powered devices such as APs and IP cameras. It can definitely give you the speed you demand and its Plug and Play makes installation easy

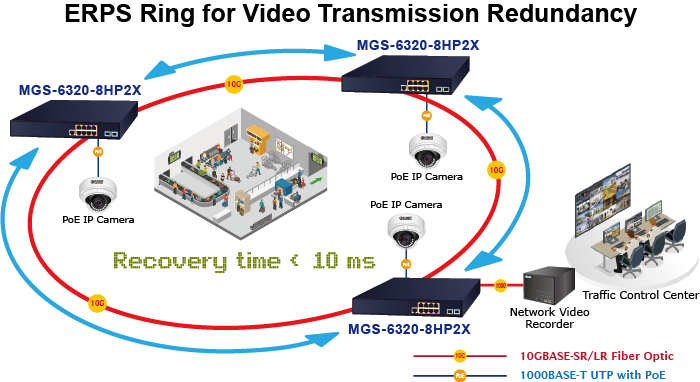

Redundant Ring, Fast Recovery for Critical Network Applications

The MGS-6320-8HP2X supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology and Spanning Tree Protocol (802.1w RSTP) into customer’s network to enhance system reliability and uptime in harsh environments. In a certain simple Ring network, the recovery time could be less than 10ms to quickly bring the network back to normal operation.

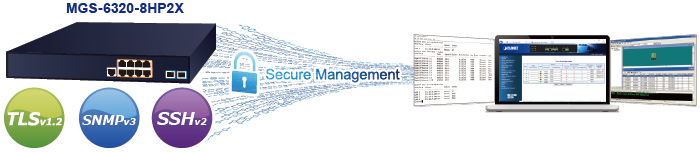

Cybersecurity Network Solution to Minimize Security Risks

The cybersecurity feature included to protect the switch management in a mission-critical network virtually needs no effort and cost to install. Both SSHv2 and TLSv1.2 protocols are utilized to provide strong protection against advanced threats. The network administrator can now construct highly-secure corporate networks with considerably less time and effort than before.

Flexible and Extendable 10Gb Ethernet Solution

10G Ethernet is a big leap in the evolution of Ethernet. Each of the 10G SFP+ slots in the MGS-6320-8HP2Xsupports triple speed and 10GBASE-SR/LR or 2500BASE-X and 1000BASE-SX/LX. With its 2-port,10G Ethernet link capability, the administrator now can flexibly choose the suitable SFP/SFP+ transceiver according to the transmission distance or the transmission speed required to extend the network efficiently. The MGS-6320-8HP2X provides broad bandwidth and powerful processing capacity.

Built-in Unique PoE Functions for Surveillance Management

As a managed PoE Switch for  variety networks, the MGS-6320-8HP2X features the following intelligent PoE management functions:

  PD Alive Check

  • Scheduled Power Recycling
  • SMTP/SNMP Trap Event Alert
  • PoE Schedule
  • PoE Usage Monitoring
  • PoE Extension

Intelligent Powered Device Alive Check

The MGS-6320-8HP2X can be configured to monitor a connected PD status in real time via ping action. Once the PD stops working and it is without response, the MGS-6320-8HP2X will resume the PoE port power and bring the PD back to work. It will greatly enhance the network reliability through the PoE port resetting the PD’s power source, thus reducing administrator management burden.

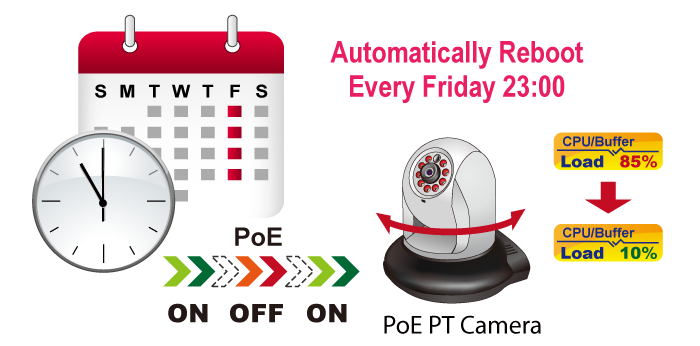

Scheduled Power Recycling

The MGS-6320-8HP2X allows each of the connected PDs to reboot at a specified time each week. Therefore, it will reduce the chance of PD crash resulting from buffer overflow.

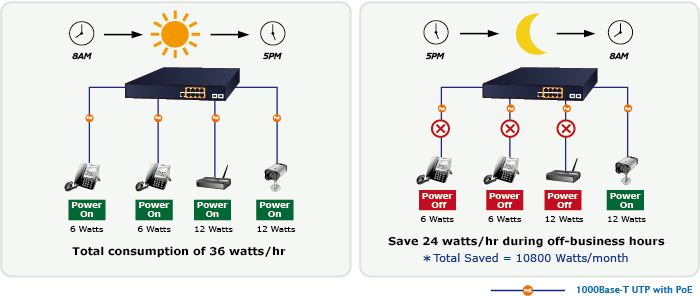

PoE Schedule for Energy Savings

Besides being used for IP surveillance, the MGS-6320-8HP2X is certainly applicable to build any PoE network including VoIP and wireless LAN. Under the trend of energy saving worldwide and contributing to the environmental protection on the Earth, the MGS-6320-8HP2X can effectively control the power supply besides its capability of giving high watts power. The “PoE schedule” function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals and it is a powerful function to help SMBs and enterprises save energy and budget.



SMTP/SNMP Trap Event Alert

Though most NVR or camera management software offers SMTP email alert function, the MGS-6320-8HP2X further provides event alert function to help to diagnose the abnormal device owing to whether or not there is a break of the network connection, loss of PoE power or the rebooting response by the PD Alive Check process.



Convenient and Smart ONVIF Devices with Detection Feature

PLANET has newly developed an awesome feature -- ONVIF Support -- which is specifically designed for cooperating with video IP surveillances. From the MGS-6320-8HP2X GUI, you just need one click to search and show all of the ONVIF devices via network application. In addition, you can upload floor images to the switch and remotely monitor what is going on in the production line. Moreover, you can get real-time surveillance’s information and online/offline status, and can have PoE reboot control from GUI.

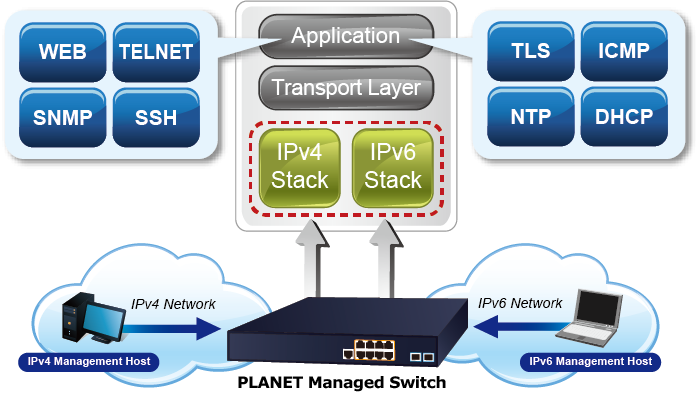

Solution for IPv6 Networking

With the support for IPv6/IPv4 protocol, and easy and friendly management interfaces, the MGS-6320-8HP2X is the best choice for IP surveillance, VoIP and wireless service providers to connect with the IPv6 network. It also helps SMBs to step in the IPv6 era with the lowest investment and without having to replace the network facilities even though ISPs establish the IPv6 edge network.



Layer 3 Routing Support

The MGS-6320-8HP2X enables the administrator to conveniently boost network efficiency by configuring Layer 3 IPv4/IPv6 VLAN static routing manually, the RIP(Routing Information Protocol) or OSPF(Open Shortest Path First) settings automatically.

The RIP can employ the hop count as a routing metric and prevent routing loops by implementing a limit on the number of hops allowed in a path from the source to a destination.

The OSPF is an interior dynamic routing protocol for autonomous system based on link state. The protocol creates a database for link state by exchanging link states among Layer3 switches, and then uses the Shortest Path First algorithm to generate a route table based on that database.

Robust Layer 2 Features

The MGS-6320-8HP2X can be programmed for advanced switch management function, such as dynamic port link aggregation, Q-in-Q VLAN, Multiple Spanning Tree Protocol (MSTP), Layer2/4 QoS, bandwidth control and IGMP/MLD snooping. The MGS-6320-8HP2X allows the operation of a high-speed trunk combining multiple ports. Supporting 4 trunk groups, it enables a maximum of up to 10 ports per trunk and supports connection fail-over as well.

Powerful Network Security

The MGS-6320-8HP2X offers comprehensive layer2 to layer4 access control list (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP port number or defined typical network applications. Its protection mechanism also comprises 802.1x Port-based and MAC-based user and device authentication. With the private VLAN function, communication between edge ports can be prevented to ensure user privacy.

Advanced IP Network Protection

The MGS-6320-8HP2X also provides DHCP Snooping, IP Source Guard and Dynamic ARP Inspection functions to prevent IP snooping from attack and discard ARP packets with invalid MAC address. The network administrator can now build highly-secure corporate networks with considerably less time and effort than before.

Efficient Management

For efficient management, the MGS-6320-8HP2X is equipped with console, Web and SNMP management interfaces.

  • With the built-in Web-based management interface, it offers an easy-to-use, platform-independent management and configuration facility.
  • For text-based management, it can be accessed via Telnet and the console port.
  • For standard-based monitor and management software, it offers SNMPv3 connection which encrypts the packet content at each session for secure remote management.

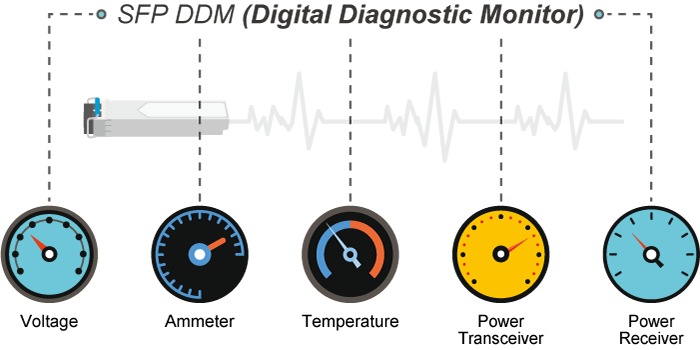

Intelligent SFP Diagnosis Mechanism

The MGS-6320-8HP2X supports SFP-DDM (Digital Diagnostic Monitor) function that greatly helps network administrator to easily monitor real-time parameters of the SFP and SFP+ transceivers, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.

Layer 3 VLAN Static Routing and PoE Application

With the built-in robust IPv4/IPv6 Layer 3 traffic routing protocols, the MGS-6320-8HP2X ensures reliable routing between VLANs and network segments. The routing protocols can be applied by VLAN interface with up to 1K routing entries. The MGS-6320-8HP2X is certainly a cost-effective and ideal solution for enterprises.

Providing up to 4 Gigabit PoE+ ports and 4 Gigabit PoE++ ports and in-line power interface, the MGS-6320-8HP2X PoE Managed Switch can easily build a centrally-controlled power network shared by wireless Gigabit AP, IP phone system, or mega-pixel IP camera system group for the enterprises.

PoE Wi-Fi Hotspot Solution with Extended Network Infrastructure for Public Spaces

The MGS-6320-8HP2X comes with non-blocking design, desktop size and SFP fiber-optic modules, bringing network infrastructure higher flexibility but lower in cost. Providing four 1000BASE-T PoE+ ports in-line power interfaces and four 1000/2500BASE-T PoE++ ports in-line power interfaces and two 10 Gigabit SFP interfaces, the MGS-6320-8HP2X can easily build a Networking Authentication on Wireless LAN Controllers system for the enterprises. For instance, it can work with the Wireless Controller and RADIUS Server to perform comprehensive security for wireless user authentication with powered APs.

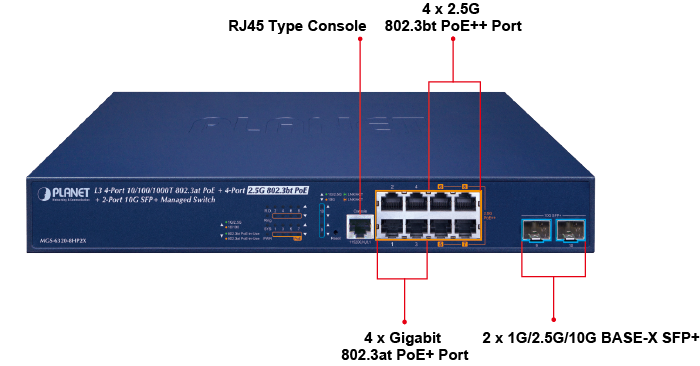

Hardware Specifications
Copper Ports 4x 10/100/1000BASE-T RJ45 auto-MDI/MDI-X interface with Port-1 to Port-4
4x 10/100/1000/2500BASE-T RJ45 auto-MDI/MDI-X interface with Port-5 to Port-8
SFP/mini-GBIC Slots 2 x 1G/2.5G/10GBASE-X SFP interfaces with Port-9to Port-10
PoE Injector Port 4 ports with 802.3at/af PoE injector function with Port-1 to Port-4
4 ports with 802.3bt/at/af PoE injector function with Port-5 to Port-8
Console 1 x RJ45 serial port (115200, 8, N, 1)
Reset Button < 5 sec: System reboot
> 5 sec: Factory default
RAM 512Mbytes
Flash Memory 64Mbytes
Dimensions (W x D x H) 330 x 200 x 44.5mm, 1U height
Weight 2127g
Power Requirements 100~240V AC, 50/60Hz, 3A max.
Power Consumption Max. 15.48 watts/52.78BTU (Power on without any connection)
Max. 281.6watts/960.25BTU (Full loading with PoE+ function)
ESD Protection 6KV DC
Surge Protection 4KV DC
LED System:
PWR (Green), SYS (Green), R.O (Green), Ring (Green)
Per 10/100/1000BASE-T RJ45 Interfaces (Port 1 to Port 4):
 1000Mbps LNK/ACT (Green)
 10/100Mbps LNK/ACT (Amber)
 802.3at/af PoE-in-Use (Amber)
Per 10/100/1000/2500BASE-T RJ45 Interfaces (Port 5 to Port 8):
 1000/2500Mbps LNK/ACT (Green)
 10/100Mbps LNK/ACT (Amber)
 802.3bt PoE-in-Use (Green)
 802.3at/af PoE-in-Use (Amber)
Per 1G/2.5G/10G Mbps SFP Interfaces (Port 9 to Port 10):
 1G/2.5G LNK/ACT (Green)
 10G LNK/ACT (Amber)
Switching Specifications
Switch Architecture Store-and-Forward
Switch Fabric 68Gbps/non-blocking
Throughput 50.59Mpps@ 64Bytes packet
Address Table 8K entries, automatic source address learning and aging
Shared Data Buffer 4.1Mbits
Flow Control IEEE 802.3x pause frame for full-duplex
Back pressure for half-duplex
Jumbo Frame 10Kbytes
Power over Ethernet
PoE Standard IEEE 802.3at PoE+ PSE (Port 1 to Port 4)
Backward compatible with IEEE 802.3af PoE PSE
802.3bt PoE++ PSE (Port 5 to Port 8)
Backward compatible with IEEE 802.3at PoE PSE
PoE Power Supply Type  802.3bt
 UPOE/POH
 End-span
 Mid-span
 Force
PoE Power Output 802.3bt Type-4 mode, Port-5 to Port-8: maximum 90 watts
UPoE mode, Port-5 to Port-8: maximum 95 watts
End-span mode: maximum 36 watts
Mid-span mode: maximum 36 watts
Force mode: maximum 60 watts
Power Pin Assignment 802.3bt: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
UPoE: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
End-span: 1/2(-), 3/6(+)
Mid-span: 4/5(+), 7/8(-)
PoE Power Budget 240 watts (max.) @ 25 degrees C
200 watts (max.) @ 50 degrees C
Number of 802.3bt Type-4 PDs 2 units
Number of 802.3bt Type-3 PDs 4 units
Number of 802.3at Type-2 PDs 8 units
PoE Management Functions
PoE System Management PoE Port Status monitoring
Total PoE power budget control
Over Temperature Protection
PoE usage threshold and temperature threshold
PoE Device Live Detections Per port remote PD IP address
4 actions
 None
 PD reboot
 PR reboot and alarm
 Alarm
PoE Power Recyclinge Yes, daily or predeinded schedule
PoE Schedule 4 schedule profiles
PoE Extend Mode Yes, max. 200 meters
Layer 3 Functions
IP Interfaces Max. 32 VLAN interfaces
Routing Table Max. 32 static route entries
Max. 1K routing table entries
Routing Protocols IPv4 RIPv2
IPv4 OSPFv2
IPv6 OSPFv3
IPv4 hardware static routing
IPv6 hardware static routing
Layer 2 Functions
Port Configuration Port disable/enable
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
Flow Control disable/enable
Port link capability control
Port Status Display each port’s speed duplex mode, link status, flow control status, auto negotiation status, trunk status
Port Mirroring TX/RX/Both
Many-to-1 monitor
Supports up to 5 sessions
VLAN IEEE 802.1Q tag-based VLAN,
IEEE 802.1ad Q-in-Q tunneling
Private VLAN Edge (PVE)
MAC-based VLAN
Protocol-based VLAN
Voice VLAN
MVR (Multicast VLAN Registration)
GVRP
Up to 4K VLAN groups, out of 4094 VLAN IDs
Link Aggregation IEEE 802.3ad LACP (static trunk)
Supports 4 trunk groups with 10 ports per trunk
IGMP Snooping IPv4 IGMP (v1/v2/v3) snooping
IPv4 IGMP querier mode support
Supports 255 IGMP groups
MLD Snooping IPv6 MLD (v1/v2) snooping,
IPv6 MLD querier mode support
Supports 255 MLD groups
Bandwidth Control Per port bandwidth control
Ingress: 10Kbps~13000Mbps
Egress: 10Kbps~13000Mbps
Ring Supports ERPS, and complies with ITU-T G.8032
Recovery time < 10ms @ 3 nodes
Recovery time <50ms @ 16 nodes
Supports mMajor ring and sub-ring
QoS Traffic classification based, strict priority and WRR
8-level priority for switching
 Port number
 802.1p priority
 802.1Q VLAN tag
 DSCP/TOS field in IP packet
Security Functions
Access Control List IP-based ACL/MAC-based ACL
ACL based on:
 MAC Address
 IP Address
 Ethertype
 Protocol Type
 VLAN ID
 DSCP
 802.1p Priority
Up to 512 entries
Security Port security
IP source guard, up to 512 entries
Dynamic ARP inspection, up to 1K entries
Command line authority control based on user level
Static MAC address, up to 64 entries
AAA RADIUS client
TACACS+ client
Network Access Control IEEE 802.1x port-based network access control
MAC-based authentication
Local/RADIUS authentication
Management Functions
Basic Management Interfaces Console;Telnet; Web browser; SNMP v1, v2c
Secure Management Interfaces SSHv2, TLSv1.2, SNMPv3
System Management Firmware upgrade by HTTP protocol through Ethernet network
Configuration upload/download through HTTP
Remote Syslog
System log
LLDP protocol
NTP
PLANET Smart Discovery Utility
PLANET CloudViewer app
Event Management Remote Syslog
System log
SMTP
ONVIF ONVIF device discovery
ONVIF device monitoring
Floor Map
SNMP MIBs RFC1213 MIB-II
RFC 2863 IF-MIB
RFC1643 Ethernet MIB
RFC2863 Interface MIB
RFC2665 Ether-Like MIB
RFC2737 Entity MIB
RFC2819 RMON MIB (Groups 1, 2, 3 and 9)
RFC2618 RADIUS Client MIB
RFC3411SNMP-Frameworks-MIB
RFC 3621 Power Ethernet MIB
IEEE802.1X PAE
LLDP
MAU-MIB
Standards Conformance
Regulatory Compliance FCC Part 15 Class A, CE
Standards Compliance IEEE802.3 10BASE-T
IEEE802.3u 100BASE-TX
IEEE802.3z 1000BASE-SX/LX
IEEE 802.3ab 1000BASE-T
IEEE 802.3bz 2.5GBASE-X
IEEE 802.3ae 10Gb/s Ethernet
IEEE802.3x flow control and back pressure
IEEE802.3ad port trunk with LACP
IEEE802.1D Spanning Tree Protocol
IEEE802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE802.1p Class of Service
IEEE802.1Q VLAN tagging
IEEE 802.1x Port Authentication Network Control
IEEE 802.1ab LLDP
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3bt 4-pair Power over Ethernet Plus Plus
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
RFC 3376 IGMP v3
RFC 2710 MLD v1
RFC 3810 MLD v2
RFC 2328 OSPF v2
RFC 2453 RIP v2
Environments
Operating Temperature: 0 ~ 50 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
Storage Temperature: -10 ~ 70degrees C
Relative Humidity:5 ~ 95% (non-condensing)
