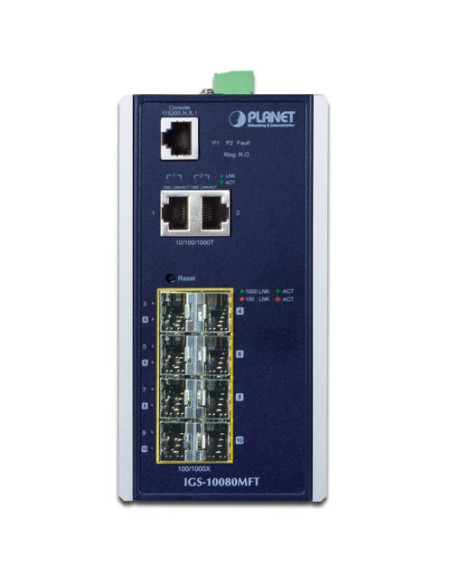

PLANET IGS-10080MFT Industrial 6-Port 100/1000X SFP + 2-Port 1G/2.5G SFP + 2-Port 10/100/1000T Managed Switch

IGS-10080MFT
Last items in stock
$662.20
Tax included

IGS-10080MFT

Multiple SFP Fiber Port Switch for Growing Long-Reach Networking of Industry and Telecom

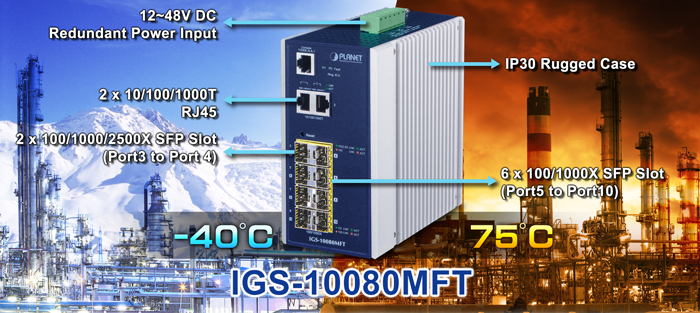

PLANET IGS-10080MFT is an Industrial 10-Port Full Gigabit Managed Ethernet Switch specially designed to build a full Gigabit backbone to transmit reliable, high speed data in heavy industrial demanding environments and also can forward data to remote network through fiber optic. It provides two 100/1000/2500BASE-X and six 100/1000BASE-X SFP fiber optic ports, two extra 10/100/1000BASE-T copper interfaces delivered in an IP30 rugged  case with redundant power system. Being able to operate under the temperature range from -40 to 75 degrees C, the IGS-10080MFT can be placed in almost any harsh environment.



IGS-10080MFT - PLANET Industrial 6-Port 100/1000X SFP + 2-Port 1G/2.5G SFP + 2-Port 10/100/1000T Managed Switch

IPv6 / IPv4 Full-Functioned Managed Switch for Building Automation Networking

The IGS-10080MFT is the ideal solution to fulfill the demand of IPv6 management Gigabit Ethernet Switch, especially in the Industrial hardened environment. It supports both IPv4 and IPv6 management functions and can work with original network structure. The IGS-10080MFT provides advanced Layer 2 to Layer 4 data switching and redundancy, Quality of Service traffic control, network access control and authentication, and Secure Management features to protect customer’s industrial and automation network connectivity.

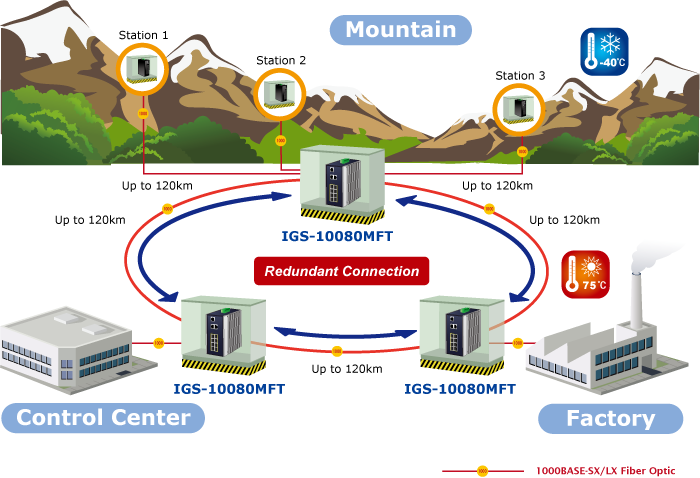

Fast Recovery to a Redundant Ethernet Network

The IGS-10080MFT features strong and self-recovery capability to prevent interruptions and outside intrusions. It incorporates Rapid Spanning Protocol (RSTP), Multiple Spanning Tree (MSTP) as well as the Loop protection function that will shutdown specific Ethernet interfaces when system detects a loop. The dynamic port Link Aggregation and Redundant Power System are provided into customers’ industrial automation network to enhance system reliability and uptime in the harsh factory environments. It greatly protects customer’s industrial network with switching recovery capability that is used for implementing fault tolerant ring architectures.

Modbus TCP Provides Flexible Network Connectivity for Factory Automation

With the supported Modbus TCP/IP protocol, the IGS-10080MFT can easily integrate with SCADA systems, HMI systems and other data acquisition systems in factory floors. It enables administrators to remotely monitor the industrial Ethernet switch’s operating information, port information, communication status, and DI and DO status, thus easily achieving enhanced monitoring and maintenance of the entire factory.

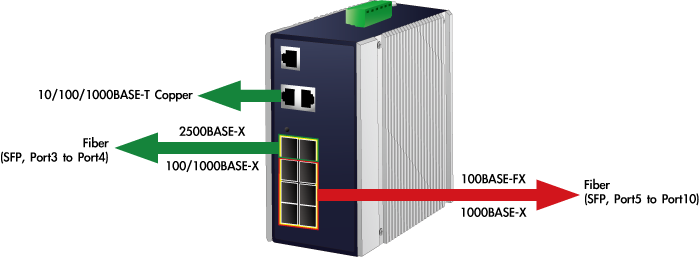

Flexible and Extendable Solution

The IGS-10080MFT’s 8 built-in mini-GBIC slots support triple-speed 100/1000/2500BASE-X SFP (small form-factor pluggable) fiber-optic modules on port 3 and port 4, while ports 5 to 10 support dual-speed 100/1000BASE-X SFP (small form-factor pluggable) fiber-optic modules, meaning the administrator now can flexibly choose the suitable SFP transceiver according to the transmission distance or the transmission speed required to extend the network efficiently.

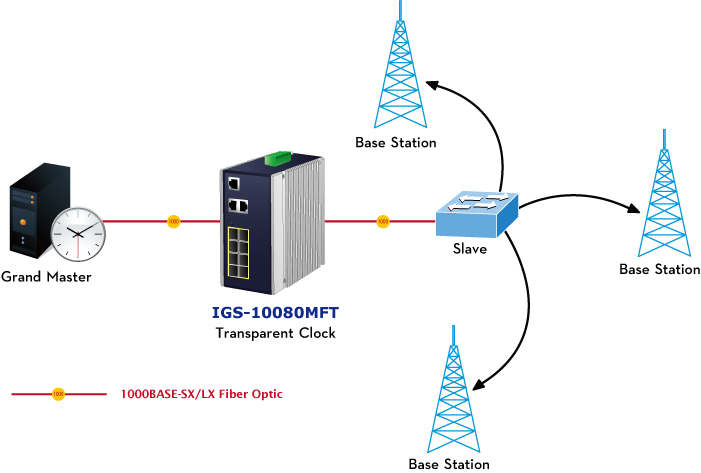

1588 Precision Time Protocol for Industrial Computing Networks

The IGS-10080MFT is intended for telecom and carrier Ethernet applications, supporting MEF service delivery and timing over packet solutions for the IEEE 1588 Precision Time Protocol and synchronous Ethernet. The protocol can precisely synchronize multiple clocks on a network.

Industrial Area Manageable Switch for Data Collection and Forwarding

The IGS-10080MFT offers high performance and high reliability to make sure the continuous industrial operation in harsh environments such as control cabinet of transportation, factory floors, outdoor, and the places where are in extremely low or high temperatures. With a non-blocking design and desktop size, the installation of the IGS-10080MFT is easy and helpful to build up a Gigabit high-bandwidth switched network quickly.

FTTx / MAN Edge Switch

Providing optical fiber Ethernet with highly-flexible, highly-extendable and easy-to-install features, the IGS-10080MFT offers up to 2.5Gbps data exchange speed via optical fiber interface and the transmission distance extends to 120km. The IGS-10080MFT is the ideal solution for service providers such as ISP and telecom to build a metropolitan area network (MAN) based on fiber technology and wide area network.

Environmentally Hardened Design

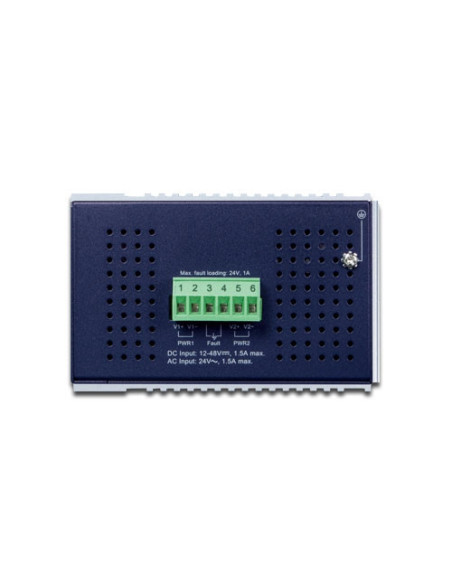

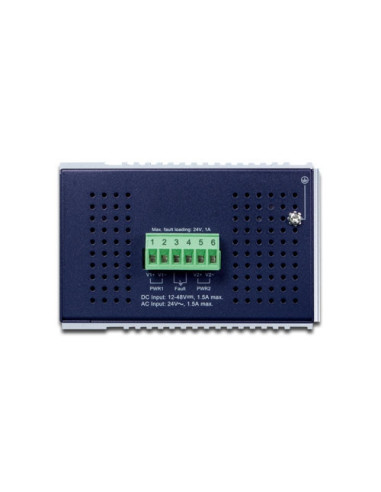

With IP30 aluminum industrial case protection, the IGS-10080MFT provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb side traffic control cabinets. It also possesses an integrated power supply source with wide range of voltages (12 to 48V DC or 24V AC) for worldwide high availability applications requiring dual or backup power inputs. Being able to operate under the temperature range from -40 to 75 Degree C, the IGS-10080MFT can be placed in almost any difficult environment.

Hardware Specification
Copper Ports 2 10/100/1000BASE-T Ethernet interfaces (Port 1 to port 2)
SFP/mini-GBIC Slots 2 100/1000/2500BASE-X mini-GBIC SFP ports (Port 3 to port 4)
6 100/1000BASE-X mini-GBIC SFP ports (Port 5 to port 10)
Alarm One relay output for power fail
Alarm Relay current carry ability: 1A @ DC 24V
Reset Button < 5 sec: System reboot
> 5 sec: Factory Default
Enclosure IP30 Aluminum Metal Case
Installation DIN Rail Kit and Wall Mount Kit
Dimension (W x D x H) 76.8 x 107.3 x 152 mm
Weight 1036g
Power Requirement DC 12 to 48V, AC 24V Power Adapter
Power Consumption 13.92 Watts/47.76BTU (Full loading)
LED Indicator System:
 Power 1 (Green)
 Power 2 (Green)
 Fault Alarm (Green)
Per 10/100/1000BASE-T RJ45 Ports (Port 1 to port 2):
1000 (Orange)
LNK/ACT (Green)
Per 100/1000/2500BASE-X SFP Interface (Port 3 to port 4):
1G/2.5G LNK/ACT(Green)
100 LNK/ACT (Orange)
Per 100/1000BASE-X SFP Interface (Port 5 to port 10):
1000 LNK/ACT(Green)
100 LNK/ACT (Orange)
ESD Protection 6KV DC
EFT Protection 6KV DC
Switch Specifications
Switch Architecture Store-and-Forward
Switch Fabric 26Gbps/non-blocking
Throughput (packet per second) 19.3Mpps
Address Table 8K entries, automatic source address learning and ageing
Shared Data Buffer 512 Kbytes
Flow Control IEEE 802.3x Pause Frame for Full-Duplex. Back pressure for Half-Duplex
Jumbo Frame 9Kbytes
Layer 2 Function
Basic Management Interfaces Web Browser, Remote Telnet, SNMP v1, v2c
Secure Management Interface SSH, SSL, SNMP v3
Industrial Protocol Modbus TCP for real-time monitoring in SCADA system
Port configuration Port disable/enable
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
(Port 1 to port 2)
Auto-detection/Forced 100/1000/2500Mbps SFP Fiber transceiver speed
(Port 3 to port 4)
Auto-detection/Forced 100/1000Mbps SFP Fiber transceiver speed
(Port 5 to port 10)
Flow Control disable/enable
Power saving mode control
Port Status Display each port’s speed duplex mode, link status, Flow control status, Auto negotiation status, trunk status
Port Mirroring TX/RX/Both
Many to 1 monitor
E.R.P.S. Ring Recovery time <10ms
VLAN 802.1Q Tagged Based VLAN, up to 255 VLAN groups
Q-in-Q tunneling
Private VLAN
MAC-Based VLAN
Protocol-Based VLAN
Voice VLAN
MVR (Multicast VLAN Registration)
Up to 255 VLAN groups, out of 4095 VLAN IDs
Link Aggregation IEEE 802.3ad LACP/Static Trunk
Supports 5 groups of 10-Port trunk
QoS Traffic classification based, Strict priority and WRR
8-Level priority for switching
 - Port Number
 - 802.1p priority
 - 802.1Q VLAN tag
 - DSCP field in IP Packet
Synchronization IEEE 1588v2 PTP (Precision Time Protocol)
 - Peer-to-peer transparent clock
 - End-to-end transparent clock
IGMP Snooping IGMP (v1/v2/V3) Snooping, up to 255 multicast Groups
IGMP Querier mode support
MLD Snooping MLD (v1/v2) Snooping, up to 255 multicast Groups
MLD Querier mode support
Access Control List IP-Based ACL/MAC-Based ACL
Up to 256 entries
Bandwidth Control Per port bandwidth control
 Ingress: 500Kb~1000Mbps
 Egress: 500Kb~1000Mbps
SNMP MIBs RFC-1213 MIB-II
RFC-2236 IGMPv2
RFC-2710 MLDv1
RFC-3376 IGMPv3
RFC-2879 RMON 1, 2, 3, 9
RFC-1493 Bridge MIB
RFC-1643 Ethernet MIB
RFC-2863 Interface MIB
RFC-2665 Ether-Like MIB
RFC-2819 RMON MIB (Group 1, 2, 3 and 9)
RFC-2737 Entity MIB
RFC-2618 RADIUS Client MIB
RFC3411 SNMP-Frameworks-MIB
IEEE 802.1X PAE
IF-MIB
LLDP
MAU-MIB
Standards Conformance
Regulation Compliance FCC Part 15 Class A, CE
Stability Testing IEC60068-2-32 (Free fall)
IEC60068-2-27 (Shock)
IEC60068-2-6 (Vibration)
Standards Compliance IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3ab Gigabit 1000T
IEEE 802.3z Gigabit SX/LX
IEEE 802.3bz 2.5GBASE-X
IEEE 802.3x Flow Control and Back pressure
IEEE 802.3ad Port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of service
IEEE 802.1Q VLAN Tagging
IEEE 802.1x Port Authentication Network Control
IEEE 802.1ab LLDP
IEEE 1588v2
ITU-T G.8032 ERPS Ring
Environment
Operating
Temperature: -40 ~ 75 degree C
Relative Humidity: 5 ~ 95 % (non-condensing)
Storage
Temperature: -40 ~ 75 degree C
Relative Humidity: 5 ~ 95 % (non-condensing)
Device Type
Network Switch
Device Features
Managed, Industrial
SFP Ports
8
Power Input
AC, DC
Ethernet Ports
2
Environment Temperature
-40℃~75℃
