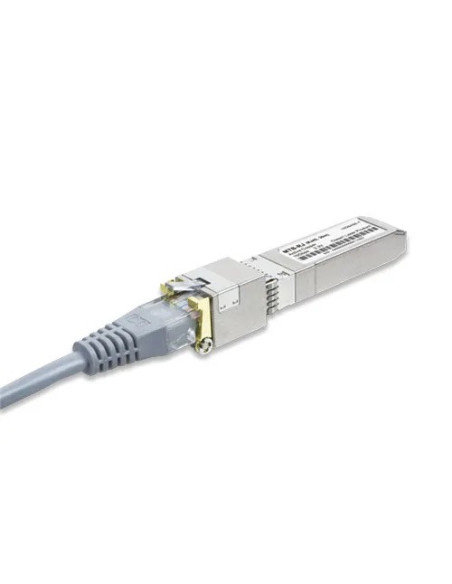

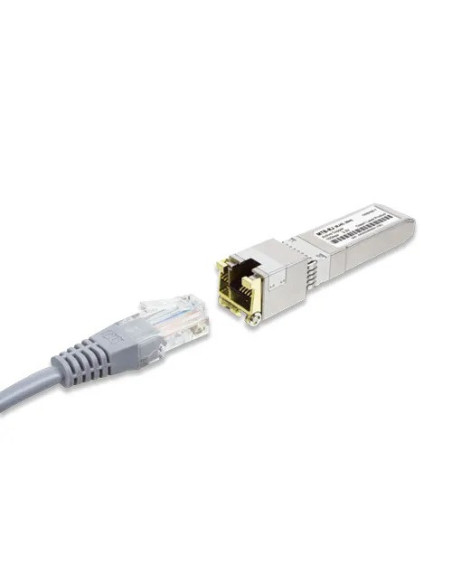

SFP-10G-TSFP+-10GBASE-T Copper Small Form Pluggable (SFP) transceivers are based on the SFP Multi Source Agreement (MSA). They are compatible with the 10Gbase-T / 5Gbase-T / 2.5Gbase-T / 1000base-T standards as specified in IEEE Std 802.3.
SFP+-10GBASE-T uses the SFP's RX_LOS pin for link indication. If pull up SFP's TX_DISABLE pin, PHY IC be reset.
The BC+MM is a Cisco SFP-10G-SR compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco® brand switches and routers. It delivers dependable 10GbE connectivity over fiber cable, for 10GBASE-SR compliant networks, with a maximum distance of up to 300 m over multimode fiber.
High performance and cost-effective 10Gb/s SFP+ SR transceiver module for 10 Gigabit Ethernet links up to 300m over OM3 multimode fiber. This SFP+ SR module features a highly reliable 850nm VCSEL transmitter and PIN photo-detector into duplex LC optical connector.
