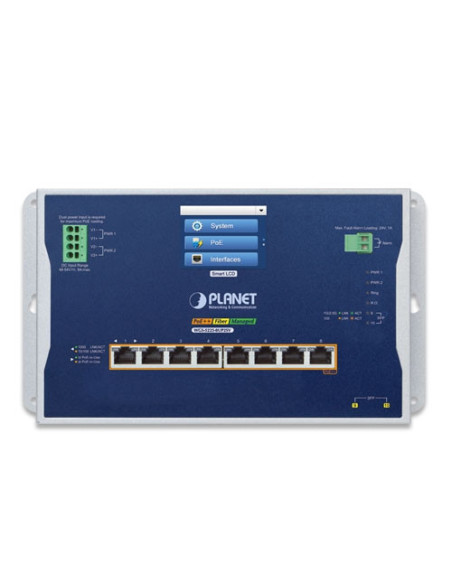

WGS-5225-8UP2SV

Wall-mounted PoE++ Managed Switch with Advanced L2+/L4 Switching and Security


PLANET WGS-5225-8UP2SV is an Industrial Wall-mount PoE++ Managed Switch with LCD Touch Screen featuring PLANET intelligent PoE functions to improve the availability of industrial applications. It provides IPv6/IPv4 dual stack management and built-in L2+/L4 Gigabit switching engine along with eight 10/100/1000BASE-T ports featuring 95-watt PoE and two additional 100/1000/2500BASE-X SFP ports. With a total power budget of up to 720 watts for different kinds of PoE applications, and featuring networking speed and operating temperature ranging from -20 to 70 degrees C in a compact but rugged IP30 metal housing, the WGS-5225-8UP2SV is an ideal solution to meet the demand for the following network application.



WGS-5225-8UP2SV - PLANET Industrial L2+ 8-Port 10/100/1000T 802.3bt PoE + 2-Port 1G/2.5G SFP Wall-mount Managed Switch with LCD Touch Screen

802.3bt PoE++ – 90~95-watt Power over 4-pair UTP Solution


As the WGS-5225-8UP2SV adopts the IEEE 802.bt PoE++ standard and PoH technology, it is capable to source up to 95 watts of power by using all the four pairs of standard Cat5e/6 Ethernet cabling to deliver power and full-speed data to each remote PoE compliant powered device (PD). It possesses triple amount of power capability than the conventional 802.3at PoE+ and is an ideal solution to satisfy the growing demand for higher power consuming network PDs, such as:

  • PoE PTZ speed dome cameras
  • Network devices
  • Thin clients
  • AIO (all-in-one) touch PCs, point of sale (POS) and information kiosks
  • Remote digital signage displays
  • PoE lightings

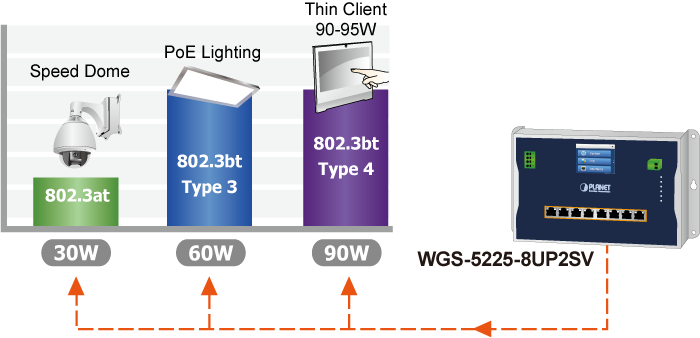

802.3bt PoE++ and Advanced PoE Power Output Mode Management


To meet the demand of various powered devices consuming stable PoE power, the WGS-5225-8UP2SV provides five different PoE power output modes for selection.

  • 90W 802.3bt PoE++ Power Output Mode
  • 95W UPOE/PoH Power Output Mode
  • 30W End-span PoE Power Output Mode
  • 30W Mid-span PoE Power Output Mode
  • 60W Force Power Output Mode

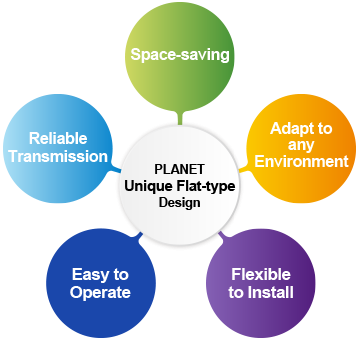

Innovative Wall-mount Installation


The WGS-5225-8UP2SV is specially designed to be installed in a narrow environment, such as wall enclosure or electric box. The compact, flat and wall-mounted design fits easily in any space-limited location. It adopts the user-friendly “Front Access” and touch color screen design, making the installing, cable wiring, LED monitoring and maintenance of the WGS-5225-8UP2SV placed in an enclosure very convenient for technicians. The WGS-5225-8UP2SV can be installed by fixed wall mounting, thereby making its usability more flexible.

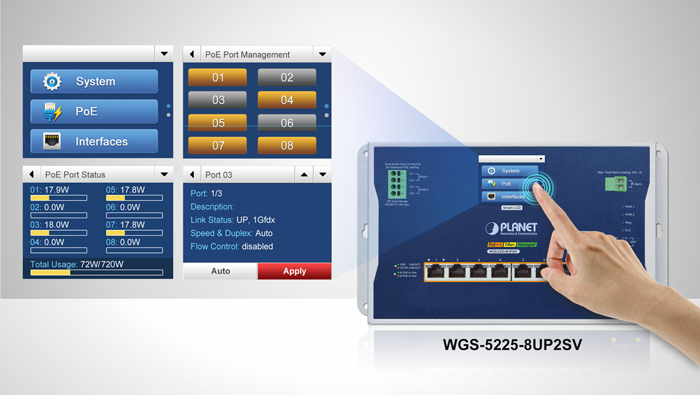

Intuitive LCD Control



The WGS-5225-8UP2SV comes with an intuitive touch panel on its front panel that facilitates the Ethernet PoE PD management that greatly promotes management efficiency in large-scale networks, such as enterprises, hotels, shopping malls, government buildings, and other public areas. It also features the following special management and status functions:

  • IP address, VLAN and QoS configuration
  • PoE management and status
  • Port management and status, and SFP information
  • Troubleshooting: cable diagnostic and remote IP ping
  • Maintenance: reboot, factory default and save configuration




Redundant Ring, Fast Recovery for Critical Network Applications

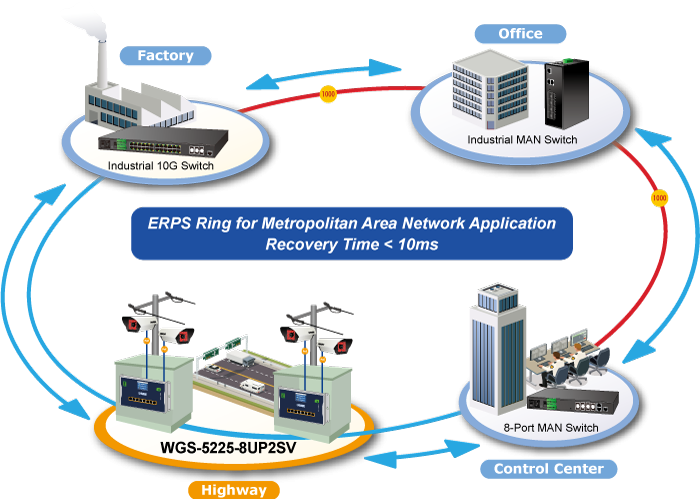

The WGS-5225-8UP2SV supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, Spanning Tree Protocol (802.1s MSTP), and dual power input system into customer’s industrial automation network to enhance system reliability and uptime in harsh factory environments. In a certain simple ring network, the recovery time of data link can be as fast as 10ms.




Built-in Unique PoE Functions for Powered Devices Management


As it is the managed PoE switch for surveillance, wireless and VoIP networks, the WGS-5225-8UP2SV features the following special PoE management functions:

  • PD alive check
  • Scheduled power recycling
  • PoE schedule
  • PoE usage monitoring


Intelligent Powered Device Alive Check


The WGS-5225-8UP2SV can be configured to monitor connected PD status in real time via ping action. Once the PD stops working and responding, the WGS-5225-8UP2SV will resume the PoE port power and bring the PD back to work. It will greatly enhance the network reliability through the PoE port resetting the PD’s power source and reducing administrator management burden.

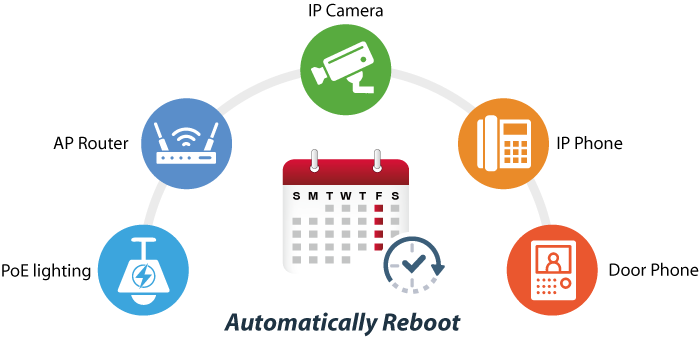

Scheduled Power Recycling


The WGS-5225-8UP2SV allows each of the connected PoE IP cameras or PoE wireless access points to reboot at a specific time each week. Therefore, it will reduce the chance of IP camera or AP crash resulting from buffer overflow.



PoE Schedule for Energy Saving


Under the trend of energy saving worldwide and contributing to environmental protection, the WGS-5225-8UP2SV can effectively control the power supply besides its capability of giving high watts power. The “PoE schedule” function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals and it is a powerful function to help SMBs or enterprises save power and budget. It also increases security by powering off PDs that should not be in use during non-business hours.



Convenient and Smart ONVIF Devices with Detection Feature


PLANET has newly developed an awesome feature -- ONVIF Support -- which is specifically designed for co-operating with video IP surveillances. From the WGS-5225-8UP2SV’s GUI, you just need one click to search and show all of the ONVIF devices via network application. In addition, you can upload floor images to the switch and can remotely monitor or inspect an assembly line. Moreover, you can get real-time surveillance information and online/offline status; the PoE reboot can be controlled from the GUI.

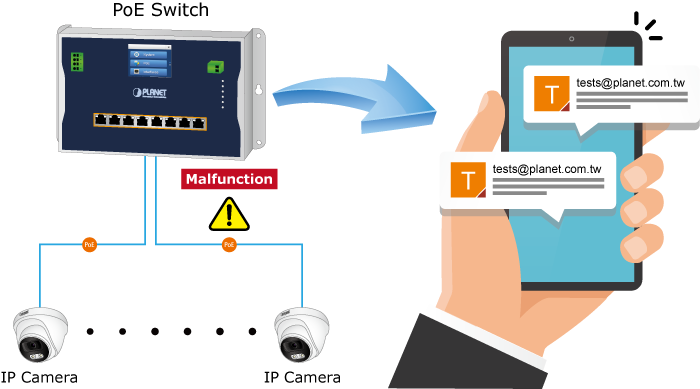

SMTP/SNMP Trap Event Alert


The WGS-5225-8UP2SV provides event alert function to help to diagnose the abnormal device owing to whether or not there is a break of the network connection, or the rebooting response.




Layer 3 IPv4 and IPv6 Software VLAN Routing for Secure and Flexible Management


To help customers stay on top of their businesses, the WGS-5225-8UP2SV not only provides ultra high transmission performance and excellent Layer 2 technologies, but also IPv4/IPv6 software VLAN routing feature which allows to cross over different VLANs and different IP addresses for the purpose of having a highly-secure, flexible management and simpler networking application.


Robust Layer 2 Features


The WGS-5225-8UP2SV can be programmed for advanced switch management functions such as dynamic port link aggregation, Q-in-Q VLAN, private VLAN, Rapid Spanning Tree Protocol, Layer 2 to Layer 4 QoS, bandwidth control and IGMP snooping. The WGS-5225-8UP2SV provides 802.1Q tagged VLAN, and the VLAN groups allowed will be maximally up to 2K. Via aggregation of supporting ports, the WGS-5225-8UP2SV allows the operation of a high-speed trunk combining multiple ports. It enables a maximum of up to 2 trunk groups with 2 ports per trunk group, and supports fail-over as well.


Network with Cybersecurity Helps Minimize Security Risks

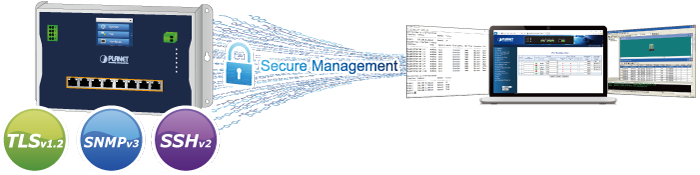

The WGS-5225-8UP2SV comes with enhanced cybersecurity to fend off cyberthreats and cyberattacks. It supports SSHv2 and TLSv1.2 protocols to provide strong protection against advanced threats. Served as a key point to transmit data to customer's critical equipment in a business network, the cybersecurity feature of the WGS-5225-8UP2SV protects the switch management and enhances the security of the mission-critical network without any extra deployment cost and effort.


Efficient Management


For efficient management, the WGS-5225-8UP2SV is equipped with Command line, Web and SNMP management interfaces.

  • With the built-in Web-based management interface, the WGS-5225-8UP2SV offers an easy-to-use, platform-independent management and configuration facility.
  • For text-based management, it can be accessed via Telnet and SSHv2 protocol.
  • For standard-based monitor and management software, it offers SNMPv3 connection which encrypts the packet content at each session for secure remote management.





Powerful Security from Layer 2 to Layer 4
The WGS-5225-8UP2SV offers comprehensive Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. Its protection mechanism also comprises 802.1X Port-based and MAC-based user and device authentication. With the private VLAN function, communication between edge ports can be prevented to ensure user privacy.


Advanced IP Network Protection
The WGS-5225-8UP2SV also provides DHCP Snooping, IP Source Guard and Dynamic ARP Inspection functions to prevent IP snooping from attack and discard ARP packets with invalid MAC address. The network administrators can now construct highly-secure corporate networks with considerably less time and effort than before.

Modbus TCP provides Flexible Network Connectivity for Factory Automation
With the supported Modbus TCP/IP protocol, the WGS-5225-8UP2SV can easily integrate with SCADA systems, HMI systems and other data acquisition systems in factory floors. It enables administrators to remotely monitor the industrial Ethernet switch’s operating information, port information and communication status, thus easily achieving enhanced monitoring and maintenance of the entire factory.


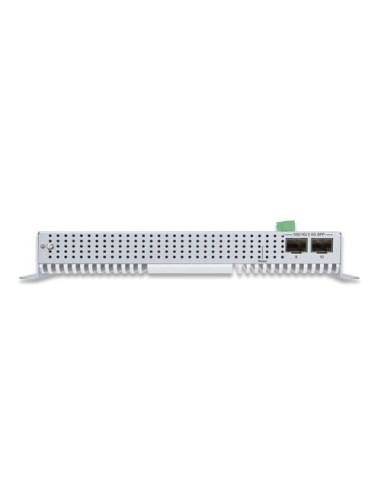

Flexibility and Extension Solution

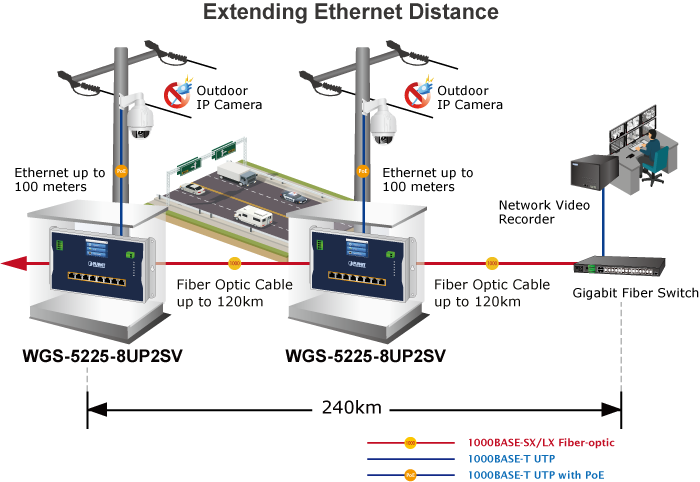

The additional two SFP slots built in the WGS-5225-8UP2SV support multi-speed, 100BASE-FX, 1000BASE-SX/LX and 2500BASE-X SFP (Small Form-factor Pluggable) fiber-optic modules, meaning the administrator now can flexibly choose the suitable SFP transceiver according to not only the transmission distance but also the transmission speed required. The distance can be extended from 550 meters (multi-mode fiber) to 20/40/80/120 kilometers (single-mode fiber or WDM fiber). They are well suited for applications within the enterprise data centers and distributions.

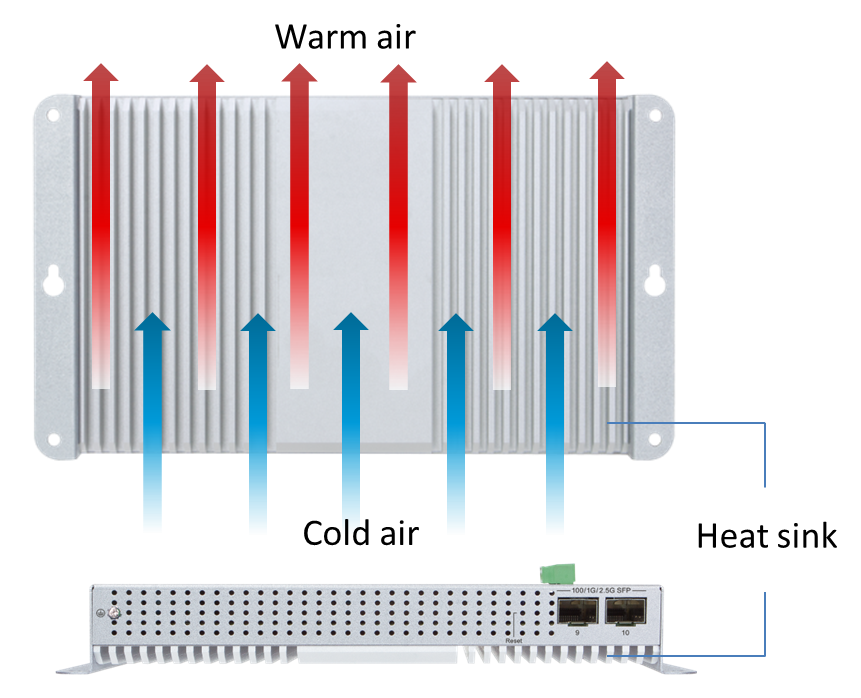

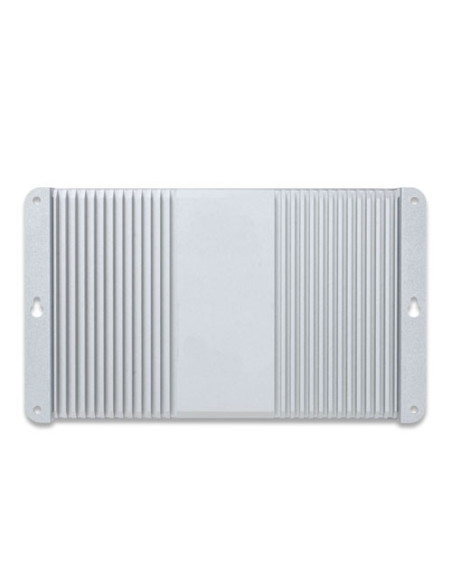

A One-piece Aluminum Enclosure Gives Protection and Heat Dissipation
The WGS-5225-8UP2SV comes with an unibody aluminum enclosure that, like a heat sink, has the shape of a fin profile on the rear side of the switch, thus dissipating heat very quickly, especially in the operating temperature of 70 degrees C.




Intelligent SFP Diagnosis Mechanism

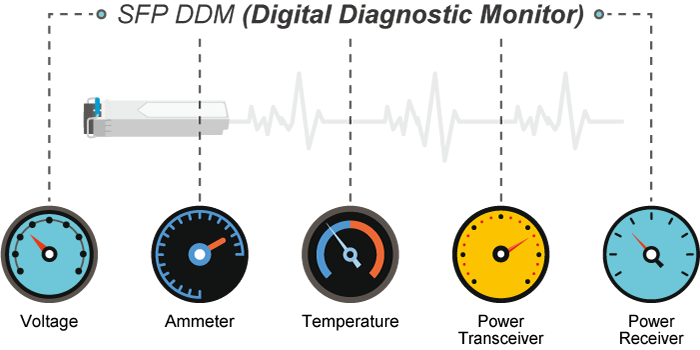

The WGS-5225-8UP2SV supports SFP-DDM (Digital Diagnostic Monitor) function that greatly helps network administrator to easily monitor real-time parameters of the SFP, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.



1588 Time Protocol for Industrial Computing Networks

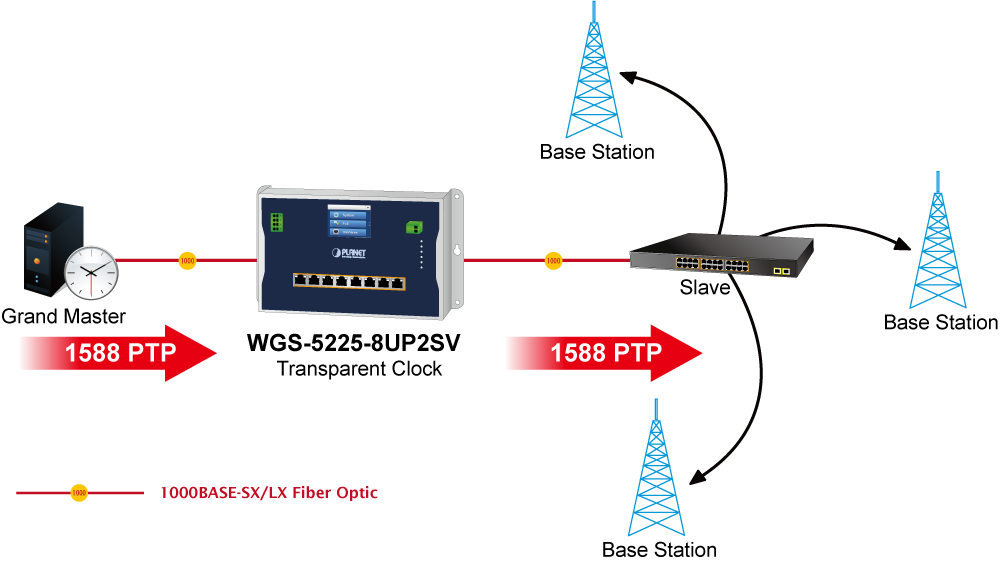

The WGS-5225-8UP2SV is ideal for telecom and Carrier Ethernet applications, supporting MEF service delivery and timing over packet solutions for IEEE 1588 and synchronous Ethernet.

Security Building Automation Switch
Suitable for buildings where security is strictly to be enforced, the WGS-5225-8UP2SV offers a comprehensive Layer 2 to Layer 4 Access Control List (ACL). The switch can restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. With the WGS-5225-8UP2SV, a tightly-controlled network can be easily had in no time.

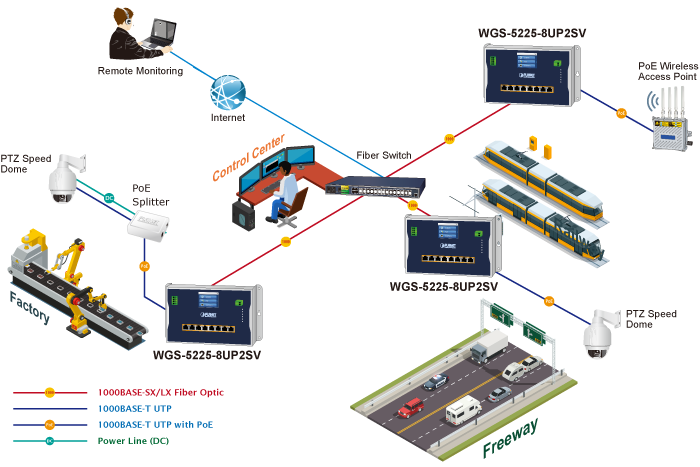

Different Networks Managed by One Control Center
Providing up to 8 PoE++, in-line power interfaces, the WGS-5225-8UP2SV can centrally manage power supplying to an industrial network system where IP phones, IP cameras, wireless APs and more are built. For instance, 8 PoE IP cameras or wireless access points can be easily installed around the corner in the industrial environment for surveillance demands or for a wireless roaming network. Without the power-socket limitation, the WGS-5225-8UP2SV makes the installation of IP cameras and wireless APs easier and more efficient.

Product Features:

Hardware Specifications
Copper Ports 8 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
SFP Slots 2 100/1000/2500BASE-X SFP interfaces
Compatible with 100BASE-FX, 1000BASE-SX/LX/BX and 2500BASE-X SFP transceivers
PoE Injector Port 8 ports with 802.3bt PoE++ injector function with Port-1 to Port-8
RAM 128MBytes
Flash Memory 64MBytes
Reset Button < 5 sec: System reboot
> 5 sec: Factory Default
Connector 4-pin terminal block for power input
- Pin 1/2 for Power 1 (Pin 1: V+ / Pin 2: V-)
- Pin 3/4 for Power 2 (Pin 3: V+ / Pin 4: V-)
2-pin terminal block for event alarm
Alarm One relay output for power failure. Alarm Relay current carry ability: 1A @ 24V DC
Enclosure IP30 aluminum case
Installation Wall-mount
Dimensions (W x D x H) 245 x 36 x 140 mm
Weight 1,299g
Power Requirements 48~54V DC (>52V DC for PoE++ and PoE+ output recommended)
Dual power input is required for maximum power loading
Power Consumption Max. 14.72 watts/50.23 7BTU@50V DC input (Power on without any connection)
Max. 375 watts/1280BTU@Single 54V DC input (Full loading with 360 watts PoE function)
Max. 752 watts/2566BTU@Dual 54V DC input (Full loading with 720 watts PoE function)
ESD Protection 6KV DC
LED Indicator System:
- PWR 1(Green)
- PWR 2 (Green)
- Ring (Green)
- Ring Owner (Green)
Per 10/100/1000T RJ45 PoE++ Ports:
- 802.3bt PoE-in-Use (Green)
- 802.3af/at PoE-in-Use (Amber)
- 1000 LNK/ACT (Green)
- 10/100 LNK/ACT (Amber)
Per SFP Interface:
- 100 LNK/ACT (Amber)
- 1000/2500 LNK/ACT (Green)
Switching Specifications
Switch Architecture Store-and-Forward
Switch Fabric 26Gbps/non-blocking
Throughput (packet per second) 19.345Mpps@ 64 bytes packet
Address Table 8K entries, automatic source address learning and aging
Shared Data Buffer 4Mbits
Flow Control IEEE 802.3x pause frame for full duplex
Back pressure for half duplex
Jumbo Frame 9Kbytes
Power Over Ethernet
PoE Standard IEEE 802.3bt PoE++ Type-4 PSE
Backward compatible with 802.3at PoE+ PSE
PoE Power Supply Type - 802.3bt
- UPOE/POH
- End-span
- Mid-span
- Force
PoE Power Output 802.3bt PoE++
- Per port 52V~56V DC (depending on the power supply), max. 90 watts
UPoE(PoH)
- Per port 52V~56V DC (depending on the power supply), max. 95 watts
IEEE 802.3at Standard
- Per port 52V~56V DC (depending on the power supply), max. 36 watts
Force
- Per port 52V~56V DC (depending on the power supply), max. 60 watts
Power Pin Assignment End-span: 1/2 (-), 3/6 (+)
Mid-span: 4/5 (+), 7/8 (-)
802.3bt/UPoE: 1/2 (-), 3/6 (+),4/5 (+), 7/8 (-)
PoE Power Budget 48V Power input
- 125W maximum (depending on power input)
52~54V Power input
- Single power input: 360W maximum (depending on power input)
- Dual power input: 720W maximum (depending on power input)
※Dual power input must be the same as DC voltage, like dual 54V
Max. number of Class 3 PDs 8
Max. number of Class 4 PDs 8
Max. number of Class 8 PDs 8
PoE Management Functions
Active PoE device alive detects Yes
PoE Power Recycle Yes, daily or predeinded schedule
PoE Schedule 4 schedule profiles
PoE Extend Mode Yes, max. 160 to 200 meters
PoE System Management System PoE Admin control
Total PoE power budget control
Auto power input and PoE budget control
PoE Legacy mode
Over-temperature threshold alarm
PoE usage threshold alarm
PoE Port Management Port Enable/Disable/Schedule
PoE mode control
- 802.3bt
- UPoE
- 802.3at End-span
- 802.3at Mid-span
- Force mode
Port Priority
Layer 3 Functions
IP Interfaces Max. 8 VLAN interfaces
Routing Table Max. 32 routing entries
Routing Protocols Ipv4 software static routing
Ipv6 software static routing
Layer 2 Function
Port Configuration Port disable/enable
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
Flow control disable/enable
Port link capability control
Port Status Display each port’s speed duplex mode, link status, flow control status,
auto negotiation status, trunk status
Port Mirroring TX/RX/both
Many-to-1 monitor
VLAN IEEE 802.1Q tag-based VLAN
IEEE 802.1ad Q-in-Q tunneling
Private VLAN Edge (PVE)
MAC-based VLAN
Protocol-based VLAN
Voice VLAN
MVR (Multicast VLAN Registration)
GVRP
Up to 4K VLAN groups, out of 4094 VLAN IDs
Link Aggregation IEEE 802.3ad LACP/static trunk
Supports 2 trunk groups with 2 ports per trunk group
Spanning Tree Protocol IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IGMP Snooping Ipv4 IGMP (v1/v2 /v3) Snooping
Ipv4 IGMP Querier mode support
Up to 255 multicast Groups
MLD Snooping Ipv6 MLD (v1/v2) Snooping
Ipv6 MLD Querier mode support
Up to 255 multicast Groups
Bandwidth Control Per port bandwidth control
Ingress: 500Kb~1000Mbps
Egress: 500Kb~1000Mbps
RING Supports ERPS, and complies with ITU-T G.8032
Recovery time < 10ms
Synchronization IEEE 1588v2 PTP(Precision Time Protocol)
- Peer-to-peer transparent clock
- End-to-end transparent clock
QoS Traffic classification based, strict priority and WRR
8-level priority for switching
- Port number
- 802.1p priority
- 802.1Q VLAN tag
- DSCP/TOS field in IP packet
Security Functions
Access Control List IP-based ACL/MAC-based ACL
ACL based on:
- MAC Address
- IP Address
- Ethertype
- Protocol Type
- VLAN ID
- DSCP
- 802.1p Priority
Up to 256 entries
Security Port security
IP source guard
Dynamic ARP inspection
Command line authority control based on user level
AAA RADIUS client
TACACS+ client
Network Access Control IEEE 802.1x port-based network access control
MAC-based authentication
Local/RADIUS authentication
Management Functions
Basic Management Interfaces Telnet; Web browser; SNMP v1, v2c
Secure Management Interfaces SSHv2, TLS v1.2, SNMPv3
System Management Firmware upgrade by HTTP protocol through Ethernet network
Configuration upload/download through HTTP
LLDP protocol
NTP
PLANET Smart Discovery Utility
Event Management Remote Syslog
System log
SMTP
ONVIF ONVIF device discovery
ONVIF device monitoring
Floor Map
SNMP MIBs RFC 1213 MIB-II
IF-MIB
RFC 1493 Bridge MIB
RFC 1643 Ethernet MIB
RFC 2863 Interface MIB
RFC 2665 Ether-Like MIB
RFC 2819 RMON MIB (Groups 1, 2, 3 and 9)
RFC 2737 Entity MIB
RFC 2618 RADIUS Client MIB
RFC 2933 IGMP-STD-MIB
RFC 3411 SNMP-Frameworks-MIB
IEEE 802.1X PAE
LLDP
MAU-MIB
Power over Ethernet MIB
Standards Conformance
Regulatory Compliance FCC Part 15 Class A, CE
Stability Testing IEC60068-2-32 (free fall)
IEC60068-2-27 (shock)
IEC60068-2-6 (vibration)
Standards Compliance IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3z Gigabit SX/LX
IEEE 802.3ab Gigabit 1000T
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1X Port Authentication Network Control
IEEE 802.1ab LLDP
IEEE 802.3ah OAM
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3bt Power over Ethernet Plus Plus
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
RFC 3367 IGMP version 3
RFC 2710 MLD version 1
RFC 3810 MLD version 2
ITU-T G.8032 Ethernet Ring Protection Switching
Environment
Operating Temperature -20 ~ 70 degrees C
Storage Temperature -40 ~ 85 degrees C
Humidity 5 ~ 95% (non-condensing)

Device Type
Network Switch
Device Features
Industrial
TAA Compliant
POE Ports
8
SFP Ports
2 Ports
Power Input
DC
PoE Power Budget
Up to 720W (Dual Power Input @ 52~54V)
Installation Type
Wall-mount
Ports
8 10/100/1000TX + 2 100/1000/2500X SFP
Type
Managed
PoE Standard
802.3bt PoE++ (Type 4)
Power Consumption
Max. 752W/2566BTU @ 54V DC input (Full Loading w/ PoE Function)
Operating Temperature
-20 to 70°C
4711605286053
WGS-5225-8UP2SV
No reviews

Related Products & Accessories

Comments (0)
No customer reviews for the moment.
Product added to wishlist
Product added to compare.

We use cookies to ensure that we give you the best experience on our website,

if you continue to use this site we will assume that you are happy with it.
