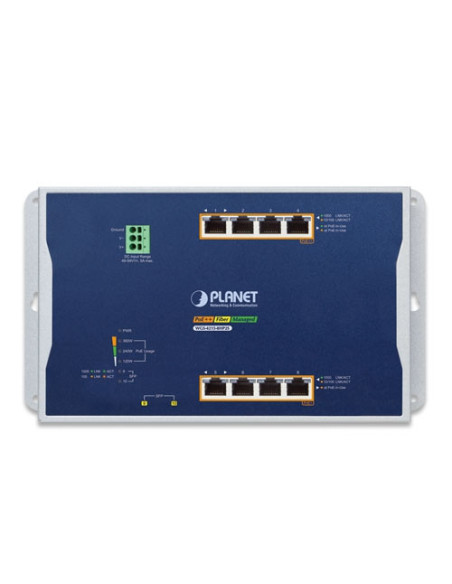

PLANET Industrial 4-Port 10/100/1000T 802.3bt PoE 4-Port 10/100/1000T 802.3at PoE 2-Port 100/1000X SFP Wall-mount Managed Switch

WGS-4215-8HP2S
Last items in stock
$515.90
Tax included

WGS-4215-8HP2S

Wall-mounted PoE++ Managed Switch with Advanced L2+/L4 Switching and Security
PLANET WGS-4215-8HP2S is an Industrial Wall-mount PoE++ Managed Switch  featuring PLANET intelligent PoE functions to improve the availability of industrial applications. It provides IPv6/IPv4 dual stack management and built-in L2/L4 Gigabit switching engine along with four 10/100/1000BASE-T ports featuring 95-watt 802.3bt PoE++, four 10/100/1000BASE-T ports featuring 36-watt 802.3at PoE+ and 2 additional Gigabit TP/SFP combo port. With a total power budget of up to 360 watts for different kinds of PoE applications, and featuring networking speed and operating temperature ranging from -40 to 75 degrees C in a compact but rugged IP30 metal housing, the WGS-4215-8HP2S is an ideal solution that meets the demands for all network applications.

Power Supply Options



WGS-4215-8HP2S - PLANET Industrial 4-Port 10/100/1000T 802.3bt PoE + 4-Port 10/100/1000T 802.3at PoE + 2-Port 100/1000X SFP Wall-mount Managed Switch

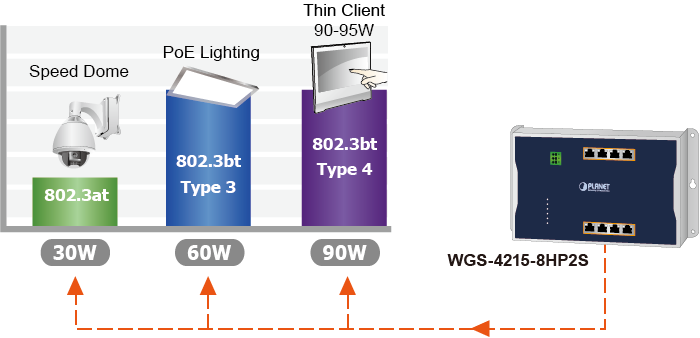

802.3bt PoE++ – 90~95-watt Power over 4-pair UTP Solution
As the WGS-4215-8HP2S adopts the IEEE 802.bt PoE++ standard and PoH technology, it is capable to source up to 95 watts of power by using all the four pairs of standard Cat5e/6 Ethernet cabling to deliver power and full-speed data to each remote PoE compliant powered device (PD). It possesses triple amount of power capability than the conventional 802.3at PoE+ and is an ideal solution to satisfy the growing demand for higher power consuming network PDs, such as:

  • PoE PTZ speed dome cameras
  • Network devices
  • Thin clients
  • AIO (all-in-one) touch PCs, point of sale (POS) and information kiosks
  • Remote digital signage displays
  • PoE lightings


802.3bt PoE++ and Advanced PoE Power Output Mode Management
To meet the demand of various powered devices consuming stable PoE power, the WGS-4215-8HP2S provides five different PoE power output modes for selection.

  • 95W UPOE/PoH Power Output Mode
  • 90W 802.3bt PoE++ Power Output Mode
  • 60W Force Power Output Mode
  • 30W End-span PoE Power Output Mode
  • 30W Mid-span PoE Power Output Mode

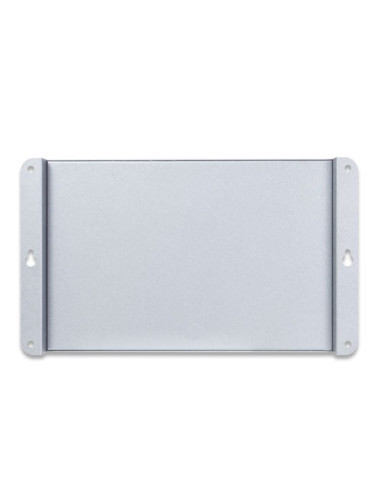

Innovative Wall-mount Installation
The WGS-4215-8HP2S is specially designed to be installed in a narrow environment, such as wall enclosure or electric box. The compact, flat and wall-mounted design fits easily in any space-limited location. It adopts the user-friendly “Front Access” design, making the installing, cable wiring, LED monitoring and maintenance of the WGS-4215-8HP2S placed in an enclosure very convenient for technicians. The WGS-4215-8HP2S can be installed by fixed wall mounting, thereby making its usability more flexible.

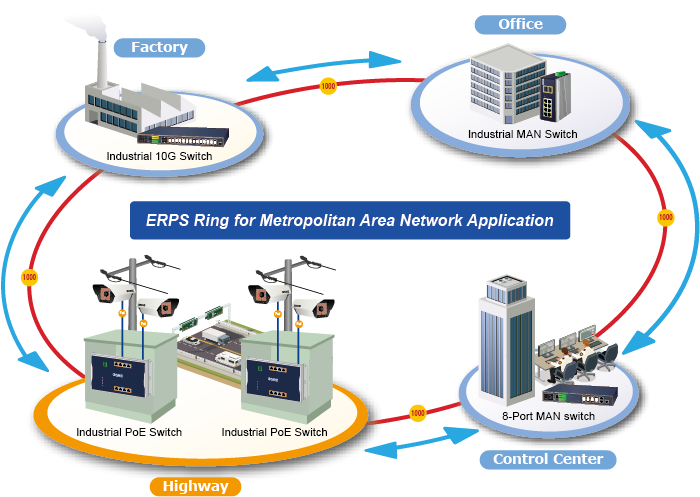

Redundant Ring, Fast Recovery for Critical Network Applications
The WGS-4215-8HP2S supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology and Spanning Tree Protocol (802.1s MSTP) into customer’s industrial automation network to enhance system reliability and uptime in harsh factory environments.



Built-in Unique PoE Functions for Powered Devices Management
As it is the managed PoE switch for surveillance, wireless and VoIP networks, the WGS-4215-8HP2S features the following special PoE management functions:

  • PD alive check
  • Scheduled power recycling
  • PoE schedule
  • PoE usage monitoring


Intelligent Powered Device Alive Check
The WGS-4215-8HP2S can be configured to monitor connected PD status in real time via ping action. Once the PD stops working and responding, the WGS-4215-8HP2S will resume the PoE port power and bring the PD back to work. It will greatly enhance the network reliability through the PoE port resetting the PD’s power source and reducing administrator management burden.


Scheduled Power Recycling
The WGS-4215-8HP2S allows each of the connected PoE IP cameras or PoE wireless access points to reboot at a specific time each week. Therefore, it will reduce the chance of IP camera or AP crash resulting from buffer overflow.


PoE Schedule for Energy Saving
Under the trend of energy saving worldwide and contributing to environmental protection, the WGS-4215-8HP2S can effectively control the power supply besides its capability of giving high watts power. The “PoE schedule” function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals and it is a powerful function to help SMBs or enterprises save power and budget. It also increases security by powering off PDs that should not be in use during non-business hours.


Robust Layer 2 Features
The WGS-4215-8HP2S can be programmed for advanced switch management functions such as dynamic port link aggregation, Q-in-Q VLAN, private VLAN, Rapid Spanning Tree Protocol, Layer 2 to Layer 4 QoS, bandwidth control and IGMP snooping. The WGS-4215-8HP2S provides 802.1Q tagged VLAN, and the VLAN groups allowed will be maximally up to 256. Via aggregation of supporting ports, the WGS-4215-8HP2S allows the operation of a high-speed trunk combining multiple ports. It enables a maximum of up to 2 trunk groups with 2 ports per trunk group, and supports fail-over as well.


Network with Cybersecurity Helps Minimize Security Risks
The WGS-4215-8HP2S comes with enhanced cybersecurity to fend off cyberthreats and cyberattacks. It supports SSHv2 and TLSv1.2 protocols to provide strong protection against advanced threats. Served as a key point to transmit data to customer's critical equipment in a business network, the cybersecurity feature of the WGS-4215-8HP2S protects the switch management and enhances the security of the mission-critical network without any extra deployment cost and effort.

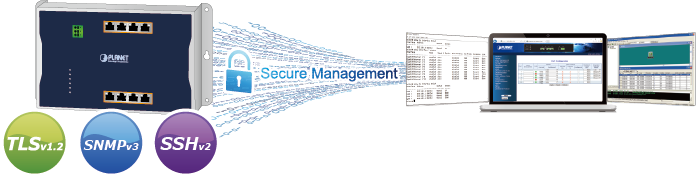

Efficient Management
For efficient management, the WGS-4215-8HP2S is equipped with Command line, Web and SNMP management interfaces.
With the built-in Web-based management interface, the WGS-4215-8HP2S offers an easy-to-use, platform-independent management and configuration facility.
For text-based management, it can be accessed via Telnet and SSHv2 protocol.
For standard-based monitor and management software, it offers SNMPv3 connection which encrypts the packet content at each session for secure remote management.




Powerful Security from Layer 2 to Layer 4
The WGS-4215-8HP2S offers comprehensive Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. Its protection mechanism also comprises 802.1X Port-based user and device authentication.


Advanced IP Network Protection
The WGS-4215-8HP2S also provides DHCP Snooping, IP Source Guard and Dynamic ARP Inspection functions to prevent IP snooping from attack and discard ARP packets with invalid MAC address. The network administrators can now construct highly-secure corporate networks with considerably less time and effort than before.


Flexibility and Extension Solution

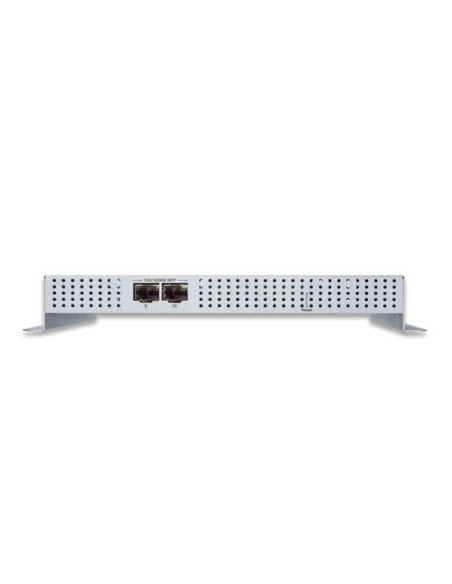

The additional two SFP slots built in the WGS-4215-8HP2S support multi-speed, 100BASE-FX and 1000BASE-SX/LX SFP (Small Form-factor Pluggable) fiber-optic modules, meaning the administrator now can flexibly choose the suitable SFP transceiver according to not only the transmission distance but also the transmission speed required. The distance can be extended from 550 meters (multi-mode fiber) to 20/40/80/120 kilometers (single-mode fiber or WDM fiber). They are well suited for applications within the enterprise data centers and distributions.

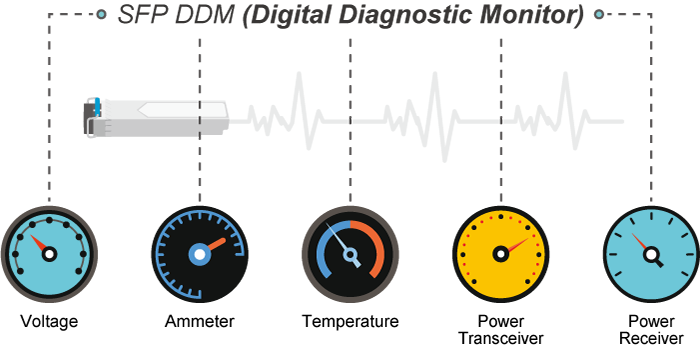

Intelligent SFP Diagnosis Mechanism
The WGS-4215-8HP2S supports SFP-DDM (Digital Diagnostic Monitor) function that greatly helps network administrator to easily monitor real-time parameters of the SFP, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.

Security Industry Automation Switch
Suitable for Industrial factory where security is strictly to be enforced, the WGS-4215-8HP2S offers a comprehensive Layer 2 to Layer 4 Access Control List (ACL). The switch can restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. With the WGS-4215-8HP2S, a tightly-controlled network can be easily had in no time.

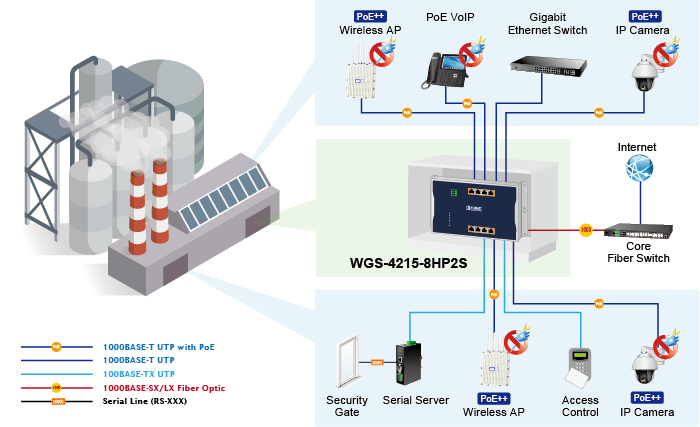

Flexible PoE Applications over Different Industrial Networks
Providing up to 4 PoE++ and 4 PoE+, in-line power interfaces, the WGS-4215-8HP2S can centrally manage power supplying to an industrial network system where IP phones, IP cameras, wireless APs and more are built. For instance, 8 PoE IP cameras or wireless access points can be easily installed around the corner in the industrial environment for surveillance demands or for a wireless roaming network. Without the power-socket limitation, the WGS-4215-8HP2S makes the installation of IP cameras and wireless APs easier and more efficient.

Product Features:

Hardware Specifications
Copper Ports 8 x 10/100/1000BASE-T RJ45 Auto-MDI/MDI-X ports
SFP Ports 2 x 100/1000BASE-X SFP interfaces
Supports 100/1000Mbps dual mode and DDM
PoE Injector Port 4 ports with 802.3b PoE++ injector function with Port-1 to Port-4
4 ports with 802.3at/af PoE+ injector function with Port-5 to Port-8
Reset Button < 5 sec: System reboot
> 5 sec: Factory default
Dimensions (W x D x H) 245 x 140 x 36 mm
Weight 853 g
Enclosure Metal
Power Requirements 48~56V DC, 8 A (max.)
Power Consumption/ Dissipation System on: Max. 4 watts/ 13.6 BTU
Full loading with PoE function: Max. 382 watts/ 1303.4 BTU
ESD Protection Contact Discharge 6KV DC
Air Discharge 8KV DC
LED System:
PWR x1 (Green)
Copper Interfaces (Port 1 to Port 8):
1000 LNK/ACT (Green)
10/100 LNK/ACT (Orange)
PoE Interfaces (Port 1 to Port 8):
bt PoE (Green)
af/at PoE (Orange)
SFP Interface (Port 9 to Port 10):
1000 LNK/ACT (Green)
100 LNK/ACT (Orange)
Switching Specifications
Switch Architecture Store-and-Forward
Switch Fabric 20Gbps/non-blocking
Switch Throughput@64Bytes 14.88Mpps
Address Table 8K entries
Shared Data Buffer 4.1 megabits
Flow Control IEEE 802.3x pause frame for full duplex
Back pressure for half duplex
Jumbo Frame 10K bytes
Power over Ethernet
PoE Standard IEEE 802.3bt PoE++ standard type 4 PSE
IEEE 802.3af PoE+ PSE
Backward compatible with IEEE 802.3afPoE PSE
PoE Power Supply Type 802.3bt / UPoE / End-span / Mid-span / Force
PoE Power Output Per port 54V DC
 802.3bt Type-4 mode, Port-1 to Port-4: maximum 90 watts
 UPoE mode, Port-1 to Port-4: maximum 95 watts
 End-span mode: maximum 36 watts
 Mid-span mode: maximum 36 watts
 Force mode: maximum 60 watts
Power Pin Assignment 802.3bt: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
UPoE: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
End-span: 1/2(-), 3/6(+)
Mid-span: 4/5(+), 7/8(-)
PoE Power Budget up to 360 watt
Layer 2 Functions
Port Mirroring TX/RX/both
Many-to-1 monitor
Up to 4 sessions
VLAN IEEE 802.1Q tagged VLAN
IEEE 802.1ad Q-in-Q tunneling
Voice VLAN
Protocol VLAN
Private VLAN (Protected port)
GVRP
Up to 256 VLAN groups, out of 4094 VLAN IDs
Link Aggregation IEEE 802.3ad LACP/Static Trunk
Supports1 trunk group with 2 ports per trunk
Spanning Tree Protocol IEEE 802.1D Spanning Tree Protocol (STP)
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
STP BPDU Guard, BPDU Filtering and BPDU Forwarding
IGMP Snooping IPv4 IGMP (v2/v3) Snooping
IPv4 IGMP Querier
Up to 256 multicast groups
MLD Snooping IPv6 MLD (v1/v2) Snooping
Up to 256 multicast groups
QoS 8 mapping ID to 8 level priority queues
 Port number
 802.1p priority
 802.1Q VLAN tag
 DSCP field in IP packet
Traffic classification based, strict priority and WRR
Ring Supports ERPS (Ethernet Ring Protection Switching)
Security Functions
Access Control List IPv4/IPv6 IP-based ACL
MAC-based ACL
Security IP-MAC port binding
MAC filter
Static MAC address
DHCP Snooping and DHCP Option82
DoS attack prevention
ARP inspection
IP source guard
AAA Built-in RADIUS client to co-operate with RADIUS server
Network Access Control IEEE 802.1X – Port-based authentication
RADIUS/TACACS+ user access authentication
Management Functions
Basic Management Interfaces Web browser
Telnet
SNMP v1, v2c
Secure Management Interfaces SSHv2, TLS v1.2, SNMP v3
System Management Firmware upgrade by HTTP/TFTP protocol through Ethernet network
LLDP protocol
SNTP
PLANET Smart Discovery Utility
PLANET NMS System
Event Management Remote/Local Syslog
System log
SNMP MIBs RFC 1213 MIB-II
RFC 1215 Generic Traps
RFC 1493 Bridge MIB
RFC 2674 Bridge MIB Extensions
RFC 2737 Entity MIB (Version 2)
RFC 2819 RMON (1, 2, 3, 9)
RFC 2863 Interface Group MIB
RFC 3635 Ethernet-like MIB
Standards Conformance
Regulatory Compliance FCC Part 15 Class A, CE
Standards Compliance IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3z Gigabit SX/LX
IEEE 802.3ab Gigabit 1000T
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree protocol
IEEE 802.1w Rapid Spanning Tree protocol
IEEE 802.1s Multiple Spanning Tree protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1x Port Authentication Network Control
IEEE 802.1ab LLDP
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3b Power over Ethernet Plus Plus
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP version 1
RFC 2236 IGMP version 2
RFC 3376 IGMP version 3
RFC 2710 MLD version 1
RFC 3810 MLD version 2
ITU G.8032 ERPS Ring
Environment
Operating Temperature: -40 ~ 75 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
Storage Temperature: -40 ~ 85 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
Power Input
DC
Device Features
Industrial, Managed
Device Type
Network Switch
POE Ports
8
SFP Ports
2
Power Over Ethernet
802.3at PoE, 802.3bt PoE
SFP
Yes, 1G SFP
Ethernet Ports
8
Environment Temperature
-40℃~75℃
Installation Type
Wall-mount
