TP-DCDC-A2456GD-BT 22-35VAC or VDC Input, 56V 802.3bt Gigabit PoE Output, 90W
TP-DCDC-A2456GD-BT
22-35VAC/DC IN. 56V 90W 802.3bt PoE OUT. AC/DC to DC Converter and Gigabit 802.3bt PoE Injector. -40 to +70C Op Temp
TP-DCDC-A2456GD-BT - 22-35VAC or VDC Input, 56V 802.3bt Gigabit PoE Output, 90W
Features
• 22-35VAC/VDC Input, 802.3bt 90W Output
• Industrial Temperature Range: -40 to +70C
• Up to 5Gigabit Data Passthru with Surge Protection
• DIN Rail Mounting (Adapters Included)
Applications
• 802.3bt PoE from Legacy 24VAC Power Sources
• 24VDC Remote Power Systems
• IEEE802.3bt Industry Standard Device Power from Batteries
• PoE Lighting Applications

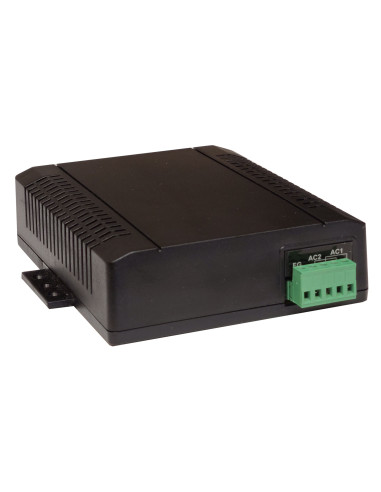

The TP-DCDC-A2456GD-BT is a 5Gbps high power DCDC converter and PoE injector that accepts 22-35VAC or VDC input. It features a wide operating temperature range (-40 to +70C) and a high power 802.3bt 90W output.

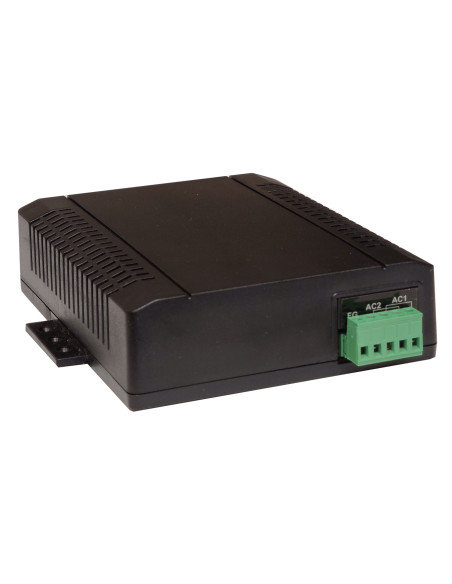

The unit has dual AC/DC inputs for maximum flexibility. The green DC connector accepts wires up to 12AWG. The “FG” input is used to provide chassis or earth ground.

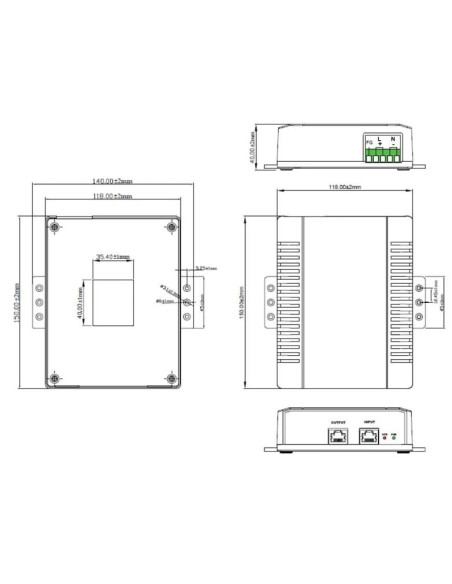

The device is fan-less and uses natural air flow for cooling. It comes with DIN rail adapters to provide mounting to a standard DIN Rail commonly used in industrial installations. It can also be wall mounted.
