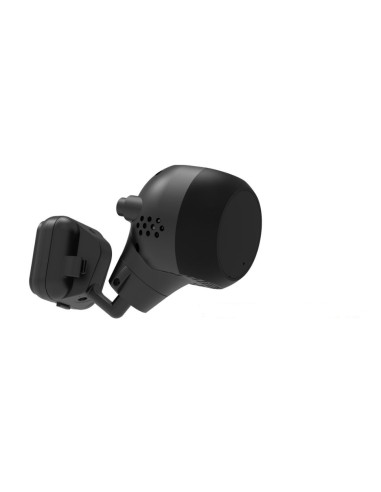

Teltonika DSM, Driver safety monitoring (DSM) camera with professional gps tracker

DSM
*** Out of stock ATM, Available On Backorder ***
$658.90
Tax included

Teltonika DSM, Driver Safety and Monitoring solution

Every road user must be aware that their behaviour and actions have a huge impact on their own and others safety. Distraction is still the main cause of many road accidents resulting in serious injuries, casualties, and damage to cargo. Moreover, according to Driver Fatigue in European Road Transport Report (2021 year) 24% of bus and coach drivers and 30% of truck drivers indicated that they had fallen asleep while driving at least once in the previous 12 month. We are happy to announce that Teltonika Telematics has developed a new Driver Safety Monitoring (or DSM in sort) solution. Based on leading-edge technologies, Teltonika DSM has several integrated warning conditions: drowsiness, yawning, distraction, smoking, phone use, and seatbelt use. Moreover, it can recognise and store 200 driver IDs and identifies which driver is on board. DSM notifies a driver immediately with a sound alert if any of these events are detected. After the camera detects alarming events inside the vehicle cabin, the GPS device tracks them and sends the relevant data to the dedicated server for timely monitoring and further analysis. Fleet owner can get photo evidence for future investigation. Thisintegrated safety warning solution is designed to avoid possible car accidents, injuries, casualties, and financial losses. The Driver Safety Monitoring solution consists of the DSM camera, which is mounted on the front window (next to the A-pillar) of the vehicle, and the Teltonika professional GPS tracker FMC640 both connected via an RS-232 serial port interface. DSM camera detects alarming events by scanning and calculates head position detection, face direction detection ( ‘yaw’, ‘pitch’, ‘roll’ ) and eye- opening/mouth opening/closing. All the event data will be sent to the dedicated server for further monitoring and analysis.

Key Features:

DRIVER NOTIFICATION ON EVENTS

The driver will get sound notifications via a camera in front of the driver when events will like drowsiness, distraction, yawning, smoking, phone use, and seat belt off occur.

EVENTS TRANSFER TO THE SERVER

By receiving event data in a dedicated server, a fleet owner and/or managers can analyse driver behaviour and avoid potential dangers on the roads

VISUAL EVIDENCE

Fleet owner and/or managers can receive photos of events from DSM for further analysis. Pictures can be sent by triggers or requests.

Quantity Unit price You Save
5 $593.01 $329.45
10 $560.07 $988.35
20 $507.35 $3,030.94

Related Products & Accessories



Teltonika DSM, Driver Safety and Monitoring solution

Driver notification on drowsiness, distraction, and yawning

Notifying a driver immediately with a sound alert whenever any of the integrated warning conditions are detected, such as drowsiness, yawning, distraction, smoking, phone use, or not using seat belt.

128 GB for offline video storage

With up to 128 GB data storage, extensive videos are available to have full information what has happened before, during and after the events you are interested in

Sleek and compact design

Small design provides a practical and effective solution for capturing footage while driving – positioned discreetly in the vehicle's A-pillar, it ensures that driver's front view remains clear

Periodic photo sending

Get the requested photo or set periodic image sending to the server to track and analyse events in real time as well as monitor visual data, such as pictures of events

Specifications
Suitable for FMC650*
*To connect with FMC650 devices, an additional RJ45 cable must be purchased.
GNSS Built-in (GPS, GLONASS, QZSS)
Physical specification
  • Camera: 48.7 mm x 56.18 mm x 78.52 mm
  • Main connection box: 172 mm x 84.65 mm x 27 mm
Technical data
  • Camera resolution: 720p@30fps, HDR
  • SD card:
    • Up to 128 GB micro SD card
    • 64 GB (included) – Approx recording time: 24 Hours
  • Infrared: 2x IR LED
  • Cable length: Main cable 3.5 m "Split cable"
  • Speaker/Microphone: Yes
Power
  • Power consumption: Max. 8.4 W (12 V/24 V)
Operating environment
  • Operating temperature: -20 °C to +70 °C
Interface
  • LED indication: Red/Green dual LED for operating status
  • USB: USB Type-C for calibration via PC
  • CAN: CAN 2.0 (option for DSM to detect speed from CAN line)
  • RS232: Indicator TX/RX (for communication with FMX640 devices)
Features
  • Photo: Request a photo from DSM or set periodical image sending to the server
  • Drowsiness: Detect when the driver closes eyes for a certain period
  • Distraction: Detect when the driver looks outside the warning range for a certain period
  • Yawning: Detect when the driver yawns for 3 seconds twice within 1 minute
  • Smoking: Detect when the driver smokes for a certain period
  • Phone use: Detect when the driver talks over the phone for a certain period (every 30 seconds)
  • Seat belt: Detect when the driver doesn’t fasten the seat belt over 10 km/h
  • Driver ID: Detect driver face (stores max 200 IDs)
Certification & approvals
  • Certificates: FCC, KC (Korea Certificate)
Device Type
Tracker
Operating Temperature
-20 to 70°C
Teltonika DSM
