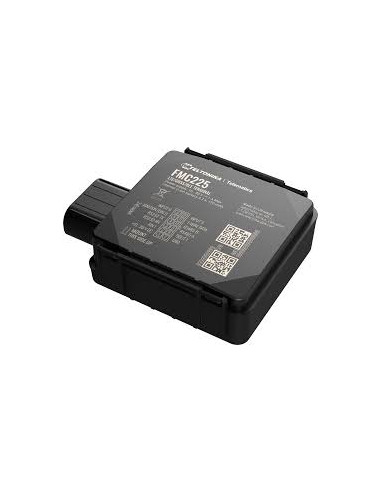

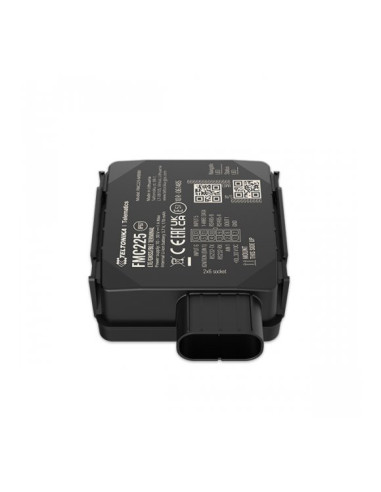

Teltonika FMC225 Water-resistant 4G LTE Cat 1 tracker with RS485, RS232 interfaces

FMC225
*** Out of stock ATM, Available On Backorder ***
$136.40
Tax included

FMC225

Water resistant trackers with RS485 and RS232 interfaces


FMC225 is WATER and DUST resistant real-time tracking terminal with GNSS and LTE/GSM connectivity and backup battery. FMC225 features RS485/RS232 data interface, which gives ability to connect various third-party external devices. It is perfectly suitable for applications where location acquirement of remote objects is needed: fleet management, car rental companies, taxi companies, public transport, logistics companies, personal cars and so on. Because of IP67 casing, device is totally protected from dust and remains safe during the short periods of immersion in water up to 1m depth. As a result, FMC225 can be used in agriculture, construction and mining or any other fleet where harsh tracking conditions exists.

Key features:

IP67 Casing

Reliable tracking in harsh conditions

4G Network

Global-band LTE CAT 1 Module,which ensure reliable connection with a fallback to 2G (GSM) networks

RS232/RS485

Serial communication interfaces to connect third-party external devices

Dual SIM

Adds a backup communication channel and significantly reduce roaming costs

Quantity Unit price You Save
5 $122.76 $68.20
10 $115.94 $204.60
20 $105.03 $627.44


FMC225

Water resistant trackers with RS485 and RS232 interfaces

Protection against dust and water

Robust IP67-rated casing provides trusted protection against dust and resistance to water

Significantly lower roaming costs

Dual SIM considerably reduces roaming costs

Fuel monitoring and more

RS232/RS485 serial interfaces for fuel monitoring and other external data reading

Accurate fuel usage control

Impulse input for fuel flow meters data reading and accurate fuel usage control

PRODUCT SPECIFICATIONS

Module Name FMC225-MBIB0: MeiG SLM320-E with Teltonika TM2500
FMC225-MCIB0: MeiG SLM320-LA with Teltonika TM2500
Technology LTE (Cat1)/2G (GSM/GPRS)/GNSS/BLUETOOTH® LE
GNSS

GNSS: GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS
Receiver: 33 tracking channels, 99 acquisition channels
Tracking Sensitivity: -165 dBm
Position Accuracy: < 2.5 m CEP
Velocity Accuracy: < 0.1 m/s (within +/- 15% error)

Hot start: < 1 s

Warm start: < 25 s

Cold start: < 35 s

Cellular Technology: LTE Cat 1, GSM
2G Bands: GSM: B2/B3/B5/B8 (both models)
4G LTE Bands:
FMC225-MBIB0: LTE FDD: B1/B3/B7/B8/B20/B28, LTE TDD: B38/B40/B41
FMC225-MCIB0: LTE FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28, LTE TDD: B40
Data Transfer:
LTE FDD: Max 10Mbps (DL)/Max 5Mbps (UL)
LTE TDD: Max 8Mbps (DL)/Max 2Mbps (UL)
GSM: GPRS: Max 85.6Kbps (DL)/Max 85.6Kbps (UL)
Data Support: SMS (text/data)
Power Input Voltage Range: 10 - 30 V DC with overvoltage protection
Backup Battery: 170 mAh Li-Ion battery, 3.7 V (0.63 Wh)
Internal Fuse: 3A, 125V
Power Consumption:
At 12V: < 4 mA (Ultra Deep Sleep) to < 2A (Full Load/Peak)
Bluetooth® Technology Specification: 4.0 + LE
Supported Peripherals: Temperature and Humidity Sensor, OBDII dongle, Barcode Scanner, Universal Bluetooth® LE Sensors
Physical Specification Dimensions: 70.5 x 67.0 x 25.6 mm (L x W x H); 85.0 x 67.0 x 25.6 mm (with connector socket)
Weight: 79.5 g

Operating Environment

Temperature: -20 °C to +85 °C (without battery), -20 °C to +40 °C (with battery)
Humidity: 5% to 95% non-condensing

Ingress Protection: IP67

Interface 2 Digital Inputs, 1 Digital Output, 1 Analog Input, 1 CAN Adapter Input, 1-Wire, 1 RS232, 1 RS485, Internal GNSS & Cellular Antennas,USB 2.0 Micro-USB, LED indication: 2 status LED lights, SIM: 2XSIM Card (Dual-SIM), memory:128MB internal flash memory
Features Sensors: Accelerometer
Scenarios: Green Driving, Over Speeding Detection, GNSS Fuel Counter, etc.
Sleep Modes: Ultra Deep Sleep, Deep Sleep, Online Deep Sleep, GPS Sleep
Configuration: FOTA Web, Teltonika Configurator (USB, Bluetooth®), SMS, GPRS Commands
Fuel Monitoring: LLS (Analog/Digital), CAN Adapters, OBDII dongle
Certification & Approvals CE-RED, E-mark, RCM, Anatel (in progress), TRA, CITC, REACH, RoHS, ICASA
Device Type
Tracker
Antenna
Internal GNSS
Internal GSM
Connectivity
4G LTE Cat 1
Power Supply
10-30V DC
Hardware inputs
Analog input
Digital input-DIN
Digital output
RS-232
RS-485
Bluetooth
4.0+LE
Connector Type
Wired
SIM Card
Dual SIM Card
Ingress Protection
IP67
Battery capacity
170 mAH Li-ion 3.7V
Memory
128MB internal flash memory
Supported accessories
1-Wire RFID/iButton
1-Wire temperature sensor
RS-232 RFID
Driving behavior
Crash detection
Excessive Idling detection
Over Speeding detection
Trip
Vehicle protection
Auto Geofence
Immobilizer
Manual Geofence
Towing Detection
Unplug detection
