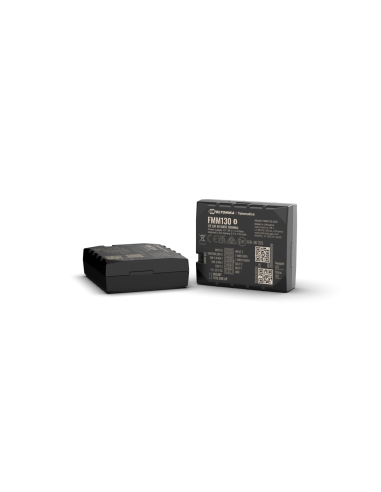

Teltonika FMM130 Advanced 4G LTE Cat M1 tracker with flexible inputs

FMM130
*** Out of stock ATM, Available On Backorder ***
$109.78
Tax included

FMM130

Advanced 4G LTE Cat M1 tracker with flexible inputs

Key features:

Future-proof network support

Reliable 4G LTE Cat 1 network coverage with fallback to 2G – guaranteed future-proof network support for your fleet

Extensive remote monitoring possibilities

Blocking engine remotely among the numerous available fleet control measures

Accurate fuel usage control

Impulse input for fuel flow meters data reading and precise fuel usage control

Connectivity options:

Supports both LTE Cat M1 and NB IoT connectivity

Quantity Unit price You Save
5 $98.80 $54.89
10 $93.31 $164.67
20 $84.53 $504.99

Related Products & Accessories



FMM130

Advanced 4G LTE Cat M1 tracker with flexible inputs
Extensive remote monitoring possibilities

Blocking engine remotely among the numerous available fleet control measures
CAN adapter support

Reading fuel, odometer, RPM, engine temperature and more data from light & electric vehicles, trucks, buses, and special machinery
Extended product usage scenarios

Bluetooth® LE-based wireless connection of external devices, including Low Energy beacons and sensors, to monitor temperature, humidity, magnet detection, and movement

PRODUCT SPECIFICATIONS

Category Specification
Module
Name Quectel BG95-M3, Quectel BG96, Teltonika TM2500
Technology LTE CAT M1/NB-IoT/GSM/GPRS/GNSS/BLUETOOTH® LE
GNSS
GNSS Bands GPS, GLONASS, GALILEO, BEIDOU, QZSS, AGPS
Receiver 33 tracking channel, 99 acquisition channel
Tracking Sensitivity -165 dBM
Position Accuracy < 2.5 m CEP
Velocity Accuracy < 0.1 m/s (within +/- 15% error)
Hot Start < 1 s
Warm Start < 25 s
Cold Start < 35 s
Cellular
Technology LTE CAT M1/NB-IoT/GSM
2G Bands BG95-M3, BG96: B2/B3/B5/B8
4G LTE Cat M1 Bands (BG95-M3) LTE-FDD (CAT M1): B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B27/B28/B66/B85
LTE-FDD (CAT NB2): B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B28/B66/B71/B85
GSM: 850/900/1800/1900
4G LTE Bands (BG96) LTE FDD: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B26/B28
LTE TDD: B39 (for CAT M1 only)
Data Transfer BG95-M3: LTE: Max. 588 Kbps (DL)/Max. 1119 Kbps (UL), GPRS: Max. 107 Kbps (DL)/Max. 85.6 Kbps (UL)
BG96: LTE: Max. 375 Kbps (DL)/Max. 375 Kbps (UL), GPRS: Max. 107 Kbps (DL)/Max. 85.6 Kbps (UL)
Transmit Power Class 4 for GSM850/900: 23±2dBm
Class 1 for GSM1800/1900: 20±2dBm
Class 3 for LTE-TDD: 23±2.7dBm
Class 3 for LTE-FDD: 23±2.7dBm
Data Support SMS (text/data)
Power
Input Voltage Range 10 - 30 V DC with overvoltage protection
Internal Backup Battery 170 mAh Li-Ion battery, 3.7 V (0.63 Wh)
Internal Fuse 3A, 125V
Power Consumption At 12V < 3 mA (Ultra Deep Sleep)
At 12V < 5 mA (Deep Sleep)
At 12V < 11 mA (Online Deep Sleep)
At 12V < 18 mA (GPS Sleep)
At 12V < 34 mA (nominal with no load)
At 12V < 2A Max. (with full Load / Peak)
Bluetooth® Technology
Specification 4.0 + LE
Supported Peripherals Temperature and Humidity sensor, OBDII dongle, Inateck Barcode Scanner, Universal Bluetooth® LE sensors
Physical Specification
Dimensions 65 x 56.6 x 20.6 mm
Weight 55 g
Operating Environment
Operating Temperature (without battery) -20 °C to +85 °C
Storage Temperature (without battery) -20 °C to +85 °C
Operating Temperature (with battery) -20 °C to +40 °C
Storage Temperature (with battery) -20 °C to +45 °C
Operating Humidity 5% to 95% non-condensing
Ingress Protection Rating IP41
Battery Charge Temperature 0 °C to +45 °C
Battery Discharge Temperature -20 °C to +60 °C
Interface
Digital Inputs 3
Negative Inputs 1 (Digital Input 2)
Impulse Inputs 2 (Digital Input 1, Digital Input 2)
Digital Outputs 3
Analog Inputs 2
CAN Adapter Inputs 1
1-Wire 1
GNSS Antenna Internal High Gain
Cellular Antenna Internal High Gain
USB 2.0
Device Type
Tracker
Antenna
Internal GNSS
Internal GSM
Connectivity
2G Bands
4G LTE bands
Hardware inputs
1 - Wire
Analog input
Digital input-DIN
Digital output
Impuls input
Negative inputs
Bluetooth
4.0+LE
Connector Type
Wired
SIM Card
Micro-Sim
eSIM compatible
Ingress Protection
IP41
Battery capacity
170 mAH Li-ion 3.7V
Memory
128MB internal flash memory
Supported accessories
1-Wire RFID/iButton
1-Wire temperature sensor
BLE beacons
BLE sensors
Driving behavior
Crash detection
Eco/Green Driving
Excessive Idling detection
Over Speeding detection
Trip
Vehicle protection
Auto Geofence
GSM Jamming detection
Immobilizer
Manual Geofence
Towing Detection
Unplug detection
FMM130
