Teltonika FMC650 Professional LTE/GNSS/BLE terminal with 4G LTE Cat 1 tracker + 2G (GSM) fallback compatibility

FMC650
*** Out of stock ATM, Available On Backorder ***
$211.20
Tax included

FMC650

Teltonika FMC650 is a direct successor to current most popular 4G PROFESSIONAL lineup device – FMC640. FMC650 has 4G (LTE Cat 1) network coverage including 2G (GSM) fallback compatibility. Device equipped with GNSS and LTE modules, external GNSS and LTE antennas. Separate GNSS module improves the accuracy of the track, making FMC650 more suitable for free flow electronic tolling system integration. Compared to FMC640 – FMC650 has a new processor that improves the devices computation power along with increased device internal memory it can be tailored to more specific use cases. Switchable CAN terminators that will allow you to use the device in CAN network with numerous nodes. Lastly, it can be powered via USB for easier configuration process. All the features that are supported by FMC640 is also supported by FMC650, therefore it will maximize your fleet efficiency with features like FMS CAN data (J1939), fuel CAN data (J1708), tachograph live data (K-Line), remote tachograph file download, various third party RS232 or RS485 devices support and Dual-SIM or eSIM compatibility. Terminal is suitable for applications like international logistics, refrigerated transport, agriculture, construction & mining, security & emergency services and even more.

Quantity Unit price You Save
5 $190.08 $105.60
10 $179.52 $316.80
20 $162.62 $971.52

Related Products & Accessories



FMC650 - Teltonika Professional LTE/GNSS/BLE terminal with 4G LTE Cat 1 tracker + 2G (GSM) fallback compatibility

Reliable global coverage and separate GNSS module.

Reliable 4G connection with fallback to 2G network ensures wide-ranging coverage of your fleet management needs. This model uses a separate module to gather GNSS data and has dual-channel, L1 + L5 support.

Remote download of Tachograph files and live data

Tachograph live data reading via K-Line, Tacho CAN or FMS connections for everyday driver management and fleet efficiency

CAN data reading from heavy vehicles and special machinery

Read J1939 data that includes standard CAN FMS from heavy vehicles like trucks and raw J1939 data from special machinery, such as construction cranes or electric buses. Possibility to connect to CAN line with multiple nodes.
Connecting external devices

2x RS232 and 1x RS485 serial communication interfaces for connecting external devices, such as thermographs, sensors, RFID readers and more

MODULE
Name

FMC650-MBX50L MeiG SLM320-PE2C,

FMC650-MCX50: MeiG SLM320-L16A
Technology LTE (CaT1) / 2G (GSM / GPRS)
GNSS
Module name

Airoha AG3335MB
GNSS

GPS, GLONASS, GALILEO, BEIDOU, QZSS
Receiver
L1 and L5 dual-band GNSS receiver
Tracking sensitivity -165 dBM
Position Accuracy < 2.5 m CEP
Hot start 1.5 s
Cold start < 32 s
Warm start < 25 s
CELLULAR
Technology LTE Cat 1, GSM
2G bands

FMC650-MBX50: B2/B3/B5/B8

FMC650-MCX50: B2/B3/B5/B8
4G LTE bands

FMC650-MBX50:

LTE-FDD: B1/B3/B7/B8/B20/B28

LTE-TDD: B38/B40/B41

FMC650-MCX50:

LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28

LTE-TDD: B40
Data transfer

LTE FDD: Max 10Mbps (DL)/Max 5Mbps (UL)

LTE TDD: Max 8Mbps (DL)/Max 2Mbps (UL)

GPRS: Max 85.6Kbps (DL)/Max 85.6Kbps (UL)
Data support SMS (text/data)
Transmit power

Class 4 for GSM850/900: 31±2dBm

Class 1 for GSM1800/1900: 30±2dBm

Class 3 for LTE-TDD: 23±3dBm

Class 3 for LTE-FDD: 23±3dBm

Bluetooth LE: up to 6.64 dBm
POWER
Input voltage range

8–32 V DC with overvoltage (compatible with pulse 5a and pulse 5b) and reverse polarity protection
Internal Back-up battery 550 mAh Ni-Mh, 8.4 V battery
Internal fuse 3A, 125V
2 W max. Current consumption at 12 V

GPRS: average 60 mA

Nominal: average 45 mA (with no load)

GNSS sleep: average 32 mA

Deep Sleep: average 4 mA

Online Deep Sleep: average 11 mA

Full Load/Peak: <0.25A Max
2 W max. Current consumption at 24 V

GPRS: average 35 mA

Nominal: average 24 mA (with no load)

GNSS sleep: average 17 mA

Deep Sleep: average 2,9 mA

Online Deep Sleep: average 7 mA

Full Load/Peak: <0.25A Max
BLUETOOTH
Name Blue NRG232
Specification 5.0 + LE
Supported peripherals Temperature and Humidity sensor, Universal BLE sensors support
PHYSICAL SPECIFICATION
Dimensions
104,1 x 76,8 x 31,5 mm (L x W x H)
Weight

197 g
INTERFACE
Digital Inputs 4
Digital Outputs 4
Analog Inputs 4
1-Wire 1
RS232 2
RS485 1
CAN J1939 2
J1708 1
K-line 1
GNSS antenna External High Gain (L1+L5)
Cellular antenna External High Gain
USB

2.0 Mini-USB – device can be powered by USB for easier device configuration
LED indication 2 status LED lights
SIM 2x SIM Card (Dual-SIM) or 1x eSIM
Memory

16 MB internal flash memory and external Micro SD card up to 32GB
Switchable CAN terminators

Supported on CAN1 and CAN2 lines
OPERATING ENVIRONMENT
Operating temperature (without battery) -40 °C to +85 °C
Storage temperature (without battery) -40 °C to +85 °C
Operating humidity 5% to 95% non-condensing
Storage temperature (with battery) -20 °C to +45 °C
Ingress Protection Rating IP41
Battery storage temperature

-20 °C to +45°C
FEATURES
Sensors Accelerometer
Scenarios Green/Eco Driving, Over Speeding detection, Jamming detection, Excessive Idling detection, Towing detection, Crash detection, Immobilizer, iButton Read Notification, Auto Geofencing, Manual Geofencing, Trip detection, Odometer, Fuel counter, GNSS Unplug Detection, DDD download and Tacho online data, Offline tracking
Supported peripherals Garmin, RFID RS232, RFID 1-Wire, iButton 1-Wire, Temperature 1-Wire, LV-CAN200, CAN FMS (J1939, J1708), K-line data, Continental tire pressure measurement sensor, Iridium SBD (Iridium Edge/TSM232), Carrier freezer, Log Mode, NMEA, TCP ASCII/Binary, Temperature and humidity sensor, Universal BLE sensors support
Sleep modes GPS Sleep, Online Deep Sleep, Deep Sleep
Configuration and firmware update FOTA WEB, FOTA, Teltonika Configurator
SMS Configuration, Events, DOUT control, Debug
GPRS commands Configuration, DOUT control, Debug
Time Synchronization GNSS, NITZ, NTP
Fuel monitoring LLS (Analog), Digital LLS (RS232, RS485), LV-CAN200, CAN FMS, Ultrasonic level sensor
Ignition detection

Digital Input 1, Accelerometer, External Power Voltage
RS232 Modes

Log Mode, NMEA, LLS, LCD, RFID HID/MF7, Garmin FMI, TCP ASCII/Binary, TCP ASCII/Binary (Buffered), Rec to LCD, Atol Tachograph, UL202-2 Fuel Sensor, Iridium Edge/TSM232 Satellite backup, Carrier Freezer
RS485 Modes

Silent, Log Mode, NMEA, LLS, TCP ASCII/Binary, TCP ASCII/Binary (Buffered)
CERTIFICATION & APPROVALS
Regulatory

Class 4 for GSM850/900: 31±2dBm

Class 1 for GSM1800/1900: 30±2dBm

Class 3 for LTE-TDD: 23±3dBm

Class 3 for LTE-FDD: 23±3dBm

Bluetooth LE: up to 6.64 dBm

Device Type
Tracker
Antenna
External GNSS
External GSM
Connectivity
2G Bands
Platform
FMB Platform
Hardware inputs
1 - Wire
Analog input
Digital input-DIN
Impuls input
RS-232
RS-485
Bluetooth
5.0 + LE
Connector Type
Wired
CAN bus
External CAN adapter support
FMS J1708
FMS J1939
K.Line (Tachograph)
Ingress Protection
IP41
Battery capacity
550 mAh Ni-MH 8.4V
Memory
16MB internal flash memory and external Micro SD card up to 32 GB
Supported accessories
1-Wire RFID/iButton
1-Wire temperature sensor
ADAS
Alarm button
RS-232 RFID
RS-232 transparent mode
Driving behavior
Crash detection
Eco/Green Driving
Excessive Idling detection
Over Speeding detection
Tachograph files and live data
Trip
Vehicle protection
Auto Geofence
GSM Jamming detection
Immobilizer
Manual Geofence
Towing Detection
4779027310275
FMC650
No reviews

Related Products & Accessories

Teltonika 4G Dual SIM Bluetooth RS232/RS485 CAN data reading Tachograph Professional Vehicle Tracking
Last items in stock
Mobile Networking

Teltonika FMC640 4G Dual SIM Bluetooth RS232/RS485 CAN data reading Tachograph...

Teltonika
FMC640
$280.56
FMC640 Teltonika FMC640 is a PROFESSIONAL series device with 4G (LTE Cat 1) network coverage including 3G (UMTS), 2G (GSM) fallback compatibility. Device equipped with GNSS/LTE and Bluetooth modules. FMC640 will maximize your fleet efficiency with features like FMS CAN data (J1939), fuel CAN data (J1708), tachograph live data (K-Line), remote tachograph...
Teltonika FMC920 | Buy Teltonika FMC920 Small and Smart GPS Tracker with a 4G CAT 1 Connectivity | WISP Australia
Last items in stock
Telematics

Teltonika FMC920 Small and Smart GPS Tracker with a 4G CAT 1 Connectivity

Teltonika
FMC920
$94.60
FMC920 The most popular compact 4G LTE Cat 1 model for basic tracking Teltonika FMC920 is a small and smart tracker with Bluetooth connectivity, internal High Gain GNSS and GSM antennas and an integrated backup battery. The 4G Cat 1 technology offers much higher bandwidth, lower latency and improved spectrum efficiency.The model is compact, reliable,...
Teltonika FMC130 | Buy Teltonika Advanced LTE Terminal with Flexible Inputs Configuration | WISP Australia
Last items in stock
Telematics

Teltonika FMC130 Advanced LTE Terminal with Flexible Inputs Configuration

Teltonika
FMC130
$106.70
FMC130 Advanced 4G LTE Cat 1 tracker with flexible inputs FMC130-MCIB0 is small and professional real-time tracking terminal with GNSS and LTE/GSM connectivity and backup battery. Device equipped with GNSS/Bluetooth and LTE modules, internal GNSS, LTE antennas, configurable digital, analogue inputs and digital outputs, negative input, impulse inputs. It...
Teltonika FMC003| Buy Teltonika 4G LTE Cat 1 Advanced OBDII Tracker with Bluetooth | WISP Australia
In Stock
Telematics

Teltonika FMC003 4G LTE Cat 1 Advanced OBDII Tracker with Bluetooth

Teltonika
FMC003
$158.40
FMC003 4G LTE Cat 1 tracker with OBD OEM data reading FMC003 is a small plug and play device with LTE CAT 1 network coverage including 2G (GSM) fallback compatibility. Main feature of FMC003 is its possibility to read OEM parameters (PIDs) via OBD port. With this device you will be able to read Real Odometer and Real Fuel Level data. More to that,...
Teltonika FMB010| Buy Teltonika FMB010 2G Plug and Track Device with Bluetooth | WISP Australia
*** Out of stock ATM, Available On Backorder ***
Telematics

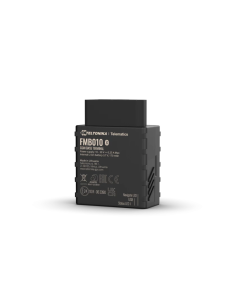

Teltonika FMB010 2G Plug and Track Device with Bluetooth

Teltonika
FMB010
$92.40
FMB010   FMB010 is easy OBDII Plug and Play tracker with GNSS, GSM and Bluetooth connectivity. FMB010 is perfectly suitable for light vehicle tracking in applications like courier delivery service, car rental & leasing, insurance telematics and many other where simple integration is a must. This device supports temperature/humidity sensors,...
Teltonika FMM650| Buy Teltonika FMM650 4G LTE CAT M1 & NB IOT/ GNSS/BLE terminal with 2G (GSM) fallback compatibility|Wisp
*** Out of stock ATM, Available On Backorder ***
Telematics

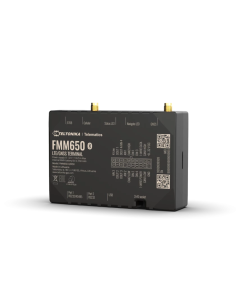

Teltonika FMM650 Professional 4G LTE CAT M1 & NB IOT/ GNSS/BLE terminal with 2G (GSM)...

Teltonika
FMM650
$225.50
FMM650 The FMM650 from Teltonika is the latest addition to their 4G PROFESSIONAL lineup. This device boasts LTE CAT M1 & NB IoT/GNSS/BLE Terminal network coverage, complete with 2G (GSM) fallback compatibility, as well as external GNSS and LTE antennas. The inclusion of a separate GNSS module results in improved tracking accuracy, making it perfect...
Teltonika FMM125 | Buy FMM125 Advanced CAT M1/GSM/GNSS/BLE terminal - RS485, RS232 interfaces and backup battery|Wisp
*** Out of stock ATM, Available On Backorder ***
Telematics

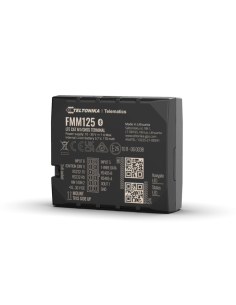

Teltonika FMM125 Advanced CAT M1/GSM/GNSS/BLE terminal with internal antennas, RS485,...

Teltonika
FMM125
$127.60
FMM125 FMM125 is small and professional real-time tracking terminal with GNSS and LTE CAT-M1/NB-IoT/ GSM connectivity and backup battery. Device equipped with GNSS/Bluetooth and LTE CAT-M1/NB-IoT modules with fallback to 2G network, internal GNSS, 3G antennas. FMM125 features RS485, RS232 data interface, which gives ability to connect various third-party...
TeltonikaFMM00A| Buy Teltonika FMM00A Advanced Plug & Play OBD-II tracker with 4G LTE Cat M1 connectivity | WISP Australia
Last items in stock
Telematics

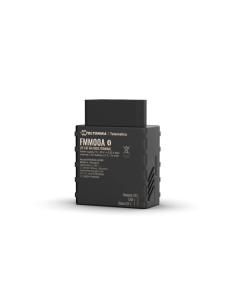

Teltonika FMM003 Advanced Plug & Play OBD-II tracker with 4G LTE Cat M1 connectivity
