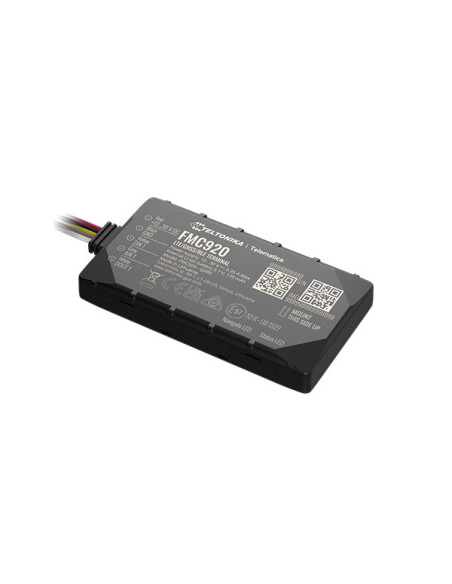

Teltonika FMC920 Small and Smart GPS Tracker with a 4G CAT 1 Connectivity
FMC920
The most popular compact 4G LTE Cat 1 model for basic tracking
Teltonika FMC920 is a small and smart tracker with Bluetooth connectivity, internal High Gain GNSS and GSM antennas and an integrated backup battery. The 4G Cat 1 technology offers much higher bandwidth, lower latency and improved spectrum efficiency.
The model is compact, reliable, accurate and enduring. All the interfaces it has are more than enough for basic tracking. Digital Input can be used for ignition, door or alarm button status monitoring, while vehicle remote immobilizing may be achieved by using the Digital Output of the device. At the same time, Analog Input extends device usage scenarios with temperature, humidity, liquid level monitoring and many more.
All of that brings unquestionable value to numerous market segments and societies, countries, budgets and the global economy overall. It can be perfectly adapted to any fleet and any transportation. The far-reaching experience of the FMC920 predecessor shows that it is a perfect choice for basic track & trace and fleet management.
FMC920 - Teltonika Small and Smart GPS Tracker with a 4G CAT 1 Connectivity
Future-proof network support Reliable 4G LTE Cat 1 network coverage with fallback to 2G – guaranteed future-proof network support for your fleet |
|
Extensive remote monitoring possibilities Blocking engine remotely among the numerous available fleet control measures |
|
Eco driving scenario for all-round better driving Achieve efficient fuel consumption, prolong vehicle life and increase road safety with eco driving scenario |
|
Slim design to fit the tightest spaces
12 mm-height device can be easily fitted in the tightest spaces |
MODULE | |
Name | FMC920-QJIB0: Quectel EG915U-EU with Teltonika TM2500 FMC920-QKIB0: Quectel EG915U-LA with Teltonika TM2500 |
Technology | LTE Cat 1/GSM/GPRS/GNSS/BLUETOOTH |
GNSS | |
GNSS | GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS |
Receiver | 33 channel |
Tracking sensitivity | -165 dBM |
Accuracy | < 3 m |
Hot start | < 1 s |
Warm start | < 25 s |
Cold start | < 35 s |
CELLULAR | |
Technology | LTE Cat 1, GSM |
2G bands | FMC920-QJIB0: GSM: B2/B3/B5/B8 FMC920-QKIB0: GSM: B2/B3/B5/B8 |
4G bands | FMC920-QJIB0: LTE FDD: B1/B3/B7/B8/B20/B28 FMC920-QKIB0: LTE FDD: B2/B3/B4/B5/B7/B8/B28/ B66 |
Data transfer | LTE: LTE FDD : Max 10Mbps (DL)/Max 5Mbps (UL) LTE TDD: Max 85.6 Mbps (DL)/Max 85.6 Mbps (UL) GSM: GPRS: Max 85.6Kbps (DL)/ Max 85.6Kbps (UL) |
Data support | SMS (text/data) |
POWER | |
Input voltage range | 10 - 30 V DC with overvoltage protection |
Internal Back-up battery | 170 mAh Li-Ion battery (0.63 Wh) |
Power consumption | At 12V < 2 mA (Ultra Deep Sleep) At 12V < 3 mA (Deep Sleep) At 12V < 8 mA (Online Sleep) At 12V < 12 mA (GNSS Sleep) At 12V < 28 mA (Nominal) |
BLUETOOTH | |
Specification | 4.0 + LE |
Supported peripherals | Temperature and Humidity sensor, OBDII dongle, Inateck Barcode Scanner, Universal BLE sensors support |
PHYSICAL SPECIFICATION | |
Dimensions | 79 x 43 x 12 mm (L x W x H) |
Weight | 54 g |
INTERFACE | |
Digital Inputs | 1 |
Digital Outputs | 1 |
Analog Inputs | 1 |
GNSS antenna | Internal High Gain |
Cellular antenna | Internal High Gain |
USB | 2.0 Micro-USB |
LED indication | 2 status LED lights |
SIM | Micro-SIM |
Memory | 128MB internal flash memory |
OPERATING ENVIRONMENT | |
Operating temperature (with battery) | -20 °C to +40 °C |
Operating temperature (without battery) | -40 °C to +85 °C |
Storage temperature (without battery) | -40 °C to +85 °C |
Operating humidity | 5% to 95% non-condensing |
Ingress Protection Rating | IP54 |
Battery charge temperature | 0 °C to +45 °C |
Battery discharge temperature | -20 °C to +60 °C |
Battery storage temperature |
-20 °C to +35 °C for 1 month -20 °C to +30 °C for 6 months |
FEATURES | |
Sensors | Accelerometer |
Scenarios | Green Driving, Over Speeding detection, GNSS Fuel Counter, DOUT Control Via Call, Excessive Idling detection, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip |
Sleep modes | GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep |
Configuration and firmware update | FOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth), FMBT mobile application (Configuration) |
SMS | Configuration, Events, DOUT control, Debug |
GPRS commands | Configuration, DOUT control, Debug |
Time Synchronization | GPS, NITZ, NTP |
Fuel monitoring | LLS (Analog), OBDII dongle |
Ignition detection | Digital Input 1, Accelerometer, External Power Voltage, Engine RPM (OBDII dongle) |
CERTIFICATION & APPROVALS | |
Regulatory | FMC920-QJIB0: CE/RED, E-Mark, CITC, TRA, RCM, RoHS, REACH FMC920-QKIB0: RCM, RoHS, Anatel (in progress) |
- Device Type
- Tracker
- Antenna
- Internal GNSS
Internal GSM - Connectivity
- 2G Bands
4G LTE bands - Power Supply
- 6-30V DC
10-30V DC - Platform
- FMB Platform
- Hardware inputs
- Analog input
Digital input-DIN
Digital output - Bluetooth
- 4.0+LE
- Connector Type
- Wired
- SIM Card
- Single SIM card
- Ingress Protection
- IP54
- Battery capacity
- 170 mAH Li-ion 3.7V
- Memory
- 128MB internal flash memory
- Supported accessories
- Alarm button
BLE beacons
BLE sensors - Driving behavior
- Crash detection
Eco/Green Driving
Excessive Idling detection
Over Speeding detection
Trip - Vehicle protection
- Auto Geofence
GSM Jamming detection
Manual Geofence
Towing Detection
Unplug detection
