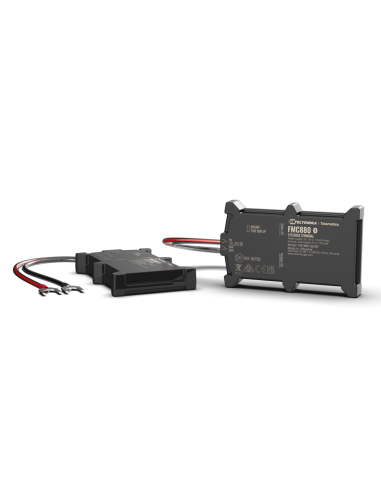

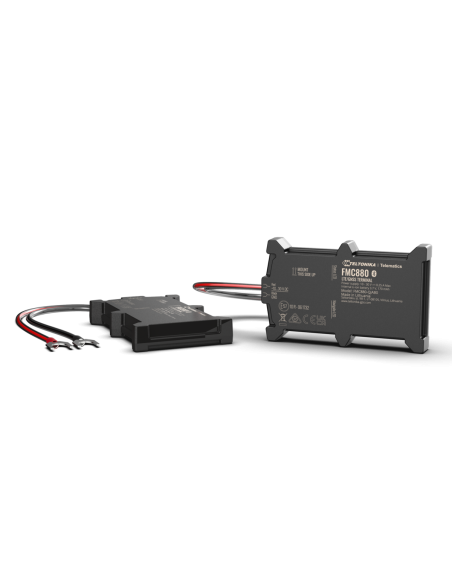

Teltonika FMC880 Water-resistant high GNSS precision battery-mounted 4G LTE Cat 1 tracker

FMC880
Last items in stock
$135.30
Tax included

FMC880

The Teltonika FMC880 is a versatile and advanced vehicle tracking device designed to provide real-time monitoring and management of fleet vehicles.

4G (LTE Cat 1) connection with fallback to 2G (GSM) network

Improved GNSS tracking accuracy

Standalone L1 and L5 dual-band GNSS receiver ensures better track quality and quick time to first fix

Fast installation

Virtually anyone can mount the device in 5 minutes or less directly on car battery

Compact and robust casing

IP65- rated casing is designed to withstand poor weather conditions

Quantity Unit price You Save
5 $121.77 $67.65
10 $115.01 $202.95
20 $104.18 $622.38

Related Products & Accessories



FMC880 - Teltonika

 Improved GNSS tracking accuracy
Standalone L1 and L5 dual-band GNSS receiver ensures better track quality and quick time to first fix

Fast Installation


With U-type cable, virtually anyone can mount the device in 5 minutes or less directly on a car battery

Robust casing


IP65-rated casing is designed to withstand poor weather conditions
Extended product usage scenarios

Bluetooth® LE-based wireless connection of external devices, including Low Energy beacons and sensors, to monitor temperature, humidity, magnet detection, and movement

MODULE
Name

FMC880-QJAB0: Quectel EG915U-EU with AG3335

FMC880-QKAB0: Quectel EG915U-LA with AG3335
Technology LTE CAT 1/GSM/GPRS/GNSS/BLUETOOTH
GNSS
GNSS

L1: GPS, GLONASS, GALILEO, BEIDOU, SBAS* , QZSS*

L5: GPS, GALILEO, BEIDOU
Receiver

L1: 75 channel

L5: 60 channel
Tracking sensitivity -165 dBM
Accuracy

< 1 m CEP
Hot start < 1 s
Warm start < 24 s
Cold start < 35 s
CELLULAR
2G bands

GSM: B2/B3/B5/B8
4G LTE bands

FMC880-QJAB0:

LTE FDD (CAT 1): B1/B3/B5/B7/B8/B20/B28

FMC880-QKAB0:

LTE FDD (CAT 1): B2/B3/B4/B5/B7/B8/B28/B66
Data transfer

LTE FDD (CAT 1): Max. 10 Mbps (DL) / Max. 5 Mbps (UL)

GSM (GPRS): Max. 85.6 Kbps (DL) / Max. 85.6 Kbps (UL)
Data support SMS (TEXT, PDU), Network protocols (TCP, UDP, TLS, EGTS, MQTT)
POWER
Input voltage range 10–30 V DC with overvoltage and reverse polarity protection
Internal Back-up battery 170 mAh Li-Ion battery (0.63 Wh)
Internal fuse 3A, 125V
BLUETOOTH
Specification 4.0 + LE
Supported peripherals

Temperature and Humidity sensor, Inateck Barcode Scanner, Universal BLE sensors support
PHYSICAL SPECIFICATION
Dimensions 92.5 x 57.6 x 14 mm (L x W x H)
Weight 63 g
INTERFACE
GNSS antenna Internal High Gain
Cellular antenna Internal High Gain
USB 2.0 USB Micro B
LED indication 2 status LED lights
SIM Micro-SIM
Memory 128MB internal flash memory
OPERATING ENVIRONMENT
Operating temperature (with battery) -20 °C to +45 °C
Operating temperature (without battery) 0 °C to +40 °C
Storage temperature (without battery)
Operating humidity 5% to 95% non-condensing
Ingress Protection Rating IP65
Battery charge temperature 0 °C to +45 °C
Battery discharge temperature -20 °C to +60 °C
Battery storage temperature

-20 °C to +45 °C for 1 month

-20 °C to +35 °C for 6 months
FEATURES
Sensors Accelerometer
Scenarios Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, Excessive Idling detection, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip
Sleep modes GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
Configuration and firmware update FOTA Web, Teltonika Configurator (USB, Bluetooth)
SMS Configuration, Events, Debug
GPRS commands Configuration,Debug
Time Synchronization GNSS, NITZ, NTP
Ignition detection Accelerometer, External Power Voltage
CERTIFICATION & APPROVALS
Regulatory

FMC880-QJAB0: CE/RED, E-Mark, RCM, REACH, RoHS

FMC880-QKAB0: Anatel, REACH, RoHS

Device Type
Tracker
Antenna
Internal GNSS
Connectivity
2G Bands
4G LTE bands
Power Supply
10-30V DC
Bluetooth
4.0+LE
SIM Card
Micro-Sim
Ingress Protection
IP65
Battery capacity
170 mAH Li-ion 3.7V
Memory
128MB internal flash memory
Supported accessories
BLE sensors
Driving behavior
Crash detection
Eco/Green Driving
Excessive Idling detection
Over Speeding detection
Trip
Vehicle protection
Auto Geofence
GSM Jamming detection
Manual Geofence
Towing Detection
Unplug detection
4779027310688
