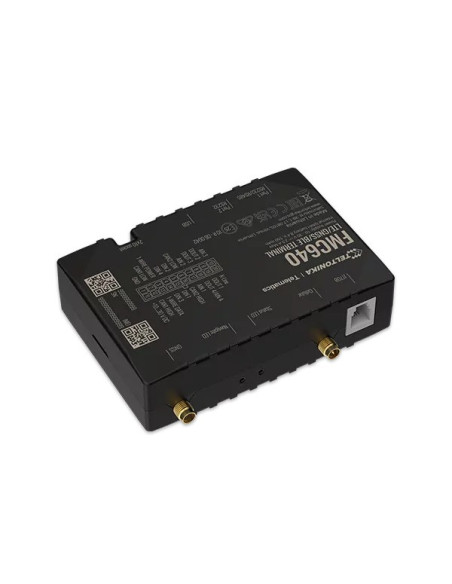

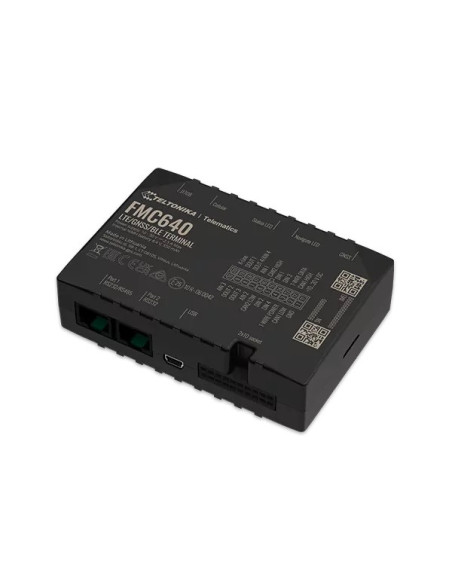

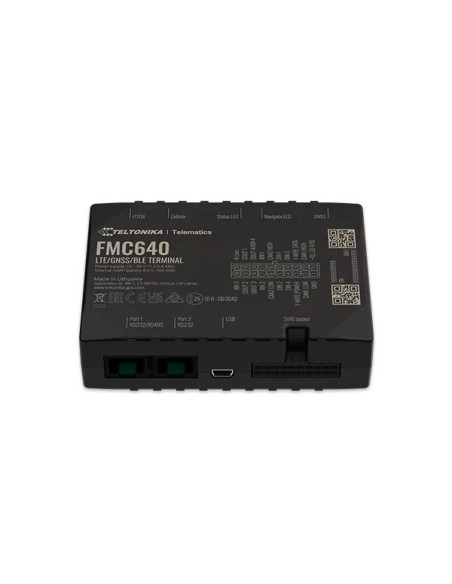

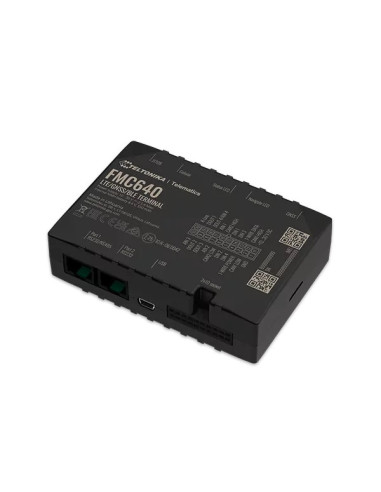

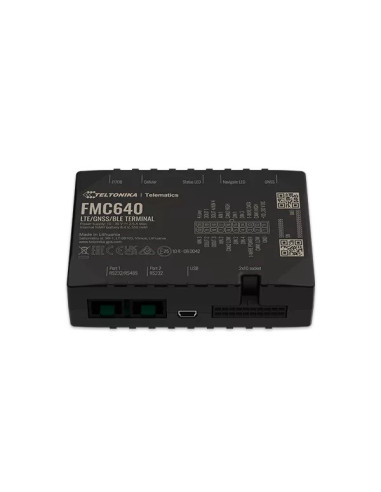

Teltonika FMC640 4G Dual SIM Bluetooth RS232/RS485 CAN data reading Tachograph Professional Vehicle Tracking

FMC640
Last items in stock
$256.30
Tax included

FMC640

Teltonika FMC640 is a PROFESSIONAL series device with 4G (LTE Cat 1) network coverage including 3G (UMTS), 2G (GSM) fallback compatibility. Device equipped with GNSS/LTE and Bluetooth modules. FMC640 will maximize your fleet efficiency with features like FMS CAN data (J1939), fuel CAN data (J1708), tachograph live data (K-Line), remote tachograph file download, various third party RS232 or RS485 devices support and Dual-SIM.Terminal is suitable for applications like international logistics, refrigerated transport, agriculture, construction & mining, security & emergency services and even more.

Quantity Unit price You Save
5 $251.17 $25.63
10 $230.67 $256.30
20 $222.98 $666.38

Related Products & Accessories



FMC640

Teltonika 4G Dual SIM Bluetooth RS232/RS485 CAN data reading Tachograph Professional Vehicle Tracking

Future-proof network support

Reliable 4G LTE Cat 1 network coverage with fallback to 2G – guaranteed future-proof network support for your fleet

Remote download of Tachograph files and live data

Tachograph live data reading via K-Line, ALL-CAN, Tacho CAN or FMS connections for everyday driver management and fleet efficiency

CAN data reading from heavy vehicles and special machinery

Read J1939 data that includes standard CAN FMS from heavy vehicles like trucks and raw J1939 data from special machinery, such as construction cranes or electric buses

Connecting external devices

2x RS232 and 1x RS485 serial communication interfaces for connecting external devices, such as thermographs, sensors, RFID readers and more



PRODUCT SPECIFICATIONS

MODULE
Name Quectel EG91-EX, Quectel EG91-AUX
Technology LTE(CaT1)/3G(UMTS/HSPA)/2G(GSM/GPRS)/GNSS
GNSS
GNSS GPS, GLONASS, GALILEO, BEIDOU, QZSS
Protocol compatible NMEA, GGA, GGL, GSA, GSV, RMC, VTG
Receiver Tracking: 33/99 acquisition channels
Tracking sensitivity -165 dBM
Accuracy < 2.5m CEP
Hot start < 1 s
Warm start < 25 s
Cold start < 35 s
CELLULAR
Technology LTE Cat 1, UMTS, GSM
2G bands EG91-EX: GSM: B3/B8
EG91-AUX: GSM: B2/B3/B5/B8
3G bands EG91-EX: WCDMA: B1/B8
EG91-AUX: WCDMA: B1/B2/B5/B8
4G bands EG91-EX: LTE FDD: B1/B3/B7/B8/B20/B28
EG91-AUX: LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B28/B66
Data transfer LTE: LTE FDD: Max 10Mbps (DL)/Max 5Mbps (UL)
UMTS: WCDMA: Max 384Kbps (DL)/Max 384Kbps (UL)
GSM: GPRS: Max 107Kbps (DL)/Max 85.6Kbps (UL)
Data support SMS (text/data)
POWER
Input voltage range 10 - 30 V DC with overvoltage protection
Internal Back-up battery 550 mAh Ni-Mh, 8,4 V battery
Power consumption

At 12V < 4 mA (Deep Sleep)

At 12V < 19 mA (Online Deep Sleep)

At 12V < 24 mA (GPS Sleep)

At 12V < 38 mA (nominal)
BLUETOOTH
Specification 5.0 + LE
Supported peripherals Temperature and Humidity sensor, Universal BLE sensors support
PHYSICAL SPECIFICATION
Dimensions 104,1 x 76,8 x 31,5 mm (L x W x H)
Weight 201 g
OPERATING ENVIRONMENT
Operating temperature (without battery) -40 °C to +85 °C
Storage temperature (without battery) -40 °C to +85 °C
Operating humidity 5% to 95% non-condensing
Ingress Protection Rating IP41
Storage temperature (with battery) -20 °C to +45 °C
Battery storage temperature -20 °C to +45°C
INTERFACE
Digital Inputs 4
Digital Outputs 4
Analog Inputs 4
1-Wire interface 1
RS232 2
RS485 1
CAN j1939 2
J1708 1
K-line 1
GNSS antenna External High Gain
Cellular antenna External LTE CAT 1 High Gain
USB 2.0 Mini-USB
LED indication 2 status LED lights
SIM 2x SIM Card (Dual-SIM) or 1x eSIM
Memory 2MB internal flash memory and external Micro SD card up to 32 GB
FEATURES
Sensors Accelerometer
Scenarios Green/Eco Driving, Over Speeding detection, Jamming detection, Excessive Idling detection, Towing detection, Crash detection, Immobilizer, iButton Read Notification
Functionalities Auto Geofencing, Manual Geofencing, Trip detection, Odometer, Fuel counter, GNSS Unplug Detection, DDD download and Tacho online data, Offline tracking
Supported peripherals Garmin, RFID RS232, RFID 1-Wire, iButton 1-Wire, Temperature 1-Wire, LV-CAN200, ALL-CAN300, CAN-CONTROL, CAN FMS (J1939, J1708), K-line data, Continental tire pressure measurement sensor, Iridium SBD (TSM232), Carrier freezer, Log Mode, NMEA, TCP ASCII/Binary, Temperature and humidity sensor, Universal BLE sensors support
Sleep modes GPS Sleep, Online Deep Sleep, Deep Sleep
Configuration and firmware update FOTA Web, FOTA, Teltonika Configurator
SMS Configuration, Events, DOUT control, Debug
GPRS commands Configuration, DOUT control, Debug
Time Synchronization GPS, NITZ, NTP
Fuel monitoring LLS (Analog), Digital LLS (RS232, RS485), LV-CAN200, ALL-CAN300, CAN-CONTROL, CAN FMS, Ultrasonic level sensor
Ignition detection Digital Input, Accelerometer, External Power Voltage
RS232 Modes Log Mode, NMEA, LLS, LCD, RFID HID/MF7, Garmin FMI, TCP ASCII/Binary, TCP ASCII/Binary (Buffered), Rec to LCD, Atol Tachograph, UL202-2 Fuel Sensor, Iridium Edge/TSM232 Satellite backup, Carrier Freezer
RS485 Modes

Silent, Log Mode, NMEA, LLS, TCP ASCII/Binary, TCP ASCII/Binary (Buffered)
CERTIFICATION AND APPROVALS
Regulatory CE/RED, E-Mark, EAC, RoHS, REACH, RCM, SIRIM QAS, SDPPI POSTEL

Standard package contains:

  • FMC640 device
  • 4 screws for assembling device
  • GPS/GLONASS antenna
  • GSM antenna
  • USB cable
  • Ni-MH Rechargeable battery, 8.4V, 550 mA
  • Input and output power supply cable with 2x10 connection pins

Device Type
Tracker
Antenna
External GNSS
External GSM
Connectivity
2G Bands
3G Bands
4G LTE bands
Power Supply
10-30V DC
Hardware inputs
1 - Wire
Analog input
Digital input-DIN
Digital output
RS-232
RS-485
Bluetooth
5.0 + LE
SIM Card
Dual SIM Card
Ingress Protection
IP41
Battery capacity
550 mAh Ni-MH 8.4V
Memory
2MB internal flash memory and external Micro SD card up to 32 GB
Supported accessories
1-Wire temperature sensor
BLE sensors
Driving behavior
Crash detection
Eco/Green Driving
Excessive Idling detection
Over Speeding detection
Tachograph files and live data
Trip
4779027312552
FMC640
