Teltonika RUT300 5xGbE 10/100 Mbps USB 2.0 Passive PoE VPN Firewall Industrial Ethernet Router 802.11 RMS
Teltonika RUT300 5xGbE 10/100 Mbps USB 2.0 Passive PoE VPN Firewall Industrial Ethernet Router 802.11 RMS
Teltonika RUT300 5xGbE 10/100 Mbps USB 2.0 Passive PoE VPN Firewall Industrial Ethernet Router 802.11 RMS
Teltonika RUT300 5xGbE 10/100 Mbps USB 2.0 Passive PoE VPN Firewall Industrial Ethernet Router 802.11 RMS
Teltonika RUT300 5xGbE 10/100 Mbps USB 2.0 Passive PoE VPN Firewall Industrial Ethernet Router 802.11 RMS
Teltonika RUT300 5xGbE 10/100 Mbps USB 2.0 Passive PoE VPN Firewall Industrial Ethernet Router 802.11 RMS

Teltonika RUT300 5x 10/100 Mbps USB 2.0 Passive PoE VPN Firewall Industrial Ethernet Router 802.11 RMS

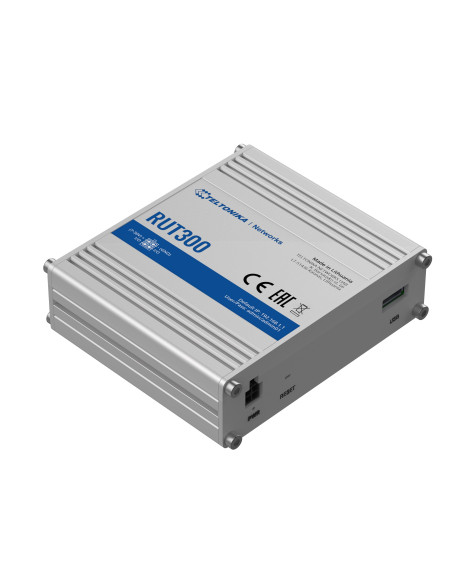

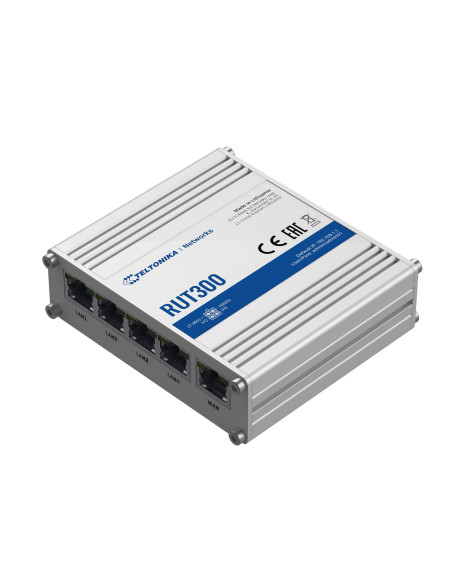

RUT300
Out Of Stock
$148.50
Tax included

RUT300

The RUT300 is a small, but powerful Ethernet router perfect for challenging industrial networking tasks as well as general networking applications.

Five Ethernet ports, two configurable digital Inputs/Outputs, and a USB port to easily connect the various equipment to the internet.

Preconfigured Firewall for immediate security and multiple top-rated VPNs.

Passive PoE helps to reduce deployment complexity.

Economical but a feature-rich industrial device that comes with all the benefits of RutOS and Remote Management System (RMS).

Compatible with the Teltonika Networks Remote Management System (RMS) for easy and secure monitoring

Quantity Unit price You Save
5 $145.53 $14.85

Related Products & Accessories



RUT300 - Teltonika 5x 10/100 Mbps USB 2.0 Passive PoE VPN Firewall Industrial Ethernet Router 802.11 RMS



ETHERNET
WAN 1 x WAN port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX crossover
LAN 4 x LAN ports (can be configured as secondary WAN ports), 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX crossover
NETWORK
Routing Static routes, Dynamic routes
Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, PPPoE, UPNP, SSH, DHCP, Telnet client, SNMP, MQTT, Wake on LAN (WOL)
VoIP passthrough support H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Connection monitoring Ping Reboot, Wget reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall Port forwards, traffic rules, NAT rules, custom rules
DHCP Static and dynamic IP allocation, DHCP Relay
QoS / Smart Queue Management (SQM) Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
DDNS Supported >25 service providers, others can be configured manually
Network backup Wired WAN options, each of which can be used as an automatic Failover
Load balancing Balance Internet traffic over multiple WAN connections
SSHFS Possibility to mount remote file system via SSH protocol
SECURITY
Authentication Pre-shared key, digital certificates, X.509 certificates
Firewall Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
Attack prevention DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
VLAN Port and tag based VLAN separation
WEB filter Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
Access control Flexible access control of TCP, UDP, ICMP packets, MAC address filter
VPN
OpenVPN Multiple clients and a server can run simultaneously, 12 encryption methods
OpenVPN Encryption DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC
IPSec IKEv1, IKEv2, with 5 encryption methods for IPsec (DES, 3DES, AES128, AES192, AES256)
GRE GRE tunnel
PPTP, L2TP Client/Server instances can run simultaneously, L2TPv3 support
Stunnel Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
DMVPN Method of building scalable IPsec VPNs
SSTP SSTP client instance support
ZeroTier ZeroTier VPN client support
WireGuard WireGuard VPN client and server support
MODBUS
MODBUS TCP SLAVE
ID filtering Respond to one ID in range [1;255] or any
Allow remote access Allow access through WAN
Custom registers MODBUS TCP custom register block, which allows to read/write to a file inside the router, and can be used to extend MODBUS TCP slave functionality
MODBUS TCP MASTER
Supported functions 01, 02, 03, 04, 05, 06, 15, 16
Supported data formats 8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII
MQTT GATEWAY
Gateway Allows sending commands and receiving data from MODBUS Master through the MQTT broker
DNP3
Supported modes TCP Master, DNP3 Outstation
DATA TO SERVER
Protocols HTTP(S), MQTT, Azure MQTT, Kinesis
MONITORING & MANAGEMENT
WEB UI HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log
FOTA Firmware update from server, automatic notification
SSH SSH (v1, v2)
TR-069 OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
MQTT MQTT Broker, MQTT publisher
SNMP SNMP (v1, v2, v3), SNMP trap
JSON-RPC Management API over HTTP/HTTPS
MODBUS MODBUS TCP status/control
RMS Teltonika Remote Management System (RMS)
SYSTEM CHARACTERISTICS
CPU QCA9531, MIPS 24kc, 650 MHz
RAM 64 MB, DDR2
FLASH storage 16 MB, SPI Flash
FIRMWARE / CONFIGURATION
WEB UI Update FW from file, check FW on server, configuration profiles, configuration backup
FOTA Update FW/configuration from server
RMS Update FW/configuration for multiple devices at once
Keep settings Update FW without losing current configuration
USB
Data rate USB 2.0
Applications Samba share, USB-to-serial
External devices Possibility to connect external HDD, flash drive, printer
Storage formats FAT, FAT32, NTFS
INPUT/OUTPUT
Configurable I/O 2 x Configurable digital Inputs/Outputs. Digital input 0 - 5 V detected as logic low, 8 - 30 V detected as logic high. Open collector output, max output 30 V, 300 mA
Events Email, RMS
I/O juggler Allows to set certain I/O conditions to initiate event
POWER
Connector 4 pin industrial DC power socket
Input voltage range 7 - 30 VDC, reverse polarity protection, voltage surge/transient protection
PoE (passive) Passive PoE. Possibility to power up through LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards
Power consumption Idle: 1.3 W, Max: 3 W
PHYSICAL INTERFACES (PORTS, LEDS, ANTENNAS, BUTTONS, SIM)
Ethernet 5 x RJ45 ports, 10/100 Mbps
I/Os 2 x Configurable digital Inputs/Outputs on 4 pin power connector
Status LEDs 5 x ETH status, 1 x Power
Power 1 x 4 pin DC connector
USB 1 x USB A port for external devices
Reset Reboot/User default reset/Factory reset button
PHYSICAL SPECIFICATION
Casing material Aluminium housing with DIN rail mounting option
Dimensions (W x H x D) 100 x 30 x 85 mm
Weight 229 g
Mounting options DIN rail, flat surface placement
OPERATING ENVIRONMENT
Operating temperature -40 C to 75 C
Operating humidity 10 % to 90 % non-condensing
Device Type
Router
Device Features
Industrial
Inputs/Outputs
RMS Compatible
USB
SFP Ports
No SFP
Ethernet Ports
5
Speed
10/100 Mbps ports
Cellular Connectivity
Non Cellular
4779027312903
RUT300
No reviews

Related Products & Accessories

RUT 950 Teltonika Industrial Dual SIM 4G LTE & 4GX Mobile WiFi Router
Out Of Stock
Mobile Networking

RUT 950 Teltonika Industrial Dual SIM 4G LTE & 4GX Mobile WiFi Router

Teltonika
RUT950
$374.06
RUT950 Teltonika Industrial Dual SIM 4G LTE & 4GX Mobile WiFi Router Please note this unit is EOL. RUT951 is the replacement. The RUT950 is a highly reliable and secure 4G LTE router designed for professional M2M & IOT applications, supporting up to 100 Mbps download and 50 Mbps upload speeds. This device comes in a durable aluminium enclosure and...
View
Teltonika RUTX09 Dual SIM 4G LTE CAT6 Mobile Wireless Router
*** Out of stock ATM, Available On Backorder ***
Mobile Networking

Teltonika RUTX09 Dual SIM 4G LTE CAT6 Mobile Wireless Router

Teltonika
RUTX09
$488.40
RUTX09 The RUTX09 from Teltonika is a powerful 4G LTE mobile wireless router designed as a main or backup internet source where steady connection and high data throughput is required. Equipped with dual SIM slots and (4) Gigabit Ethernet ports, the RUTX09 also has all advanced RutOS software and security features. Teltonika RUTX09 4G LTE CAT6 Router Key...
Teltonika RUTX11 Industrial Dual SIM 4G LTE CAT6 Gigabit Router w/ Dual Band WiFi
In Stock
Mobile Networking

Teltonika RUTX11 Industrial Dual SIM 4G LTE CAT6 Gigabit Router w/ Dual Band WiFi

Teltonika
RUTX11
$528.00
RUTX11 The RUTX11 from Teltonika features a wide range of internal hardware interfaces that allow this device to be used in power hungry industrial applications where speed and robustness are at the heart of the network solution. 4G LTE Cat 6 allows for download speeds up to 300 Mbps, and the (4) Gigabit Ethernet ports allow for seamless, fast data...
Teltonika RUT955 Industrial Dual-SIM 4G/LTE & WiFi cellular router
Out Of Stock
Mobile Networking

Teltonika RUT955 Industrial Dual-SIM 4G/LTE & WiFi cellular router

Teltonika
RUT955
$405.90
RUT955: Teltonika Industrial Dual-SIM 4G/LTE & WiFi cellular router Teltonika RUT955 LTE Router, Wireless N, 4G/LTE, CAT 4 up to 150Mbps, 3x LAN Port, 1x WAN Port, 2x SIM Slot, Auto Switch between each SIM, SIM Idle Protection, RS-232/RS-485 Port, GNSS Positioning, Geofencing Functionality Compatible with the Teltonika Networks Remote Management...
View
TELTONIKA RUTX12 – 3G/4G CAT6 DUAL MODULE ROUTER WITH WIFI / GPS / BLUETOOTH
Last items in stock
Mobile Networking

Teltonika RUTX12 3G-4G Cat6 Dual Module Router with WiFi - GPS - Bluetooth

Teltonika
RUTX12
$759.00
RUTX12 Cat6 Dual Module Router with WiFi - GPS - Bluetooth FEATURES    Two LTE modules working simultaneously can provide speeds up to 600 Mbps    Instant failover switching    5 x Gigabit Ethernet speeds up to 1000 Mbps    Wave-2 802.11ac Dual Band WiFi with speeds up to 867 Mbps    Teltonika Remote Management System compatible    Easy to use, secure,...
Teltonika TRB140 Industrial Ethernet to 4G LTE IoT Gateway
*** Out of stock ATM, Available On Backorder ***
Mobile Networking

Teltonika TRB140 Industrial Ethernet to 4G LTE IoT Gateway

Teltonika
TRB140
$216.70
Teltonika TRB140 Industrial Ethernet to 4G LTE IoT Gateway - Ethernet: 1x 10/100/1000Mbps RJ45 Port - SIM Slot (Mini-SIM - 2FF), 1.8V/3V - Antennas: 1x SMA for LTE - Power: 4-pin DC Connector with 2x Configurable Digital Inputs/Outputs - Mobile Module: 4G (LTE) CAT 4 Up to 150Mbps, 3G Up to 42Mbps, 2G Up to 236.8kbps Compatible with the Teltonika...
TELTONIKA TRB245 – CAT4, ETHERNET, RS232/RS485, DIGITAL I/O, GPS
*** Out of stock ATM, Available On Backorder ***
Mobile Networking

Teltonika TRB245 Cat4 Ethernet RS232-RS485 Digital I/O GPS

Teltonika
TRB245
$324.50
TRB245 FEATURES LTE Cat 4 with speeds up to 150MbpsConfigurable Inputs/Outputs for remote monitoring and controlGNSS positioning with geofencing functionalityRS232/RS485 serial communications interfacesTeltonika Remote Management System compatibleDual SIM ensures internet connectivity if a single operator network stops working Compatible with the...
Teltonika RUTXR1 Enterprise SFP/LTE Router
In Stock
Ethernet Routers

Teltonika RUTXR1 Enterprise SFP/LTE Router

Teltonika
RUTXR1
$708.40
Teltonika RUTXR1 Enterprise SFP/LTE Router Up to 300Mbps with Carrier Aggregation 5 x Gigabit Ethernet ports, SFT port Wave-2 802.11ac Dual Band WIFI. New Generation 2-in-1 LTE Router and SFP Router, 5x Gigabit Ethernet, 1x SFP, 1x Console WAN, LTE, 4G/LTE-Advanced / 3G / 2G, Fiber Optics, DualSIM, CAT6, VPN, USB, SDK, Instant FailoverSwitch,...
Teltonika RUT360 LTE CAT6 Industrial Cellular Router 802.11 RMS
In Stock
Mobile Networking

Teltonika RUT360 LTE CAT6 Industrial Cellular Router 802.11 RMS

Teltonika
RUT360
$389.40
RUT360 RUT360 is an updated version of our all-time best-seller RUT240. This compact industrial cellular router offers a possibility to connect to the internet using cellular, Wi-Fi, and wired networks. RUT360  is  equipped  with  two  Ethernet  interfaces,  802.11  b/g/n  WiFi, and 4G LTE Cat 6 cellular module, offering data speeds up to 300 Mbps....
Teltonika TSW100 Industrial Unmanaged POE+ Switch 802.3af/at 120W Gigabit
In Stock
Industrial Devices

Teltonika TSW100 Industrial Unmanaged POE+ Switch 802.3af/at 120W Gigabit

Teltonika
TSW100
$165.00
TSW100 TSW100 is the first industrial unmanaged switch from Teltonika Networks.Equipped with five Gigabit Ethernet ports, four of which support IEEE802.3af and IEEE802.3at Power-over-Ethernet standards (PoE).Classified as power source equipment (PSE), it enables centralization of the power supply, providing up to 30 watts per port and reducing the effort...
Teltonika TRM250 Industrial Cellular Modem LPWAN NB-IoT 4G/LTE Cat M1 EGPRS (2G) USB
Last items in stock
Wired Networking

Teltonika TRM250 Industrial Cellular Modem LPWAN NB-IoT 4G/LTE Cat M1 EGPRS (2G) USB

Teltonika
TRM250
$113.36
TRM250 TRM250 is an industrial grade cellular modem with multiple LPWAN connectivity options. It features NB-IoT, LTE Cat-M1, and is backward compatible with EGPRS (2G). It offers an extremely long lifecycle, low power consumption, and is the most flexible option when upgrading the connectivity of existing industrial equipment. TRM250 has a USB...

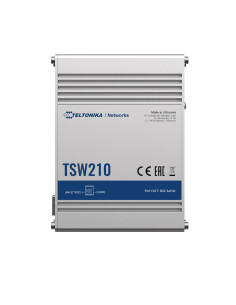

Teltonika TSW210 Industrial Unmanaged Switch 2xSFP 8xGbE 1000Mbps 7-57 VDC
In Stock
Network Switches

Teltonika TSW210 Industrial Unmanaged Switch 2xSFP 8xGbE 1000Mbps 7-57 VDC

Teltonika
TSW210
$163.90
TSW210 Industrial Unmanaged Switch 2xSFP 8xGbE LAN TSW210 is an industrial unmanaged switch for centralizing your resources. Equipped with 2 SFP ports for long-range fiberoptic communication and 8 Gigabit Ethernet ports with of up to 1000 Mbps download/upload speed. Durable, rugged aluminum housing with DIN rail and surface mounting options make the...
Teltonika TSW200 Industrial Unmanaged POE+ Switch 8xPOE 2xSFP 8xGbE 1000Mbps 240W 802.3af/at
In Stock
Network Switches

Teltonika TSW200 Industrial Unmanaged POE+ Switch 8xPOE 2xSFP 8xGbE 1000Mbps 240W...

Teltonika
TSW200
$219.00
TSW200 TSW200 is industrial unmanaged switch from Teltonika Networks. TSW200 is equipped with 2 SFP ports for long-range Fiber-optic communication and 8 Gigabit Ethernet ports which support IEEE802.3af and IEE802.3at Power-over-Ethernet standards. Classified as power source equipment (PSE), it enables centralization of the power supply, providing up to...

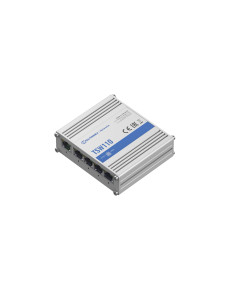

Teltonika TSW110 Industrial Unmanaged Passive POE Gigabit Switch
In Stock
Network Switches

Teltonika TSW110 Industrial Unmanaged Passive POE Gigabit Switch

Teltonika
TSW110
$97.00
TSW110 Industrial Unmanaged Passive POE Gigabit Switch TSW110 is a layer 2 unmanaged switch, which is a simplified version of our earlier product – TSW100. Possible to power up through the first LAN port. It has five 10/100/1000 Mbps Ethernet ports for an economical high-bandwidth solution. It offers a wide range of supported power supply voltages...

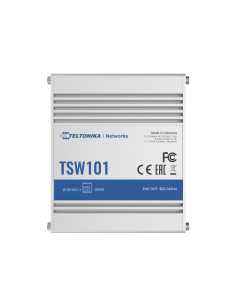

Teltonika TSW101 Industrial Unmanaged PoE+ for Transportation
