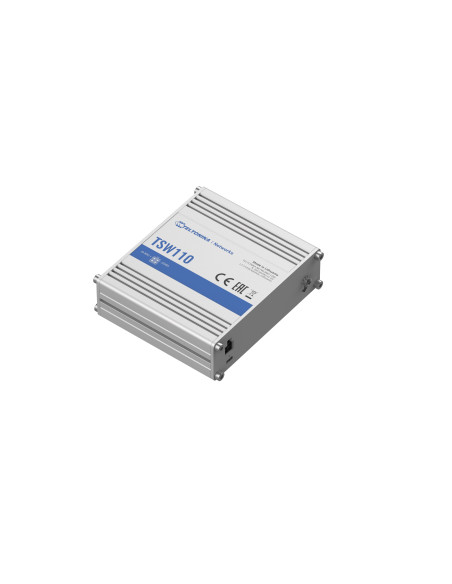

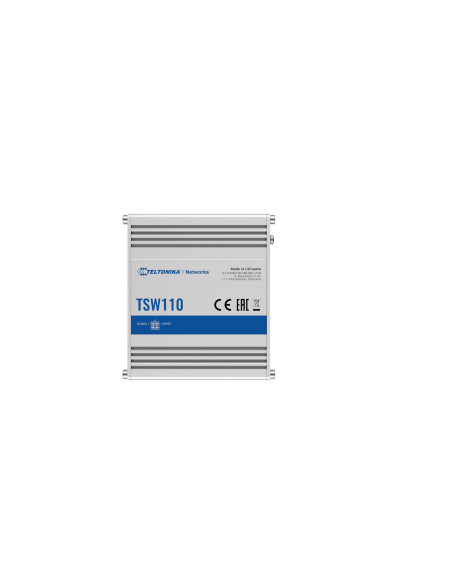

Teltonika TSW110 Industrial Unmanaged Passive POE Gigabit Switch
TSW110 Industrial Unmanaged Passive POE Gigabit Switch
TSW110 is a layer 2 unmanaged switch, which is a simplified version of our earlier product – TSW100.
Possible to power up through the first LAN port.
It has five 10/100/1000 Mbps Ethernet ports for an economical high-bandwidth solution.
It offers a wide range of supported power supply voltages (9-30 V).
Ideal for professional high bandwidth applications to provide reliable data connection.
TSW110 - Teltonika Industrial Unmanaged Passive POE Gigabit Switch
|LAN||5 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover|
|Bandwidth (Non-blocking)||10 Gbps|
|Packet buffer||128 KB|
|MAC address table size||2K entries|
|Connector||4 pin industrial DC power socket|
|Input voltage range||9 - 30 VDC, reverse polarity protection, voltage surge/transient protection|
|PoE (passive)||Passive PoE. Possibility to power up through LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards|
|Power consumption (idle/max)||< 0.4 W/ <1.8 W|
|PHYSICAL INTERFACES (PORTS, LEDS)|

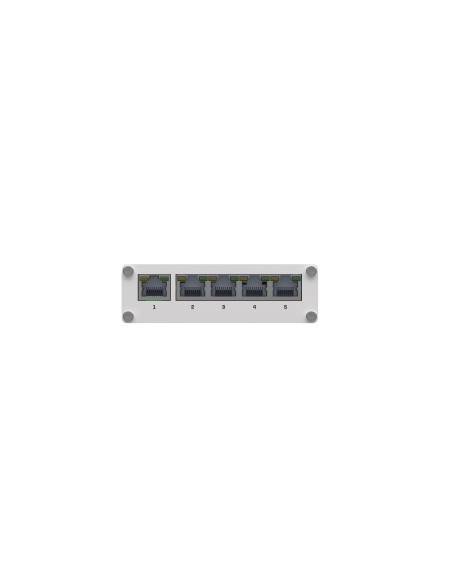

|Ethernet||5 x RJ45 ports, 10/100/1000 Mbps|
|Status LEDs||1 x Power LED, 10 x LAN status LED’s|

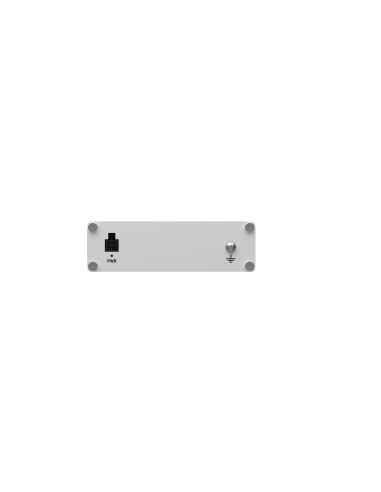

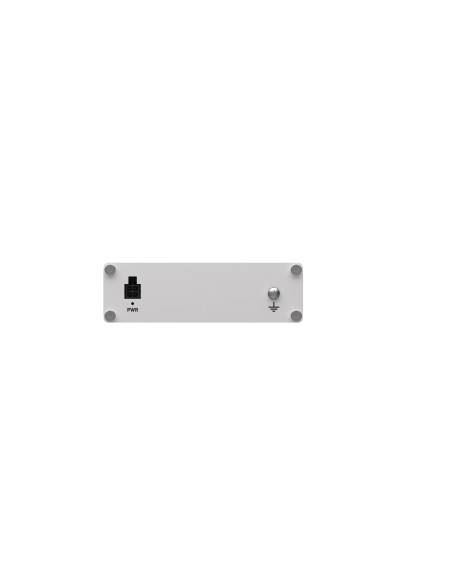

|Power||1 x 4 pin DC connector|
|Ground||1 x Grounding screw|
|Casing material||Full aluminum housing|
|Dimensions (W x H x D)||100 x 30 x 85 mm|
|Mounting options||DIN rail or wall mounting (additional kit needed), flat surface placement|
|Operating temperature||-40 C to 75 C|
|Operating humidity||10 % to 90 % non-condensing|
