Teltonika RUTXR1 Enterprise SFP/LTE Router
Teltonika RUTXR1 Enterprise SFP/LTE Router
Teltonika RUTXR1 | Buy Teltonika RUTXR1 Enterprise SFP LTE Router | WISP Australia
Teltonika RUTXR1 Enterprise SFP/LTE Router
Teltonika RUTXR1 Enterprise SFP/LTE Router
Teltonika RUTXR1 | Buy Teltonika RUTXR1 Enterprise SFP LTE Router | WISP Australia

Teltonika RUTXR1 Enterprise SFP/LTE Router

RUTXR1
In Stock
$708.40
Tax included

Teltonika RUTXR1 Enterprise SFP/LTE Router

Up to 300Mbps with Carrier Aggregation 5 x Gigabit Ethernet ports, SFT port Wave-2 802.11ac Dual Band WIFI. New Generation 2-in-1 LTE Router and SFP Router, 5x Gigabit Ethernet, 1x SFP, 1x Console WAN, LTE, 4G/LTE-Advanced / 3G / 2G, Fiber Optics, DualSIM, CAT6, VPN, USB, SDK, Instant FailoverSwitch, RemoteAccess, Linux, IoT

Compatible with the Teltonika Networks Remote Management System (RMS) for easy and secure monitoring

The Device includes 1 RMS credit.

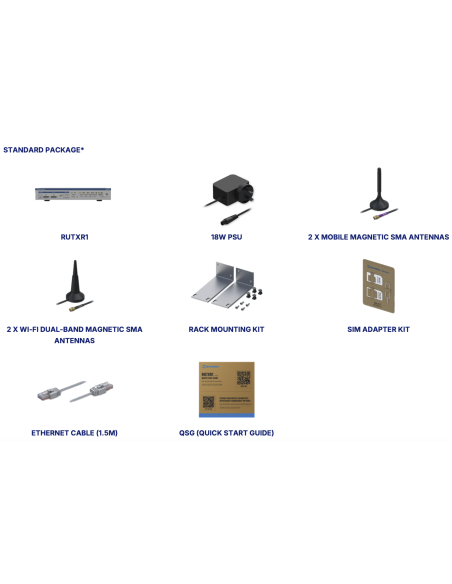

Standard package contains:

  • RUTXR1
  • 18 W PSU
  • 2x Mobile antennas (magnetic mount, SMA male, 3 m cable)2x Wi-Fi antennas (magnetic mount, RP-SMA male, 1.5 m cable)
  • Rack - mounting kit
  • SIM Adapter kit
  • Ethernet cable (1.5 m)
  • QSG (Quick Start Guide)
  • Packaging box

Quantity Unit price You Save
5 $694.23 $70.84

Related Products & Accessories



Teltonika RUTXR1 Enterprise SFP/LTE Router

Rack-mounted LTE Cat6 router with redundant power supplies and WAN interfaces (WAN failover), Dual SIM, SFP, USB and dedicated console ports. This feature-rich device with well-known and powerful RutOS is perfect where fast and ultra-reliable connection is needed.

Specifications of RUTXR1:

  • 4G LTE CAT 6 - Cellular speeds up to 300Mbps with Carrier Aggregation (compatible with all AU bands, including B28)
  • SFP port for long-range Fiber-optic communication
  • DUAL SIM With auto failover, backup WAN and other switching scenarios
  • 5 x Gigabit Ethernet ports
  • Wave-2 802.11ac Dual Band WIFI
  • Compatible with Teltonika Remote Management System
MOBILE
Mobile module 4G (LTE) – Cat 6 up to 300 Mbps, 3G – up to 42 Mbps
SIM switch 2 SIM cards, auto switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail
Status Signal strength, SINR, RSRP, RSRQ, Bytes sent/received, connected band, carrier aggregation, IMSI, ICCID
SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET, Email to SMS, SMS to Email, SMS to HTTP, SMS to SMS, SMS auto replay
USSD Supports sending and reading Unstructured Supplementary Service Data messages
Black/White list Operator black/white list
Multiple PDN Possibility to use different PDNs for multiple network access and services
Band management Band lock, Used band status display
APN Auto APN
Bridge mode Direct connection (bridge) between mobile ISP and device on LAN
WIRELESS
Wireless mode 802.11ac (WiFi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP), Station (STA)
WiFi security WPA3-EAP, WPA3-SAE, WPA2-Enterprise-PEAP, WPA2-PSK, WEP; AES-CCMP, TKIP, Auto Cipher modes, client separation
ESSID ESSID stealth mode
Wireless Hotspot Captive portal (Hotspot), internal/external Radius server, built in customizable landing page
ETHERNET
WAN 1 x WAN port 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
Fiber 1 x SFP port (cannot work simultaneously with Ethernet WAN port)
LAN 4 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
CONSOLE
Console RS-232 (RJ45) console port for router configuration and debuging
NETWORK
Routing Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP)
Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, UPNP, SSH, DHCP, Telnet, SNMP, MQTT, Wake on LAN (WOL), DLNA
VoIP passthrough support H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Connection monitoring Ping Reboot, Wget reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall Port forwards, traffic rules, custom rules
DHCP Static and dynamic IP allocation, DHCP Relay, Relayd
QoS / Smart Queue Management (SQM) Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
DDNS Supported >25 service providers, others can be configured manually
Network backup VRRP, Mobile, Wired, Fiber and WiFi WAN options, each of which can be used as an automatic Failover
Load balancing Balance Internet traffic over multiple WAN connections
SSHFS (optional) Possibility to mount remote file system via SSH protocol (not available in standard FW)
SECURITY
Authentication Pre-shared key, digital certificates, X.509 certificates
Firewall Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
Attack prevention DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
VLAN Port and tag based VLAN separation
Mobile quota control Custom data limits for both SIM cards
WEB filter Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
Access control Flexible access control of TCP, UDP, ICMP packets, MAC address filter
VPN
OpenVPN Multiple clients and a server can run simultaneously, 12 encryption methods
OpenVPN Encryption DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC
IPsec IKEv1, IKEv2, with 5 encryption methods for IPsec (DES, 3DES, AES128, AES192, AES256)
GRE GRE tunnel
PPTP, L2TP Client/Server instances can run simultaneously, L2TPv3 support
Stunnel Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
DMVPN Method of building scalable IPsec VPNs
SSTP SSTP client instance support
Zerotier Zerotier VPN client support
WireGuard WireGuard VPN client and server support
MODBUS
MODBUS TCP SLAVE
ID filtering Respond to one ID in range [1;255] or any
Allow remote access Allow access through WAN
Custom registers Modbus TCP custom register block, which allows to read/write to a file inside the router, and can be used to extend Modbus TCP slave functionality
MODBUS TCP MASTER
Supported functions 01, 02, 03, 04, 05, 06, 15, 16
Supported data formats 8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC)
MODBUS RTU MASTER (RS232) (PLANNED)
Supported baud rates From 300 to 115200
Supported functions 01, 02, 03, 04, 05 (only for alarms), 06 (only for alarms), 15 (only for alarms), 16 (only for alarms)
Number of data bits From 5 to 8
Number of stop bits 1 or 2
Parity None, Even, Odd
Flow None, RTS/CTS, Xon/Xoff
MQTT GATEWAY
Gateway Allows sending commands and receiving data from Modbus Master trough MQTT broker
DATA TO SERVER
Protocols HTTP(S), MQTT, Azure MQTT, Kinesis
MONITORING & MANAGEMENT
WEB UI HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log
FOTA Firmware update from server, automatic notification
SSH SSH (v1, v2)
SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET
Call Reboot, Status, Mobile data on/off, Output on/off
TR-069 OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
MQTT MQTT Broker, MQTT publisher
SNMP SNMP (v1, v2, v3), SNMP Trap
JSON-RPC Management API over HTTP/HTTPS
Modbus Modbus TCP status/control
RMS Teltonika Remote Management Systems (RMS)
IoT PLATFORMS
Clouds of things Allows monitoring of: Device data, Mobile data, Network info, Availability
ThingWorx Allows monitoring of: WAN Type, WAN IP Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
Cumulocity Allows monitoring of: Device Model, Revision and Serial Number, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength, WAN Type and IP
Azure IoT Hub Can send device IP, Number of bytes send/received/ 3G connection state, Network link state, IMEI, ICCID, Model, Manufacturer, Serial, Revision, IMSI, Sim State, PIN state, GSM signal, WCDMA RSCP, WCDMA EC/IO, LTE RSRP, LTE SINR, LTE RSRQ, CELL ID, Operator, Operator number, Connection type, Temperature, PIN count to Azure IoT Hub server
SYSTEM CHARACTERISTICS
CPU Quad-core ARM Cortex A7, 717 MHz
RAM 256 MB, DDR3
FLASH storage 256 MB, SPI Flash
FIRMWARE/CONFIGURATION
WEB UI Update FW from file, check FW on server, configuration profiles, configuration backup
FOTA Update FW/configuration from server
RMS Update FW/configuration for multiple devices at once
Keep settings Update FW without losing current configuration
FIRMWARE CUSTOMIZATION
Operating system RutOS (OpenWrt based Linux OS)
Supported languages Busybox shell, Lua, C, C++
Development tools SDK package with build environment provided
SERIAL
RS232 RJ45 connector, full RS232 (with RTS, CTS)
Serial functions Console (active by default), Modbus gateway, Modbus RTU master (planned), Serial OverIP, Modem mode (Full or partial) (planned), Ntrip client
USB
Data rate USB 2.0
Applications Samba share, USB-to-serial
External devices Possibility to connect external HDD, flash drive, additional modem, printer
Storage formats FAT, FAT32, NTFS
POWER
Connector 2 x 4 pin industrial DC power sockets for main and redundancy power sources
Input voltage range 9 – 50 VDC, reverse polarity protection, voltage surge/transient protection
Power consumption idle: <3W, max: 18W
PHYSICAL INTERFACES
Ethernet 5 x RJ45 ports, 10/100/1000 Mbps
Console 1 x RJ45, RS232 communication
Fiber 1 x SFP port
Status LEDs 2 x WAN type, 2 x Mobile connection type, 3 x Mobile signal strength, 2 x active SIM, 10 x Ethernet status, 2 x Console status, 2 x Power
SIM 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders
Power 2 x 4 pin DC connector
Antennas 2 x SMA for LTE, 2 x RP-SMA for WiFi
USB 1 x USB A port for external devices
Reset Reboot/User default reset/Factory reset button
Other 1 x Grounding screw, 1 x lock
PHYSICAL SPECIFICATION
Casing material Full steel housing
Dimensions (W x H x D) 272 x 42.6 x 122.6 mm
Weight 1050 g
Mounting options Rack mounting, flat surface placement
OPERATING ENVIRONMENT
Operating temperature -40°C to +70°C
Operating humidity 10 % to 90 % non-condensing

Device Type
Router
Device Features
Dual Sim
Industrial
RMS Compatible
USB
Ethernet Ports
6
Speed
10/100/1000 Mbps ports
Connectivity
4G LTE Cat 6
Cellular Connectivity
Cellular
Wi-Fi
Wi-Fi 5
4779027312613
RUTXR1
