RMS 3 Credits
Teltonika Remote Management System (RMS) is a centralized online platform for connecting all Teltonika networking products. RMS offers unified access, monitoring and control capabilities, which saves time and allows you to oversee your whole networking fleet.

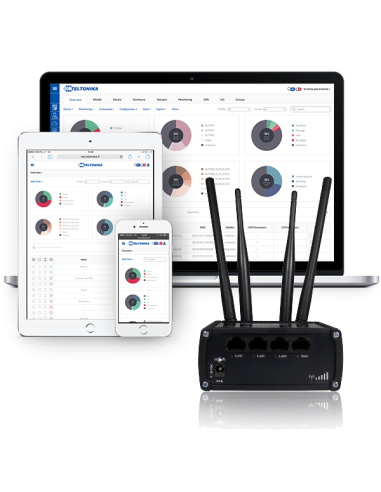

Teltonika RMS Remote Management System
If your Teltonika device is on RMS, it can be used to generate remote access links to equipment that is connected to a private router network thus granting remote access to other equipment, including devices that aren’t manufactured by Teltonika.
Teltonika has always been at the top when it comes to security solutions. Our dedicated RnD team is constantly working to ensure that our products meet highest industrial safety standards. RMS has received CIS v7 and OWASP II Certifications, ensuring that our centralized Cloud-based platform and all the data that is stored is exceptionally secure.
MAINTENANCE AND DIAGNOSTICS
With RMS intuitive interface you can easily perform your network ecosystem diagnostics. Set up a custom report system that contains information on specific device parameters. All generated reports are stored in RMS servers and can be downloaded at any point in time for future analysis.
|Connection with server||MQTT protocol (with SSL certificates); VPN|
|Static device parameters||IMEI, model, manufacturer, hardware version, IMSI, product code, batch number, modem revision.|
|Dynamic device parameters||SIM state, PIN state, net state, signal (-dBm), operator, operator number, connection state, mobile connection type, temperature, sent bytes (of both SIM cards, if available), received bytes (of both SIM cards, if available), firmware version, current SIM slot, router uptime, mobile IP, WAN state, WAN IP, cell ID, MCC, MNC, LAC, ICCID, RSCP, ECIO, RSRP, SINR, RSRQ.|
|Hotspot parameters||Hotspot SSID, hotspot status (enabled/disabled), hotspot IP, total downloaded data, total uploaded data, users, active users, active user MAC, active user IP, active user start time, active user end time, active user use time, user downloaded data, user uploaded data, hotspot download limit, hotspot upload limit.|
|GPS parameters||Status, latitude, longitude, fix time, GPS date/time, altitude, speed, satellite count, course, accuracy.|
|Input/output parameters||Digital input, digital isolated input, analog input, digital OC output, digital relay output.|
|Security||RMS security tested and validated by Bell Canada Cyber Security Team and Forensik|
|Proxy||Webui, CLI, HTTP(HTTPS) Non-teltonika device|
|Cloud||Amazon Web Service|
|Eligible devices||RUT230, RUT240, RUT850, RUT900, RUT950, RUT955, RUTX08, RUTX09, RUTX10, RUTX11, RUTX12, TRB140, TRB141, TRB142, TRB145, TRB245, TRB255.|
|Creatable alerts||Signal strength, SIM switch, device status change (online/offline), mobile data (connected/disconnected), GPS geofencing.|
|Update types||Firmware update, configuration upload.|
|Report types||Manual one time reports (day, week, month), periodic reports (daily, weekly, monthly)|
|Available downloads||Device configuration, event logs, troubleshoot file, CSV file of currently visible devices, generated reports, uploaded firmware files, uploaded configuration files.|
