• New

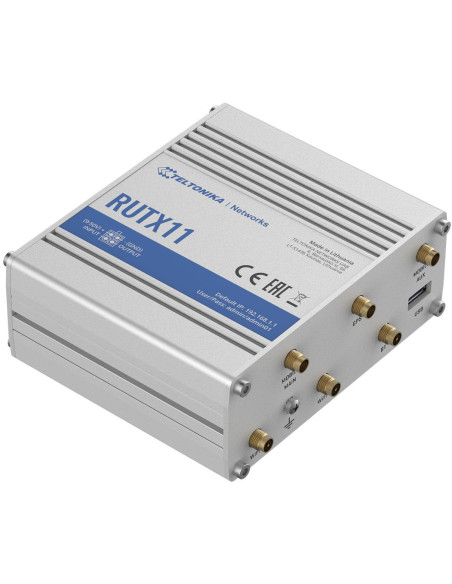

Teltonika RUTX11 Dual SIM LTE CAT6 Gigabit Router w/ Dual Band WiFi

Teltonika Industrial Dual SIM 4G LTE CAT6 Gigabit Router w/ Dual Band WiFi

RUTX11
In Stock
$748.00
Tax included

The RUTX11 from Teltonika features a wide range of internal hardware interfaces that allow this device to be used in power hungry industrial applications where speed and robustness are at the heart of the network solution. 4G LTE Cat 6 allows for download speeds up to 300 Mbps, and the (4) Gigabit Ethernet ports allow for seamless, fast data transfer.

Teltonika RUTX11 4G LTE CAT6 Router Key Features:

  • LTE Cat 6 with speeds up to 300 Mbps
  • Wave 2 802.11ac Dual Band WiFi with speeds up to 867 Mbps
  • Dual SIM with auto failover, backup WAN and other SW features
  • 4x Gigabit Ethernet with speeds up to 1000 Mbps
  • Teltonika Remote Management System compatible
  • Easy to use, secure and feature rich RutOS

Quantity Price You Save
6 $695.64 Up to $314.16
Device Features
Industrial, PoE Powered, Bluetooth Support
Wireless System
2.4GHz, 5GHz, 4G Mobile, LTE Mobile
Ethernet Ports
4
No reviews
MOBILE
Mobile module 4G (LTE) – Cat 6 up to 300 Mbps, 3G – Up to 42 Mbps
SIM switch 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection (planned)
Status Signal strength, SINR, RSRP, RSRQ, Bytes sent/received
SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS (planned), SMS to Email, SMS to HTTP, SMS to SMS, scheduled SMS (planned), SMS autoreply, SMPP (planned)
Black/White list Operator black/white list
Multiple PDN (planed) Possibility to use different PDNs for multiple network access and services
Band management Band lock, Used band status display
APN Auto APN
Bridge Direct connection (bridge) between mobile ISP and device on LAN
WIRELESS
Wireless mode 802.11ac (WiFi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP), Station (STA)
WiFi security WPA2-Enterprise-PEAP, WPA2-PSK, WPA-PSK, WEP; AES-CCMP, TKIP, Auto Cipher modes, client separation
ESSID ESSID stealth mode
Wireless Hotspot Captive portal (Hotspot), internal/external Radius server, built in customizable landing page
ETHERNET
WAN 1 x WAN port (can be configured to LAN) 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
LAN 3 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
BLUETOOTH
Bluetooth LE Bluetooth low energy (LE) for short range communication
USB
Applications Samba share, custom scripts
Data rate USB 2.0
External devices Possibility to connect external HDD, flash drive
Storage formats FAT, FAT32, NTFS
NETWORK
Routing Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP)
NetSnapper (optional) Mobile connection management, data compression VPN client (not available in standard FW)
Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMNP, MQTT, Wake On Lan (WOL)
VoIP passthrough support H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Connection monitoring Ping Reboot, Wget reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall Port forwards, traffic rules, custom rules
DHCP Static and dynamic IP allocation, DHCP Relay, Relayd
QoS Traffic priority queuing by source/destination (planned), service (planned), protocol or port (planned), WMM, 802.11e
DDNS Supported >25 service providers, others can be configured manually
Network backup VRRP, Mobile and Wired WAN options, each of which can be used as backup, using automatic Failover
Load balancing Balance your Internet traffic over multiple WAN connections
SSHFS (optional) Possibility to mount remote file system via SSH protocol (not available in standard FW)
SECURITY
Authetication Pre-shared key, digital certificates, X.509 certificates
Firewall Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
Attack prevention DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
VLAN Port based and tag based VLAN separation
Mobile quota control Set up custom data limits for both SIM cards
WEB filter Blacklist for blocking out unwanted websites, whitelist for specifying allowed sites only
Access control Flexible access control of TCP, UDP, ICMP packets, MAC address filter
VPN
OpenVPN Multiple clients and a server can run simultaneously, 12 encryption methods
OpenVPN Encryption DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC
IPsec IKEv1, IKEv2, with 5 encryption methods for IPsec (DES, 3DES, AES128, AES192, AES256)
GRE GRE tunnel
PPTP, L2TP Client/Server services can run simultaneously
Stunnel (planed) Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
DMVPN Method of building scalable IPsec VPNs
SSTP SSTP client instance support
MODBUS
Modbus TCP slave ID range 1-255
Modbus TCP master Supported functions 01, 02, 03, 04, 05, 06, 15, 16
Supported data formats 8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit float (Big endian, Big endian with byte-swapped, Little endian, Little endian with byte-swapped)
MONITORING & MANAGEMENT
WEB UI HTTP, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log
FOTA Firmware update from server, automatic notification
SSH SSH (v1, v2)
SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET
TR-069 (planed) OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
SNMP SNMP (v1, v2, v3), SNMP trap
JSON-RPC Management API over HTTP/HTTPS
MQTT MQTT Broker, MQTT publisher
RMS Teltonika Remote Management System (RMS)
SYSTEM CHARACTERISTICS
CPU Quad-core ARM Cortex A7, 717 MHz
RAM 256 MB, DDR3
FLASH memory 256 MB SPI Flash
FIRMWARE / CONFIGURATION
WEB UI Update FW from file, check FW on server, configuration profiles, configuration backup
FOTA Update FW/configuration from server
RMS Update FW/configuration for multiple devices
Keep settings Update FW without losing current configuration
FIRMWARE CUSTOMIZATION
Operating system RutOS (OpenWrt based Linux OS)
Supported languages Busybox shell, Lua, C, C++
Development tools SDK package with build environment provided (planed)
LOCATION TRACKING
GNSS GPS, GLONASS, BeiDou, Galileo and QZSS
Coordinates GNSS coordinates via WebUI, SMS, TAVL, RMS
NMEA NMEA 0183
Server software Supported server software: TAVL, RMS
Mobile Network Geolocation Get approximate device location on RMS based on mobile cell tower position (without using GPS)
Geofencing Configurable multiple geofence zones
USB
Data rate USB 2.0
Applications Samba share (planed), custom scripts (planed)
External devices Possibility to connect external HDD, flash drive, additional modem, printer
Storage formats FAT, FAT32, NTFS
INPUT/OUTPUT
Input 1 x Digital Input
Output 1 x Digital Output
Events SMS, Email, RMS
POWER
Connector 4 pin industrial DC power socket
Input voltage range 9 – 50 VDC, reverse polarity protection, voltage surge/transient protection
PoE (passive) Passive PoE. Possibility to power up through LAN port, not compatible with IEEE802.3af and 802.3at standards
Power consumption 11 W Max
PHYSICAL INTERFACES (PORTS, LEDS, ANTENNAS, BUTTONS, SIM)
Ethernet 4 x RJ45 ports, 10/100/1000 Mbps
I/Os 1 Digital Input, 1 Digital Output on 4 pin power connector
Status LEDs 3 x connection status LEDs, 5 x connection strength LEDs, 8 x LAN status LEDs, 4 x WAN status LEDs, 1 x Power LED, 2.4G and 5G WiFi LEDs
SIM 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders
Power 4 pin DC connector
Antennas 2 x SMA for LTE, 2 x RP-SMA for WiFi, 1 x RP-SMA for Bluetooth, 1 x SMA for GNNS
USB USB A port for external devices
Reset Factory reset button
PHYSICAL SPECIFICATION
Casing material Full aluminium housing
Dimensions 115 mm x 95 mm x 44 mm (H x W x D)
Weight 456 g
Mounting options DIN rail (can be mounted on two sides), flat surface placement
OPERATING ENVIRONMENT
Operating temperature -40 C to 75 C
Operating humidity 10 % to 90 % non-condensing
Ingress Protection Rating IP30
REGULATORY & TYPE APPROVALS
Regulatory & Type Approvals CE/RED, RoHS, REACH
Vehicle ECE R10 (E-mark)
EMI IMMUNITY
Standards EN 55032:2015, EN 55035:2017, Draft ETSI EN 301 489-1 V2.2.1, ETSI EN 301 489-3 V2.1.1, Draft ETSI EN 301 489-17 V3.2.0
ESD EN 61000-4-2:2009
RS EN 61000-4-3:2006+A1:2008+A2:2010
EFT EN 61000-4-4:2012
Surge protection EN 61000-4-5:2014
CS EN 61000-4-6:2014
DIP EN 61000-4-11:2004
RF
Standards ETSI EN 300 328 V2.1.1, ETSI EN 301 893 V2.1.1, ETSI EN 300 440 V2.1.1
SAFETY
Standards IEC 62368-1:2014 (Second Edition) EN 62368-1:2014+A11:2017 EN 50385:2017 EN 62232:2017
