TSW200
In Stock
$219.00
Tax included

TSW200

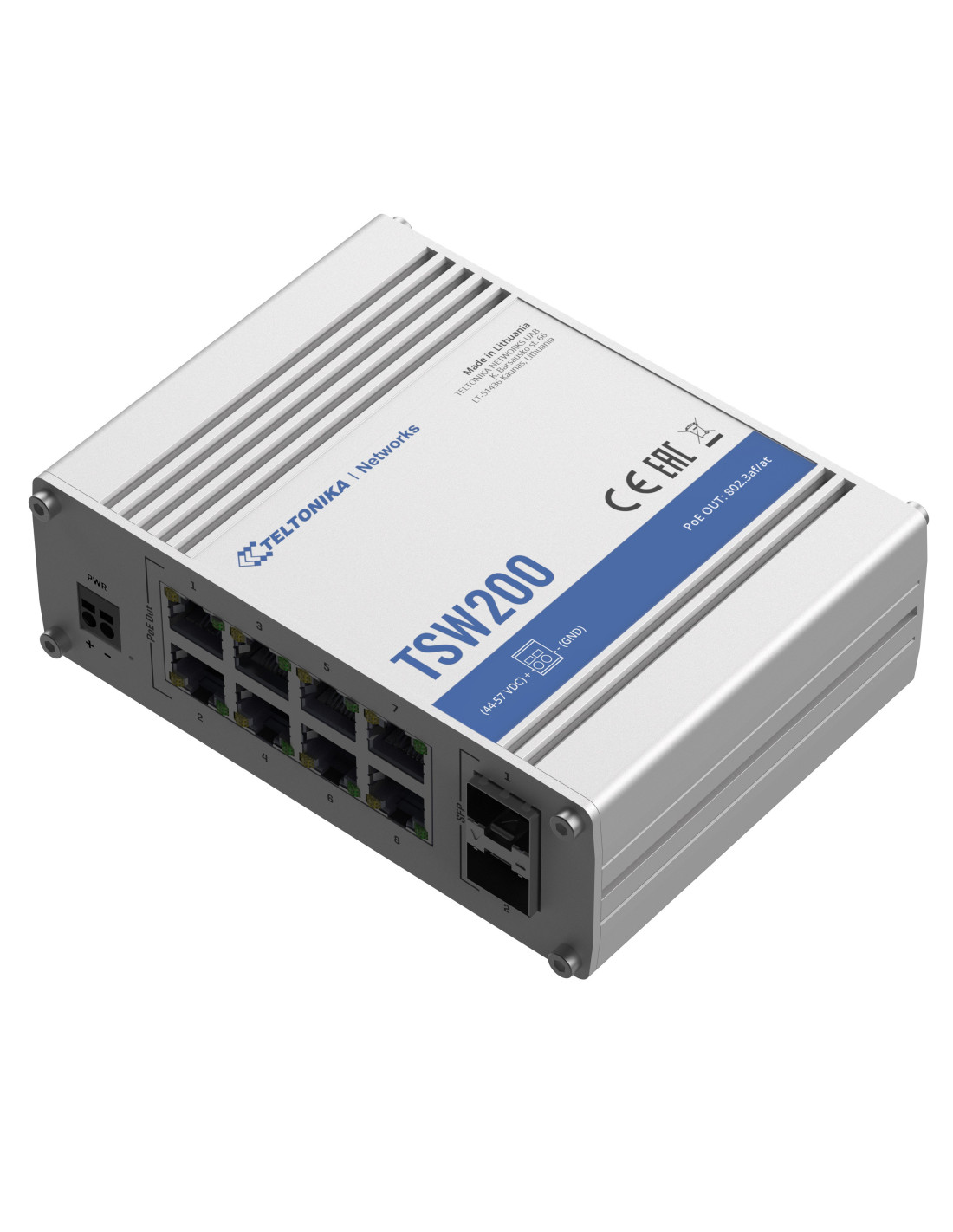

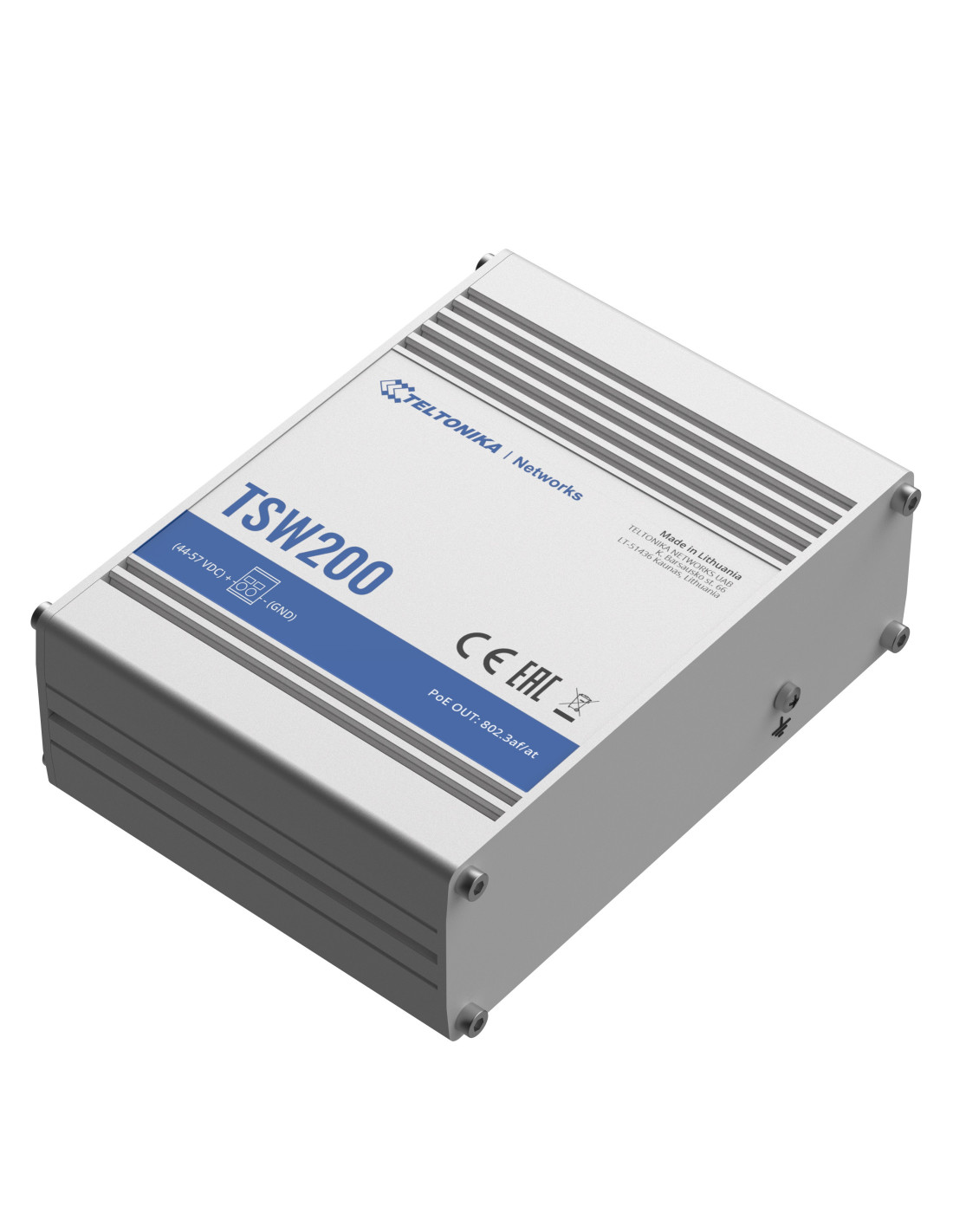

TSW200 is industrial unmanaged switch from Teltonika Networks.

TSW200 is equipped with 2 SFP ports for long-range Fiber-optic communication and 8 Gigabit Ethernet ports which support IEEE802.3af and IEE802.3at Power-over-Ethernet standards.

Classified as power source equipment (PSE), it enables centralization of the power supply, providing up to 30 watts per port and reducing the effort for installing power. It has 10/100/1000 Mbps Ethernet ports to provide an economical high-bandwidth solution for your industrial Ethernet network.

This rugged unmanaged industrial switch is ideal for professional high bandwidth applications where it is necessary to provide both: reliable data connection and power supply.

Power Adapter is not included! Please select from Power Supply Options if needed.

Quantity Unit price You Save
5 $212.43 $32.85
10 $208.05 $109.50


TSW200 - Teltonika Industrial Unmanaged POE+ Switch 8xPOE 2xSFP 8xGbE 1000Mbps 240W 802.3af/at

Product Features:

ETHERNET
LAN 8 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
Fiber 2 x SFP ports
POE
PoE ports Port 1 - 8
PoE standards 802.3af and 802.3at
PoE Max Power per Port (at PSE) 30 W
Total PoE Power Budget (at PSE) 240 W
PERFORMANCE SPECIFICATIONS
Bandwidth (Non-blocking) 20 Gbps
Packet buffer 128 KB
MAC address table size 2K entries
Jumbo frame support 9216 bytes
POWER
Connector 2 pin industrial DC power socket
Input voltage range 7-57 VDC
Input voltage range for PoE 44-57 VDC
Power consumption (idle/max no PoE/max) 1,81 W/5.5 W/245.5 W

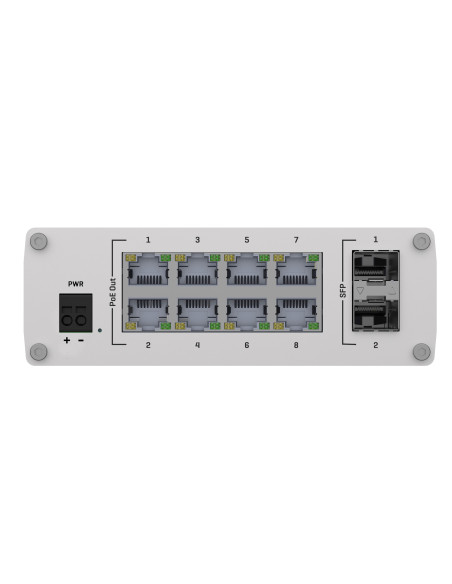

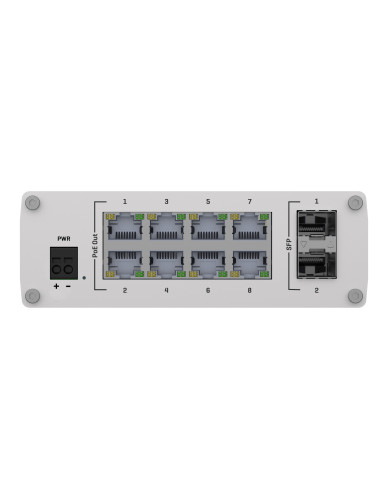

PHYSICAL INTERFACES (PORTS, LEDS)
Ethernet 8 x RJ45 ports, 10/100/1000 Mbps
Fiber 2 x SFP ports
Status LED’s 1 x Power LED, 16 x LAN status LED’s 2 x SFP status LED’s
Power 1 x 2 pin industrial DC power socket

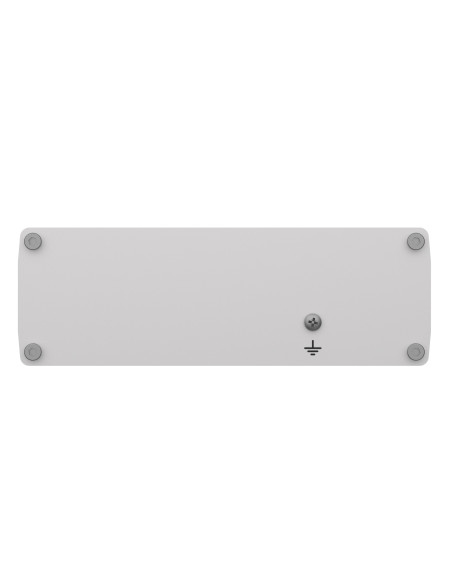

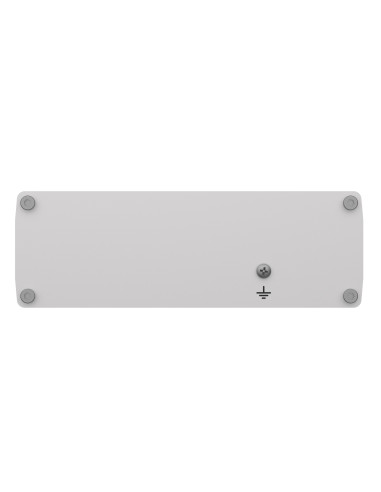

Ground 1 x Grounding screw
PHYSICAL SPECIFICATION
Casing material Full aluminum housing
Dimensions (W x H x D) 132 x 44.2 x 95.1 mm
Weight 456 g
Mounting DIN rail or wall mounting (additional kit needed), flat surface placement
OPERATING ENVIRONMENT
Operating temperature -40 °C to +75 °C
Operating humidity 10 % to 90 % non condensing
Ingress Protection Rating IP30

Power Adapter is not included! Please select from Power Supply Options if needed.

Device Type
Network Switch
Device Features
Industrial
Ethernet Ports
8 Eth ports
Type
Unmanaged
Operating Temperature
-40 to 75° C
Speed
10/100/1000 Mbps ports
power socket
2-pin
4779051840120
TSW200
