TSW101
Last items in stock
$214.56
Tax included

TSW101

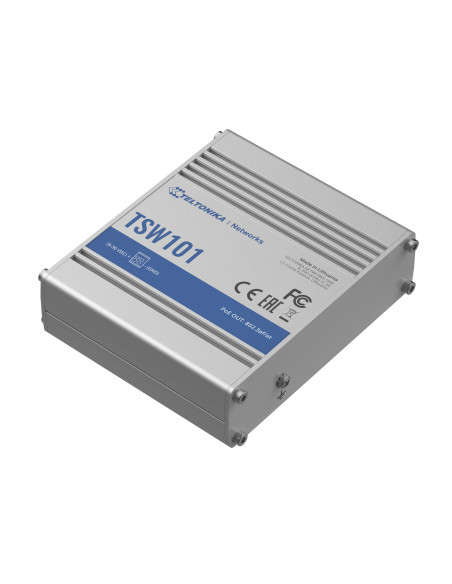

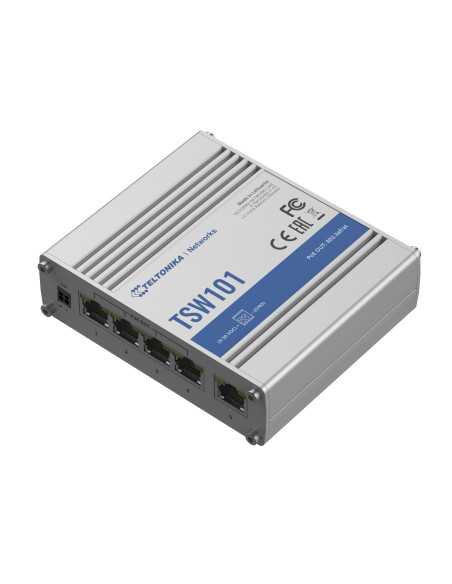

TSW101 is the first industrial unmanaged switch from Teltonika Networks for transportation applications. TSW101 is equipped with five Gigabit Ethernet ports, four of which support IEEE802.3af and IEEE802.3at Power-over-Ethernet + standards (PoE+). A wide range of supported power supply voltages (9-30 VDC), and a compact size allow it to slot into many automotive applications.

Classified as power source equipment (PSE), it enables centralization of the power supply, providing up to 30 watts per port and maximum output power of 60 watts. It has 10/100/1000 Mbps Ethernet ports for streamlined, high-bandwidth solutions.

Ideal for providing both: in-vehicle power and an Ethernet data connection simultaneously.



TSW101 - Teltonika Industrial Unmanaged POE+ for Transportation

INTERFACES
Ethernet 5 x RJ45 ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
POE
PoE ports Port 1- 4
PoE standards 802.3af and 802.3at
PoE Max Power per Port (at PSE) 30 W
Total PoE Power Budget (at PSE) 60 W
Maximum Ethernet cable length 100 m
PERFORMANCE SPECIFICATIONS
Bandwidth (Non-blocking) 10 Gbps
Packet buffer 128 KB
MAC address table size 2K entries
Jumbo frame support 9216 bytes
POWER
Connector 2-pin industrial DC power socket
Input voltage range 9-30 VDC
Input voltage range for PoE 9-30 VDC
Power consumption Idle: 0.64 W / Max: 2.31 W / PoE Max: 60 W

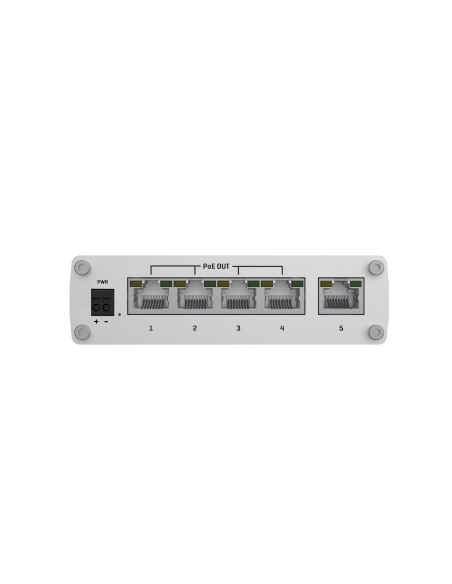

PHYSICAL INTERFACES (PORTS, LEDS)
Ethernet 5 x RJ45 ports, 10/100/1000 Mbps
Status LED’s 1 x Power LED, 10 x LAN status LED’s
Power 1 x 2-pin industrial DC power socket

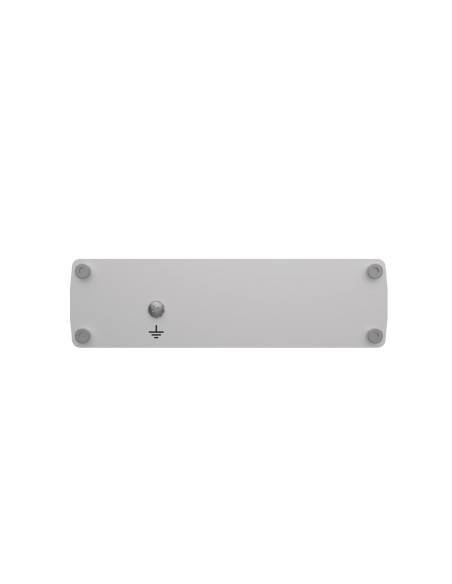

Ground 1 x Grounding screw
PHYSICAL SPECIFICATION
Casing material Aluminum housing
Dimensions (W x H x D) 115 x 32 x 95 mm
Weight 354 g
Mounting DIN rail or wall mounting (additional kit needed), flat surface placement
OPERATING ENVIRONMENT
Operating temperature -40 °C to +75 °C
Operating humidity 10 % to 90 % non condensing
Ingress Protection Rating IP30
CERTIFICATION & APPROVALS
Regulatory CE, REACH, RoHS, WEEE
TSW101 CE
TSW101 UKCA
TSW101 FCC
TSW101 IC
TSW101 CB
TSW101 RCM
E-Mark
SAFETY
Standards EN IEC 62368-1:2020+A11:2020

Device Type
Network Switch
Device Features
Industrial
Ethernet Ports
5 Eth ports
Type
Unmanaged
Operating Temperature
-40 to 75° C
Speed
10/100/1000 Mbps ports
power socket
4-pin
4779051840113
TSW101
