IGS-5225-8P2T4S
*** Out of stock ATM, Available On Backorder ***
$866.80
Tax included

IGS-5225-8P2T4S

Advanced Manageable PoE Solution for Hardened Environment

PLANET IGS-5225-8P2T4S PoE L2+Industrial Managed PoE+ Switch, featuring 8 10/100/1000BASE-T 802.3at PoE+ ports with each port powering up to 36 watts, two 10/100/1000BASE-T ports, two 100/1000 BASE-X SFP ports and two 100/1000/2500 BASE-X SFP ports in an IP30 rugged metal case, can be installed in any difficult environment. It provides user-friendly yet advanced IPv6/IPv4 management interfaces, abundantL2/L4 switching functions, Layer 3 static routing capability, and advanced ITU-G.8032 ERPS Ring technology to improve the rapid self-recovery capability and PLANET intelligent PoE functions for controlling the PoE outdoor IP surveillance and wireless network applications. It is able to operate reliably, stably and quietly in the temperature range from -40 to 75 degrees C.



IGS-5225-8P2T4S - PLANET Industrial L2+ 8-Port 802.3at PoE + 2-Port RJ45 + 2-Port 1G SFP + 2-Port 2.5G SFP Managed Ethernet Switch

Redundant Ring, Fast Recovery for Critical Network Applications

The IGS-5225-8P2T4S supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, Spanning Tree Protocol (802.1s MSTP), and redundant power input system into customer’s industrial automation network to enhance system reliability and uptime in harsh factory environments. In a simple Ring network, the recovery time of data link can be as fast as 10ms.





High Power PoE for Security and Public Service Applications

As the whole system comes with a total 240-watt PoE budget, the IGS-5225-8P2T4S is designed specifically to satisfy the growing demand of higher power consuming network PDs (powered devices) such as multi-channel (802.11n/ac/ax) wireless LAN access points, PTZ (pan, tilt, zoom) speed dome network cameras and other PoE network devices.

Intelligent Alive Check for Powered Device

The IGS-5225-8P2T4S can be configured to monitor connected PD’s status in real time via ping action. Once the PD stops working and responding, the IGS-5225-8P2T4S will recycle the PoE port power and bring the PD back to work. It also greatly enhances the reliability in that the PoE port will reset the PD power, thus reducing administrator’s management burden.





PoE Schedule for Energy Savings

Under the trend of energy saving worldwide and contributing to environmental protection on the Earth, the IGS-5225-8P2T4S can effectively control the power supply besides its capability of giving high watts power. The built-in “PoE schedule” function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals and it is a powerful function to help SMBs or enterprises save power and money.





Scheduled Power Recycling

The IGS-5225-8P2T4S allows each of the connected PoE IP cameras or PoE wireless access points to reboot at a specified time each week. Therefore, it will reduce the chance of IP camera or AP crash resulting from buffer overflow.





SMTP/SNMP Trap Event Alert

The IGS-5225-8P2T4S provides event alert function to help to diagnose the abnormal device owing to whether or not there is a break of the network connection, or the rebooting response.



Effective Alarm Alert for Better Protection

The IGS-5225-8P2T4S supports a Fault Alarm feature which can alert the users when there is something wrong with the switches. With this ideal feature, the users would not have to waste time finding where the problem is. It will help to save time and human resource.





Digital Input and Digital Output for External Alarm

The IGS-5225-8P2T4S supports Digital Input and Digital Output on its front panel. This external alarm enables users to use Digital Input to detect and log external device status (such as door intrusion detector), and send event alarm to the administrators. The Digital Output could be used to alarm the administrators if the IGS-5225-8P2T4S port shows link down, link up or power failure.





Convenient and Smart ONVIF Devices with Detection Feature

PLANET has developed an awesome feature -- ONVIF Support -- which is specifically designed for co-operating with video IP surveillances. From the IGS-5225-8P2T4S GUI, clients just need one click to search and show all of the ONVIF devices via network application. In addition, clients can upload floor images to the switch series making the deployments of surveillance and other devices easy for planning and inspection purposes. Moreover, clients can get real-time surveillance’s information and online/offline status; the PoE reboot can be controlled from the GUI.





Robust Layer 2 Features

The IGS-5225-8P2T4S can be programmed for advanced switch management functions such as dynamic port link aggregation, Q-in-Q VLAN, private VLAN, Rapid Spanning Tree Protocol, Layer 2 to Layer 4 QoS, bandwidth control and IGMP snooping. The IGS-5225-8P2T4S provides 802.1Q tagged VLAN, and the VLAN groups allowed will be maximally up to 4K. Via aggregation of supporting ports, the IGS-5225-8P2T4S allows the operation of a high-speed trunk combining multiple ports. It enables a maximum of up to 3 trunk groups with 6 ports per trunk group, and supports fail-over as well.





Network with Cybersecurity Helps Minimize Security Risks

The IGS-5225-8P2T4S comes with enhanced cyber security to fend off cyber threats and cyber attacks. It supports SSHv2 and TLSv1.2 protocols to provide strong protection against advanced threats. Served as a key point to transmit data to customer's critical equipment in a business network, the cyber security feature of the IGS-5225-8P2T4S protects the switch management and enhances the security of the mission-critical network without any extra deployment cost and effort.





Efficient Management

For efficient management, the IGS-5225-8P2T4S is equipped with Command line, Web and SNMP management interfaces.

  • With the built-in Web-based management interface, the IGS-5225-8P2T4S offers an easy-to-use, platform-independent management and configuration facility.
  • For text-based management, it can be accessed via Telnet and the console port.
  • For standard-based monitor and management software, it offers SNMPv3 connection which encrypts the packet content at each session for secure remote management.





Powerful Security from Layer 2 to Layer 4

The IGS-5225-8P2T4S offers comprehensive Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. Its protection mechanism also comprises 802.1x Port-based and MAC-based user and device authentication. With the private VLAN function, communication between edge ports can be prevented to ensure user privacy.

Advanced IP Network Protection

The IGS-5225-8P2T4S also provides DHCP Snooping, IP Source Guard and Dynamic ARP Inspection functions to prevent IP snooping from attack and discard ARP packets with invalid MAC address. The network administrators can now construct highly-secure corporate networks with considerably less time and effort than before.

Modbus TCP Provides Flexible Network Connectivity for Factory Automation

With the supported Modbus TCP/IP protocol, the IGS-5225-8P2T4S can easily integrate with SCADA systems, HMI systems and other data acquisition systems in factory floors. It enables administrators to remotely monitor the industrial Ethernet switch’s operating information, port information and communication status, thus easily achieving enhanced monitoring and maintenance of the entire factory.

1588 Time Protocol for Industrial Computing Networks

The IGS-5225-8P2T4S is ideal for telecom and Carrier Ethernet applications, supporting MEF service delivery and timing over packet solutions for IEEE 1588 and synchronous Ethernet.





Flexibility and Extension Solution

The two SFP ports built in the IGS-5225-8P2T4S support multi-speed, 100BASE-FX, 1000BASE-SX/LX and 2500BASE-X SFP (Small Form-factor Pluggable) fiber-optic modules, meaning the administrator now can flexibly choose the suitable SFP transceiver according to not only the transmission distance but also the transmission speed required.

The distance can be extended from 550 meters (multi-mode fiber) to 10/50/70/120 kilometers (single-mode fiber or WDM fiber). They are well suited for applications within the enterprise data centers and distributions.

Intelligent SFP Diagnosis Mechanism

The IGS-5225-8P2T4S supports SFP-DDM (Digital Diagnostic Monitor) function that greatly helps network administrator to easily monitor real-time parameters of the SFP, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.

Industrial Area Department/Workgroup PoE Switch

Providing up to 8 PoE+, in-line power interfaces, the IGS-5225-8P2T4S can easily build a power centrally controlled for IP phone system, IP camera system, or wireless AP group for Industrial network. For instance, 8 PoE IP cameras or wireless access points can be easily installed around the corner in the industrial environment for surveillance demands or for a wireless roaming network. Without the power-socket limitation, the IGS-5225-8P2T4S makes the installation of IP cameras or wireless AP easier and more efficient.





Perfect Integration Solution for IP PoE Camera and NVR System

The IGS-5225-8P2T4S provides eight 10/100/1000BASE-T 802.3at PoE+ ports which can offer sufficient PoE power to 8 PoE IP cameras at the same time. In addition, with the two 100/1G BASE-X SFP ports and two 100/1000/2500BASE-X SFP interfaces, the IGS-5225-8P2T4S can connect to a core fiber switch and send video streams to an NVR and monitoring center. Through the high-performance switch architecture, the IGS-5225-8P2T4S facilitates the recorded video files from the 8 PoE+ IP cameras to be saved in the NVR systems. Furthermore, the NVR systems can be controlled and monitored in both the local LAN and the remote site via Internet. The IGS-5225-8P2T4S undoubtedly brings an ideal secure surveillance system at a lower total cost.

Hardware Specifications

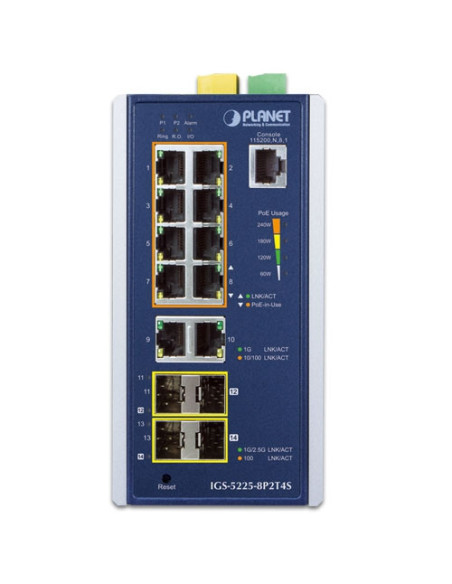

Copper Ports 10 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
SFP Fiber Ports 2 100/1000BASE-X SFP interfaces (Port-11 and Port-12)
2 100/1000/2500BASE-X SFP interfaces (Port-13 and Port-14)
PoE Injector Ports 8 ports with 802.3at/af PoE injector function with Port-1 to Port-8
Console 1 x RJ45-to-RS232 serial port (115200, 8, N, 1)
RAM 128MBytes
Flash Memory 64MBytes
Reset Button < 5 sec: System reboot
> 5 sec: Factory default
ESD Protection 6KV DC
Enclosure IP30 aluminum case
Installation DIN-rail kit and wall-mount kit

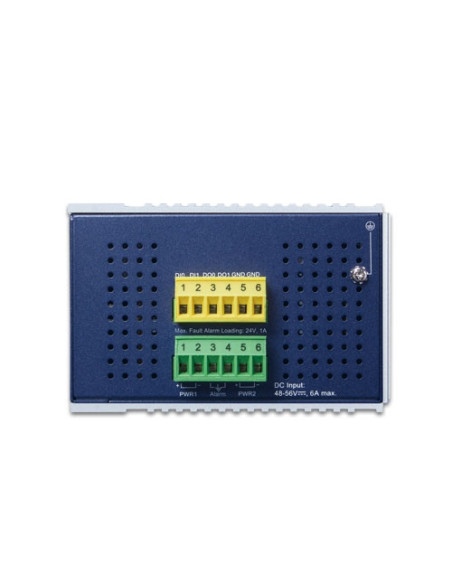

Connector Removable 6-pin terminal block for power input
Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2
Removable 6-pin terminal block for DI/DO interface
Pin 1/2 for DI 1 & 2, Pin 3/4 for DO 1 & 2, Pin 5/6 for GND
Alarm One relay output for power failure. Alarm relay current carry ability: 1A @ 24V DC
Digital Input 2 digital input (DI)
 Level 0: -24V~2.1V (±0.1V)
 Level 1: 2.1V~24V (±0.1V)
 Input load to 24V DC, 10mA max.
Digital Output 2 digital output(DO) Open collector to 24VDC, 100mA max.
Dimensions (W x D x H) 76.8 x 107.3 x 152 mm
Weight 1.1kg
Power Requirements Dual 48~56V DC (>51V DC for PoE+ output recommended)
Power Consumption Max. 7W/23.88 BTU (Power on)
Max. 262W/893.98 BTU(Full Loading)
LED Indicator System:
 Power 1 (Green)
 Power 2 (Green)
 Fault Alarm (Red)
 Ring (Green)
 Ring Owner (Green)
 DIDO (Red)
Per 10/100/1000T RJ45 PoE+ Ports:
 PoE-in-Use (Amber)
 LNK/ACT (Green)
Per 10/100/1000T RJ45 Ports:
 1000 LNK/ACT (Green)
 100 LNK/ACT (Amber)
Per SFP Interface:
 100 LNK/ACT (Amber)
 1G/2.5G LNK/ACT (Green)
Switching
Switch Architecture Store-and-Forward
Switch Fabric 34Gbps/non-blocking
Throughput (packet per second) 25.30Mpps@ 64 bytes packet
Address Table 8K entries, automatic source address learning and aging
Shared Data Buffer 4Mbits
Flow Control IEEE 802.3x pause frame for full duplex
Back pressure for half duplex
Jumbo Frame 9Kbytes
Power Over Ethernet
PoE Standard IEEE 802.3at Power over Ethernet Plus/PSE
Backward compatible with 802.3af Power over Ethernet
PoE Power Supply Type End-span
PoE Power Output IEEE 802.3af Standard
 Per port 48V~51V DC (depending on the power supply), max. 15.4 watts
IEEE 802.3at Standard
 Per port 52V~56V DC (depending on the power supply), max. 36 watts
Power Pin Assignment 1/2(+), 3/6(-)
PoE Power Budget 48V Power input
 125W maximum (depending on power input)
52~56V Power input
 240W maximum (depending on power input)
Max. Number of Class 2 PDs 8
Max. Number of Class 3 PDs 8
Max. Number of Class 4 PDs 8
PoE Management Functions
Active PoE device alive detection Yes
PoE Power Recycling Yes, daily or predeinded schedule
PoE Schedule 4 schedule profiles
PoE Extend Mode Yes, max. 160 to 200 meters
PoE System Management System PoE Admin control
Total PoE power budget control
PoE Legacy mode
Over-temperature threshold alarm
PoE usage threshold alarm
PoE Port Management Port Enable/Disable/Schedule
Port Priority
Layer 3Functions
IP Interfaces Max. 8 VLAN interfaces
Routing Table Max. 32 routing entries
Routing Protocols IPv4 software static routing
IPv6 software static routing
Layer 2 Functions
Port Configuration Port disable/enable
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
Flow control disable/enable
Power saving mode control
Port Status Display each port’s speed duplex mode, link status, flow control status,
auto negotiation status, trunk status
Port Mirroring TX / RX / Both
Many-to-1 monitor
VLAN IEEE 802.1Q tag-based VLAN
IEEE 802.1ad Q-in-Q tunneling
Private VLAN Edge (PVE)
MAC-based VLAN
Protocol-based VLAN
VLAN Translation
Voice VLAN
MVR (Multicast VLAN Registration)
GVRP
Up to 4k VLAN groups, out of 4094 VLAN IDs
Link Aggregation IEEE 802.3ad LACP/static trunk
Supports 6 trunk groups with 4 ports per trunk group
Spanning Tree Protocol IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IGMP Snooping IPv4 IGMP (v1/v2/v3) snooping
IPv4 IGMP querier mode support
Up to 255 multicast groups
MLD Snooping IPv6 MLD (v1/v2) snooping
IPv6 MLD querier mode support
Up to 255 multicast groups
Bandwidth Control Per port bandwidth control
 Ingress: 500Kb~1000Mbps
 Egress: 500Kb~1000Mbps
RING Supports ERPS, and complies with ITU-T G.8032
Recovery time < 10ms
Synchronization IEEE 1588v2 PTP(Precision Time Protocol)
 Peer-to-peer transparent clock
 End-to-end transparent clock
QoS Traffic classification based, strict priority and WRR
8-level priority for switching
 Port number
 802.1p priority
 802.1Q VLAN tag
 DSCP/TOS field in IP packet
Security Functions
Access Control List IP-based ACL/MAC-based ACL
ACL based on:
 MAC Address
 IP Address
 Ethertype
 Protocol Type
 VLAN ID
 DSCP
 802.1p Priority
Up to 256 entries
Security Port Security
IP source guard
Dynamic ARP inspection
Command line authority control based on user level
AAA RADIUS client
TACACS+ client
Network Access Control IEEE 802.1x port-based network access control
MAC-based authentication
Local/RADIUS authentication
Switch Management
Basic Management Interfaces Console;Telnet; Web browser; SNMP v1, v2c
Secure Management Interfaces SSHv2, TLS v1.2, SNMPv3
System Management Firmware upgrade by HTTP protocol through Ethernet network
Configuration upload/download through HTTP
Remote syslog
System log
LLDP protocol
NTP
PLANET Smart Discovery Utility
Event Management Remote syslog
Local system log
SMTP
ONVIF ONVIF device discovery
ONVIF device monitoring
Floor Map
SNMP MIBs RFC1213 MIB-II
RFC 2863 IF-MIB
RFC1493 Bridge MIB
RFC1643 Ethernet MIB
RFC2863 Interface MIB
RFC2665 Ether-Like MIB
RFC2737 Entity MIB
RFC2819 RMON MIB (Groups 1, 2, 3 and 9)
RFC2618 RADIUS Client MIB
RFC3411SNMP-Frameworks-MIB
IEEE802.1X PAE
LLDP
MAU-MIB
Power over Ethernet MIB
Standards Conformance
Regulatory Compliance FCC Part 15 Class A, CE
Stability Testing IEC60068-2-32 (free fall)
IEC60068-2-27 (shock)
IEC60068-2-6 (vibration)
Standards Compliance IEEE802.3 10BASE-T
IEEE802.3u 100BASE-TX/100BASE-FX
IEEE802.3z Gigabit SX/LX
IEEE 802.3ab Gigabit 1000T
IEEE802.3x flow control and back pressure
IEEE802.3ad port trunk with LACP
IEEE802.1D Spanning Tree Protocol
IEEE802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE802.1p Class of Service
IEEE802.1Q VLAN tagging
IEEE 802.1ad Q-in-Q VLAN stacking
IEEE 802.1X Port Authentication Network Control
IEEE 802.1ab LLDP
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3ah OAM
IEEE 1588 PTPv2
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
RFC 3376 IGMP version 3
RFC 2710 MLD version 1
RFC 3810 MLD version 2
ITU-T G.8032 ERPS Ring
Environment
Operating Temperature -40 ~ 75 degrees C
Storage Temperature -40 ~ 85 degrees C
Humidity 5 ~ 95% (non-condensing)

Device Type
Network Switch
Device Features
Industrial
Power Input
DC
Installation Type
DIN-rail
Wall-mount
Ports
10 10/100/1000TX Shared 8 802.3at PoE + 2 100/1000X SFP + 2 100/1000/2500X SFP
Type
Managed
Operating Temperature
-40 to 75° C
Throughput
25.30Mpps @ 64Bytes
Supports
IEEE 1588v2 Transparency, ERPS Ring, DIDO, Modbus
Switch Fabric
34Gbps / non-blocking
Max. Power Consumption
7W/23.88BTU (Power on), 262W/893.98BTU (full loading)
