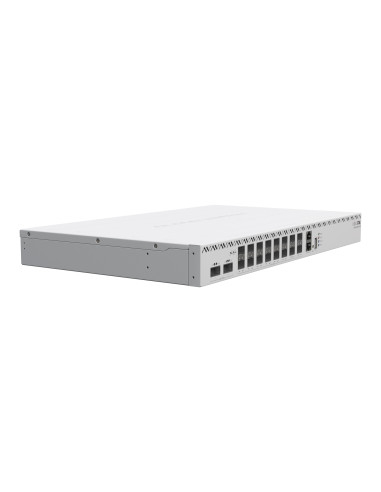

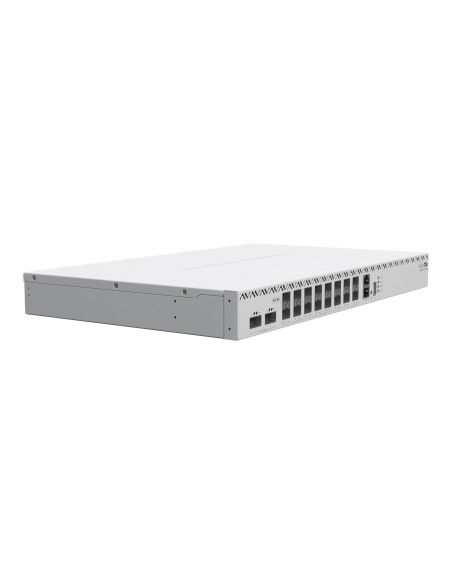

MikroTik CRS518-16XS-2XQ-RM Marvell Prestera Aldrin2 2xQSFP28 16xSFP28 100G Hot-swappable L3 Enterprise Switch

CRS518-16XS-2XQ-RM
Available Early August!
$2,299.00
Tax included

CRS518-16XS-2XQ-RM

A 100 Gigabit switch for enterprise networks and data centers. Hot-swappable parts and insane port density with 1.2 Tbps switching capacity!

Quantity Unit price You Save
5 $2,131.17 $839.14


CRS518-16XS-2XQ-RM - MikroTik Marvell Prestera Aldrin2 2xQSFP28 16xSFP28 100G Hot-swappable L3 Enterprise Switch

As our 100 Gigabit product family grows, the time has come to introduce a serious enterprise-level switch. A switch that is up for the challenge when the CRS504 port density is just not enough. Introducing the spectacular CRS518-16XS-2XQ!

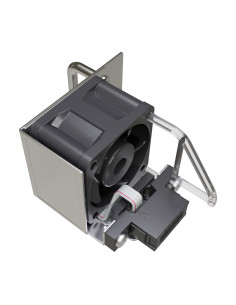

With 2x 100 Gigabit QSFP28 ports and 16x 25 Gigabit SFP28 ports, this is the perfect cost-effective addition to any enterprise network or data center. And with dual-redundant hot-swappable power supplies and fans, you won’t have to worry about unnecessary downtime.

Here’s a real-life setup – similar to the one we’re using in our office:

At the top, you could place two flagship CCR2216 routers to provide the main connectivity and routing. Then a blazing-fast 100 Gigabit connection leads to three CRS518 distribution level switches. This is where all the magic happens. The CRS518 switches connect every access level device to the main network, deal with traffic filtering, and network policy enforcement. And they handle all that with grace and dignity – thanks to the fantastic Marvell Prestera Aldrin2 switch-chip. The same chip you’ve seen in our flagship CCR2216 that did wonders with L3 Hardware Offloading.

The 25-gigabit ports are backward compatible with 10 Gigabit and 1 Gigabit SFP devices. Mix and match as you need!

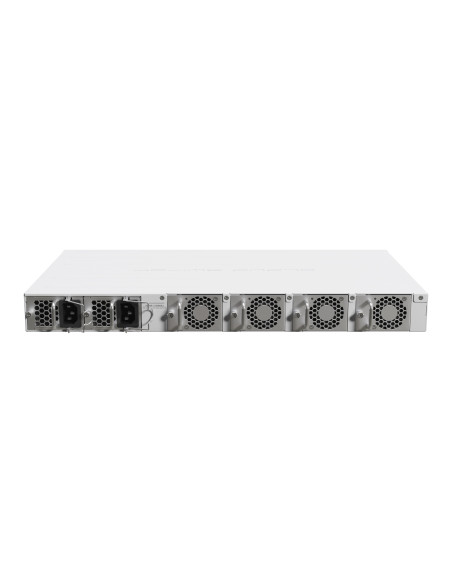

The two hot-swap power supplies support a high input voltage range: 100-240V. The board itself uses up to 45W of power, while the total maximum power consumption goes up to 77W with all the attachments. It can be a bit more power-hungry than the CRS504, but you would be too if you had 16x 25-Gigabit ports, wouldn’t you?

Our 100 Gigabit product family keeps growing: switches, routers, cables, and QSFP28 modules. If you want real speed and ultimate flexibility for the best price on the market – you want MikroTik!

Nothing can stop this switch: it supports VLAN (802.1Q, 802.1ad), L3 hardware offloaded routing, ACL, LACP, MLAG, Jumbo frames, IGMP/MLD snooping, and so on. Keep your RouterOS up to date and enjoy the real power of CRS!

Specifications

Details
Product code CRS518-16XS-2XQ-RM
Architecture MIPSBE
CPU QCA9531
CPU core count 1
CPU nominal frequency 650 MHz
RouterOS license 6
Operating System RouterOS
Size of RAM 64 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -40°C to 70°C

Powering

Details
Number of AC inputs 2
AC input range 100-240
Frequency (Hz) 47-63
Max power consumption 77 W
Max power consumption without attachments 45 W
Cooling type 4 fans

Ethernet

Details
10/100 Ethernet ports 1

Fiber

Details
Number of 25G SFP28 ports 16
Number of 100G QSFP28 ports 2

Peripherals

Details
Serial console port RJ45
Number of USB ports 1
USB slot type USB type A
Max USB current (A) 1

Other

Details
CPU temperature monitor Yes
PCB temperature monitor Yes
Voltage Monitor Yes

Certification & Approvals

Details
Certification CE, EAC, ROHS
IP 20
Device Type
Network Switch
SFP Ports
16
Power Input
AC
SFP
Yes, 100G QSFP28, Yes, 25G SFP28
Environment Temperature
-40℃~75℃
QSFP Ports
2
