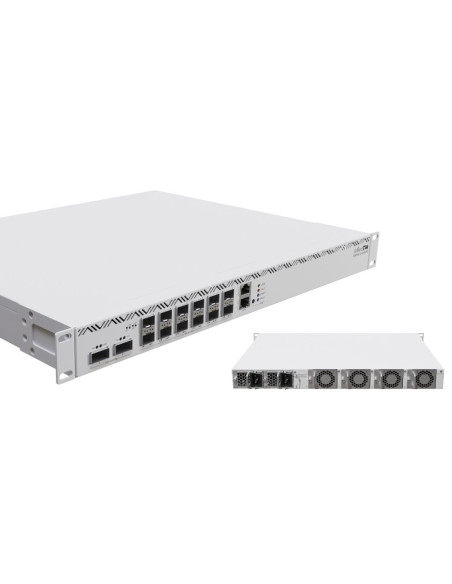

MikroTik CCR2216-1G-12XS-2XQ 2x100G QSFP28 12x25G SFP28 16-CORE 2GHz Arm CPU 16GB DDR4 RAM M.2 1G Ethernet port Rackmount Router
Unleash the power of 100 Gigabit networking with L3 Hardware Offloading!
This is the perfect drop-in upgrade for CCR1072 users: you can keep using your SFP modules and PSU’s!
Start your 100 Gigabit journey with our new flagship product: the Cloud Core Router 2216! Its powerful 16-core CPU can trade blows with the mighty 72-core Tile CPU of our previous flagship - the CCR1072.
But the exceptional Marvell Prestera Aldrin2 switch-chip really takes it to the next level with L3 Hardware Offloading! Previous CCR2116 featured a switch-chip with four 10G CPU connection lines, but this time there are four 25G lines!
Power Supply Options
CCR2216-1G-12XS-2XQ - MikroTik 2x100G QSFP28 12x25G SFP28 16-CORE 2GHz Arm CPU 16GB DDR4 RAM 2xM.2 1x1G Ethernet port Rackmount Router
There are 2x QSFP28 cages for blazing-fast 100 Gigabit connectivity, 12x SFP28 cages for 25 Gigabit networking, and a Gigabit Ethernet port. The device comes with 16 GB of RAM, decent NAND storage, and two M.2 SATA slots for additional storage. There are four hot-swappable fans, as well as dual-redundant hot-swap power supplies. And these PSUs might look familiar if you have used our CCR1072 before: you can keep using your previous hot-swap power supplies and SFP modules.
You’re saving time and money on accessories, while also getting better performance with lower power consumption. This is the perfect drop-in upgrade for existing CCR1072 setups!
- Millions of Packets per second with L3HW offloading
- Powerful Amazon ANNAPURNA Labs ARMV8 16-CORE CPU
- Marvell Prestera ALDRIN2 DX8525
- Gigabit Ethernet
- 12x 25 Gigabit SFP28
- 2X 100 Gigabit QSFP28
- Dual-Redundant Hot-Swap 150W PSU'S
- 16 GB RAM
- 2X M.2 SATA
- Lower Power Consumption than the previous flagship
|CPU||AL73400 2 GHz|
|CPU architecture||ARM 64bit|
|CPU core count||16|
|Size of RAM||16 GB|
|Storage||128 MB, NAND|
|Number of 1G Ethernet ports||1|
|Number of 25G SFP28 ports||12|
|Number of 100G QSFP28 ports||2|
|Number of M.2 slots||2|
|Operating system||RouterOS (License level 6)|
|Switch chip model||98DX8525|
|Switch connection to CPU||4x25 Gbps|
|Dimensions||443 x 367 x 44 mm|
|Operating temperature||-20°C to +60°C|
|Number of AC inputs||2|
|AC Input range||100-240 V|
|Power adapter nominal voltage||12 V|
|Power adapter nominal current||12.5 A|
|Max power consumption (without attachments)||80 W|
|Max power consumption||121 W|
- Device Type
- Device Features
- SFP Ports
- Power Input
- Yes, 25G SFP28
Yes, 100G QSFP28
- Ethernet Ports
- Routing / Switching
- Layer 3 Advanced
- QSFP Ports
