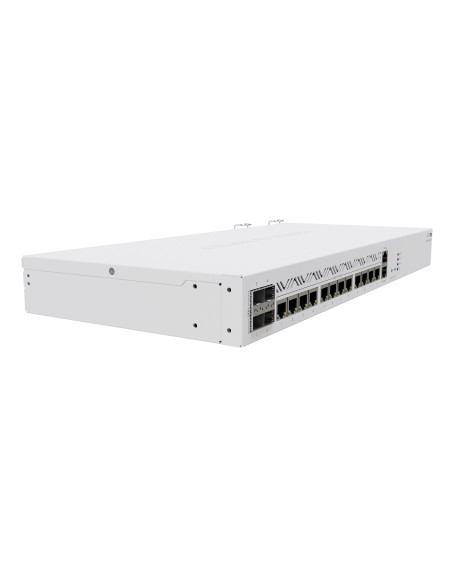

MikroTik CCR2116-12G-4S+ 4x10G SFP+ 16-CORE 2GHz Arm CPU 16GB DDR4 RAM M.2 13 Ethernet ports Rackmount Router
Forget about CPU limitations in 10G setups with this powerful 16-core ARM CPU based CCR. Double the performance of our previous 36- core CCR, 6x faster BGP performance. Includes an M.2 PCIe slot.
CCR2116-12G-4S+ - MikroTik 4x10G SFP+ 16-CORE 2GHz Arm CPU 16GB DDR4 RAM M.2 13 Ethernet ports Rackmount Router
We wanted to see the full potential of the good, old, reliable 10G networking combined with a modern CPU. allows you to forget about CPU limitations in your setup. Like its younger brother – the amazing CCR2004, this router features the mighty Amazon Annapurna Labs Alpine CPU.
But with 16 cores running at 2 GHz, this CCR eats the other one for breakfast. For example, we see at least a 15% increase in single-core performance. And that is the most important aspect when it comes to heavy operations based on per-connection processing. Like queues, for example. CCR2116-12G-4S+ sets a new standard of single-core performance in the whole CCR product family! And it supports Layer 3 Hardware Offloading!
Obviously, you need the right connectivity to harness this power. There are four 10G SFP+ ports. They have a separate, full-duplex line connected to the Marvell Aldrin family switch chip. Then we have Gigabit Ethernet ports. 12 of them are running through the Marvel chip. And there is another Gigabit port connected directly to the CPU. For management purposes.
Each group of 4 ports has a separate full-duplex connection to the switch chip. No bottlenecks here. You can expect switch-like throughput in most setups. The new generation of processors offers mind-blowing performance. If we look at the CCR1036 - the powerhouse with a 36 core CPU, the new CCR2116 can easily double the performance. 16 cores vs 36 cores. Double the performance. Or even more.

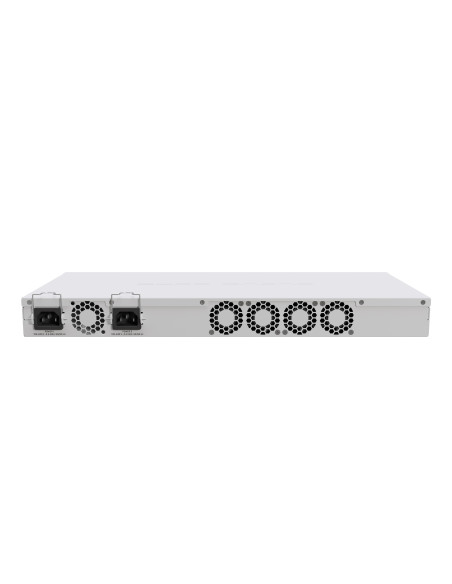

If you are a rather large ISP, dealing with dynamic routing, massive BGPs, complex firewall rules, and intricate quality of service configurations..This is the right device for you. Combination of raw power and utility with the reliable 10G networking. And yes, like with any ISP-level device, we’ve included a dual-redundant power supply. So you have one less thing to worry about.
CCR2116-12G-4S+: technology tested by time, built for the future.
|CPU core count||16|
|CPU nominal frequency||2000 MHz|
|Size of RAM||16 GB|
|Storage size||128 MB|
|MTBF||Approximately 200'000 hours at 25C|
|Tested ambient temperature||-20°C to 60°C|
|Number of AC inputs||2|
|AC input range||100-240|
|Max power consumption||72 W|
|Max power consumption without attachments||60 W|
|10/100/1000 Ethernet ports||13|
|Serial console port||RJ45|
|Number of M.2 slots||1|
|CPU temperature monitor||Yes|
|PCB temperature monitor||Yes|
|Certification & Approvals|
|Certification||CE, EAC, ROHS|
- Device Type
- Device Features
- SFP+ Ports
- Power Input
- Yes, 10G SFP+
- Ethernet Ports
- Environment Temperature
- Routing / Switching
- Layer 3 Advanced
