CCR1016-12S-1S+
Last items in stock
$1,428.90
Tax included

CCR1016-12S-1S+

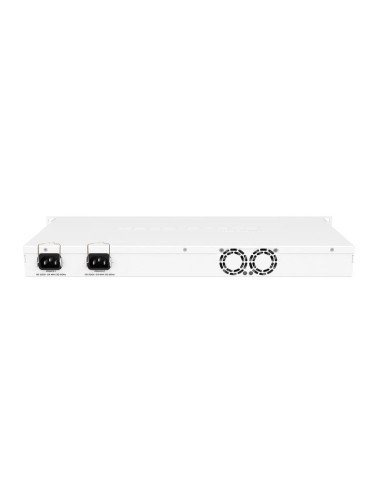

The CCR1016-12S-1S+ from MikroTik is an industrial-grade cloud router powered by a sixteen core 1.2GHz processor and 2GB RAM. This CCR1016 model comes in a 1U rackmount enclosure with dual power supplies and features (12) SFP ports, (1) SFP+ port (supports only 10G SFP+ modules), (1) microSD card slot, (1) microUSB type AB port, (1) RS232 Serial port, and an LCD panel for easy configuration.

The MikroTik cloud core router series is powered by RouterOS, a full-featured routing operating system with features such as dynamic routing, hotspot, firewall, MPLS, VPN, advanced quality of service, load balancing and bonding, real-time configuration, monitoring, and more. This product comes with a Level 6 RouterOS license.

Note: This product does not include fibre modules. If you need SFP transceivers, select an option from the drop down menu or make sure to add them to your cart separately. For more information about MikroTik SFP transceivers, refer to the MikroTik compatibility table.

Please navigate to individual product pages to purchase different models or quantities of Ethernet Patch Cables and SFP Transceivers than the options provided. Give us a call if you have any questions about device compatibility.

Quantity Unit price You Save
5 $1,281.72 $735.88

Related Products & Accessories



CCR1016-12S-1S+ - MikroTik CCR1016 12x 1G SFP + 1x 10G SFP+ Industrial Rackmount Router

Technical Specifications:

  • Product code: CCR1016-12S-1S+

  • CPU nominal frequency: 1.2 GHz

  • CPU core count: 16

  • Size of RAM: 2 GB

  • Architecture: TILE

  • 10/100 Ethernet ports: None

  • 10/100/1000 Ethernet ports: None

  • MiniPCI slots: 0

  • MiniPCI-e slots: 0

  • Number of USB ports: 1

  • Power Jack: 2x IEC C14

  • 802.3af support: No

  • PoE: No

  • Voltage Monitor: Yes

  • PCB temperature monitor: No

  • CPU temperature monitor: Yes

  • Operating System RouterOS: v6

  • Operating temperature range: Max ambient temperature 50° @ 1.2GHz; 70° @ 1GHz CPU core frequency

  • License level: L6

  • Current Monitor: Yes

  • CPU: TLR4-01680CG-12CE-A3

  • Max Power consumption: 44W (with loaded SFP)

  • SFP ports: 12

  • SFP+ ports: 1

  • USB slot type: microUSB type AB

Device Type
Router
SFP Ports
12 Ports
SFP+ Ports
1
USB slot
USB type A
4752224001955
CCR1016-12S-1S+
