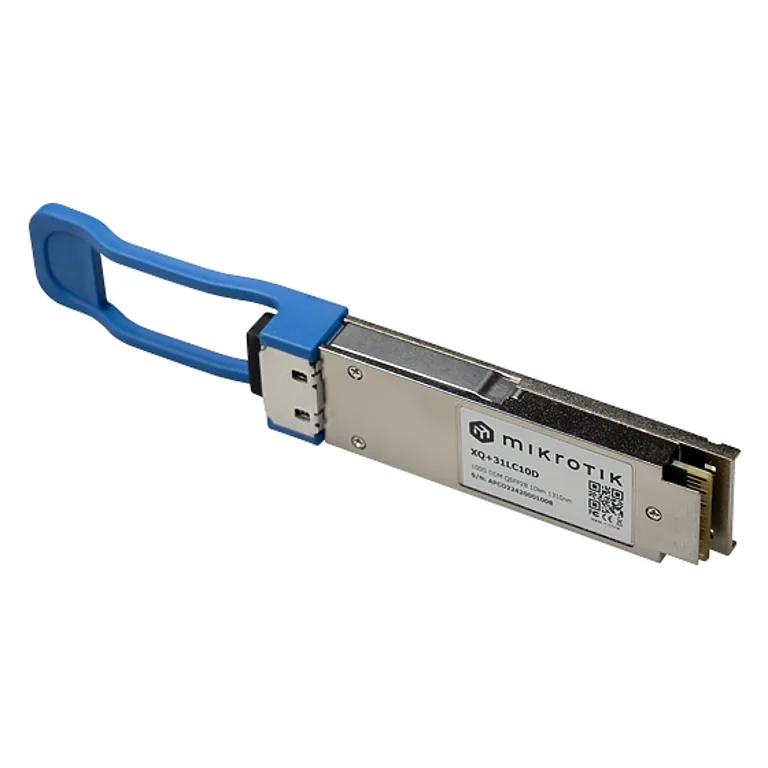

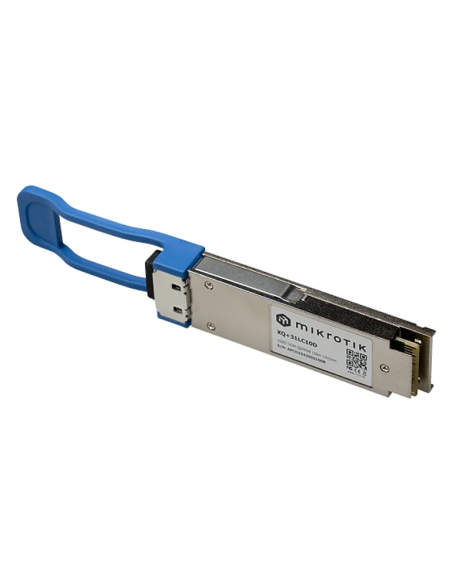

MikroTik XQ+31LC10D 100G QSFP28 Optical Transceiver 10km SMF LC
MikroTik XQ+31LC10D 100G QSFP28 Optical Transceiver 10km SMF LC

MikroTik XQ+31LC10D 100G QSFP28 Optical Transceiver 10km SMF LC

XQ+31LC10D
In Stock
$537.90
Tax included

XQ+31LC10D

The MikroTik XQ+31LC10D is a 100 Gbps QSFP module designed for distances up to 10 kilometers. It enables high-speed connectivity for MikroTik routers like the CCR2216, CRS504, and CRS518. The module features four independent 25 Gbps full-duplex channels and built-in digital diagnostic capabilities for monitoring performance parameters.

Key Features

  • ✓100 Gbps aggregate bandwidth with four 25 Gbps channels
  • ✓Supports distances up to 10 kilometers
  • ✓Digital diagnostics (DDM) for optical power, temperature, and laser bias current
  • ✓Compatible with MikroTik CCR2216, CRS504, and CRS518

  • ✓Dual LC connector


Quantity Unit price You Save
2 $511.01 $53.79
5 $476.04 $309.29
10 $465.28 $726.17
15 $459.90 $1,169.93
20 $454.53 $1,667.49

Related Products & Accessories



XQ+31LC10D 100G QSFP28 Optical Transceiver 10km SMF LC

The MikroTik XQ+31LC10D is a 100G QSFP28 optical module designed for high-speed connectivity over distances of up to 10 km using single-mode fiber. It features four independent full-duplex channels, each supporting up to 25 Gbps, delivering an aggregate bandwidth of 100 Gbps.

The module includes digital diagnostic monitoring (DDM) for real-time tracking of optical power, temperature, supply voltage, and laser bias current. It is compatible with MikroTik devices such as the CCR2216, CRS504, and CRS518, ensuring seamless integration into high-performance network deployments.

Technical Specifications

Specification Value
Product Name XQ+31LC10D
Data Rate 100 Gbps
Distance 10 kilometers
Connector Dual LC UPC
Compatibility CCR2216, CRS504, CRS518
Format QSFP28
Mode SM
Wavelength 1296nm, 1300nm, 1305nm, 1309nm
MTBF Approximately 200'000 hours at 25C
XQ+31LC10D
