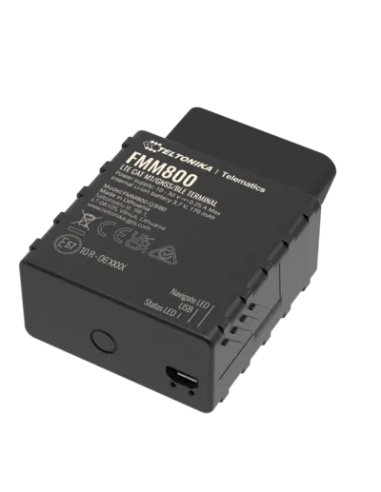

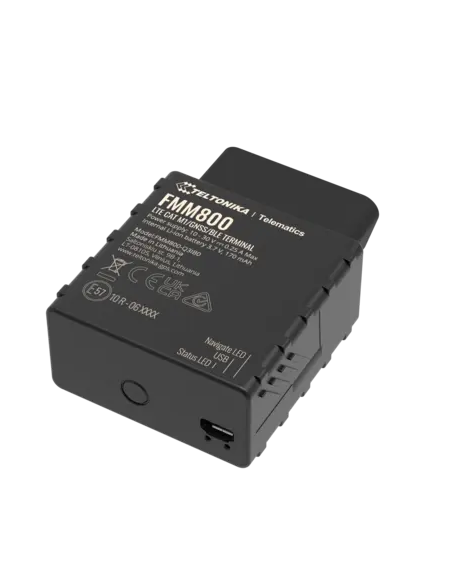

Teltonika FMM800 Plug & Play tracker with 4G LTE Cat M1 connectivity

FMM800
*** Out of stock ATM, Available On Backorder ***
$128.70
Tax included

FMM800 Plug & Play tracker with 4G LTE Cat M1 connectivity

key features:

Future-proof network support

Global network coverage for a wider range of markets and projects

OBD port connector

Hassle-free wireless device installation to save company resources and preserve vehicle warranty

Crash detection

Built-in accelerometer ensures accurate crash trace data for evaluation , evidence, and prompt emergency calls

Quantity Unit price You Save
5 $115.83 $64.35
10 $109.40 $193.05
20 $99.10 $592.02

Related Products & Accessories



FMM800 Plug & Play tracker with 4G LTE Cat M1 connectivity

Effortless Plug & Play installation

Simply plug the device in OBD-II port and start tracking

Eco driving scenario for all-round better driving

Achieve efficient fuel consumption, prolong vehicle life and increase road safety with eco driving scenario

Accurate and detailed crash trace data

Crash detection functionality based on 3-axis built-in accelerometer with fully configurable parameters through our software to ensure accurate crash trace data
Extended product usage scenarios

Bluetooth® LE-based wireless connection of external devices, including Low Energy beacons and sensors, to monitor temperature, humidity, magnet detection, and movement

Product Specifications

Category Specification
Module
Name FMM800-Q3IB0: Quectel BG95-M3 with Teltonika TM2500
Technology LTE CAT M1/NB-IoT/GSM/GPRS/GNSS/BLUETOOTH® LE
GNSS
GNSS Bands GPS, GLONASS, GALILEO, BEIDOU, QZSS, AGPS
Receiver 33 channel
Tracking Sensitivity -165 dBM
Position Accuracy < 2.5 m CEP
Velocity Accuracy < 0.1 m/s (within +/- 15% error)
Hot Start < 1 s
Warm Start < 25 s
Cold Start < 35 s
Cellular
2G Bands FMM800-Q3IB0: GSM: B2/B3/B5/B8
4G LTE Cat M1 Bands LTE-FDD (CAT M1): B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B27/B28/B66/B85
4G LTE Cat NB2 Bands LTE-FDD (CAT NB2): B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B28/B66/B71/B85
Data Transfer LTE (CAT-M1): Max. 588 Kbps (DL)/Max. 1119 Kbps (UL)
LTE (CAT-NB2): Max. 127 Kbps (DL)/Max. 158.5 Kbps (UL)
GSM (GPRS): Max. 107 Kbps (DL)/Max. 85.6 Kbps (UL)
Data Support SMS (TEXT, PDU), TCP, UDP, TLS, MQTT
Power
Input Voltage Range 10 - 30 V DC with overvoltage protection
Internal Backup Battery 170 mAh Li-Ion battery, 3.7 V (0.63 Wh)
Internal Fuse 3A, 125V
Bluetooth® Technology
Specification 4.0 + LE
Supported Peripherals Temperature and Humidity sensor, Inateck Barcode Scanner, Universal Bluetooth® LE sensors
Physical Specification
Dimensions 67.2 x 49.6 x 25 mm
Weight 63 g
Operating Environment
Operating Temperature (without battery) -40 °C to +85 °C
Storage Temperature (without battery) -40 °C to +85 °C
Operating Humidity 5% to 95% non-condensing
Ingress Protection Rating IP41
Battery Charge Temperature 0 °C to +45 °C
Battery Discharge Temperature -20 °C to +60 °C
Battery Storage Temperature -20 °C to +45 °C for 1 month
-20 °C to +35 °C for 6 months
Interface
Connection OBDII Socket
GNSS Antenna Internal High Gain
Cellular Antenna Internal High Gain
USB 2.0 Micro-USB
LED Indication 2 status LED lights
SIM Micro-SIM
Memory 128MB internal flash memory
Features
Sensors Accelerometer
Scenarios Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, Excessive Idling detection, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip
Sleep Modes GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
Configuration and Firmware Update FOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth® wireless technology)
SMS Configuration, Events, Debug
GPRS Commands Configuration, Debug
Time Synchronization GNSS, NITZ, NTP
Ignition Detection Accelerometer, External Power Voltage
Certification & Approvals FMM800-Q3IB0: CE / RED, UKCA, E-Mark, RCM, Anatel, RoHS, REACH, Declaration of IMEI assignment
Device Type
Tracker
Antenna
Internal GNSS
Connectivity
2G Bands
4G LTE bands
Bluetooth
4.0+LE
SIM Card
Micro-Sim
Ingress Protection
IP41
Battery capacity
170 mAH Li-ion 3.7V
Memory
128MB internal flash memory
Driving behavior
Crash detection
Eco/Green Driving
Excessive Idling detection
Over Speeding detection
Trip
Vehicle protection
Auto Geofence
GSM Jamming detection
Manual Geofence
Towing Detection
Unplug detection
4779027310541
FMM800
