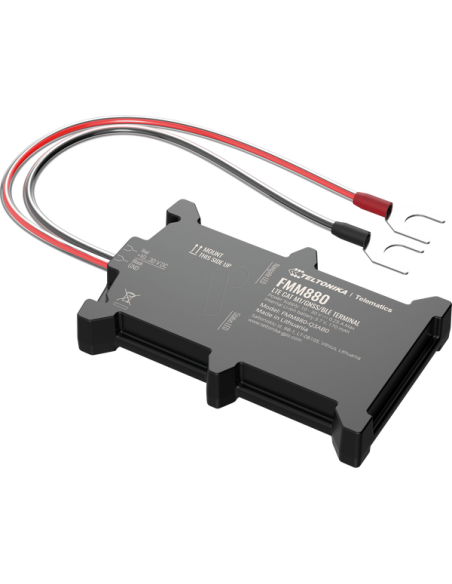

Teltonika FMM880 Water-resistant high GNSS precision battery-mounted 4G LTE Cat M1 tracke

FMM880
*** Out of stock ATM, Available On Backorder ***
$131.67
Tax included

FMM880

Water-resistant high GNSS precision battery-mounted 4G LTE Cat M1 tracke

The Teltonika FMC880 is a versatile and advanced vehicle tracking device . Support both LTE Cat M1 and NB LoT connectivity

key features:

Improved GNSS tracking accuracy

Standalone L1 and L5 dual-band GNSS receiver ensures better track quality and quick time to first fix

Fast installation

Virtually anyone can mount the device in 5 minutes or less directly on car battery

Compact and robust casing

IP65- rated casing is designed to withstand poor weather conditions

Quantity Unit price You Save
5 $118.50 $65.84
10 $111.92 $197.51
20 $101.39 $605.68

Related Products & Accessories



FMM880

Water-resistant high GNSS precision battery-mounted 4G LTE Cat M1 tracke

Improved GNSS tracking accuracy

Standalone L1 and L5 dual-band GNSS receiver ensures better track quality and quick time to first fix

Fast Installation

With U-type cable, virtually anyone can mount the device in 5 minutes or less directly on a car battery

Robust casing

IP65-rated casing is designed to withstand poor weather conditions
Extended product usage scenarios

Bluetooth® LE-based wireless connection of external devices, including Low Energy beacons and sensors, to monitor temperature, humidity, magnet detection, and movement

Product Specifications

Category Specification
Product
Model name FMM880-Q3AB0
Module Quectel BG95-M3 with AG3335
Technology
Cellular LTE CAT M1/GSM/GPRS
GNSS GNSS
Bluetooth® Bluetooth® LE
GNSS
GNSS Bands L1: GPS, GLONASS, GALILEO, BEIDOU, SBAS*, QZSS*
L5: GPS, GALILEO, BEIDOU
GNSS Receiver L1: 75 acquisition/tracking channels
L5: 60 tracking channels
Tracking Sensitivity -165 dBM
Position Accuracy < 1.8 m CEP
Velocity Accuracy < 0.1 m/s (within +/- 15% error)
Hot Start < 1 s
Warm Start < 25 s
Cold Start < 35 s
Cellular
2G Bands GSM: B2/B3/B5/B8
4G LTE Cat M1 Bands LTE FDD (CAT M1): B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B27/B28/B66/B85
LTE-TDD (CAT NB2): B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B28/B66/B71/B85
Data Transfer LTE FDD (CAT M1): Max. 588 Kbps (DL) / Max. 1119 Kbps (UL)
LTE TDD (CAT NB2): Max. 127 Kbps (DL) / Max. 158.5 Kbps (UL)
GSM (GPRS): Max. 107 Kbps (DL) / Max. 85.6 Kbps (UL)
Transmit Power GSM850/900: 33±2dBm
GSM1800/1900: 30±2dBm
LTE-TDD: 20±2dBm
LTE-FDD: 20±2dBm
Bluetooth 4.57±2dBM
Bluetooth LE -4.83±2dBM
Data Support SMS (TEXT, PDU), TCP, UDP, TLS, EGTS, MQTT
Power
Input Voltage Range 10 - 30 V DC with overvoltage protection
Internal Backup Battery 170 mAh Li-Ion battery 3.7 V
Internal Fuse 3A, 125V
Bluetooth® Technology
Specification 4.0 + LE
Supported Peripherals Temperature and Humidity sensor, OBDII dongle, Inateck Barcode Scanner, Universal Bluetooth® LE sensors
Physical Specification
Dimensions 92.5 x 57.6 x 14 mm
Weight 63 g
Operating Environment
Temperature (No Battery) Operating: -40 °C to +85 °C
Storage: -40 °C to +85 °C
Temperature (With Battery) Operating: 0 °C to +40 °C
Storage: -20 °C to +45 °C
Operating Humidity 5% to 95% non-condensing
Ingress Protection Rating IP65
Battery Charge Temperature 0 °C to +45 °C
Battery Discharge Temperature -20 °C to +60 °C
Battery Storage Temperature -20 °C to +45 °C for 1 month
-20 °C to +35 °C for 6 months
Interface
Connection U-Type cable
GNSS Antenna Internal High Gain
Cellular Antenna Internal High Gain
USB 2.0 USB Micro B
LED Indication 2 status LED lights
SIM Micro-SIM
Memory 128MB internal flash memory
Features
Sensors Accelerometer
Scenarios Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, Excessive Idling detection, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip
Sleep Modes GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
Configuration and Firmware Update FOTA Web, Teltonika Configurator (USB, Bluetooth® wireless technology)
Device Type
Tracker
Antenna
Internal GNSS
Connectivity
2G Bands
4G LTE bands
Bluetooth
4.0+LE
SIM Card
Micro-Sim
Ingress Protection
IP65
Battery capacity
170 mAH Li-ion 3.7V
Memory
128MB internal flash memory
Driving behavior
Crash detection
Eco/Green Driving
Excessive Idling detection
Over Speeding detection
Trip
Vehicle protection
Auto Geofence
GSM Jamming detection
Manual Geofence
Towing Detection
Unplug detection
FMM880
