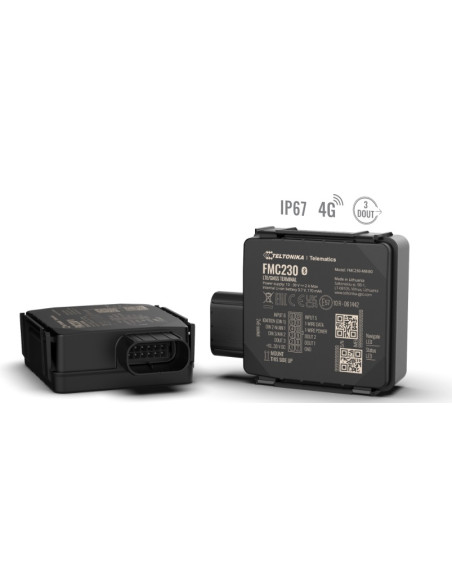

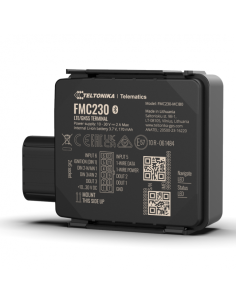

Teltonika FMC230 Water-resistant realible 4G (LTE Cat 1) connection with fallback to 2G (GSM) network

FMC230
*** Out of stock ATM, Available On Backorder ***
$123.20
Tax included

FMC230

Water-resistant 4G LTE Cat 1 tracker with flexible inputs


FMC230 is WATER and DUST resistant real-time tracking terminal with 4G (LTE Cat 1) network coverage including 2G (GSM) fallback compatibility. It comes equipped with internal GNSS, LTE antennas, configurable digital, analog, negative and impulse inputs, three DOUT outputs, Bluetooth® connectivity, and backup battery. The device has an integrated possibility to enable Impulse Input for precise fuel flow meter data reading. Impulse based fuel usage monitoring is much more accurate than a different type of fuel metering sensors and it makes the FMC230 a perfect solution for high fuel usage machines like cranes, construction vehicles, mining machines, agriculture equipment. Additionally, FMC230 device has IP67 certified casing which provides a total protection against dust and resistance to water in a depth of up to 1 meter for at least 30 minutes. As a result, FMC230 can be used in agriculture, construction and mining or any other fleet where harsh tracking conditions exists.

Key features:

Future-proof network support

Reliable 4G LTE Cat 1 network coverage with fallback to 2G – guaranteed future-proof network support for your fleet

No additional tools needed

Innovative click-type two-phase closing with no additional tools needed

Different cable options

Standard and U-type cable options avaliable to ensure easy and fast installation

Quantity Unit price You Save
5 $110.88 $61.60
10 $104.72 $184.80
20 $94.86 $566.72

Related Products & Accessories



FMC230

Water-resistant 4G LTE Cat 1 tracker with flexible inputs
Protection against dust and water

Robust IP67-rated casing provides trusted protection against dust and resistance to water
No additional tools needed

Innovative click-type two-phase closing with no additional tools needed
Different cable options

Standard and U-type cable options available to ensure easy and fast installation
Extended product usage scenarios

Bluetooth® LE-based wireless connection of external devices, including Low Energy beacons and sensors to monitor temperature, humidity, magnet detection, and movement

Product Specifications

Category Specification
Module
Name FMC230-MBIB0: MeiG SLM320-E with Teltonika TM2500
FMC230-MCIB0: MeiG SLM320-LA with Teltonika TM2500
Technology LTE (CaT1)/2G (GSM/GPRS)/GNSS/BLUETOOTH® LE
GNSS
GNSS GPS, GLONASS, GALILEO, BEIDOU, QZSS, AGPS
Receiver 33 tracking channels, 99 acquisition channels
Tracking Sensitivity -165 dBM
Position Accuracy < 2.5 m CEP
Velocity Accuracy < 0.1 m/s (within +/- 15% error)
Hot Start < 1 s
Warm Start < 25 s
Cold Start < 35 s
Cellular
Technology LTE Cat 1, GSM
2G Bands FMC230-MBIB0: GSM: B2/B3/B5/B8
FMC230-MCIB0: GSM: B2/B3/B5/B8
4G LTE Bands (FMC230-MBIB0) LTE FDD: B1/B3/B7/B8/B20/B28
LTE-TDD: B38/B40/B41
4G LTE Bands (FMC230-MCIB0) LTE FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28
LTE-TDD: B40
Data Transfer LTE FDD: Max 10 Mbps (DL)/Max 5 Mbps (UL)
LTE TDD: Max 8 Mbps (DL)/Max 2 Mbps (UL)
GPRS: Max 85.6 Kbps (DL)/Max 85.6 Kbps (UL)
Data Support SMS (text/data)
Power
Input Voltage Range 10 - 30 V DC with overvoltage protection
Internal Backup Battery 170 mAh Li-Ion battery, 3.7 V (0.63 Wh)
Internal Fuse 3A, 125V
Power Consumption At 12V < 3 mA (Ultra Deep Sleep)
At 12V < 5 mA (Deep Sleep)
At 12V < 16 mA (Online Deep Sleep)
At 12V < 18 mA (GPS Sleep)
At 12V < 33 mA (nominal with no load)
At 12V < 2A Max. (with full Load / Peak)
Bluetooth® Technology
Specification 4.0 + LE
Supported Peripherals Temperature and Humidity sensor, OBDII dongle, Inateck Barcode Scanner, Universal Bluetooth® LE sensors
Physical Specification
Dimensions 70.5 x 67.0 x 25.6 mm (L x W x H)
85.0 x 67.0 x 25.6 mm (with connector socket)
Weight 79 g
Operating Environment
Operating Temperature (without battery) -20 °C to +85 °C
Storage Temperature (without battery) -20 °C to +85 °C
Operating Temperature (with battery) -20 °C to +60 °C
Storage Temperature (with battery) -20 °C to +45 °C
Operating Humidity 5% to 95% non-condensing
Ingress Protection Rating IP67
Battery Charge Temperature 0 °C to +45 °C
Battery Discharge Temperature -20 °C to +60 °C
Battery Storage Temperature -20 °C to +45 °C for 1 month
-20 °C to +35 °C for 6 months
Interface
Digital Inputs 3
Negative Inputs 1 (Digital Input 2)
Impulse Inputs 2 (Digital Input 1, Digital Input 2)
Digital Outputs 3
Analog Inputs 2
CAN Adapter Inputs 1
1-Wire 1
GNSS Antenna Internal High Gain
Cellular Antenna Internal High Gain
USB 2.0 Micro-USB
LED Indication 2 status LED lights
SIM Micro-SIM or eSIM
Memory 128MB internal flash memory
Features
Sensors Accelerometer
Scenarios Green Driving, Over Speeding detection, GNSS Fuel Counter, DOUT Control Via Call, Excessive Idling detection, Immobilizer, iButton Read Notification, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip, Jamming
Sleep Modes GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
Configuration and Firmware Update FOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth® wireless technology)
SMS Configuration, Events, DOUT control, Debug
GPRS Commands Configuration, DOUT control, Debug
Time Synchronization GNSS, NITZ, NTP
Fuel Monitoring LLS (Analog), LV-CAN200, ALL-CAN300, CAN-CONTROL, OBDII dongle
Ignition Detection Digital Input 1, Accelerometer, External Power Voltage, Engine RPM (CAN Adapters, OBDII dongle)
Certification & Approvals
Regulatory CE-RED, E-mark, RCM, Anatel, TRA, CITC, REACH, RoHS, ICASA
Device Type
Tracker
Antenna
Internal GNSS
Internal GSM
Connectivity
2G Bands
4G LTE bands
Hardware inputs
1 - Wire
Analog input
Digital input-DIN
Digital output
Impuls input
Negative inputs
Bluetooth
4.0+LE
Connector Type
Wired
SIM Card
Micro-Sim
eSIM compatible
Ingress Protection
IP67
Battery capacity
170 mAH Li-ion 3.7V
Memory
128MB internal flash memory
Driving behavior
Crash detection
Eco/Green Driving
Excessive Idling detection
Over Speeding detection
Trip
Vehicle protection
GSM Jamming detection
Immobilizer
Manual Geofence
Towing Detection
Unplug detection
FMC230
No reviews

Related Products & Accessories

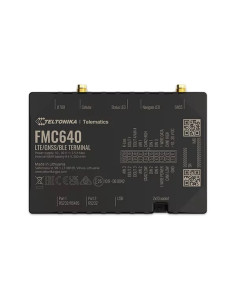

Teltonika 4G Dual SIM Bluetooth RS232/RS485 CAN data reading Tachograph Professional Vehicle Tracking
Last items in stock
Mobile Networking

Teltonika FMC640 4G Dual SIM Bluetooth RS232/RS485 CAN data reading Tachograph...

Teltonika
FMC640
$280.56
FMC640 Teltonika FMC640 is a PROFESSIONAL series device with 4G (LTE Cat 1) network coverage including 3G (UMTS), 2G (GSM) fallback compatibility. Device equipped with GNSS/LTE and Bluetooth modules. FMC640 will maximize your fleet efficiency with features like FMS CAN data (J1939), fuel CAN data (J1708), tachograph live data (K-Line), remote tachograph...

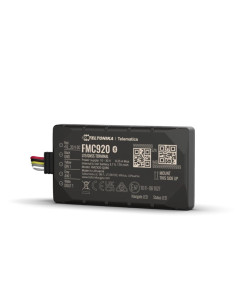

Teltonika FMC920 | Buy Teltonika FMC920 Small and Smart GPS Tracker with a 4G CAT 1 Connectivity | WISP Australia
Last items in stock
Telematics

Teltonika FMC920 Small and Smart GPS Tracker with a 4G CAT 1 Connectivity

Teltonika
FMC920
$94.60
FMC920 The most popular compact 4G LTE Cat 1 model for basic tracking Teltonika FMC920 is a small and smart tracker with Bluetooth connectivity, internal High Gain GNSS and GSM antennas and an integrated backup battery. The 4G Cat 1 technology offers much higher bandwidth, lower latency and improved spectrum efficiency.The model is compact, reliable,...
Teltonika FMC130 | Buy Teltonika Advanced LTE Terminal with Flexible Inputs Configuration | WISP Australia
Last items in stock
Telematics

Teltonika FMC130 Advanced LTE Terminal with Flexible Inputs Configuration

Teltonika
FMC130
$106.70
FMC130 Advanced 4G LTE Cat 1 tracker with flexible inputs FMC130-MCIB0 is small and professional real-time tracking terminal with GNSS and LTE/GSM connectivity and backup battery. Device equipped with GNSS/Bluetooth and LTE modules, internal GNSS, LTE antennas, configurable digital, analogue inputs and digital outputs, negative input, impulse inputs. It...

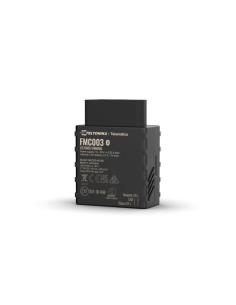

Teltonika FMC003| Buy Teltonika 4G LTE Cat 1 Advanced OBDII Tracker with Bluetooth | WISP Australia
In Stock
Telematics

Teltonika FMC003 4G LTE Cat 1 Advanced OBDII Tracker with Bluetooth

Teltonika
FMC003
$158.40
FMC003 4G LTE Cat 1 tracker with OBD OEM data reading FMC003 is a small plug and play device with LTE CAT 1 network coverage including 2G (GSM) fallback compatibility. Main feature of FMC003 is its possibility to read OEM parameters (PIDs) via OBD port. With this device you will be able to read Real Odometer and Real Fuel Level data. More to that,...
Teltonika FMC234| Buy Teltonika FMC234 Water-resistant 4G LTE Cat 1 tracker with high-capacity battery | WISP Australia
Out Of Stock
Telematics

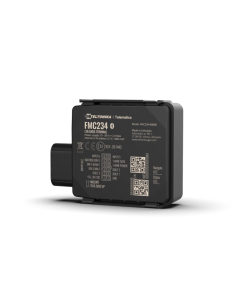

Teltonika FMC234 Water-resistant 4G LTE Cat 1 tracker with high-capacity battery

Teltonika
FMC234
$124.30
FMC234   FMC234 with 1000 mAh high-capacity battery, ensures prolonged autonomous usage, when external power is lost or disconnected. It comes equipped with internal GNSS, LTE antennas, configurable digital, analog, negative and impulse inputs, three DOUT outputs, Bluetooth connectivity, and backup battery. Device also includes integrated possibility to...
View

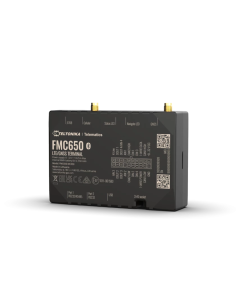

Teltonika FMC650| Buy Teltonika FMC650 Professional LTE/GNSS/BLE terminal with 4G LTE Cat 1 tracker including 2G |WISP
*** Out of stock ATM, Available On Backorder ***
Telematics

Teltonika FMC650 Professional LTE/GNSS/BLE terminal with 4G LTE Cat 1 tracker + 2G...

Teltonika
FMC650
$211.20
FMC650 Teltonika FMC650 is a direct successor to current most popular 4G PROFESSIONAL lineup device – FMC640. FMC650 has 4G (LTE Cat 1) network coverage including 2G (GSM) fallback compatibility. Device equipped with GNSS and LTE modules, external GNSS and LTE antennas. Separate GNSS module improves the accuracy of the track, making FMC650 more suitable...
Teltonika FMC880 | Buy Teltonika FMC880 Water-resistant high GNSS precision battery-mounted 4G LTE Cat 1 tracker| WISP Australia
Last items in stock
Telematics

Teltonika FMC880 Water-resistant high GNSS precision battery-mounted 4G LTE Cat 1 tracker

Teltonika
FMC880
$135.30
FMC880 The Teltonika FMC880 is a versatile and advanced vehicle tracking device designed to provide real-time monitoring and management of fleet vehicles. 4G (LTE Cat 1) connection with fallback to 2G (GSM) network Improved GNSS tracking accuracy Standalone L1 and L5 dual-band GNSS receiver ensures better track quality and quick time to first fix...

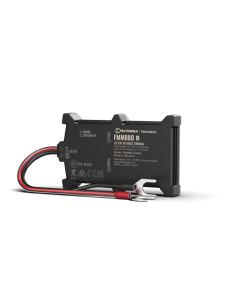

Teltonika FMM880 | Buy Teltonika FMM880 Water-resistant high GNSS precision battery-mounted 4G LTE Cat M1 tracke| WISP Australia
*** Out of stock ATM, Available On Backorder ***
Telematics

Teltonika FMM880 Water-resistant high GNSS precision battery-mounted 4G LTE Cat M1 tracke

Teltonika
FMM880
$131.67
FMM880 Water-resistant high GNSS precision battery-mounted 4G LTE Cat M1 tracke The Teltonika FMC880 is a versatile and advanced vehicle tracking device . Support both LTE Cat M1 and NB LoT connectivity key features: Improved GNSS tracking accuracy Standalone L1 and L5 dual-band GNSS receiver ensures better track quality and quick time to first fix...
FMM800
*** Out of stock ATM, Available On Backorder ***
Telematics

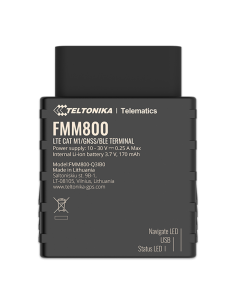

Teltonika FMM800 Plug & Play tracker with 4G LTE Cat M1 connectivity

Teltonika
FMM800
$128.70
FMM800 Plug & Play tracker with 4G LTE Cat M1 connectivity key features: Future-proof network support Global network coverage for a wider range of markets and projects OBD port connector Hassle-free wireless device installation to save company resources and preserve vehicle warranty Crash detection Built-in accelerometer ensures accurate...
FMM130
*** Out of stock ATM, Available On Backorder ***
Telematics

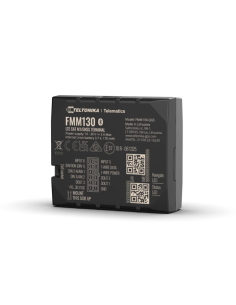

Teltonika FMM130 Advanced 4G LTE Cat M1 tracker with flexible inputs
