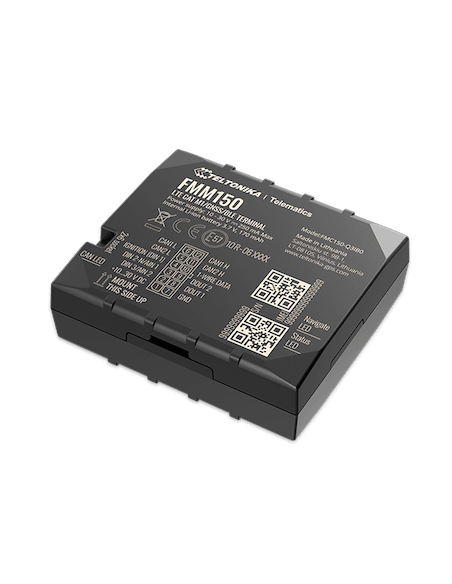

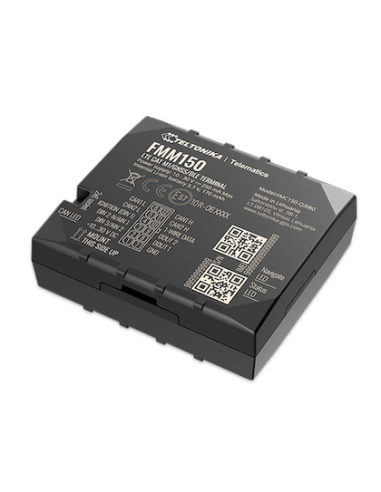

Teltonika FMM150 Advanced 4G LTE Cat M1 GPS tracker with integrated CAN data processor

FMM150
*** Out of stock ATM, Available On Backorder ***
$163.90
Tax included

FMM150
GNSS/LTE CAT 1/GSM/Bluetooth tracker with integrated can adapter and internal GNSS/GSM antennas and internal battery

FMM150 is an ADVANCED 4G CAT 1/GSM/GNSS/Bluetooth tracker with integrated CAN data processor. It is compact 2 in 1 solution: GPS tracker and CAN adapter inside! Device allows to read CAN data from a wide range of various vehicles, including light & electric vehicles, trucks and buses. With the current software version FMM150 can be used in advanced applications as logistics, delivery services, utility transport, car sharing and more. For now, one SW option is available to fulfil your business demands:

A default FMM150 software version with LV-CAN parameters, including fuel level, consumption, odometer, CAN speed, pedal position, Supported vehicle types: light vehicles, electric vehicles, trucks and buses

Key Features:

4G CAT 1
Reliable 4G (LTE Cat 1) connection with fallback 2G (GSM) network

CAN DATA FOR EV VEHICLES
CAN module allows data reading from electric vehicles (EV)

INTEGRATED CAN DATA PROCESSOR
Allows to monitor real fuel consumption and level, full mileage, engine temperature and more

NEGATIVE INPUT
Allows easier installation of accessories

Quantity Unit price You Save
5 $147.51 $81.95
10 $139.32 $245.85
20 $126.20 $753.94


FMM150

GNSS/LTE CAT 1/GSM/Bluetooth tracker with integrated can adapter and internal GNSS/GSM antennas and internal battery

Built-in CAN bus data reading chip

Reading CAN data from light & electric vehicles, trucks, buses and special machinery

Supporting over 40 can parameters

Extensive data collection enables detailed analysis of vehicle operations, facilitating effective maintenance and performance optimisation

CAN data reading from EVS

Bringing new value and expanding usage scenarios with more than 100 supported vehicles in the EV market

Know the supported vehicles and data

Supported vehicle list with all available manufacturer models and parameters

PRODUCT SPECIFICATIONS

MODULE
Name Quectel BG95-M3, Teltonika TM2500
GNSS
GNSS GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS
Tracking sensitivity -165 dBM
Receiver 33 tracking channels, 99 acquisition channels
Position Accuracy < 2.5 m CEP
Hot start < 1 s
Warm start < 25 s
Cold start < 35 s
CELLULAR
Technology LTE Cat M1/CAT NB1, EGPRS
2G bands B2/B3/B5/B8
4G LTE Cat M1 bands B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B27/B28/B66/B85
B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B28/B66/B71/B85 (NB2)
Data transfer LTE: Max. 588Kbps (DL)/Max.1119Kbps (UL)
GPRS: Max. 107Kbps (DL)/Max. 85.6Kbps (UL)
Data support SMS (text/data)
POWER
Input voltage range 10–30 V DC with overvoltage and reverse polarity protection
Internal Back-up battery 170 mAh Li-Ion battery, 3.7 V (0.63 Wh)
BLUETOOTH
Specification 4.0 + LE
Supported peripherals Temperature and Humidity sensor, Inateck Barcode Scanner, Universal BLE sensors support
PHYSICAL SPECIFICATION
Dimensions 65 x 56.6 x 20.6 mm (L x W x H)
Weight 55 g
OPERATING ENVIRONMENT
Operating temperature -40 °C to +85 °C (without battery)
Storage temperature -40 °C to +85 °C (without battery)
Operating humidity 5% to 95% non-condensing
Ingress Protection Rating IP41
Battery charge temperature 0 °C to +45 °C
Battery discharge temperature -20 °C to +60 °C
Battery storage temperature -20 °C to +45 °C for 1 month
-20 °C to +35 °C for 6 months
INTERFACE
Digital Inputs 3
Negative Inputs 1 (Digital Input 2)
Impuls Inputs 2 (Digital Input 1, Digital Input 2)
Digital Outputs 2
Analog Inputs 2
CAN interfaces 2
1-Wire 1
GNSS antenna Internal High Gain
Cellular antenna Internal High Gain
USB 2.0 Micro-USB
LED indication 3
SIM Micro-SIM or eSIM
Memory 128MB internal flash memory
FEATURES
CAN Data Fuel Level (Dashboard), Total fuel consumption, Vehicle speed (wheel), Vehicle driven distance, Engine speed (RPM), Accelerator pedal position
Supported protocols OEM, J1939, IES500, IES125
Sensors Accelerometer
Scenarios Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, DOUT Control Via Call, Excessive Idling detection, Immobilizer, iButton Read Notification, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip
Sleep modes GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
Configuration and firmware update FOTA WEB, FOTA, Teltonika Configurator (USB, Bluetooth®)
SMS Configuration, Events, DOUT control, Debug
GPRS commands Configuration, DOUT control, Debug
Time Synchronization GNSS, NITZ, NTP
Ignition detection Digital Input 1, Accelerometer, External Power Voltage, Engine RPM
CERTIFICATION & APPROVALS
Regulatory CE/RED, E-Mark, RCM, RoHS, REACH
Device Type
Tracker
Antenna
Internal GNSS
Internal GSM
Connectivity
4G LTE bands
Power Supply
10-30V DC
Platform
FMB Platform
Hardware inputs
1 - Wire
Impuls input
Negative inputs
Bluetooth
4.0+LE
Connector Type
Wired
SIM Card
Single SIM card
eSIM compatible
CAN bus
Built-in CAN adapter
Ingress Protection
IP41
Battery capacity
170 mAH Li-ion 3.7V
Memory
128MB internal flash memory
Supported accessories
1-Wire RFID/iButton
1-Wire temperature sensor
Alarm button
BLE beacons
BLE sensors
Driving behavior
Crash detection
Eco/Green Driving
Excessive Idling detection
Over Speeding detection
Trip
Vehicle protection
Auto Geofence
GSM Jamming detection
Immobilizer
Towing Detection
Unplug detection
