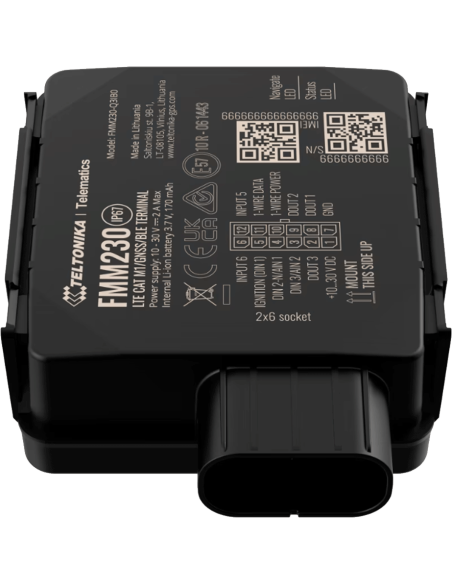

Teltonika FMM230 Water-resistant 4G LTE Cat M1 tracker with flexible inputs

FMM230
*** Out of stock ATM, Available On Backorder ***
$126.50
Tax included

FMM230 Water-resistant 4G LTE Cat M1 tracker with flexible inputs

FMM230 is WATER and DUST resistant real-time tracking terminal with LTE CAT M1 network coverage including 2G (GSM) fallback compatibility. It comes equipped with internal GNSS, LTE antennas, configurable digital, analog, negative and impulse inputs, three DOUT outputs, Bluetooth connectivity, and backup battery. The device has an integrated possibility to enable Impulse Input for precise fuel flow meter data reading. Impulse based fuel usage monitoring is much more accurate than a different type of fuel metering sensors and it makes
the FMM230 a perfect solution for high fuel usage machines like cranes, construction vehicles, mining machines, agriculture equipment. Additionally, FMM230 device has IP67 certified casing which provides a total protection against dust and resistance to water in a depth of up to 1 meter for at least 30 minutes. As a result, FMM230 can be used in agriculture, construction and mining or any other fleet where harsh tracking conditions exists.

Key features:

IP67 CASING

Reliable tracking in harsh conditions

LTE CAT M1

Device supports LTE CAT M1 connectivity, which allows low-power wide area technologies to be used

NEGATIVE INPUT

Allows easier installation of accessories

IMPULSE INPUTS

Suitable for fuel flow meters data reading

Quantity Unit price You Save
5 $113.85 $63.25
10 $107.53 $189.75
20 $97.41 $581.90

Related Products & Accessories



FMM230 Water-resistant 4G LTE Cat M1 tracker with flexible inputs

Protection against dust and water

Robust IP67-rated casing provides trusted protection against dust and resistance to water

No additional tools needed

Innovative click-type two-phase closing with no additional tools needed

Different cable options

Standard and U-type cable options available to ensure easy and fast installation

Extended product usage scenarios

Bluetooth® LE-based wireless connection of external devices, including Low Energy beacons and sensors to monitor temperature, humidity, magnet detection, and movement

Product Specifications

Module
Name FMM230-Q3IB0: Quectel BG95-M3 with Teltonika TM2500
Technology LTE CAT M1/NB-IoT/GSM/GPRS/GNSS/BLUETOOTH® LE
GNSS
GNSS GPS, GLONASS, GALILEO, BEIDOU, QZSS, AGPS
Receiver 33 tracking channels, 99 acquisition channels
Tracking Sensitivity -165 dBM
Position Accuracy < 2.5 m CEP
Velocity Accuracy < 0.1 m/s (within +/- 15% error)
Hot Start < 1 s
Warm Start < 25 s
Cold Start < 35 s
Cellular
Technology LTE CAT M1/NB-IoT/GSM
2G Bands B2/B3/B5/B8
4G LTE CAT M1 Bands B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B27/B28/B66/B85
4G LTE CAT NB2 Bands B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B28/B66/B71/B85
GSM Bands 850/900/1800/1900
Data Transfer LTE: Max. 588Kbps (DL)/Max.1119Kbps (UL)
GPRS: Max. 107Kbps (DL)/Max. 85.6Kbps (UL)
Transmit Power GSM850/900: 23±2dBm
GSM1800/1900: 20±2dBm
LTE-TDD: 23±2.7dBm
LTE-FDD: 23±2.7dBm
Data Support SMS (text/data)
Bluetooth® Technology
Bluetooth Specification 4.0 + LE
Supported Peripherals Temperature and Humidity sensor, OBDII dongle, Inateck Barcode Scanner, Universal Bluetooth® LE sensors
Physical Specification
Dimensions 70.5 x 67.0 x 25.6 mm (L x W x H)
85.0 x 67.0 x 25.6 mm (length with connector socket)
Weight 75 g
Operating Environment
Operating Temperature (without battery) -20 °C to +85 °C
Storage Temperature (without battery) -20 °C to +85 °C
Operating Temperature (with battery) -20 °C to +40 °C
Storage Temperature (with battery) -20 °C to +45 °C
Operating Humidity 5% to 95% non-condensing
Ingress Protection Rating IP67
Battery Charge Temperature 0 °C to +45 °C
Battery Discharge Temperature -20 °C to +60 °C
Interface
Inputs 3 Digital Inputs, 1 Negative Input, 2 Impulse Inputs
Outputs 3 Digital Outputs
Analog Inputs 2
CAN Adapter Inputs 1
1-Wire 1
GNSS Antenna Internal High Gain
Cellular Antenna Internal High Gain
USB 2.0 Micro-USB
LED Indication 2 status LED lights
SIM Micro-SIM or eSIM
Memory 128MB internal flash memory
Features
Sensors Accelerometer
Scenarios Green Driving, Over Speeding detection, GNSS Fuel Counter, DOUT Control Via Call, Excessive Idling detection, Immobilizer, iButton Read Notification, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip
Sleep Modes GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
Configuration & Firmware Update FOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth® wireless technology)
SMS Configuration, Events, DOUT control, Debug
GPRS Commands Configuration, DOUT control, Debug
Time Synchronization GNSS, NITZ, NTP
Fuel Monitoring LLS (Analog), LV-CAN200, ALL-CAN300, CAN-CONTROL, OBDII dongle
Ignition Detection Digital Input 1, Accelerometer, External Power Voltage, Engine RPM (CAN Adapters, OBDII dongle)
Certification & Approvals
Regulatory CE-RED, E-mark, RCM, RoHS, Reach, ANATEL, FCC

Device Type
Tracker
Antenna
Internal GNSS
Internal GSM
Connectivity
2G Bands
4G LTE Cat M1 bands
Hardware inputs
1 - Wire
Analog input
Digital input-DIN
Digital output
Impuls input
Negative inputs
Bluetooth
4.0+LE
SIM Card
Micro-Sim
eSIM compatible
Ingress Protection
IP67
Battery capacity
170 mAH Li-ion 3.7V
Memory
128MB internal flash memory
Driving behavior
Crash detection
Eco/Green Driving
Excessive Idling detection
Over Speeding detection
Trip
Vehicle protection
GSM Jamming detection
Immobilizer
Manual Geofence
Towing Detection
Unplug detection
4779027310305
FMM230
