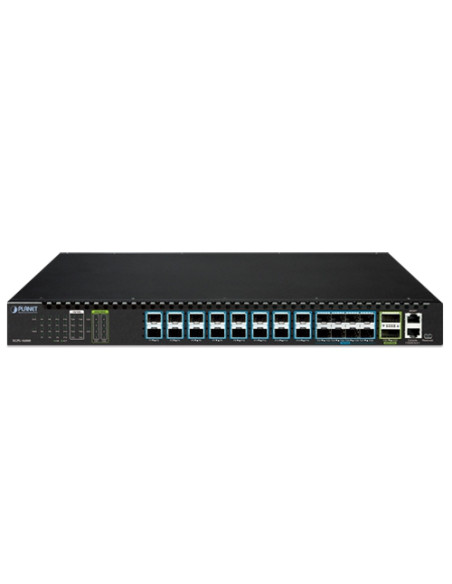

XGPL-16000 Planet 16-Port XGS-PON OLT 10Gbps Access 8× 10G SFP+ 2× 100G QSFP28 for Large-Scale Fiber Deployments

High-Performance 16-Port XGS-PON OLT with 40G/100G Uplink Capability

PLANET XGPL-16000 is a high-density 16-Port XGS-PON Optical Line Terminal (OLT) designed for next-generation fiber broadband access networks. It integrates 16 XGS-PON ports, 8 10G SFP+ ports, and 2 40G/100G QSFP28 uplink ports, offering exceptional scalability and bandwidth aggregation for large-scale deployments.

Key Features:

  • 16 XGS-PON SFP slots with a 1:256 split ratio per port
  • Two 40G/100G QSFP28 uplink interfaces for high-capacity backbone connectivity
  • Eight 10G SFP+ ports for flexible service expansion or link redundancy
  • Dual hot-swappable power supply (AC/DC/mixed) with front-to-back airflow
  • Full L2/L3 features including VLAN, Q-in-Q, IGMP snooping, LACP, and RIP/OSPF
  • Powerful QoS and SLA mechanisms with DBA per ONU
  • CLI, SNMP, Telnet, and out-of-band management support


- Power Supply Options

Planet GPL-PWR75-DC power supply (36V~72VDC)

$220.00

Planet GPL-PWR75-AC 75W power supply (100V-240VAC)

$220.00

- SFP Modules

Planet Multi-Mode MTB-TSR 300m 10G SFP+ Fiber Transceiver

$62.52

Planet MTB-RJ 30m 10GBASE-T SFP+ Copper RJ45 Transceiver

$190.74

Planet Multi-Mode MTB-SR 300M 10G SFP+ Fiber Transceiver (Multimode)

$47.30

Planet Single-Mode MTB-LR 10G SFP+ Fiber Transceiver – 10KM

$68.44

Planet Single-Mode MTB-LR20 10G SFP+ Fiber Transceiver (1310nm, DDM) – 20KM

$170.56

Planet Single-Mode MTB-TLR 10G SFP+ Fiber Transceiver (DDM, -40~75C) -10KM

$88.64

Planet Single-mode MTB-SR2 10G SFP+ Fiber Transceiver (1310nm, DDM) 2KM

$56.10

Planet Multi-Mode MGB-TSB Mini GBIC Multi-mode WDM Tx-1550, 2km ,1000Mbps Gigabit SFP Fiber Transcei

$46.27

Planet Multi-Mode MGB-TSA Mini GBIC Multi-mode WDM Tx-1310, 2KM, 1000Mbps SFP fiber transceiver

$46.27

Planet Single-Mode MGB-TLX Mini GBIC LX Module – 20KM, extended temperature 1000Mbps Gigabit SFP Fib

$41.59

Planet MGB-GT Mini GBIC TP Module – 100M, 1000Mbps Gigabit Ethernet SFP Fiber Transceiver

$59.29

Planet MGB-TGT Mini GBIC TP Module – 100M , extended temperature 1000Mbps Gigabit Ethernet SFP Fiber

$72.93

Planet Multi-mode MGB-SX2 Mini GBIC SX Module – 2KM (0~60C),1000Mbps Gigabit Ethernet SFP Fiber Tran

$41.80

Planet Single Mode MGB-LX Mini GBIC LX Module – 20KM (0~60C),1000Mbps Gigabit Ethernet SFP Fiber Tra

$39.40

Planet Multi-mode MGB-TSX Mini GBIC SX Module, DDM Supported – 220-550M, extended temperature 1000Mb

$40.50

Planet Single-Mode MGB-L40 Mini GBIC LX Module – 40KM ,1000Mbps Gigabit Ethernet SFP Fiber Transceiv

$67.32

Planet Single-Mode MGB-2GTLA20 2.5G SFP Transceiver (WDM, TX:1310nm RX:1550nm, DDM, -40~75°C) – 20km

$90.00

MGB-TSX2 Planet 1000BASE-SX mini-GBIC MultiMode module, SFP transceiver, up to 2Km, -40 to 75°C, DDM

$42.64

Planet MGB-SX Mini GBIC SX Module 1G Multimode SFP Transceiver (550m)

$41.80

Planet XGPL-XGSFP-N1High-Performance XGS-PON OLT SFP Transceiver for Advanced Fiber Networks

$402.60

Related Products & Accessories



XGPL-16000

High-capacity Aggregation and Access

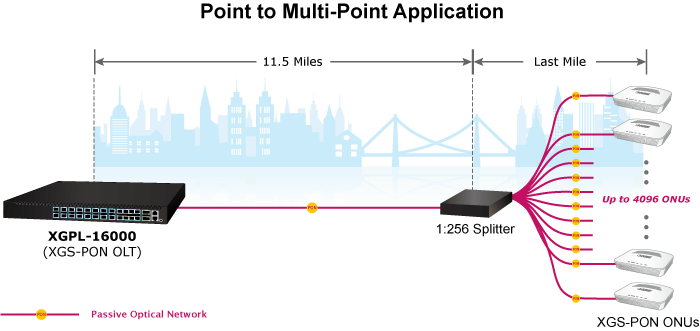

The XGPL-16000 supports a 1:256 split ratio per port, enabling access to up to 4096 ONUs in total. Each XGS-PON port provides symmetric 10Gbps downlink/uplink bandwidth, significantly outperforming legacy GPON systems. It supports N1/N2 XGS-PON transceivers and multiple GPON optical classes (B+/C+/C++/C+++/D+), making it backward compatible and deployment-flexible.

Strong Standards Compatibility

The XGPL-16000 is compliant with ITU-T G.9807/G.987/G.988 standards and adheres to China Telecom’s GPON Technical Specification CTC 2.0. It also supports Ethernet-II, IEEE 802.1Q VLAN, Q-in-Q, and LACP, ensuring interoperability with a wide range of equipment and ONUs. The system supports Layer 2 multicast protocols, including IGMP snooping and MLD snooping, ensuring smooth IPTV and video-on-demand service delivery.



Powerful QoS and SLA Management

The device supports comprehensive QoS mechanisms, including IEEE 802.1p, CoS, WRR, SP, and FIFO queue scheduling, ensuring differentiated service levels for various traffic types. It also features DBA (Dynamic Bandwidth Allocation) and SLA (Service Level Agreement) functions per ONU, providing precise bandwidth control and carrier-grade traffic assurance.



Carrier-class Security and Reliability

The XGPL-16000 offers advanced security features, such as ACL (Access Control List), port isolation, broadcast storm suppression, and data encryption over PON interfaces. The system supports Type B and Type C optical path protection, abnormal ONU emission detection, and trunk fiber link protection, ensuring fault tolerance and minimal downtime in critical networks.


Modular, Redundant, and Eco-Friendly Design

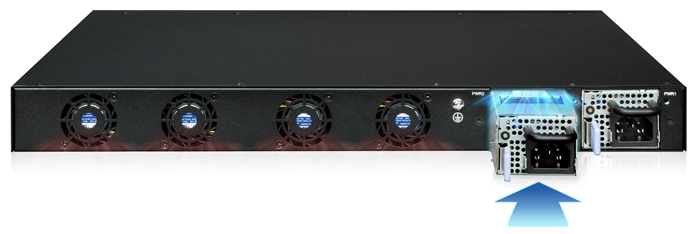

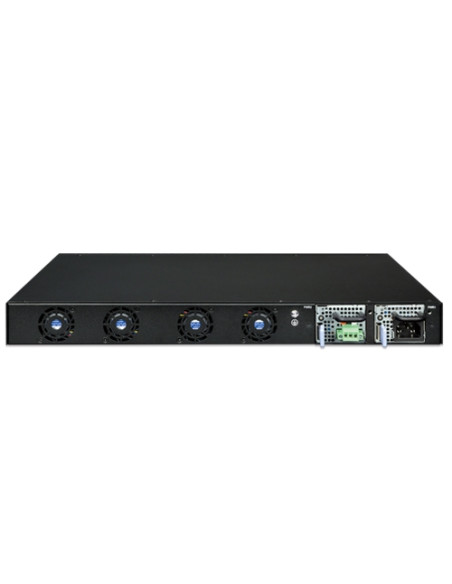

The XGPL-16000 adopts a modular dual-power-slot design, supporting hot-swappable AC, DC, or mixed AC/DC power modules. The fan system uses a front-to-back airflow layout, optimized for rack-mounted deployments. It supports EMC level 3, operates under harsh temperature and humidity conditions, and provides low-noise and low-power operation to meet long-term deployment needs in data centers and equipment rooms.

Flexible and Efficient Management

The device offers multiple management interfaces, including CLI (console), Telnet, SNMP, and out-of-band Ethernet management. It supports TFTP remote software upgrade, debugging output, system logs, and batch ONU provisioning. With strong system maintainability and remote operation capabilities, it ensures simplified network operation and management (OAM).

Product Specifications:

Hardware Specifications

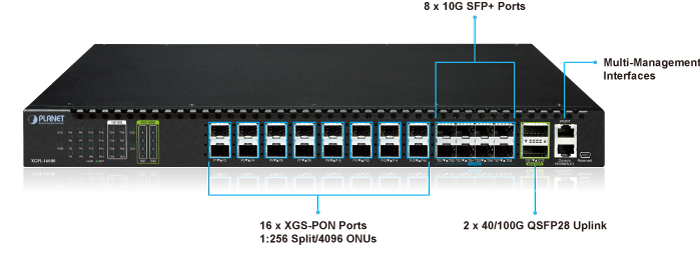

XGS-PON Ports 16, supporting Class B+/C+/C++/C+++/D+ XGS-PON/GPON transceivers
10GBASE-X SFP+ Slots 8, supporting 10GBASE-SR/LR SFP+ transceiver, Backward compatible with 1GBASE-X SFP transceivers
100G QSFP28 Ports 2-port 100G QSFP28, Backward compatible with 40G QSFP+
Management Port One 10/100BASE-TX RJ45 port
Console One RJ45-to-RS232 serial port (115200, 8, N, 1)
RAM 2048MB
Flash Memory 4096MB
Dimensions (W x D x H) 442.5 x 280 x 44.6 mm
Weight 4,600g with single modular power supply
Power Consumption 120 watts/409.56BTU
Power Requirements - AC 100~240V AC, 1.5A max.
Power Requirements - DC 36~72V DC, 3A max.

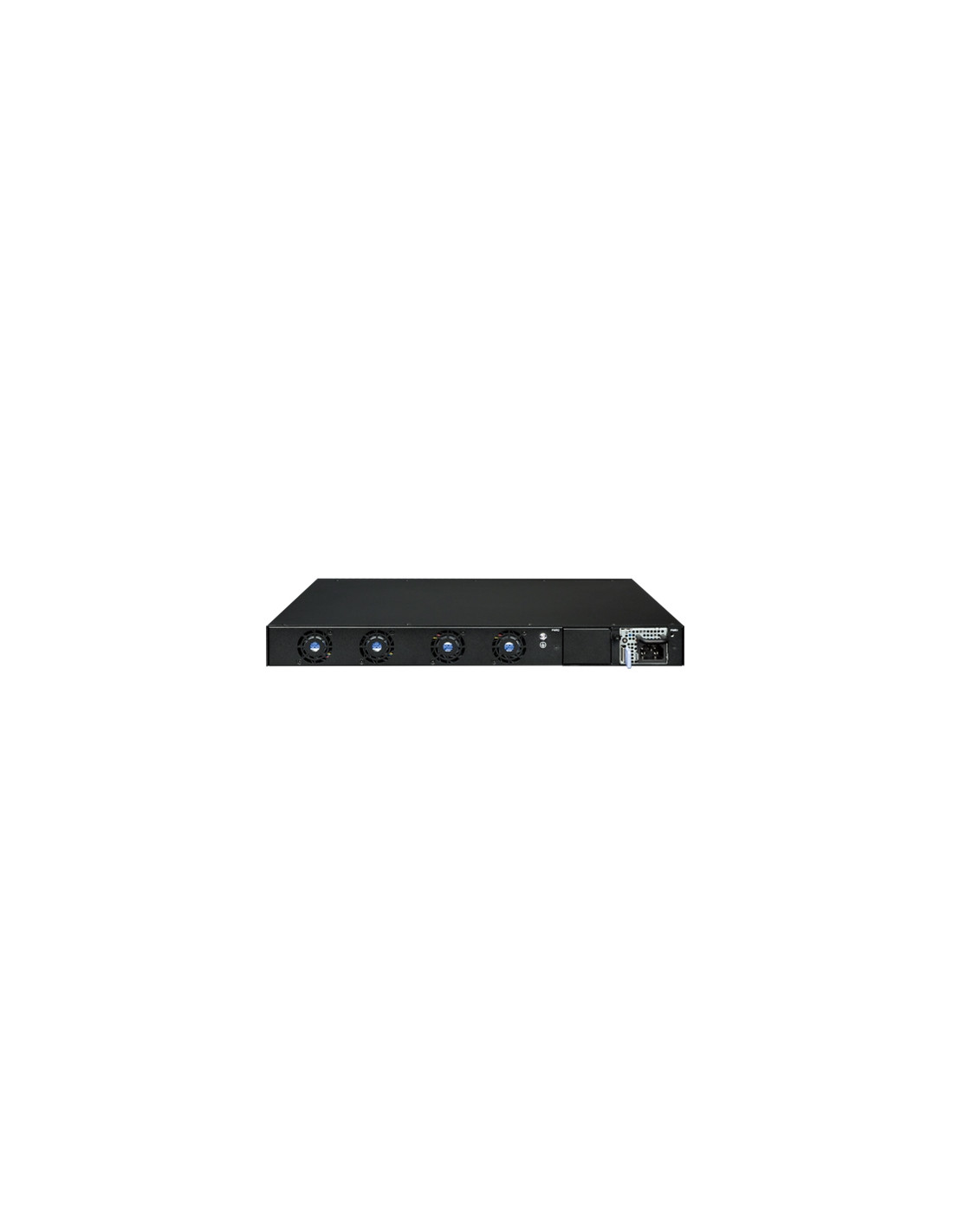

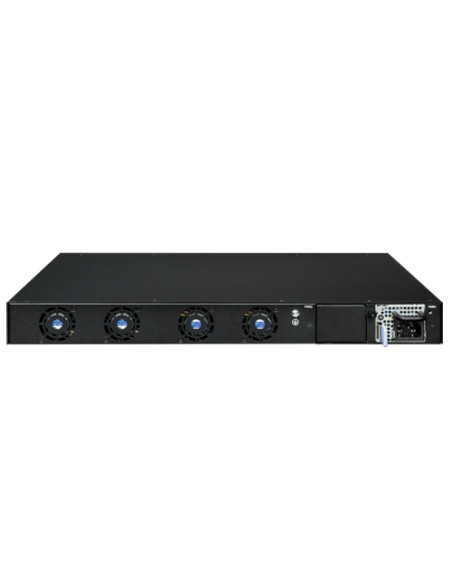

Fan 4 Fans, Front-to-back airflow
Switching
Switch Architecture Store-and-forward
Switch Fabric 176Gbps
Address Table 128K
ARP Table 36K
ACL Table Max. 3840 for IPv4, Max. 1920 for IPv6
Shared Data Buffer 2MB
Jumbo Frame 9KB
Flow Control Back pressure for half duplex, IEEE 802.3x pause frame for full duplex
XGS-PON Specifications
Transmission Speed Downstream: 10Gbps; Upstream: 10Gbps (XGS-PON)
Downstream: 10Gbps; Upstream: 2.5Gbps (XG-PON)
Downstream: 2.5Gbps; Upstream: 1.25Gbps (GPON)
Optical Split Ratio Up to 256 per port
Transmission Distance 20km
PON Module Wavelength XG(S)-PON: TX 1577nm / RX 1270nm, GPON: TX 1490nm / RX 1310nm
PON Fiber Type 9/125um SMF (Single mode fiber optic)
Layer 3 Functions
IP Interfaces Up to 1K VLAN interfaces, shared by both IPv4 and IPv6
Routing Table 8K for IPv4, 20K for IPv6
Routing Protocols Static Routing, RIP, OSPF, BGP, IS-IS, VRRP
Layer 2 Functions
Port Configuration Port disable/enable, Flow control disable/enable, Bandwidth control on each port
Port Mirroring TX/RX/Both, Many to 1
VLAN IEEE 802.1Q tag-based VLAN, up to 4K VLAN groups, Q-in-Q VLAN stacking/tunneling
Spanning Tree Protocol IEEE 802.1D, IEEE 802.1w RSTP, IEEE 802.1s MSTP
Multicast IPv4 IGMP v1/v2/v3 snooping, IPv6 MLD v1/v2 snooping, IGMP Filtering and Throttling
Security Functions
Access Control List Supports Standard and Expanded ACL, IP-based, MAC-based, Time-based
Security Transmission data encryption, MAC limitation, MAC sticky, Port isolation, DHCP snooping
AAA TACACS+ and IPv4/IPv6 over RADIUS
Management Functions
System Configuration Console and Telnet, Web browser, SNMP v1, v2c, SSHv2, SSLv3
System Management IPv4 and IPv6 dual stack management, SNMP MIB and TRAP, RADIUS authentication
Event Management Remote syslog, System log
Environmental Conditions
Operating Temperature 0 ~ 50°C
Relative Humidity (Operating) 5 ~ 90% (
Power Input
AC
DC
Ports
2-Port 100G QSFP28
8-Port 10G SFP+ +
16-Port XGS-PON OLT
PoE Standard
802.3bt (Type 4)
Operating Temperature
0 to 50°C
XGPL-16000
No reviews

Related Products & Accessories

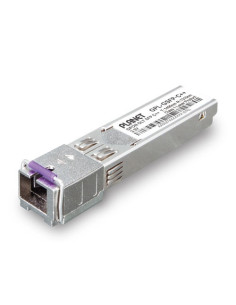

PLANET GPL-GSFP-C++ GPON OLT SFP Transceiver Class C++ 20km
