XGPN-100 Planet XGS-PON SFU ONT with 1-Port 10GbE
Superior Access Performance
PLANET XGPN-100 is a high-performance XGS-PON Single Family Unit (SFU) designed to provide ultra-fast fiber broadband connectivity. With 10Gbps symmetrical transmission speeds, it seamlessly integrates with XGS-PON Optical Line Terminals (OLTs) to deliver high-speed, low-latency, and future-ready networking for residential and enterprise applications. Designed for maximum efficiency and extended coverage, it ensures reliable connectivity across various deployment scenarios.

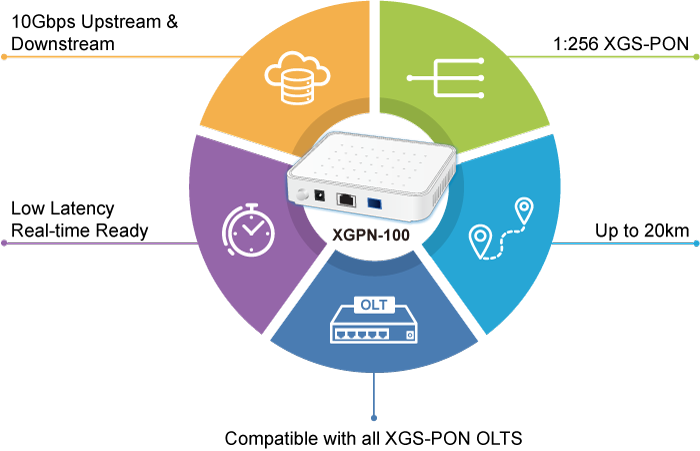

- Blazing-fast 10Gbps upstream and downstream for next-generation broadband access
- Seamless OLT compatibility, supporting XGS-PON deployments with ease
- 1:256 high split ratio, optimizing network capacity and scalability
- Extended 20km coverage range, perfect for FTTH and enterprise networks
- Low latency and stable connections ensure seamless real-time applications
Delivering High-speed Fiber Connectivity for ISP and Enterprise Networks

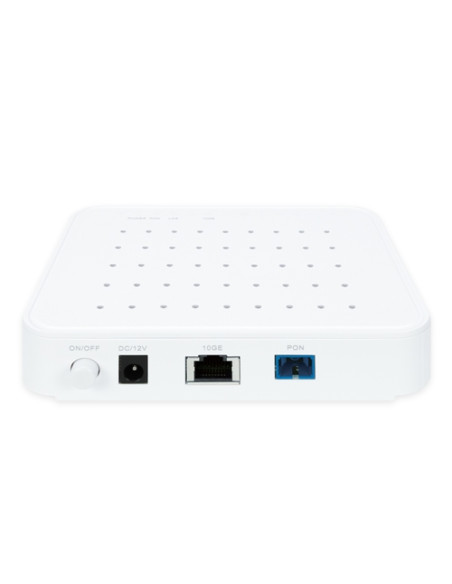

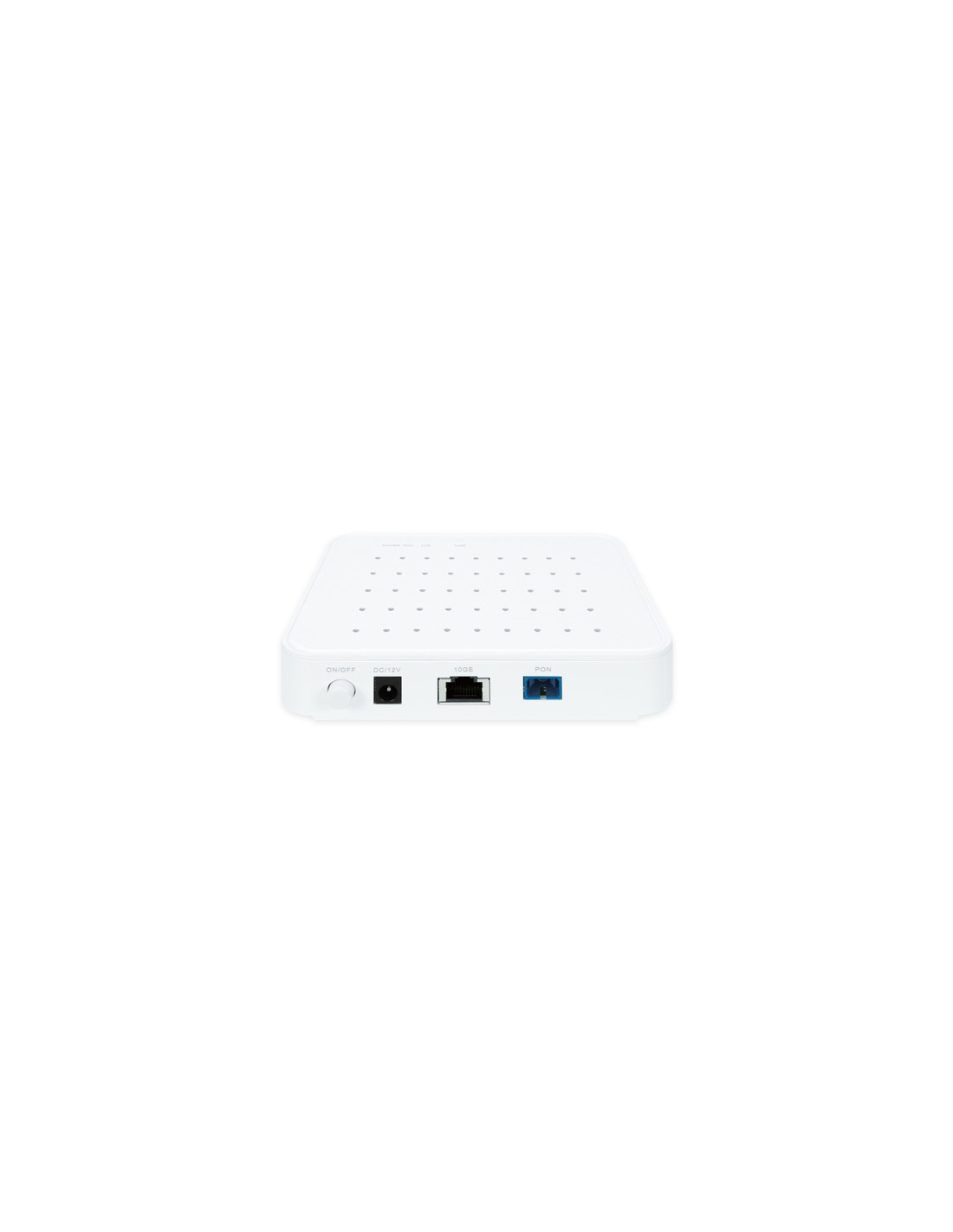

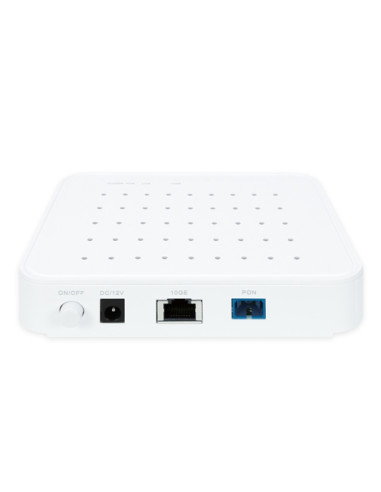

The XGPN-100 features one 10Gbps XGS-PON fiber port and one 10G RJ45 Ethernet port, making it an ideal solution for high-bandwidth applications in both residential and business environments. Whether used for FTTH, enterprise networking, or small business operations, the XGPN-100 ensures seamless ultra-high-speed data transfer with minimal latency.
Perfectly Designed for Fiber-to-the-Premises (FTTP) Applications
Built with a 10Gbps fiber interface, the XGPN-100 can support various optic types for WAN connectivity and can extend network coverage up to 20km over fiber connections. Its high-speed 10G Ethernet port enables direct connection to high-performance networking devices, such as servers, enterprise routers, and high-speed workstations, ensuring a smooth and reliable network experience.
With advanced QoS features, the XGPN-100 can efficiently handle bandwidth-intensive applications, including IPTV, cloud computing, online gaming, and real-time video streaming, while ensuring optimal traffic prioritization and load balancing.
10G Ethernet Port for High-Bandwidth Network Integration

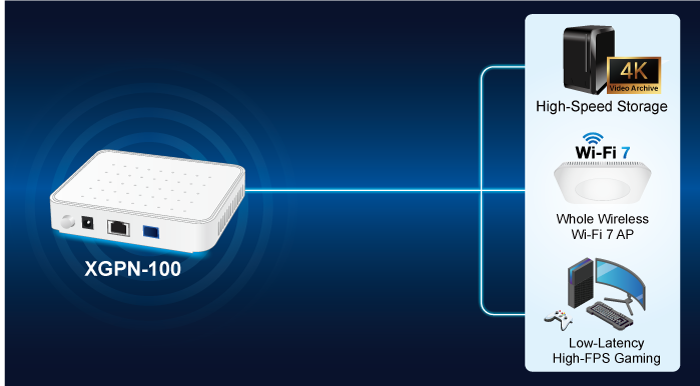

As modern businesses and households demand multi-gigabit connectivity, the XGPN-100 provides a 10G RJ45 port that supports full 10GbE speeds. This allows users to connect directly to high-speed networking equipment, such as NAS, gaming consoles, and external 802.11ax (Wi-Fi 6) or future 802.11be (Wi-Fi 7) access points via Ethernet, delivering superior data transmission speeds and signal quality.
By leveraging standard Cat 6A cables, users can achieve 10Gbps network speeds without costly fiber upgrades, making it a cost-effective and high-performance solution for next-generation networking needs.
Product Specifications:
| Hardware Specifications |
| UNI Port |
1 x 10GBASE-T RJ45 port backward compatible with 100/1G/2.5G/5GBASE-T |
| PON Port |
Transmission rate: Downlink 10Gbps/uplink 10Gbps |
| Network Coverage Radius |
20 kilometers |
| Receiver Sensitivity |
≤-28dBm |
| Transmit Optical Power |
0.5~5dBm |
| Optical Interface Type |
SC/UPC |
| Reset Button |
Press for about 15 seconds to reset the device to factory default |
| Thermal Fan |
Fanless |
| LED Indicators |
PWR (Green), PON (Green), LOS (Red), 10GE (Green) |
| Installation |
Desktop installation or wall mounting |
| Power Requirements |
12V AC, 1A max. |
| Power Consumption |
6W max. |
| Weight |
236g |
| Dimensions (WxDxH) |
140.06 x 105.06 x 27.4mm |
| Enclosure |
Plastic |
| Heat Dissipation |
Extended use of up to 24 hours does not result in performance degradation or damage due to device overheating or deformation. |
| Router Features |
| Data Forwarding |
Routing mode, bridging mode, and hybrid mode (routing and bridging) |
| DNS |
DNS Relay |
| DHCP |
DHCP server |
| VLAN |
Port-based VLAN, IEEE 802.1Q VLAN |
| Multicast |
IGMP snooping, IGMP proxy, MLD snooping, MLD proxy |
| QoS |
Backpressure flow control (Half-duplex), IEEE 802.3x flow control (Full-duplex), Head-of-Line blocking prevention mechanism, IEEE 802.1p, CoS, 8 priority queues per port, WR, SP, and FIFO queue scheduling algorithms, Port rate limiting |
| Reliability |
Loop detection function, Dying gasp function, Type B dual-homing protection |
| Security |
Port protection, Firewall: MAC/IP/Port/URL/Domain name filtering, DDoS protection, Port storm suppression, Port mapping |
| Management Configuration |
Supports multiple management methods: Web, TELNET, TR069, OMCI, and OAM. Firmware upgrade via TFTP/WEB/TR069/OLT |
| Standards Conformance |
| Standards |
ITU-T G.987.3, G.988, G.989. Supports China Communications Industry Standard GB/T 43699-2024 "Access Network Technical Requirements for 10Gbit/s Symmetrical Passive Optical Network (XGS-PON)" IEEE 802.1Q, VLAN |
| Environment Specifications |
| Operating |
Temperature: 0 ~ 50°C, Relative Humidity: 5 ~ 95% (non-condensing) |
| Storage |
Temperature: -10 ~ 60°C, Relative Humidity: 5 ~ 95% (non-condensing) |
