XGPL-XGSFP-N1
*** Out of stock ATM, Available On Backorder ***
$398.57
Tax included

XGPL-XGSFP-N1

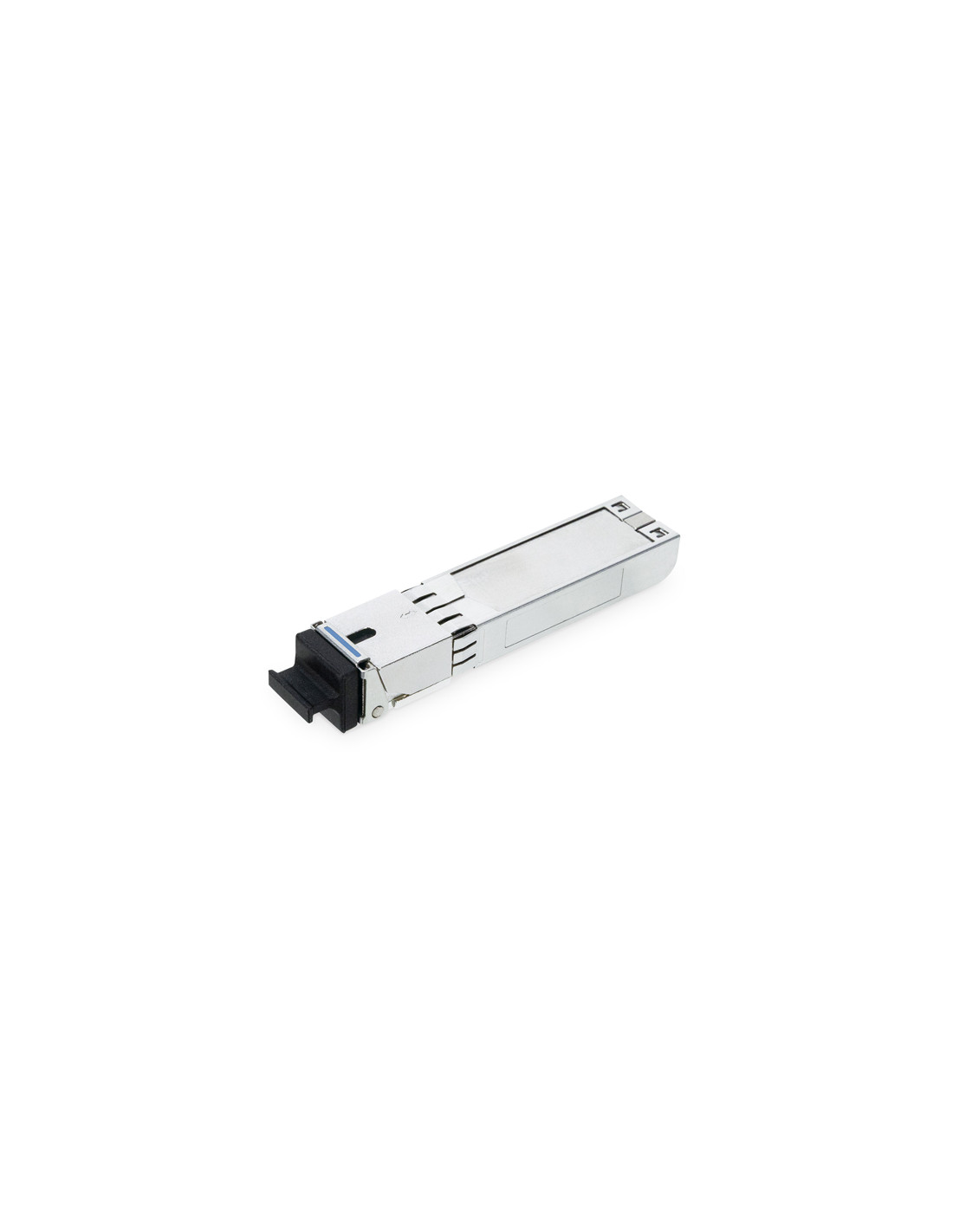

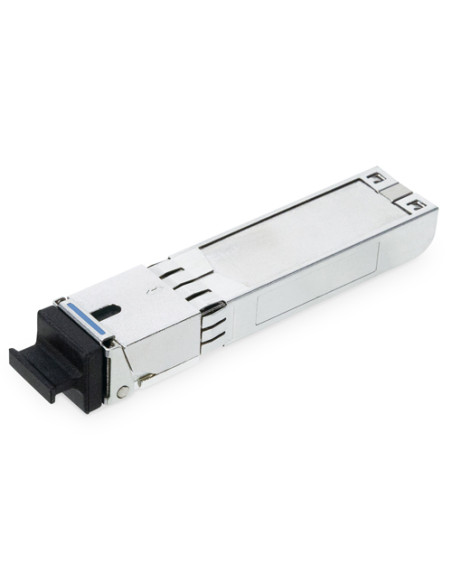

The XGPL-XGSFP-N1 is a N1 XGS-PON OLT SFP Transceiver.

Key Features:

  • XGSPON OLT SFP+ Transceiver
  • Single SC (WDM) interface connector
  • TX: 1577nm, RX: 1270nm
  • Distance up to 20km over 9/125µm fiber cable
  • Optical Power (N1): 2~5dBm
  • Dual-mode burst-mode receiver supports both 10G and 2.5G upstream
  • Excellent EMI Immunity and low power consumption
  • Operating Temperature: -5°C ~ 70°C (Commercial)
  • Digital Diagnostic Monitoring (DDMI)
  • Digital RSSI Monitoring
  • RoHS 6 compliant


XGPL-XGSFP-N1 Planet High-Performance XGS-PON OLT SFP Transceiver for Advanced Fiber Networks

The XGPL-XGSFP-N1 is a N1 XGS-PON OLT SFP Transceiver. The unit features ODN Class N1, download and upload speeds of 10G, 10G/2.5G, wavelength of TX: 1577nm, RX: 1270nm and covers a 20km distance.

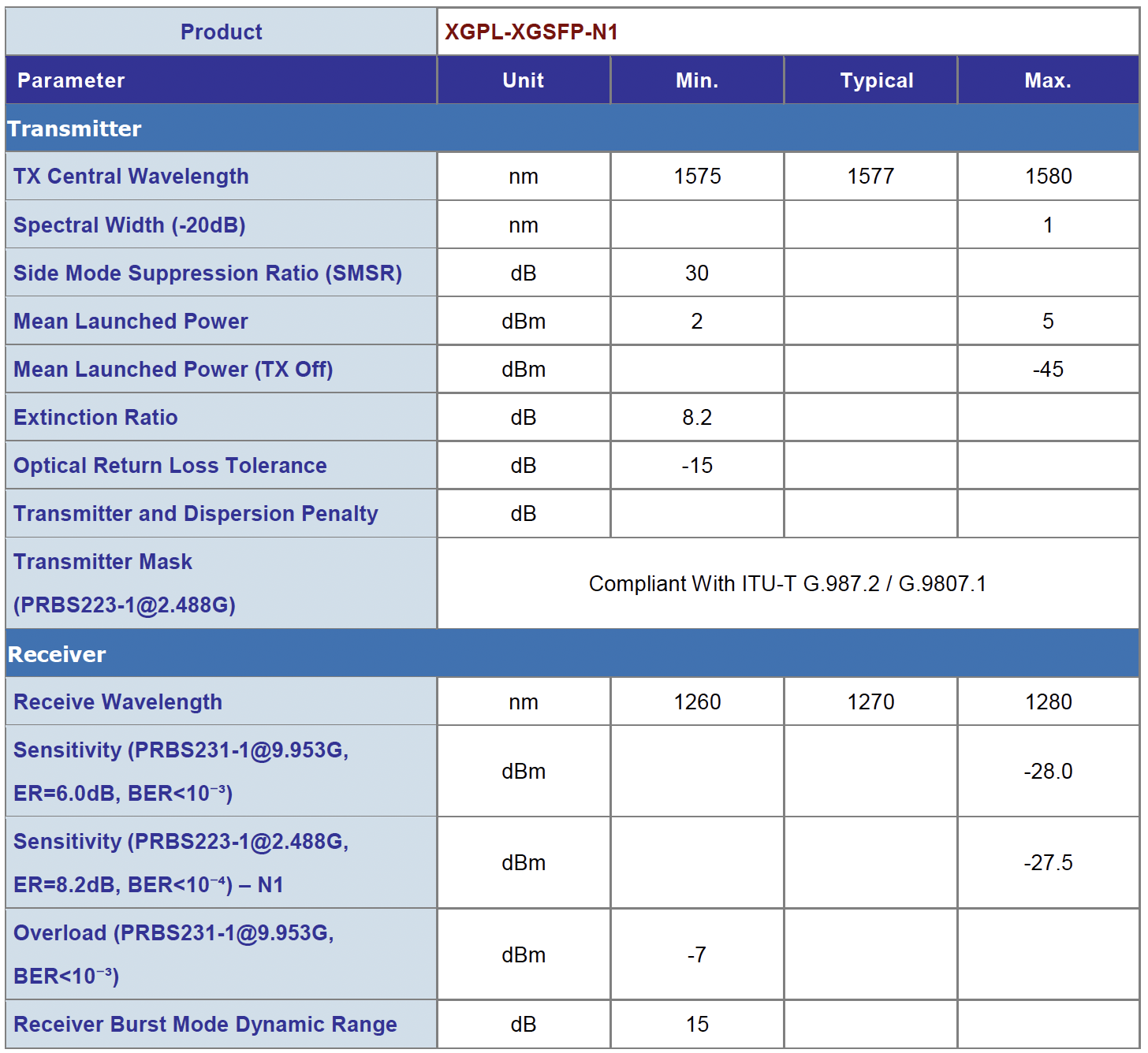

Product Specifications:

Device Type
SFP Module
Device Features
TAA Compliant
Max. Distance
20Km
Wavelength
TX: 1577nm, RX: 1270nm
XGPL-XGSFP-N1
