MGB-SX Planet Mini GBIC SX Module 1G Multimode SFP Transceiver (550m)
Planet MGB-SX |Planet MGB-SX Mini GBIC SX Module 1G Multimode SFP Transceiver (550m)| WISP Australia
  • New
MGB-SX Planet Mini GBIC SX Module 1G Multimode SFP Transceiver (550m)
Planet MGB-SX |Planet MGB-SX Mini GBIC SX Module 1G Multimode SFP Transceiver (550m)| WISP Australia

Planet MGB-SX Mini GBIC SX Module 1G Multimode SFP Transceiver (550m)

MGB-SX
In Stock
$41.80
Tax included

MGB-SX

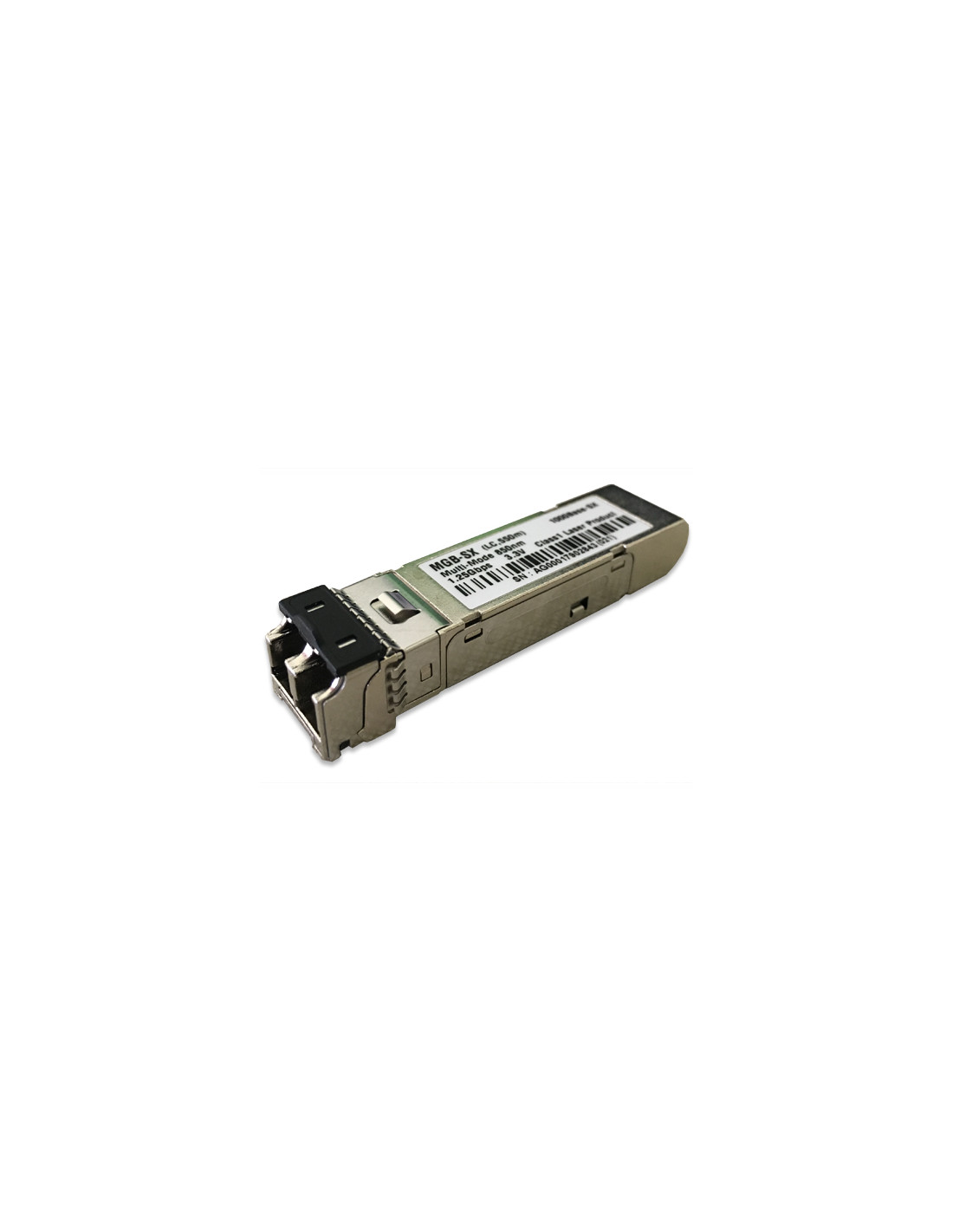

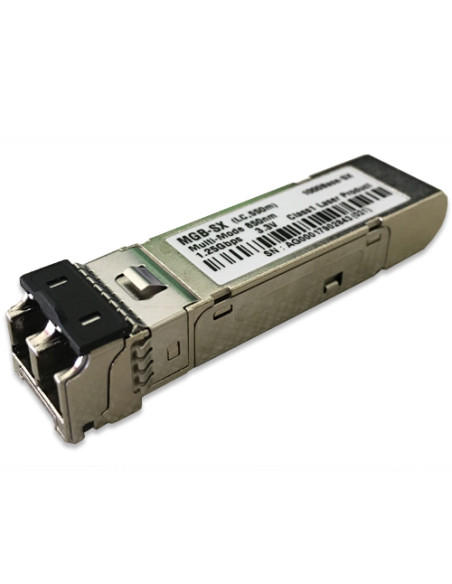

The MGB-SX by Planet Technology is an 1000Mbps Gigabit Ethernet SFP Fiber Transceiver.

Key Features:

  • Data Rate: Supports 1000Base-SX (1 Gbps) Ethernet over fiber
  • Fiber Type: Multimode fiber (MMF)
  • Connector: LC duplex
  • Wavelength: 850 nm
  • Maximum Distance: Up to 550 meters

Related Products & Accessories



MGB-SX Planet Mini GBIC SX Module  1G Multimode SFP Transceiver (550m)

Product Specifications:

Model PHY Type Fiber Type Connector DDM Wavelength Maximum Distance Operating Temperature
MGB-SX IEEE 802.3z 1000BASE-SX Multi-Mode LC Yes 850 nm 550 m 0 ~ 60°C
Device Features
TAA Compliant
Connector
LC
Operating Temperature
0 to 60°C
Fiber Type
Mulitmode
PHY Type
1000Base-SX
Max. Distance
550m
Package
SFP
Wavelength
850nm
MGB-SX
